Demo to preview the plugin:

Introduction

This no-code plugin allows to draw an assortment of geometric shapes. Whether it’s circles, squares, triangles, or more complex shapes, the tool provides a user-friendly interface.
Image without caption

How to setup

  1. Add the Drawboard element to your page.
      • In the Bubble editor, find the Drawboard element in the Visual Elements panel.
      • Drag the element onto your page.

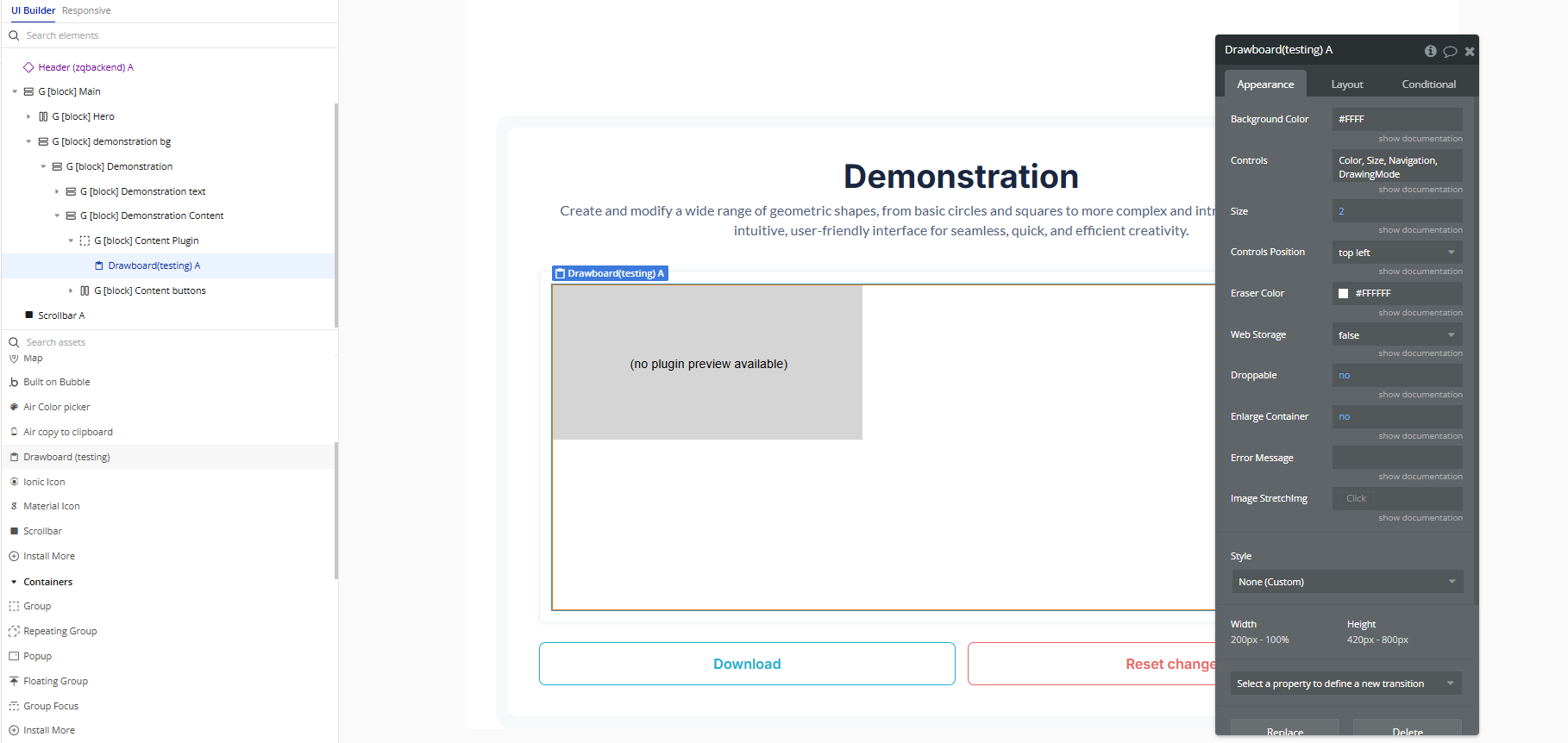

        • Element → Drawboard.
          Element → Drawboard.
      • Configure the main properties:
        • Background Color → sets the background color of the drawing board.
        • Controls → choose which control buttons appear on the board (e.g. Color, Size, Navigation, DrawingMode).
        • Size → defines the thickness of the drawing line.
        • Controls Position → choose where the control buttons appear on the board (e.g. top left).
        • Eraser Color → color used by the eraser to remove drawings.
        • Web Storage → if set to “true,” keeps the drawing even after refreshing the page.
        • Droppable → defines whether you can drag and drop files onto the board.
        • Enlarge Container → if enabled, the Drawboard expands to fill the entire size of its container.
        • Error Message → message displayed if the Drawboard fails to load.
        • Image StretchImg → controls how a background image stretches or fits into the board
    1. To Clear the Drawing
        • Create a workflow in Bubble.
        • Add the action Clear A Drawboard.
        • Choose which Drawboard element you want to clear.

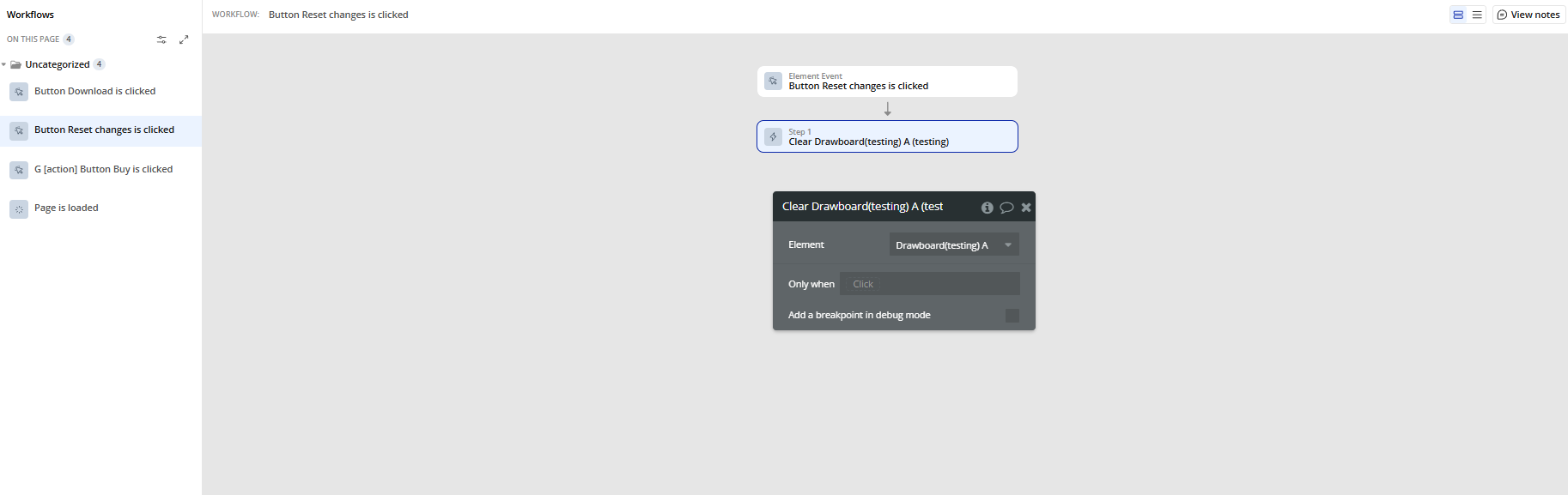

          • Workflow → Clear.
            Workflow → Clear.
    2. To Download the Drawing
        • Create a workflow in Bubble.
        • Add the action Download A Drawboard.

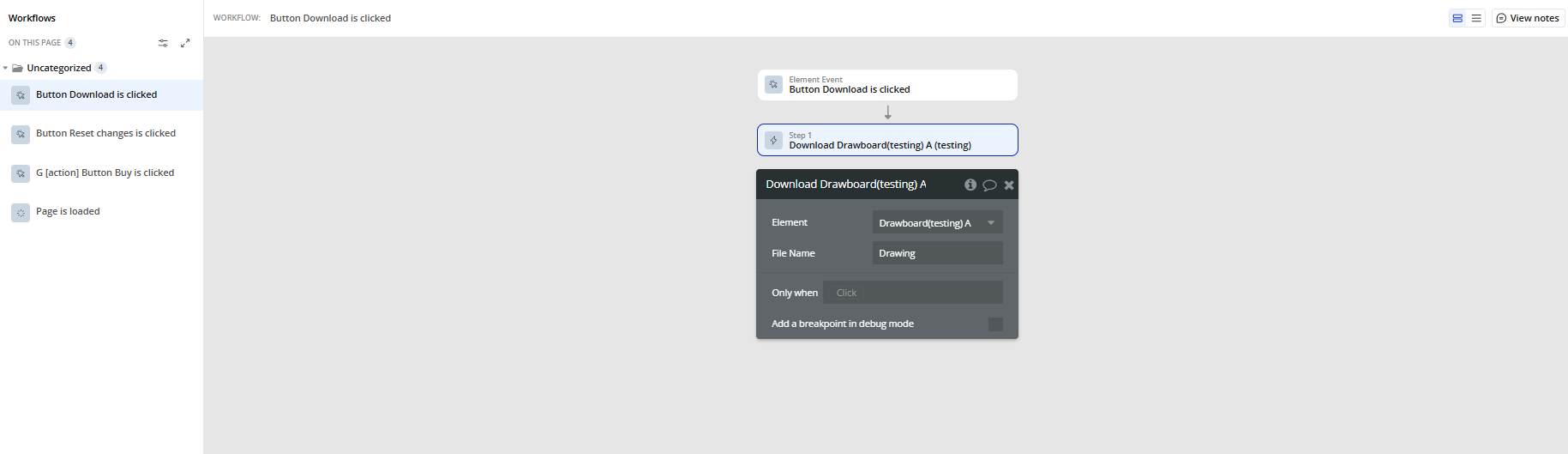

          • Workflow → Download.
            Workflow → Download.
        • Set:
          • Element → which Drawboard you want to download from.
          • File name → the name of the downloaded image file.

Plugin Element Properties

Drawboard

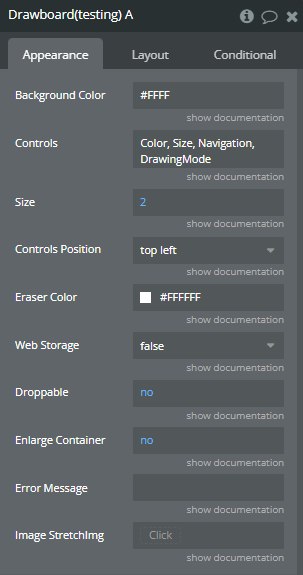

Element properties → Drawboard.
Element properties → Drawboard.
Fields:
Title
Description
Type
Background Color
Color that fills the background of the drawing board.
Color
Controls
Choose which tools appear on the board, like Color, Size, Navigation, or Drawing Mode.
List of options
Size
Defines how thick your drawing lines are.
Number
Controls Position
Decides where the toolbar will appear — e.g. top left, top right, etc.
Dropdown
Eraser Color
The color used when erasing parts of the drawing.
Color
Web Storage
When true, keeps drawings saved in the browser even if you reload the page.
Yes/No (Boolean)
Droppable
Allows users to drag and drop files onto the board.
Yes/No (Boolean)
Enlarge Container
If enabled, makes the Drawboard expand to fit the size of its container.
Yes/No (Boolean)
Error Message
Text shown if there’s a problem loading the Drawboard.
Text
Image StretchImg
Lets you decide how the background image should fit or stretch inside the board.
Image / Click

Element Actions

Clear

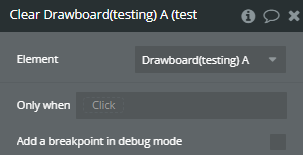

Workflow action → Clear.
Workflow action → Clear.
Title
Description
Type
Element
The specific Drawboard element on your page that you want to clear.
Element

Download

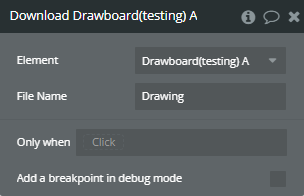

Workflow action → Download.
Workflow action → Download.
Title
Description
Type
Element
The Drawboard element you want to export.
Element
File name
The name of the image file that will be downloaded, including the extension (e.g. “my_drawing.png”).
Text

Exposed states

Title
Description
Type
Tool
The name of the currently selected drawing tool (e.g. pencil, rect).
Text
Url
The data URL (Base64) of the current drawing, which you can use to display or save the image.
Text
Error
Any error message generated by the Drawboard, useful for debugging or user feedback.
Text

Element Events

Title
Description
done
Triggered when an image save completes successfully. Useful if you want to show a success message or continue a workflow.
error
Triggered if something goes wrong during drawing actions (like saving or loading). Helps you handle errors in your app logic.
Image without caption
