Link to plugin page: https://zeroqode.com/plugin/twilio-masked-communications-plugin-for-bubble--1725973447384x356817802609701060

Demo to preview the settings

✅

Live Demo: http://zeroqode-demo-34.bubbleapps.io/twilio_masked_prod_version

✅

Bubble Editor: https://bubble.io/page?id=zeroqode-demo-34&tab=tabs-1&name=twilio_masked_demo_vers&type=page&version=live

Introduction

This plugin used to masking the communications between two parties. It adds the following features to conversations:

Add 2 SMS/MMS participants to a conversation with masked numbers

Supports 1:1 calling via the Conversations proxy number.

Prerequisites

A Twilio Account, you can get one by signing up here

One or more Twilio phone numbers to mask SMS and voice communications

How to setup

I. Setting up the Twilio application part

Install the Twilio Masked Communications plugin

Access Twilio developer account and create or open an exist project.

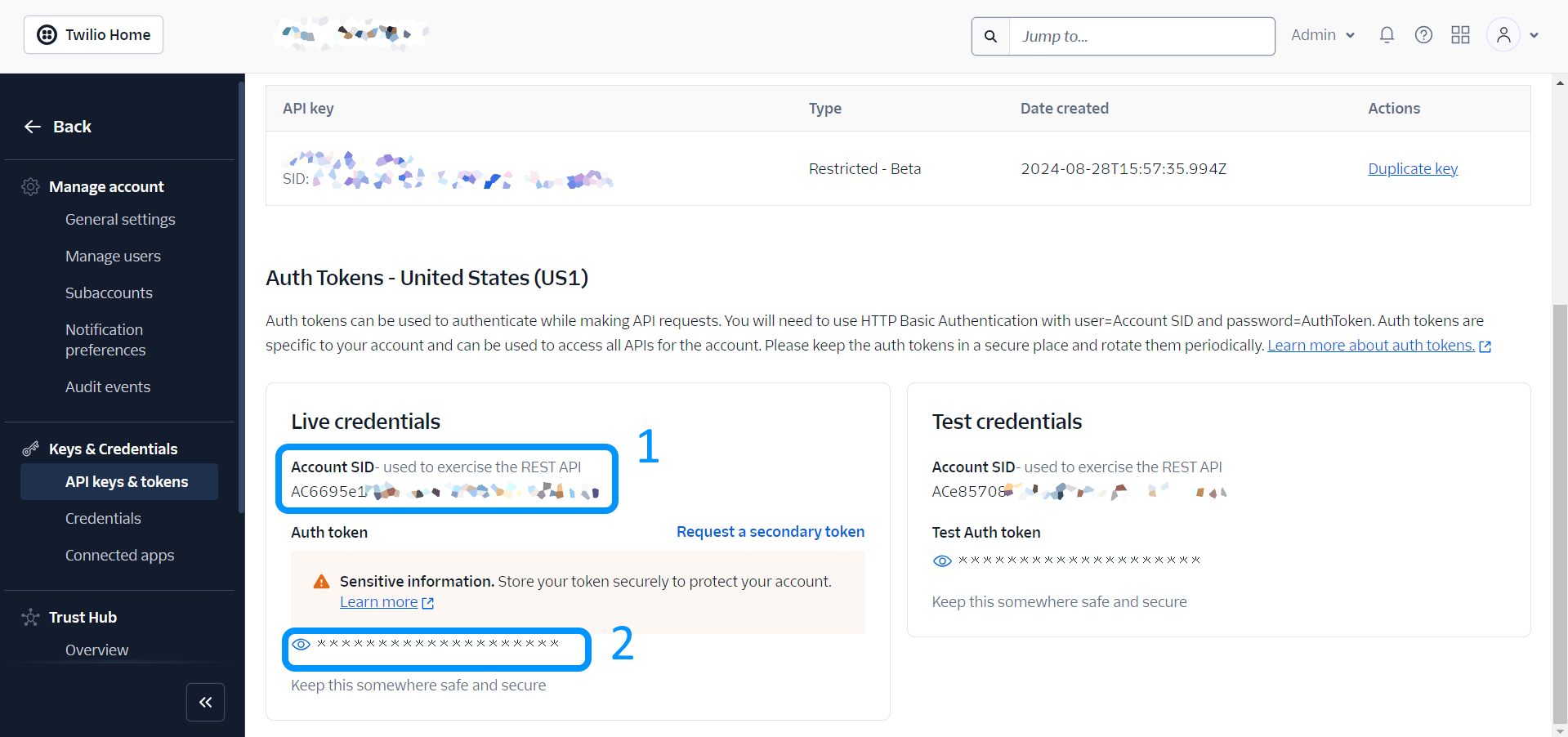

Open the Twilio dashboard tab and open “API keys & tokens” tab

Copy the Account SID and Auth token from the Twilio developer account.

II. Setup the Twilio Plugin on Bubble Side

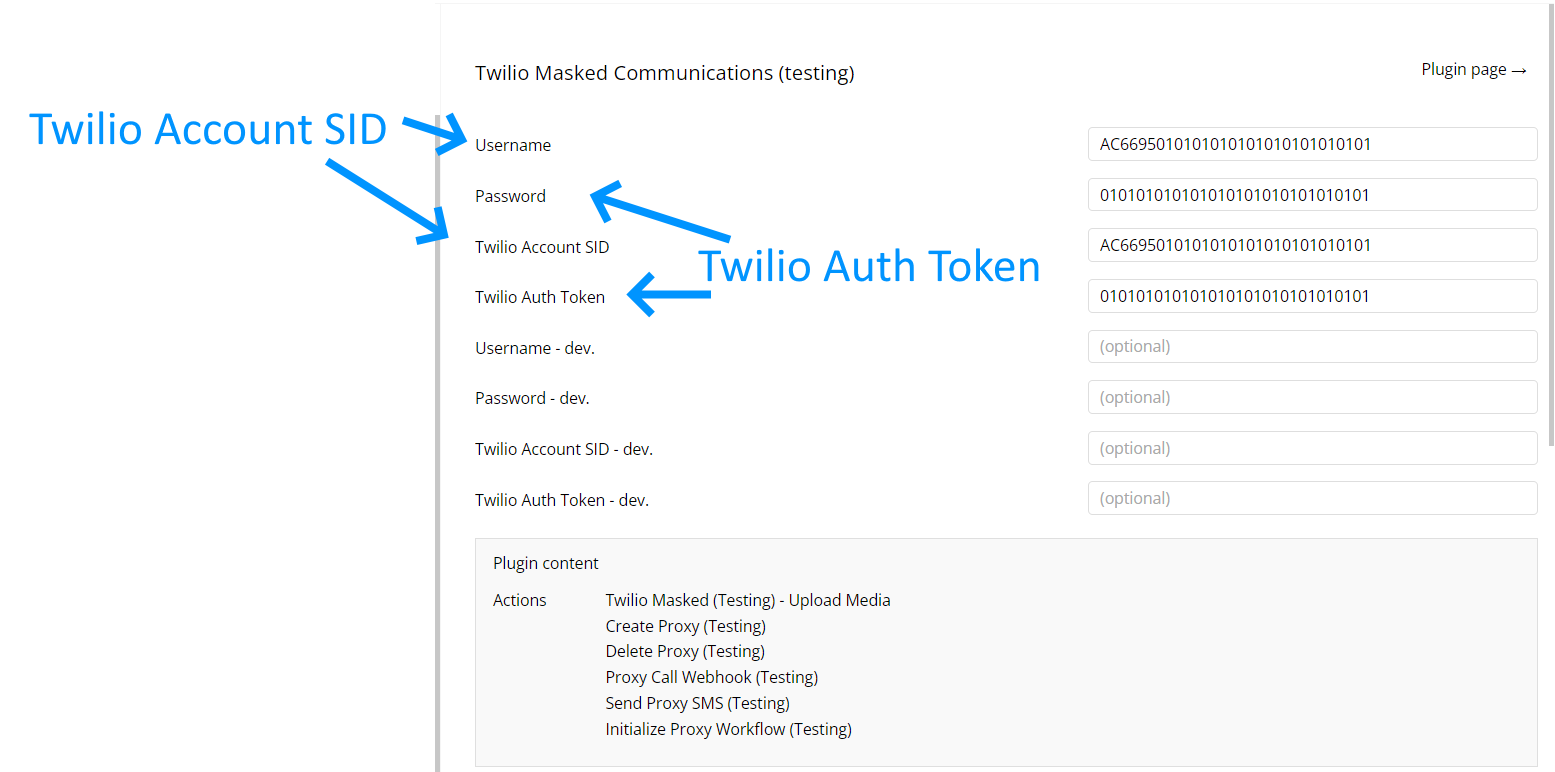

To authenticate the plugin by providing Account SID and Auth token taken from Twilio Developer Account in Plugin Settings.

Username and Password keys are used for uploading media, for sending MMS from action. You may skip this keys’ fields if you do not plan to send MMS.

Now you are ready to access make masked communication.

Plugin Actions

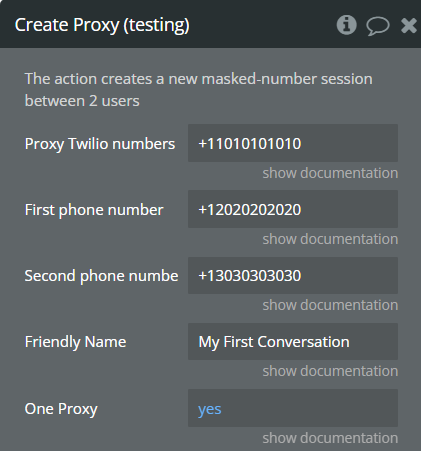

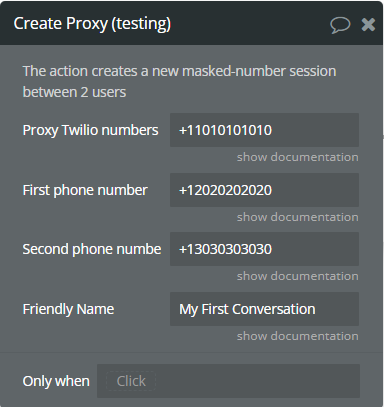

Create Proxy - create masked conversation with 2 numbers and a Proxy number

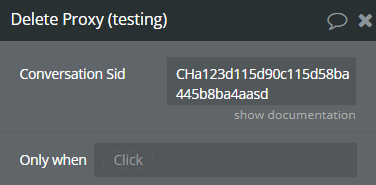

Delete Proxy - delete masked conversation

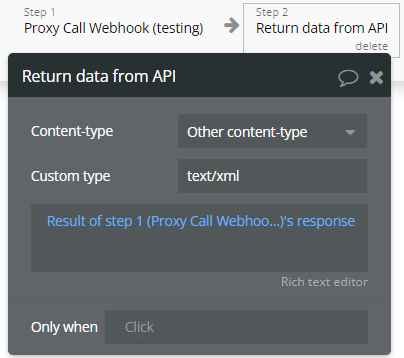

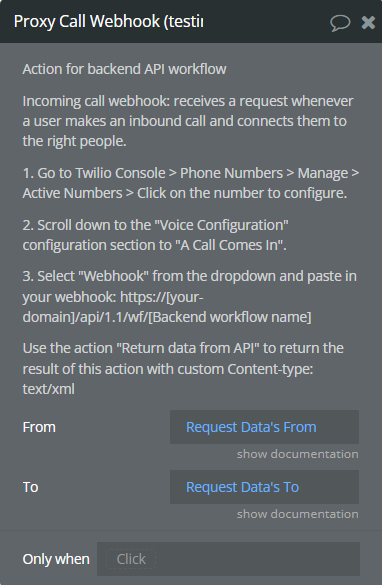

Proxy Call Webhook - receives a request whenever a user makes an inbound call and connects them to the right people.

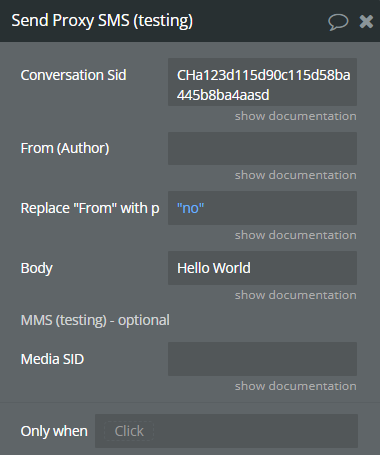

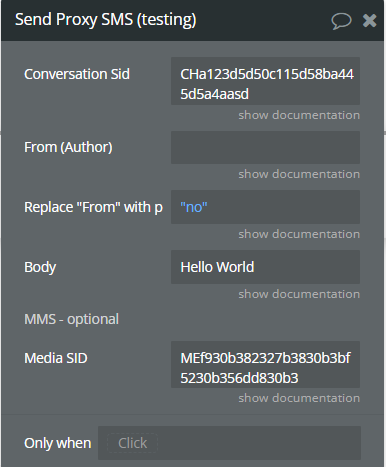

Send Proxy SMS/MMS - send message to the masked conversation

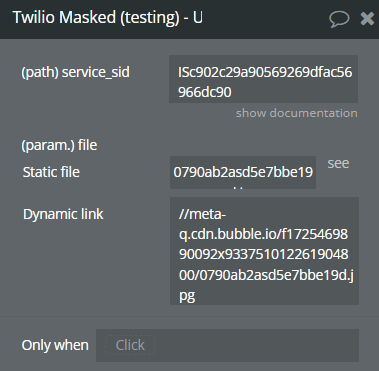

Upload Media - upload one file to the Twilio

Title	Description	Type
Proxy Twilio numbers	List of yours Twilio proxy numbers. Separated by comma	Text
First phone number	Started with plus(+). The first number to connect to the session	Text
Second phone number	Started with plus(+). The first number to connect to the session	Text
Friendly Name	Name of the conversation	Text

Title	Description	Type
Error messages	List of errors useful for debugging	Text (list)
AccountSid	The unique ID of the Account responsible for this conversation.	Text
ChatServiceSid	The unique ID of the Conversation Service	Text
MessagingServiceSid	The unique ID of the Messaging Service	Text
Sid	A 34 character string that uniquely identifies this resource	Text
FriendlyName	The human-readable name of this conversation, limited to 256 characters. Optional.	Text
State	Current state of this conversation. Can be either active, inactive or closed and defaults to active	Text
DateCreated	The date that this resource was created.	Date
DateUpdated	The date that this resource was last updated.	Date
Url	An absolute API resource URL for this conversation.	Text
Link participants	Contains absolute URL to access the participants	Text
Link messages	Contains absolute URL to access the messages	Text
Link webhook	Contains absolute URLs to access the conversation	Text

Title	Description	Type
Conversation Sid	A 34 character string that uniquely identifies the conversation	Text

Title	Description	Type
Success	Returns yes when success	Checkbox (yes/no)
Error messages	List of errors useful for debugging	Text(list)

Title	Description	Type

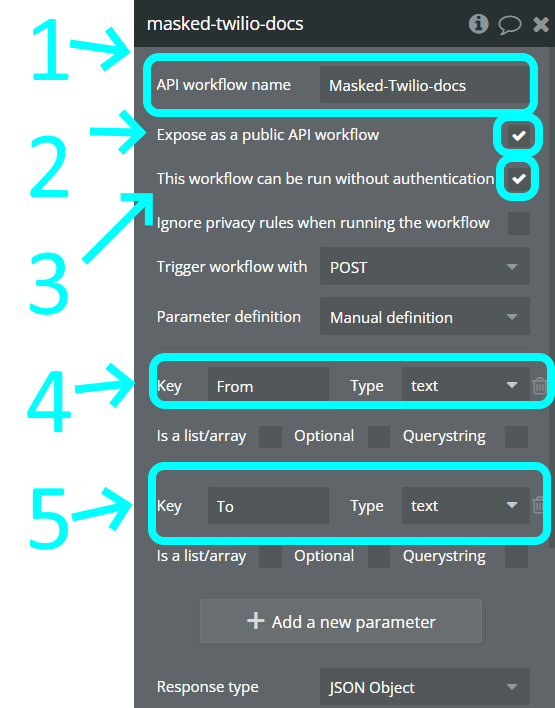

	Action for backend API workflow
From	The phone number that initiated the call. Value from backend workflow Request Data	Text
To	The phone number that received the call (your Twilio number). Value from backend workflow Request Data	Text

Twilio Masked Communications

Demo to preview the settings

Introduction

Prerequisites

How to setup

I. Setting up the Twilio application part

II. Setup the Twilio Plugin on Bubble Side

Plugin Actions

Workflow examples

Make the first masked session

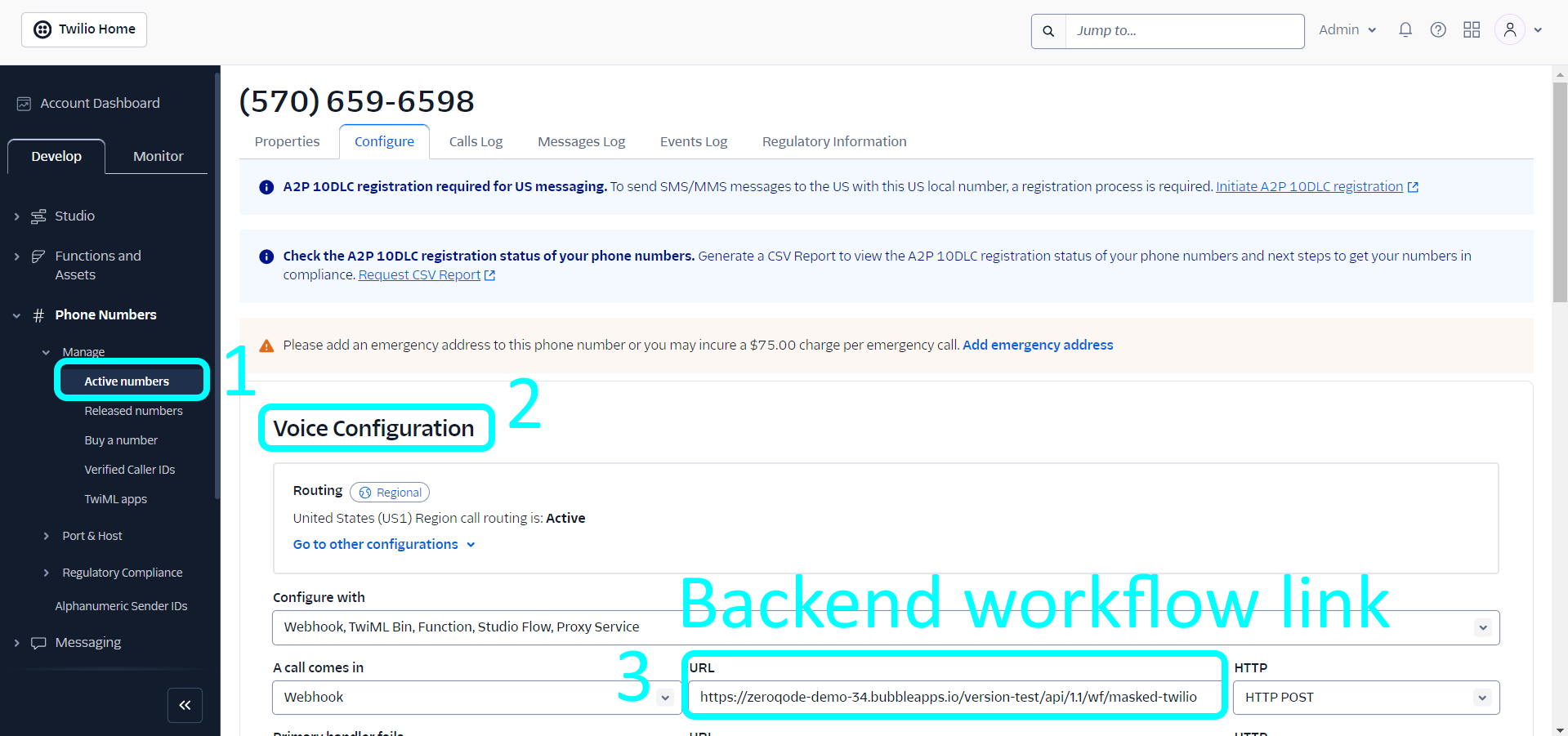

Setup Inbound call webhook

Send MMS

Changelogs

Update 26.09.24 - Version 1.1.0

Update 20.09.24 - Version 1.0.0

Title	Description	Type
Conversation Sid	A 34 character string that uniquely identifies this resource	Text
From (Author)	Phone number or name of the participants. The value will be displayed in the Twilio account in the message history.	Text (optional)
Replace “From” with participant SID	When yes - action will find “participant ID” using the phone number entered in the “From” field and replace it	Checkbox (yes/no)
Body	The content of the message, can be up to 1,600 characters long.	Text
	MMS - optional
Media SID	Use action "Twilio Masked Upload Media" to get the media SID	Text(optional)
