Link to plugin page: https://zeroqode.com/plugin/air-gantt-+-funnel-+-timeline-chart-plugin-for-bubble--1550402632051x469430921470935040

Demo to preview the settings

✅

Bubble Editor: https://bubble.io/page?version=live&name=air_gantt__funnel__timeline_charts&id=zeroqode-demo-15

✅

Live Demo: https://zeroqode-demo-15.bubbleapps.io/air_gantt__funnel__timeline_charts

Introduction

Using this plugin, you have the capability to effortlessly generate dynamic Gantt charts and timelines. This enables you to efficiently strategize and monitor project tasks and milestones. Furthermore, it includes a funnel chart function, ideal for visually representing data, especially when analyzing sales pipelines and conversion rates.

How to setup

This plugin combines 4 different charts that simplify data visualization and project management. Each chart exists as a separate visual element independently from the rest. The charts consume data via the properties and return parameters back into the page as exposed states.

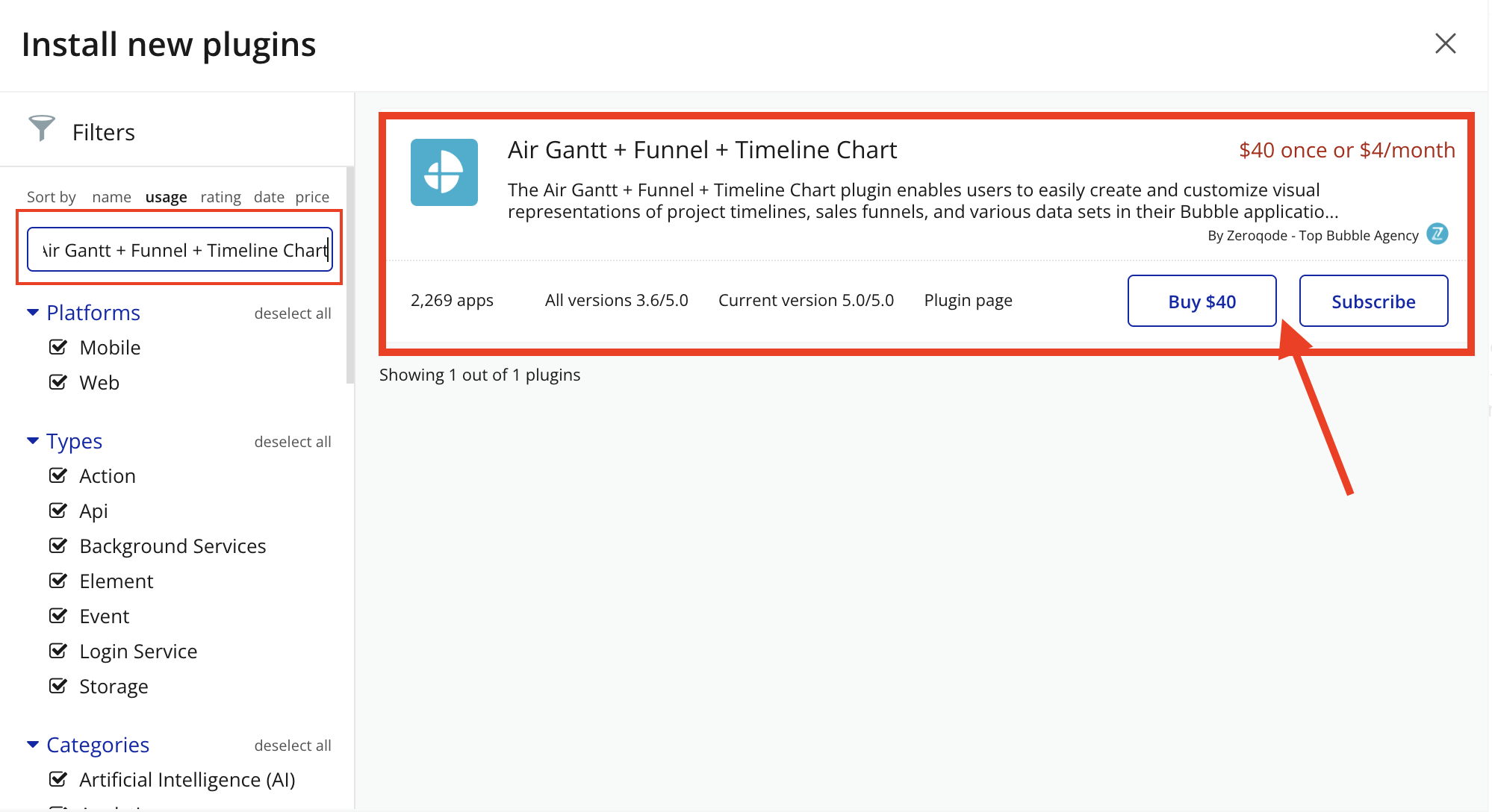

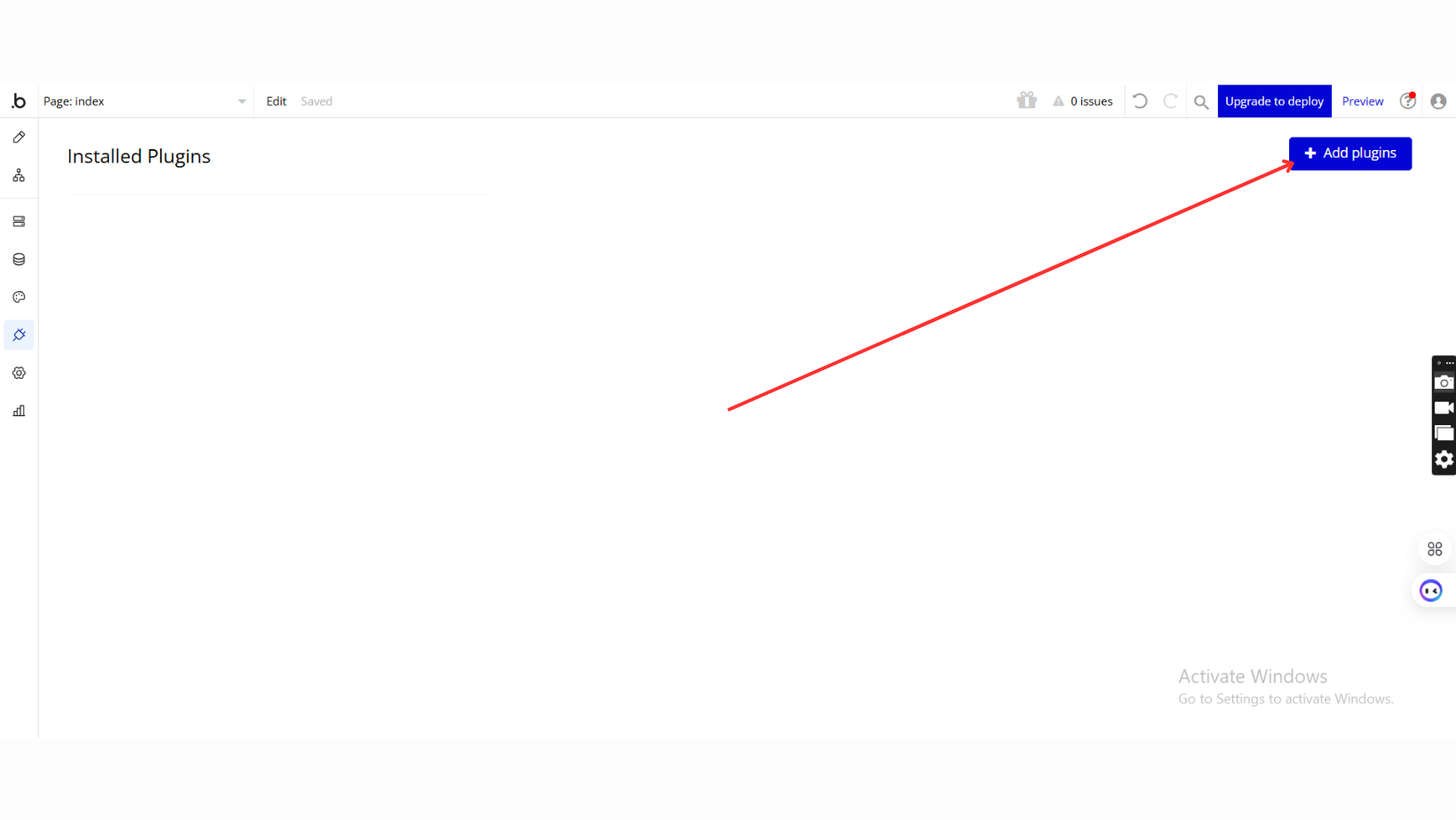

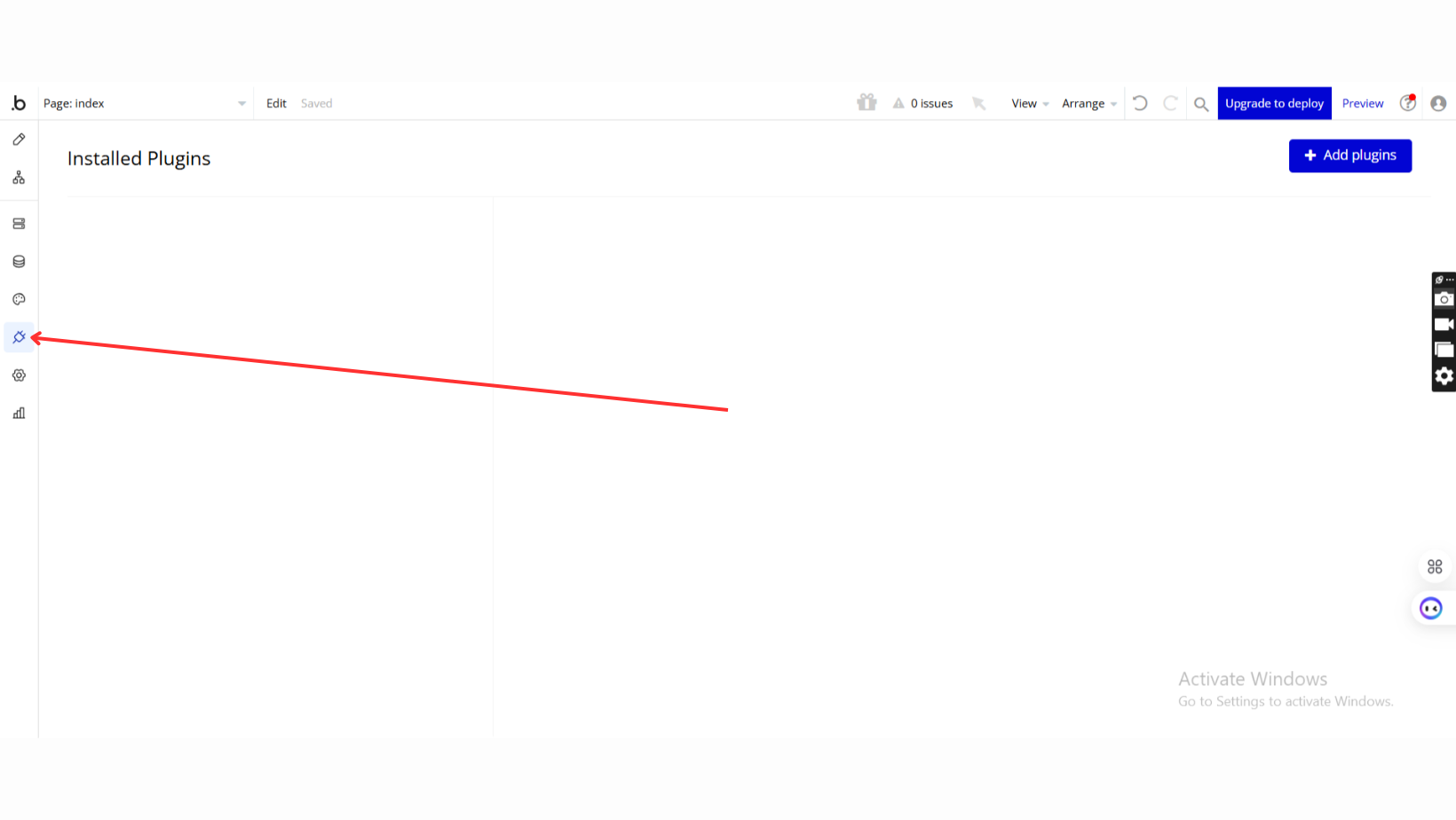

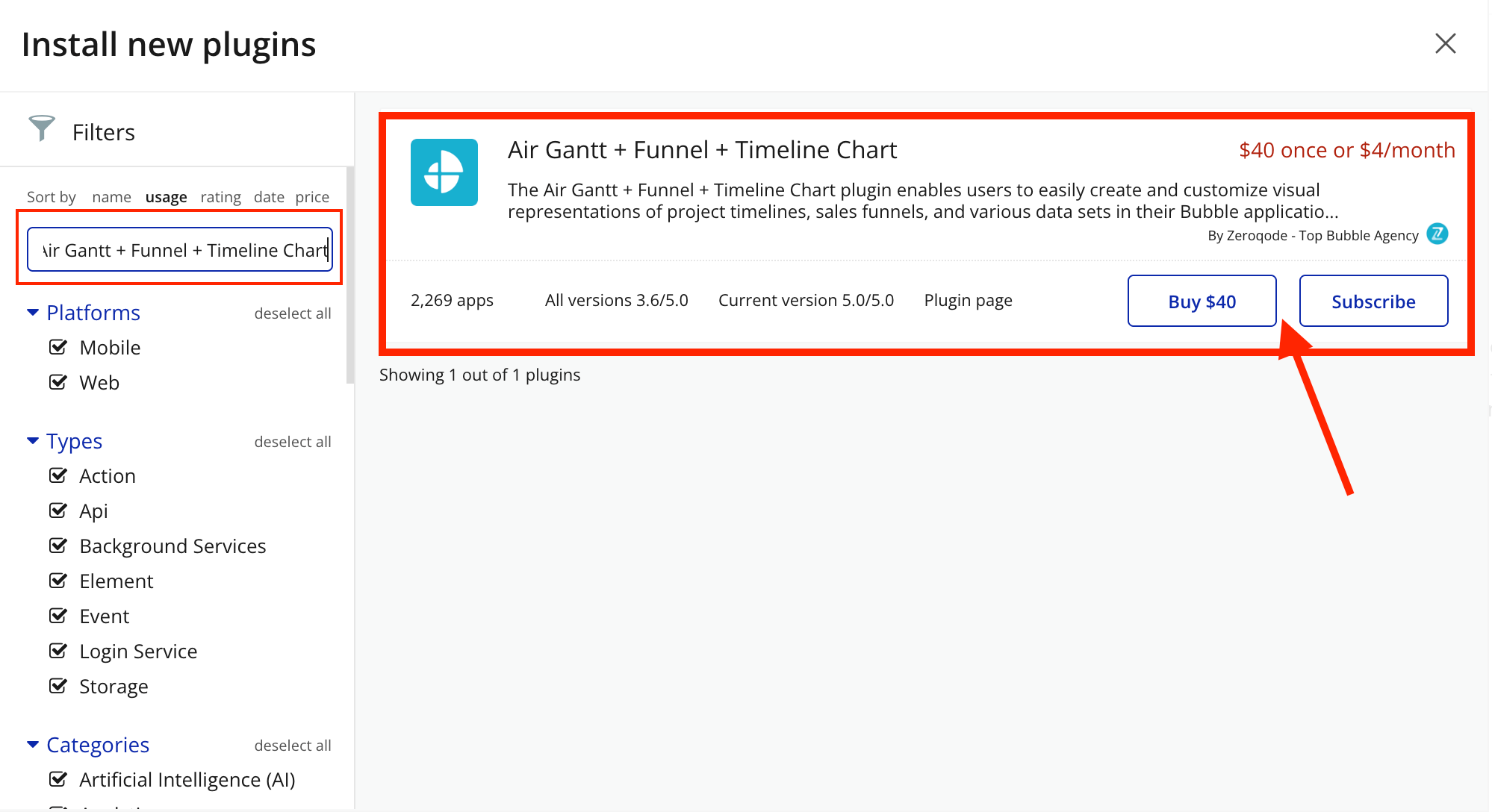

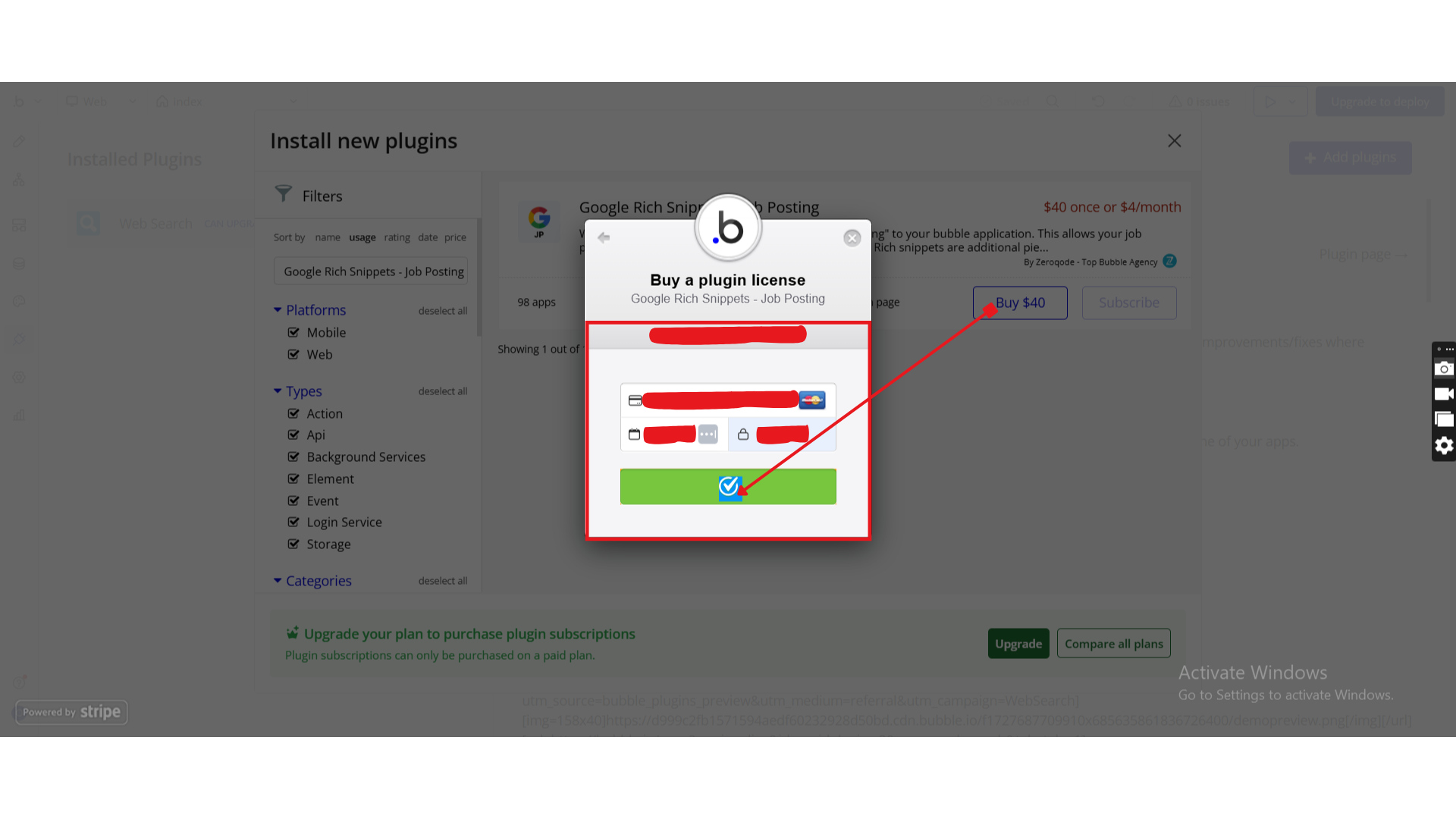

Install the plugin in your project.

Pick the desired element from the toolbar and drag it onto the page.

Open the element's properties and fill in the required fields with data.

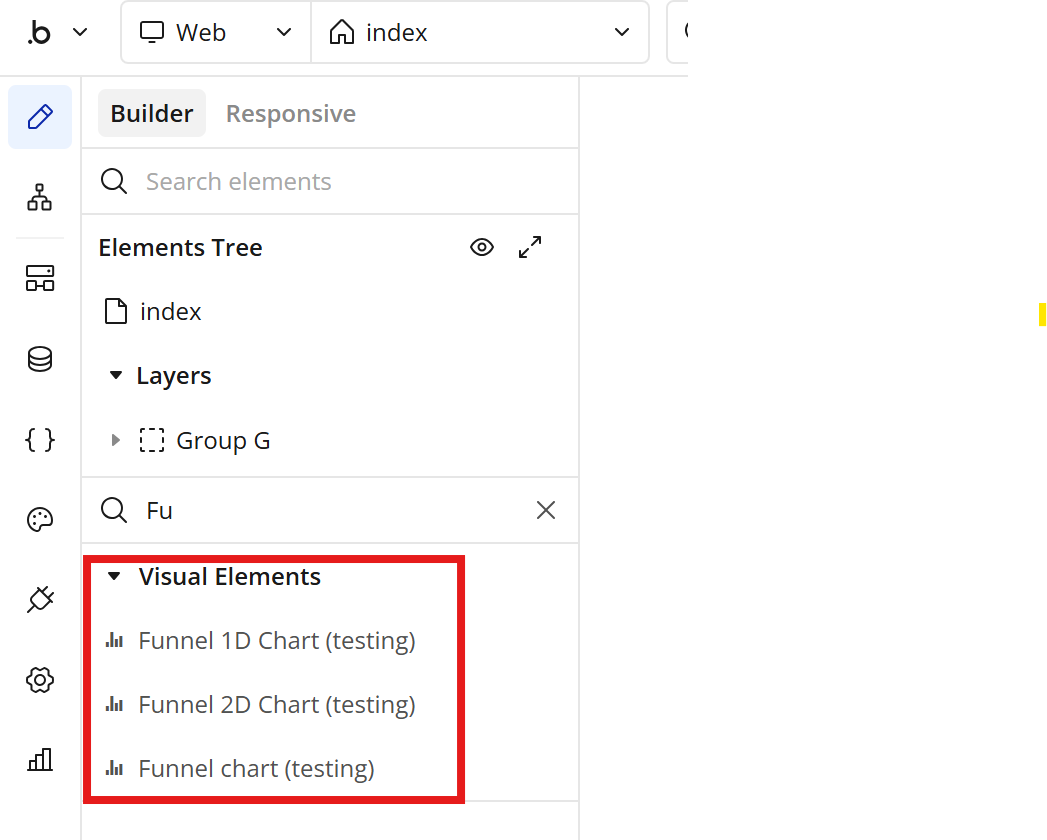

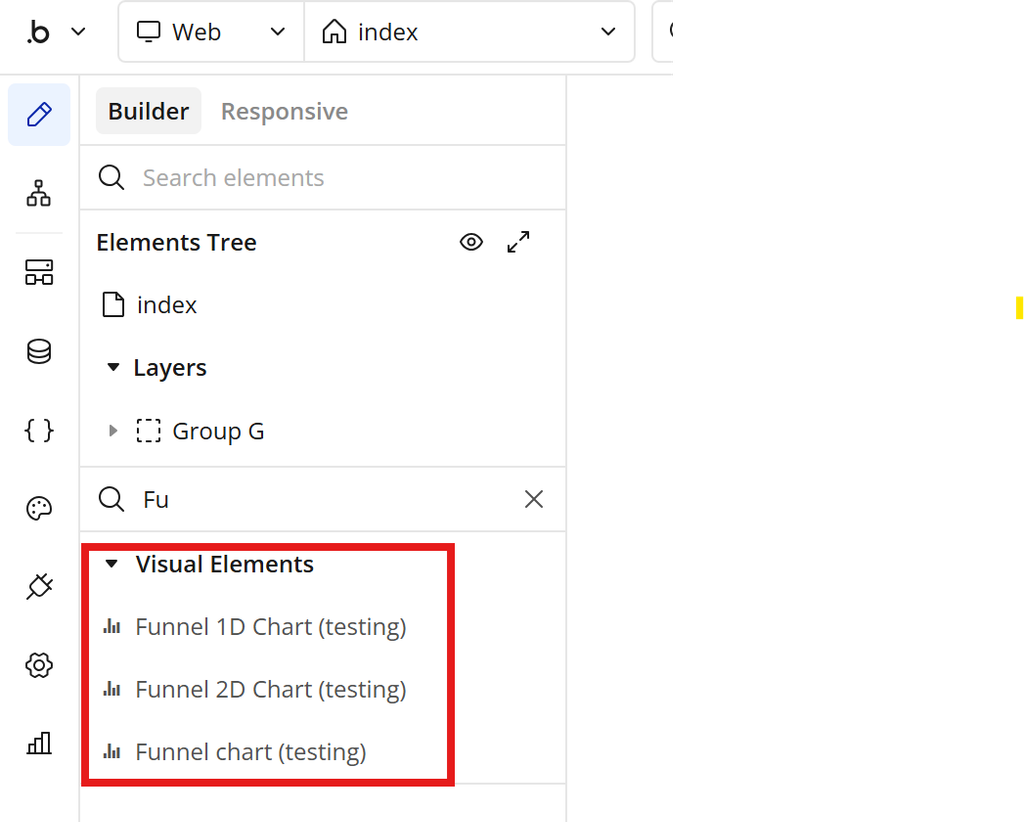

The plugin has five elements:

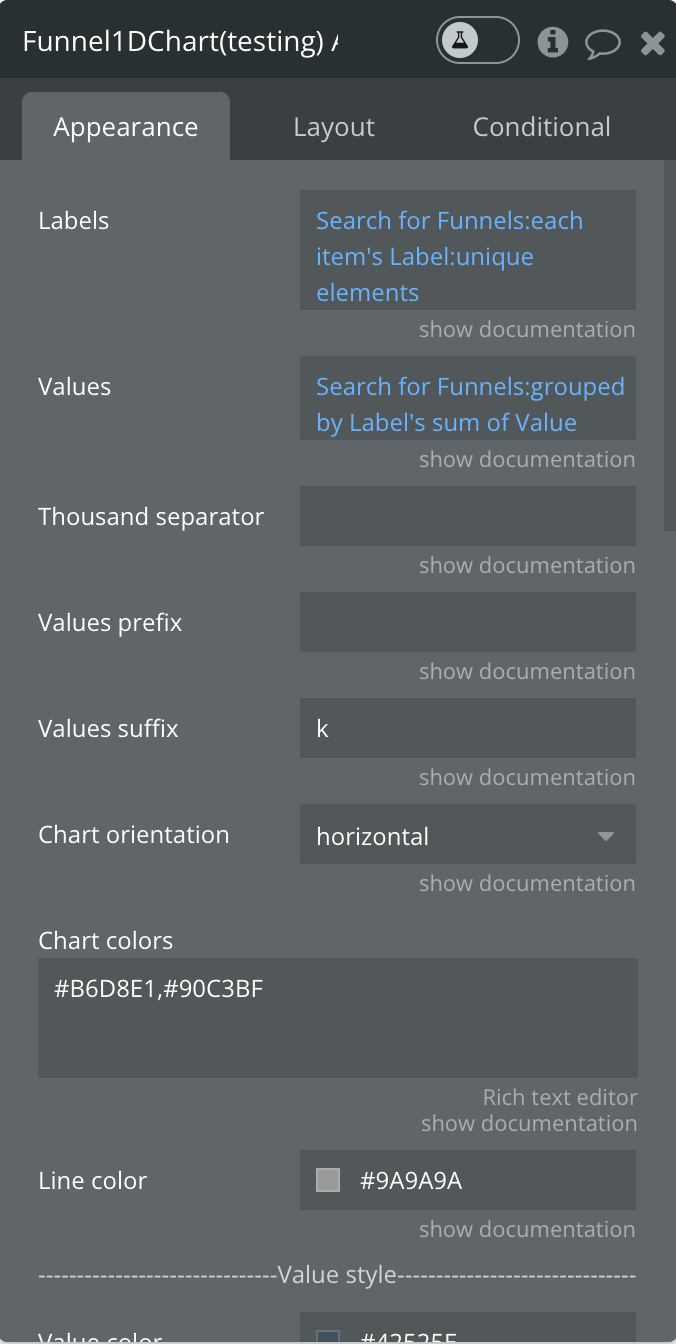

Funnel 1D Chart

A 1D chart represents data along a single dimension. It’s simpler and usually used to show the distribution of one variable. Element is fully customizable. We can choose labels, values, colors, size, font size and even orientation. We can also enable displays in percentages. We're gonna go over every field in the element.

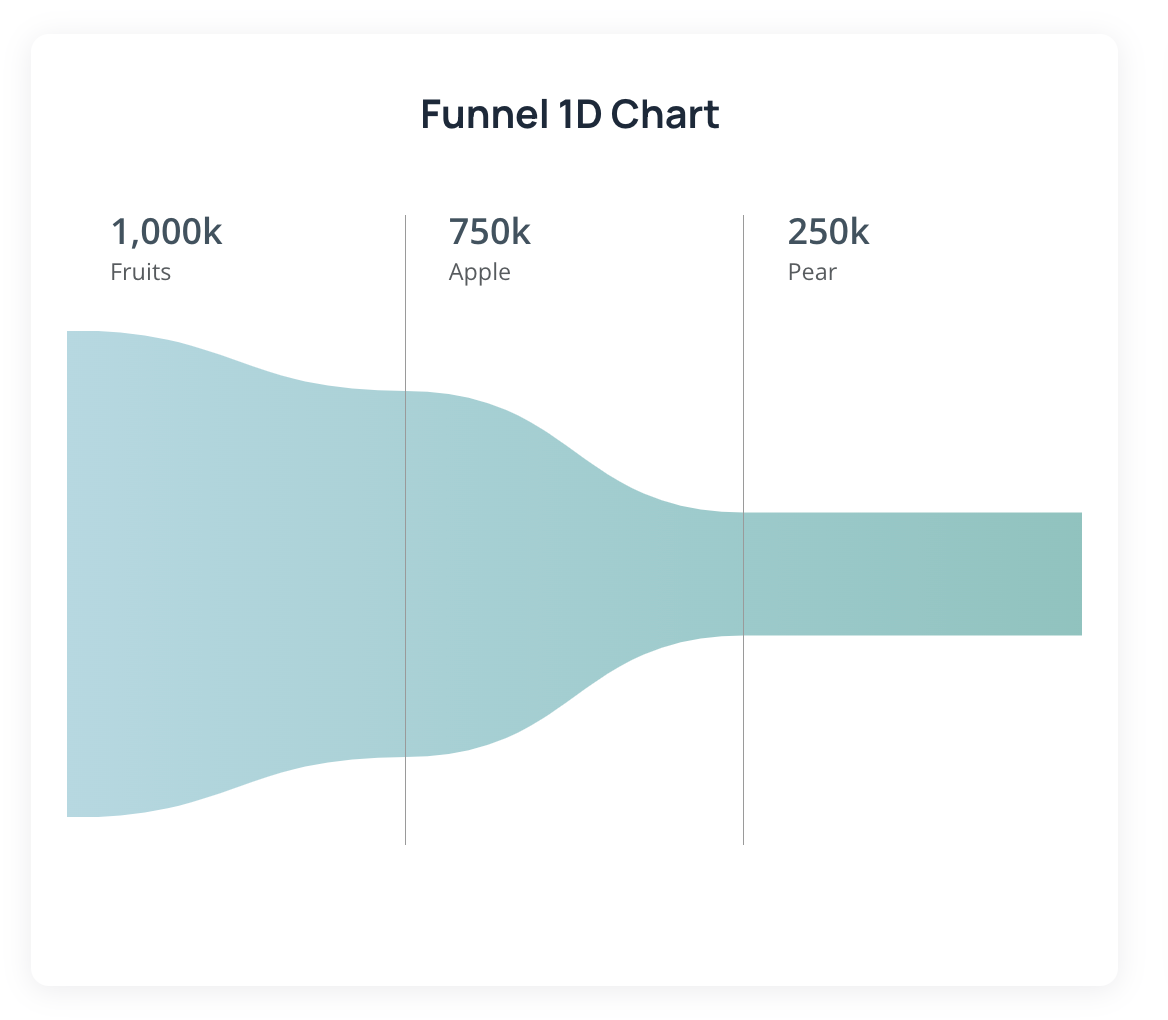

Example:

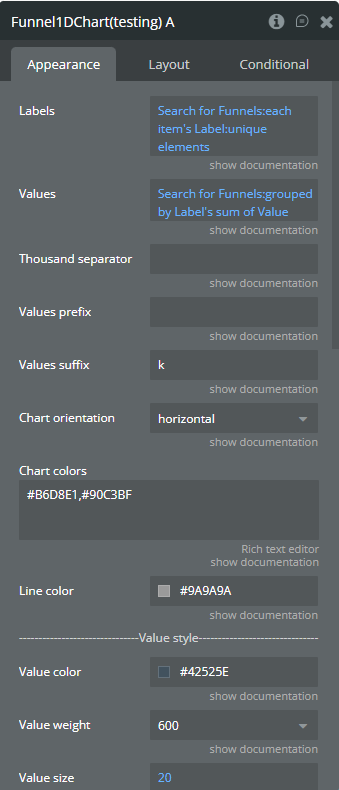

Fields:

Title	Description	Type
Labels	The labels for provided data.	list of texts
Values	The total values for every label.	list of numbers
Thousand separator	The symbol that separates a thousand value from the rest of the number.	text (optional)
Values prefix	Prefix for the raw values.	text (optional)
Values suffix	Suffix for the raw values.	text (optional)
Chart orientation	The orientation for the chart. (horizontal or vertical)	dropdown
Chart colors	The comma-separated colors for the chart. If not provided, will be assigned the default colors. If it is provided just one color then the whole chart will be the same. If it is provided more colors then the chart will be colored as a gradient.	text (optional)
Line color	The color for the separation lines.	color

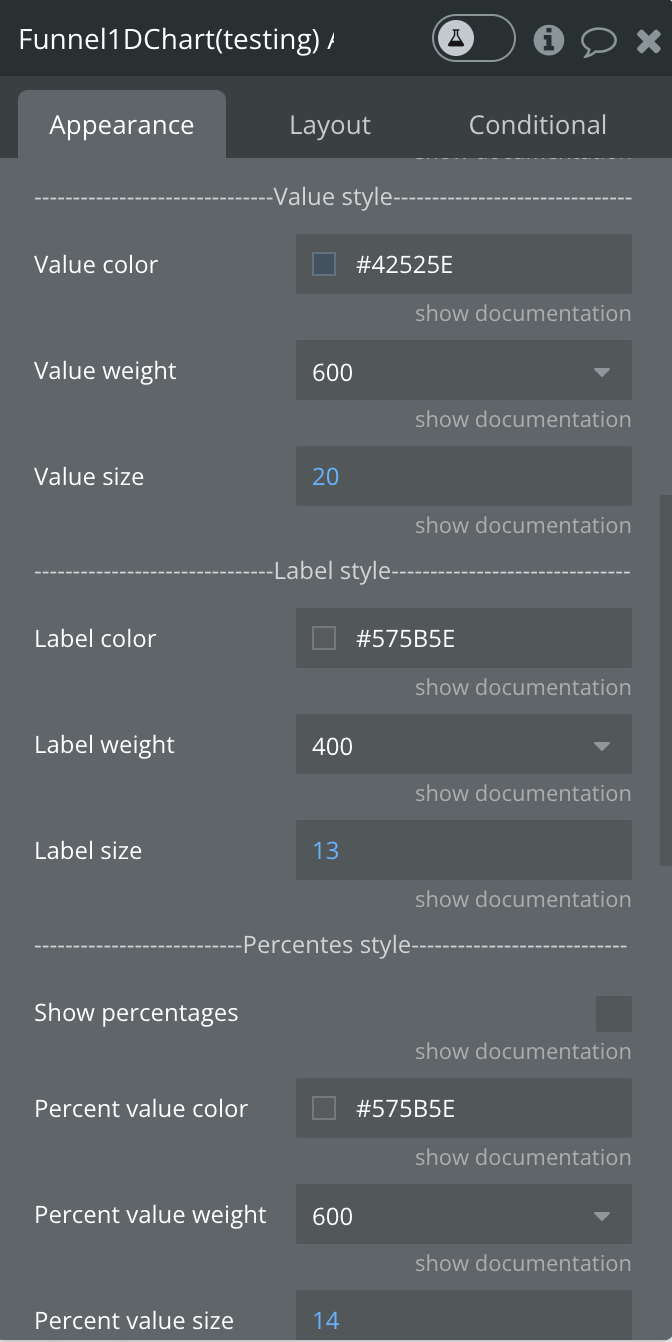

Value style
Value color	The color for provided values is displayed on the chart.	color
Value weight	The weight for provided values is displayed on the chart.	dropdown
Value size	The size for provided values is displayed on the chart.	number
Label style
Label color	The color for provided labels is displayed on the chart.	color
Label weight	The weight for provided labels is displayed on the chart.	dropdown
Label size	The size for provided labels is displayed on the chart.	number
Percentage style
Show percentages	This option allows to representation of provided values in percentages on the chart.	checkbox
Percent value color	The color for percentages on the chart.	color
Percent value weight	The weight for percentages on the chart.	dropdown
Percent value size	The size for percentages on the chart.	number

💡

Tip: The best practice is to create a separate type for data in Bubble DB, for example, “Funnel”.

Bubble DB:

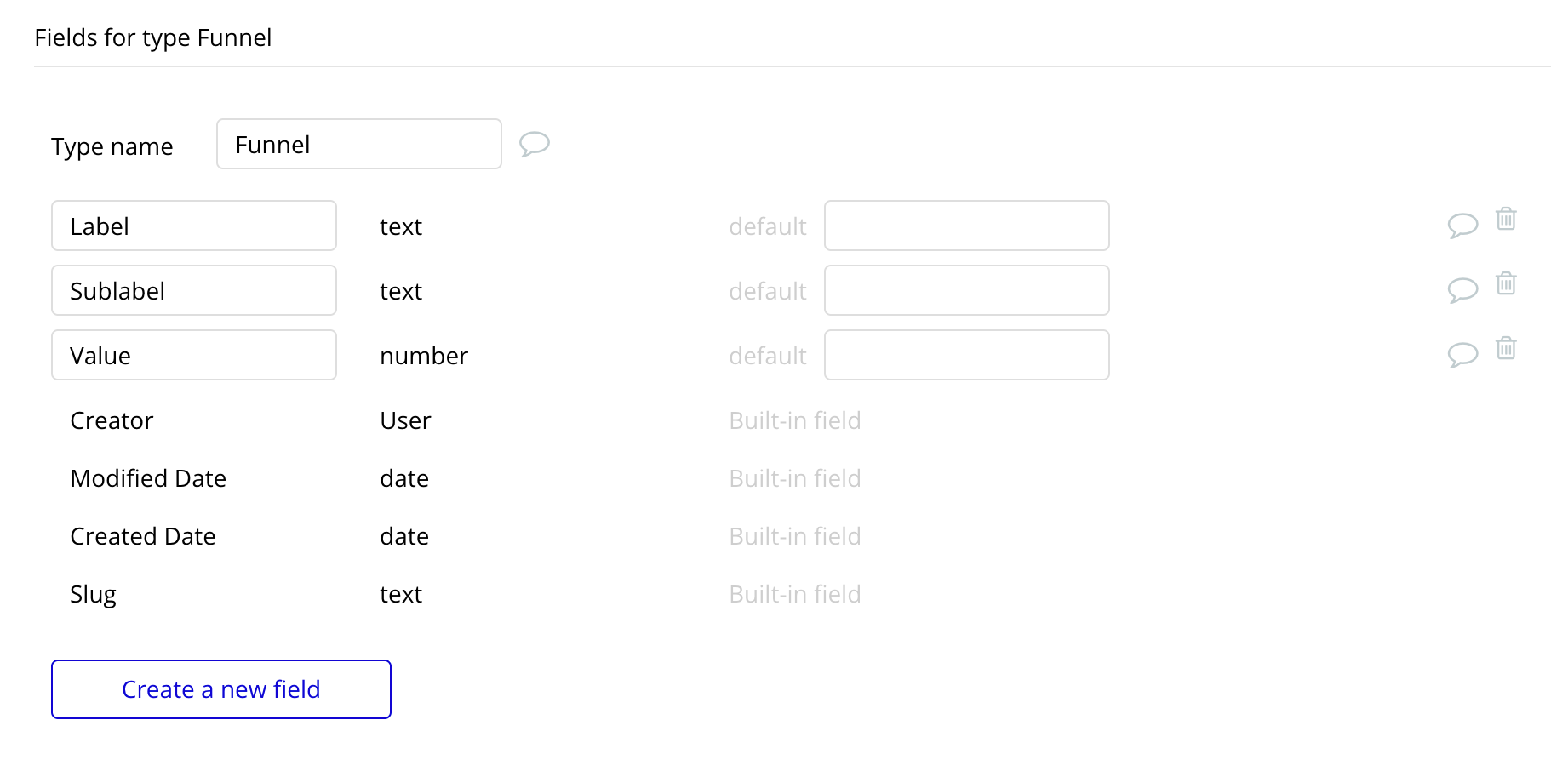

You will need at least two fields: Labels, Values

Funnel 2D Chart

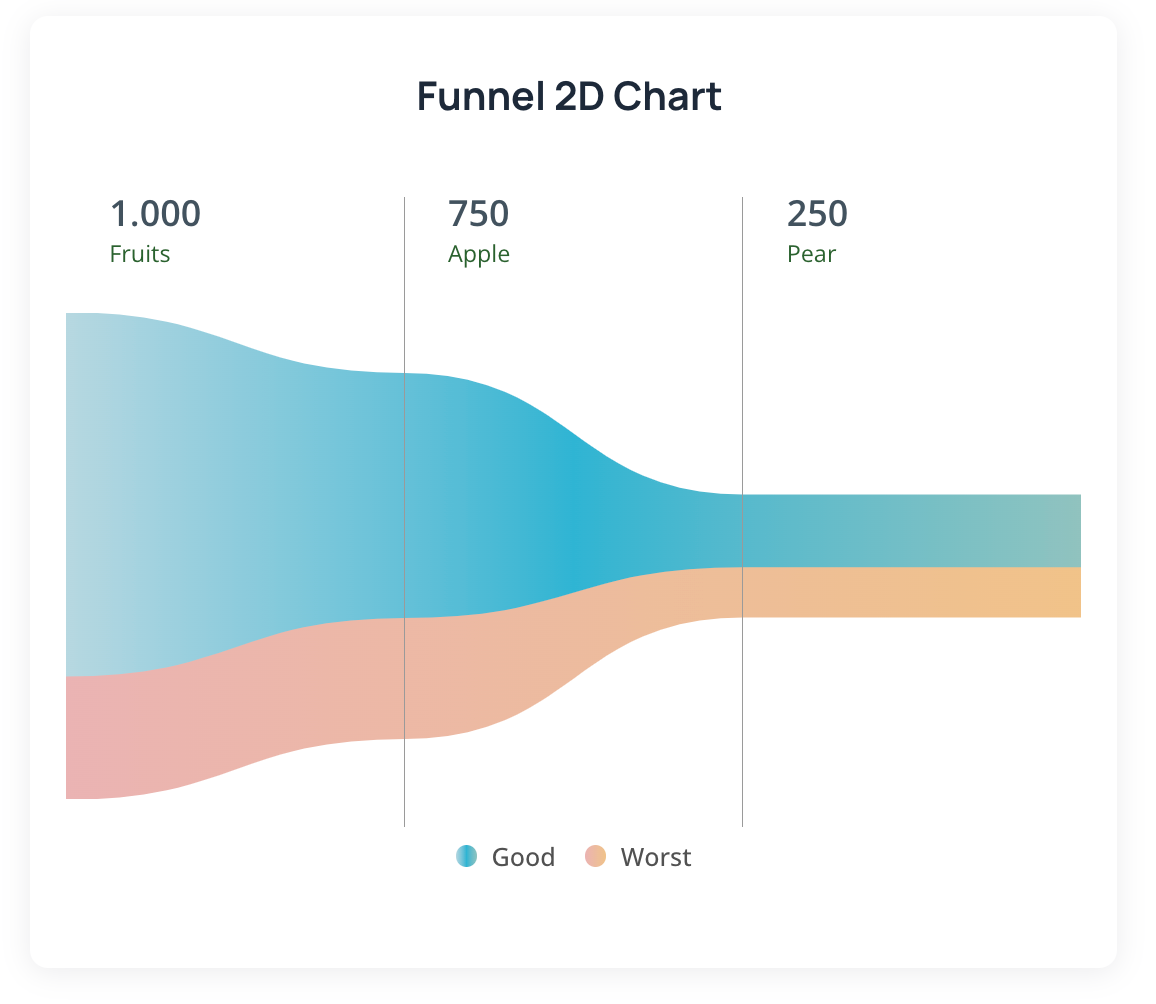

A 2D chart represents data along two dimensions, allowing for a more complex understanding of relationships between variables. Element is fully customizable. We can choose labels, values, colors, size, font size and even orientation. We can also enable displays in percentages. We're gonna go over every field in the element.

Example:

Fields:

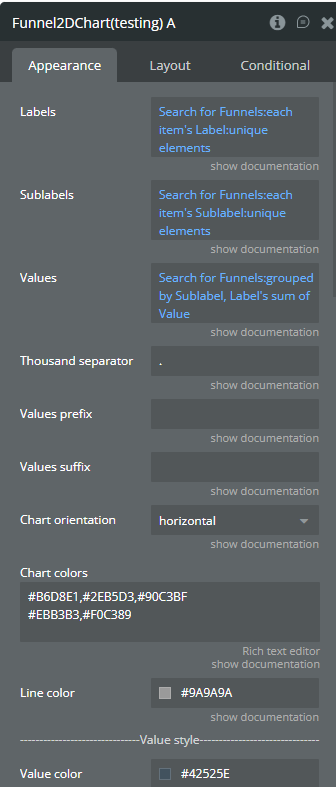

Title	Description	Type
Labels	The labels for provided data.	list of texts
Sublabels	The sub-labels for provided data	list of texts
Values	The total values for every label.	list of numbers
Thousand separator	The symbol that separates a thousand value from the rest of the number.	text (optional)
Values prefix	Prefix for the raw values.	text (optional)
Values suffix	Suffix for the raw values.	text (optional)
Chart orientation	The orientation for the chart. (horizontal or vertical)	dropdown
Chart colors	The comma-separated colors for the chart. If not provided, will be assigned the default colors. If it is provided just one color then the whole chart will be the same. If it is provided more colors then the chart will be colored as a gradient.	text (optional)
Line color	The color for the separation lines.	color
Value style
Value color	The color for provided values is displayed on the chart.	color
Value weight	The weight for provided values is displayed on the chart.	dropdown
Value size	The size for provided values is displayed on the chart.	number
Label style
Label color	The color for provided labels is displayed on the chart.	color
Label weight	The weight for provided labels is displayed on the chart.	dropdown
Label size	The size for provided labels is displayed on the chart.	number
Percentage style
Show percentages	This option allows to representation of provided values in percentages on the chart.	checkbox
Percent value color	The color for percentages on the chart.	color
Percent value weight	The weight for percentages on the chart.	dropdown
Percent value size	The size for percentages on the chart.	number
Tooltip style
Show raw data in tooltip	When checked shows raw number values, when unchecked shows percentages.	checkbox
Background color	The background color of the tooltip box	color
Sublabel color	The color of the tooltip labels	color
Legend style
Legend title color	The color of text of the legend	color
Legend title weight	The thickness of text of the legend	dropdown
Legend title size	The size of the text of the legend	number

💡

Tip: The best practice is to create a separate type for data in Bubble DB, for example, “Funnel”.

Bubble DB:

You will need at least two fields: Labels, Values

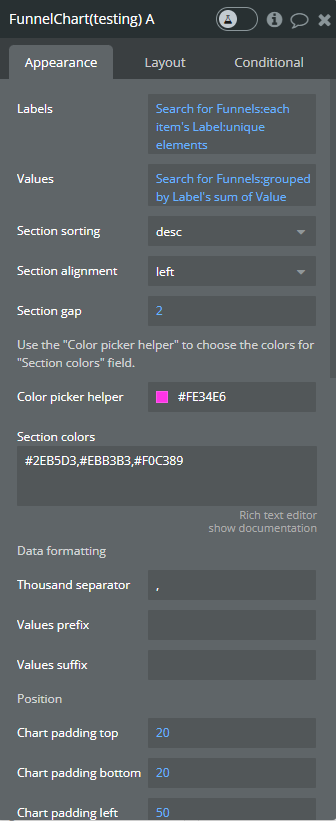

Funnel chart

A Funnel chart represents data along a single dimension. It’s simpler and usually used to show the distribution of one variable. it works almost like funnel 1d chart, but uses another library and displays data differently. Fields:

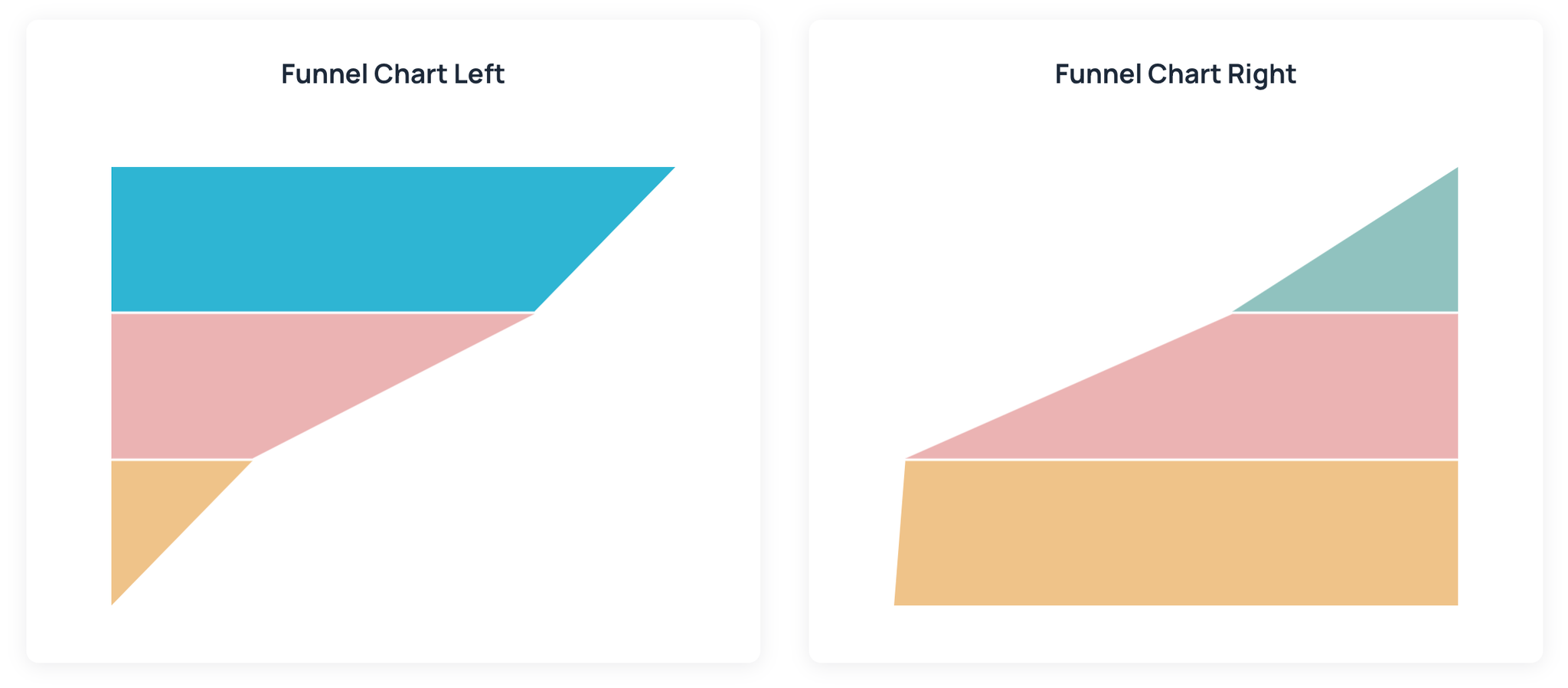

Example:

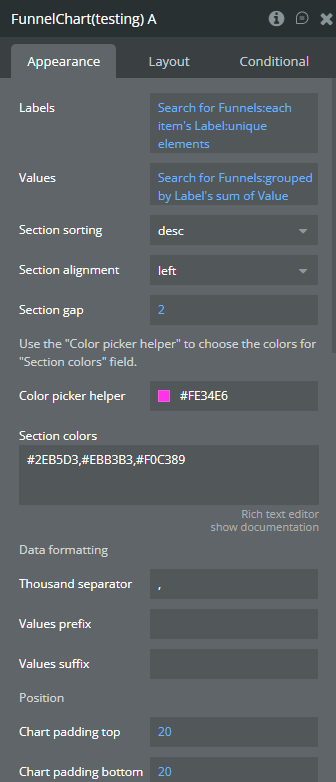

Fields:

Title	Description	Type
Labels	The labels for provided data.	list of texts
Values	The total values for every label.	list of numbers
Section sorting	Determines if the peak will be at top or bottom	dropdown
Section alignment	Determines if the data starts from the left or right	dropdown
Section gap	The space between the layers	number
Color picker helper	Is there to make it easier for you to choose the colors. It is not displayed on the page.	color
Section color	The comma-separated colors for the chart. For example: #2EB5D3,#EBB3B3,#F0C389	text (optional)
Data formatting
Thousand separator	Custom separator for easier visualization of big values	text (optional)
Values prefix	Text to prepend to the values	text (optional)
Values suffix	Text to append to the values	text (optional)

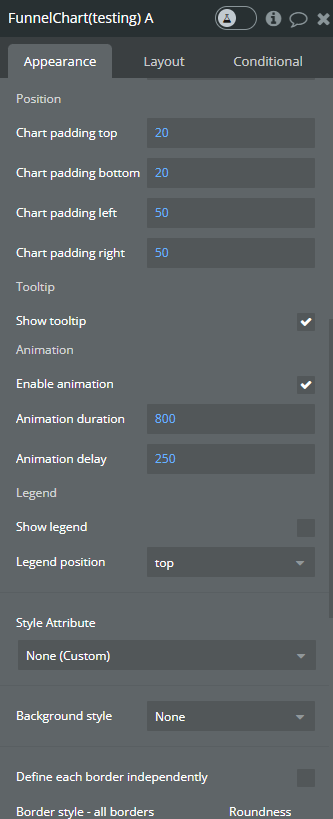

Position
Chart padding top	The indent of the chart from the top	number
Chart padding bottom	The indent of the chart from the bottom	number
Chart padding left	The indent of the chart from the left	number
Chart padding right	The indent of the chart from the right	number
Tooltip
Show tooltip	Enables or disable tooltip on hover	checkbox
Animation
Enable animation	Enable or disable animation on initial load or data change	checkbox
Animation duration	The speed of animation	number
Animation delay	The delay before the animation starts	number
Legend
Show legend	Turn the legend on or off	checkbox
Legend position	Top, bottom, left, right	dropdown

💡

Tip: The best practice is to create a separate type for data in Bubble DB, for example, “Funnel”.

Bubble DB:

You will need at least two fields: Labels, Values

Exposed states

label on hover - stores the label of the last element the user hovered over.

value on hover - stores the value of the last element the user hovered over.

label on click - stores the label of the last element the user clicked at.

value on click - stores the value of the last element the user clicked at.

Events

is clicked - an element of the chart was clicked and it’s value was published in the value_on_click and label_on_click.

has hovered - the element of the chart was hovered over and it’s value was published in the label_on_hover and value_on_hover.

Gantt Chart

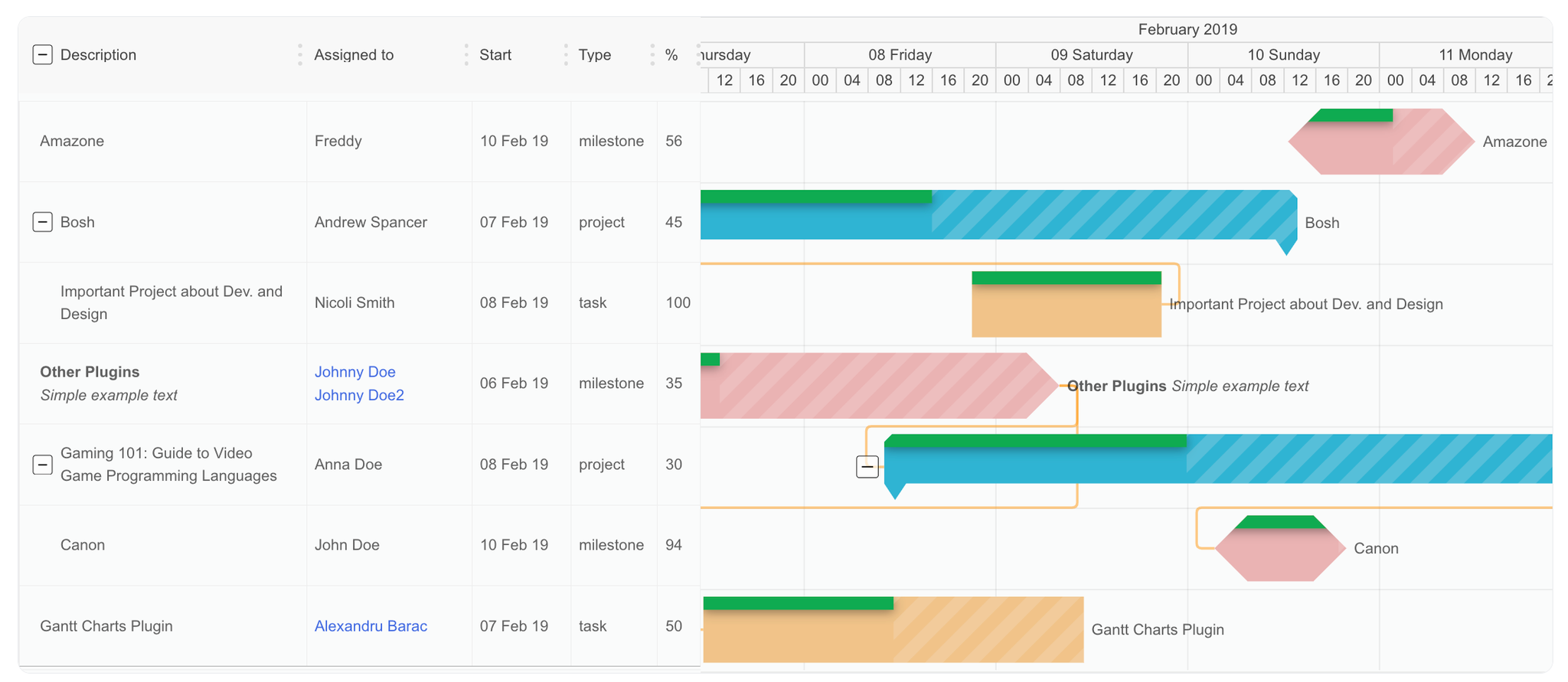

A Gantt chart is a type of bar chart that represents a project schedule. It is a tool used in project management for planning, scheduling, and tracking specific tasks and resources in a project.

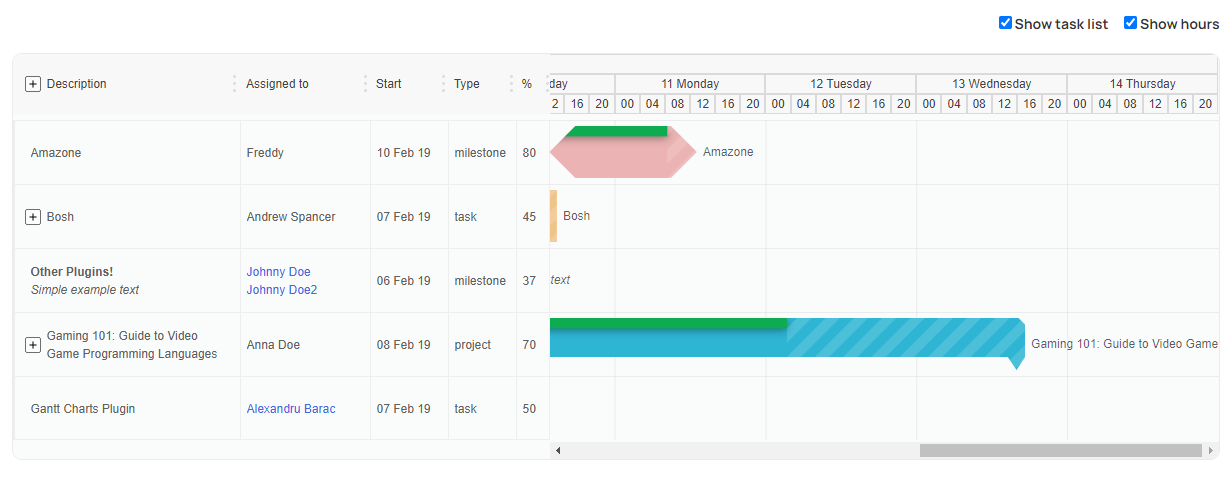

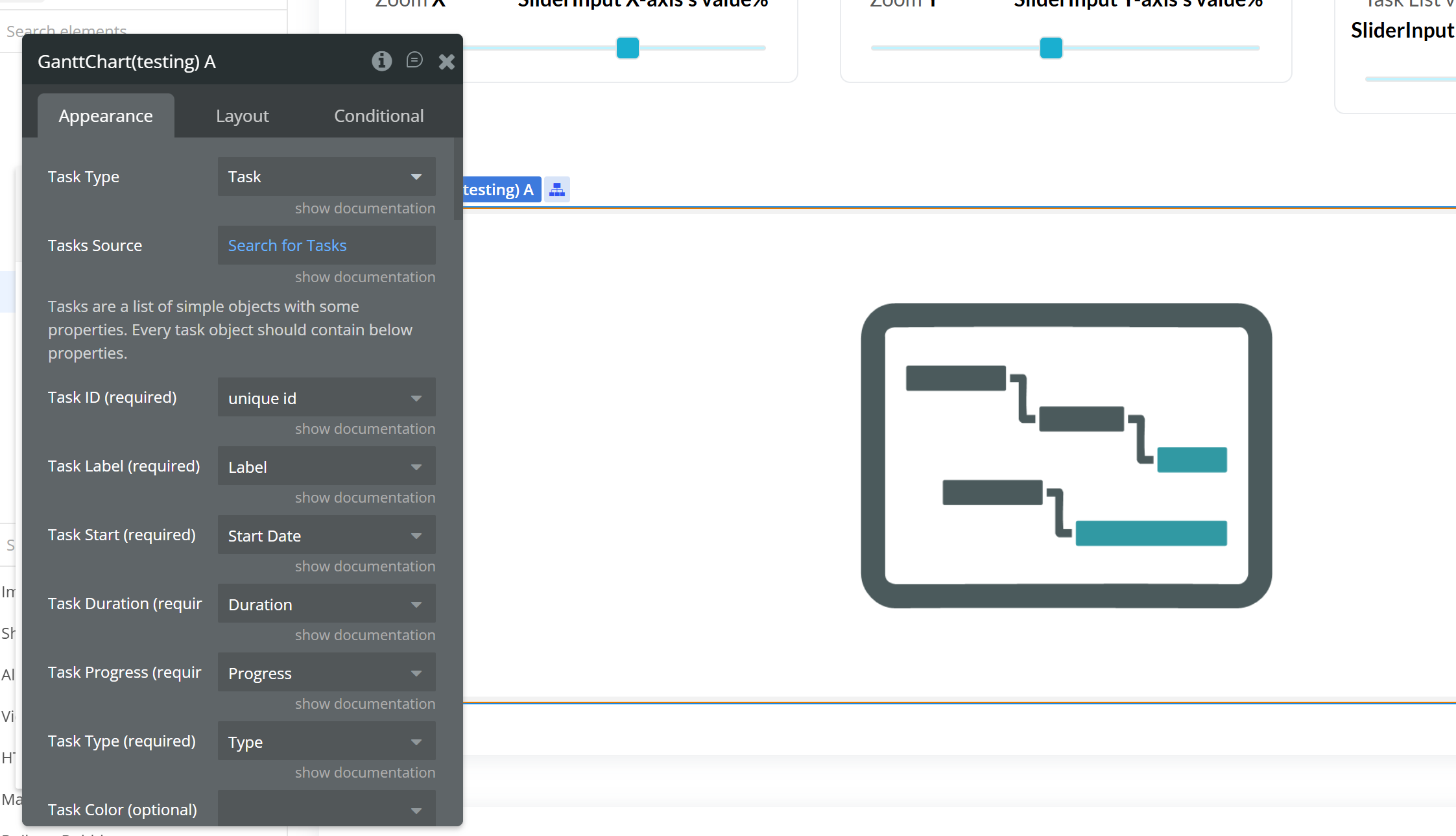

Example:

Fields:

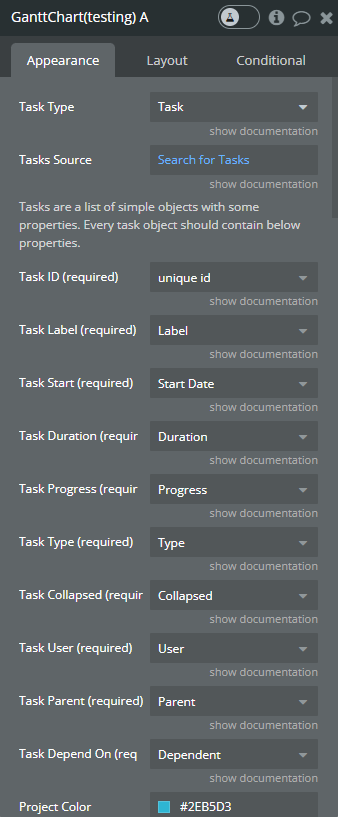

Title	Description	Type

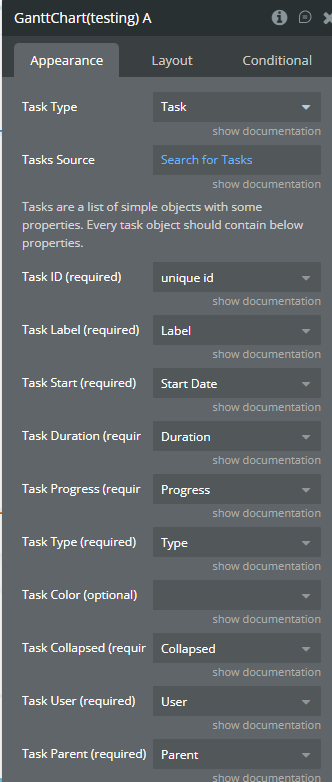

Task Type	Select a task type from your database types.	App Type
Tasks Source	A task list from Bubble.	list of Task Type
Task ID (required)	The unique id of the task. It can be a custom ID, or a bubble-unique ID.	text field of Task Type
Task Label (required)	The field from the task type object that serves as a label on the chart.	text field of Task Type
Task Start (required)	The time when the task started. There must be a “bubble date” field from the type object.	date field of Task Type
Task Duration (required)	The expected duration of the task is in milliseconds. It must be a numeric field from the type object.	numeric field of Task Type
Task Progress (required)	The progress of the task from 0 to 100. It must be a numeric field from the type object.	numeric field of Task Type
Task Type (required)	The type of the task assigned. It must be a value from the type object. The value can be either “task”, ”milestone”, or “project” (without quotes).	text field of Task Type
Task Color (optional)	Task color. It must be a text field from the type object that contains the HEX color. If this field is empty, the task color will be assigned based on task type.	text field of Task Type (optional)
Task Collapsed (required)	Can the task be collapsed if it has children? It must be a value from the task-type object. The value is a yes/no.	boolean field of Task Type
Task User (required)	The user that this task is assigned to. This field can be written in DB like a simple name “John Doe” or it can be written like an HTML link, ex: “<a href=’url_here’>John Doe</a>”.	text field of Task Type
Task Parent (required)	The id of the task that is a parent of this task. It must be a value from the task-type object.	text field of Task Type
Task Depend On (required)	The list of IDs of other tasks that this task depends on. It must be a value from the task-type object. The value is a list of text.	list of text fields of Task Type

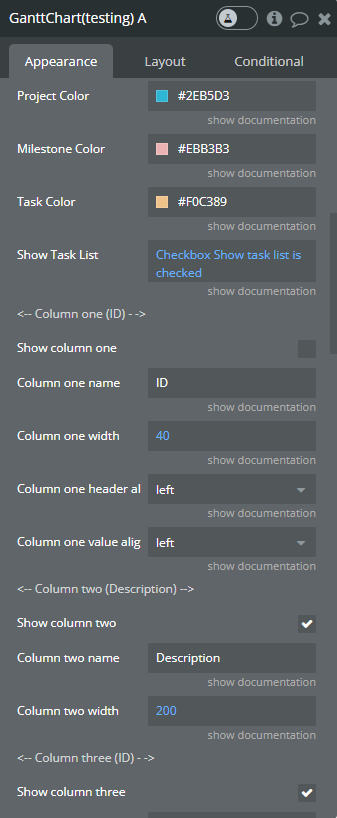

Project Type Color	The project type color of task on the chart. The default color is #F95C4C.	Color (optional)
Milestone Type Color	The milestone type color of task on the chart. The default color is #0287D0.	Color (optional)
Task Type Color	The task type color of task on the chart. The default color is #8E44AD.	Color (optional)
Show Task List	Show or hide the list of tasks to the left of the chart.	yes/no
Column one (ID)	Displays the id of each item
Show column one	Add/remove an additional ID column from/to the list.	Checkbox
Column one name	The label of the column.	text
Column one width	The width of the column.	number
Column one header alignment	The alignment for the header cell of the first column.	Dropdown
Column one value alignment	The alignment for the value cell of the first column.	Dropdown
Column two (Description)
Show column two	Add/remove an additional Description column from/to the list.	Checkbox
Column two name	The label of the column.	text
Column two width	The width of the column.	number

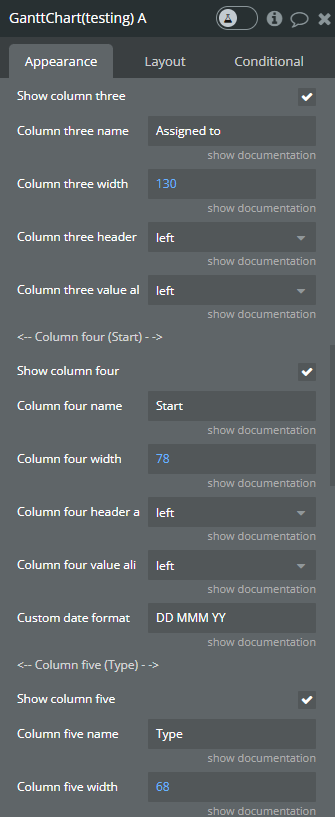

Column three (Assigned to)
Show column three	Add/remove an additional Assigned to column from/to the list.	Checkbox
Column three name	The label of the column.	text
Column three width	The width of the column.	number
Column three header alignment	The alignment for the header cell of the third column.	Dropdown
Column three value alignment	The alignment for the value cell of the third column.	Dropdown
Column four (Type)
Show column four	Add/remove an additional Type column from/to the list.	Checkbox
Column four name	The label of the column.	text
Column four width	The width of the column.	number
Column four header alignment	The alignment for the header cell of the fourth column.	Dropdown
Column four value alignment	The alignment for the value cell of the fourth column.	Dropdown
Column five (%)
Show column five	Add/remove an additional % column from/to the list.	Checkbox
Column five name	The label of the column.	text
Column five width	The width of the column.	number
Column five header alignment	The alignment for the header cell of the fifth column.	Dropdown
Column five value alignment	The alignment for the value cell of the fifth column.	Dropdown
Column six (Start)
Show column six	Add/remove an additional Start column from/to the list.	Checkbox
Column six name	The label of the column.	text
Column six width	The width of the column.	number
Column six header alignment	The alignment for the header cell of the sixth column.	Dropdown
Column six value alignment	The alignment for the value cell of the sixth column.	Dropdown
Column seven (End)
Show column seven	Add/remove an additional End column from/to the list.	Checkbox
Column seven name	The label of the column.	text
Column seven width	The width of the column.	number
Column seven header alignment	The alignment for the header cell of the seventh column.	Dropdown
Column seven value alignment	The alignment for the value cell of the seventh column.	Dropdown
Custom date format	Please consult this doc to create the right date format: "https://day.js.org/docs/en/display/format". Default format: YYYY-MM-DD	text

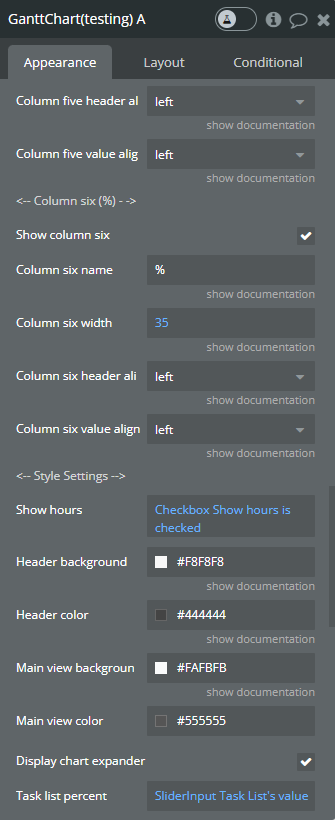

Style Settings
Show Hours	Show or hide the hours from the header of the chart.	yes/no
Header Background	Set up the background color for the header of the chart.	Color (optional)
Header Color	Set up the text color for the header of the chart.	Color (optional)
Main View Background	Set up the background color for the main view of the chart.	Color (optional)
Main View Color	Set up the text color for the main view of the chart.	Color (optional)
Weekend Days Color	Set up the text color for the weekends of the chart.	Color (optional)
Display Chart Expander	It displays a +/- button for collapsible tasks.	Checkbox
Task List Percent	Set up the size of the task list in percentages.	number
Scale X	Set up the main view scale on the X-axis. Accepted values from 2 to 22.	number
Scale Y	Set up the main view scale on the Y-axis. Accepted values from 10 to 100.	number
Show Progress Linear	It displays a green line on the top of each task that expresses the progress.	Checkbox
Language	Set up the language of the chart. Supports: en, jp, fr, pl	Text, Optional

💡

Tip: All the properties marked with REQUIRED are essential for rendering in the Gantt chart. If a REQUIRED field is empty, the Gantt chart on the page preview will ignore the task. The simplest way to get the Gantt chart working is to prepare your data according to our documentation.

💡

Tip: The best practice is to create a separate type for tasks in Bubble DB, for example, “Task”.

Bubble DB:

You will need at least ten fields: Collapsed, Depends on (Dependent), Duration, Label, Parent, Progress, Start date, Type, User, Unique id.

An example of data from Bubble Task type:

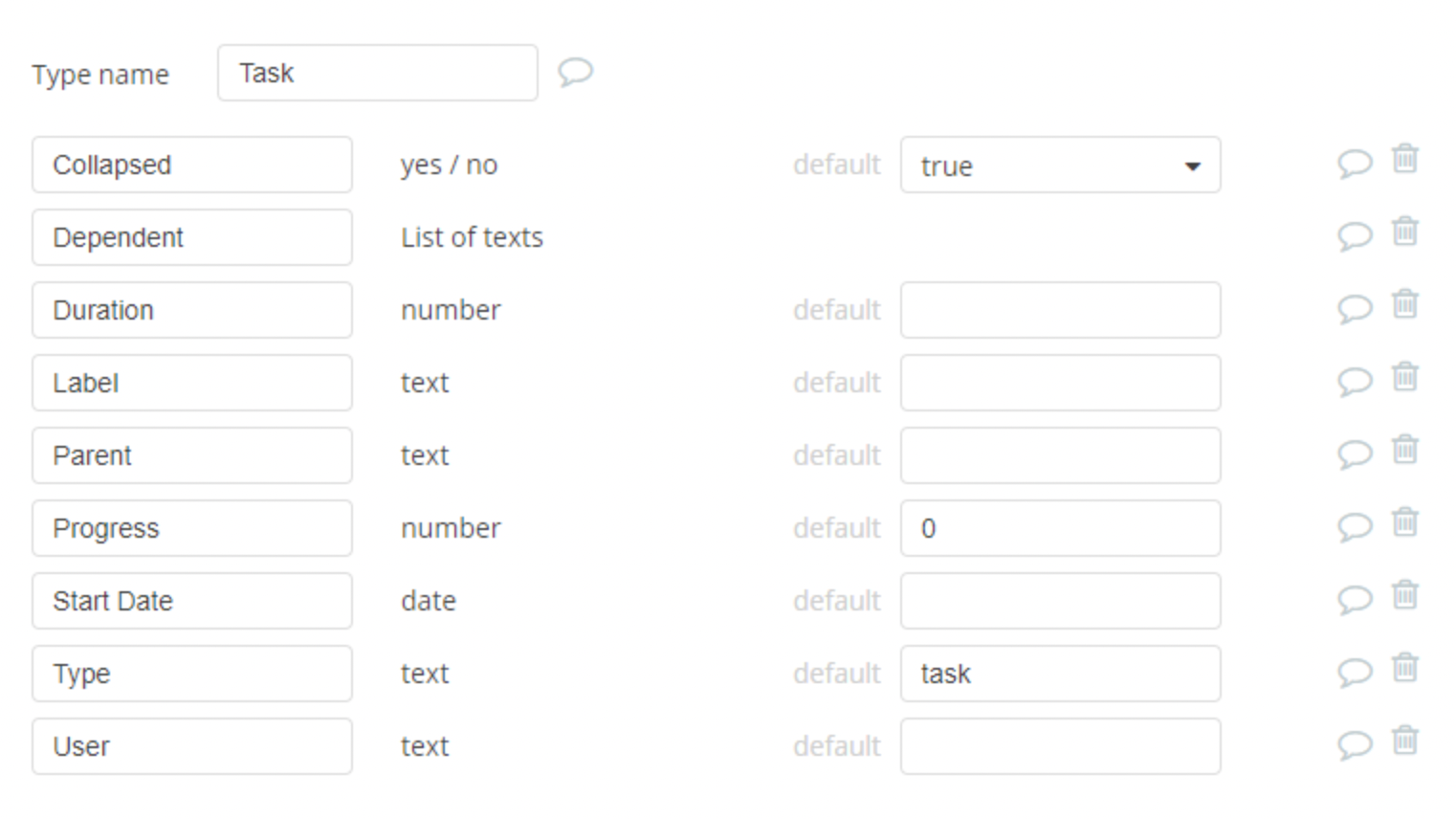

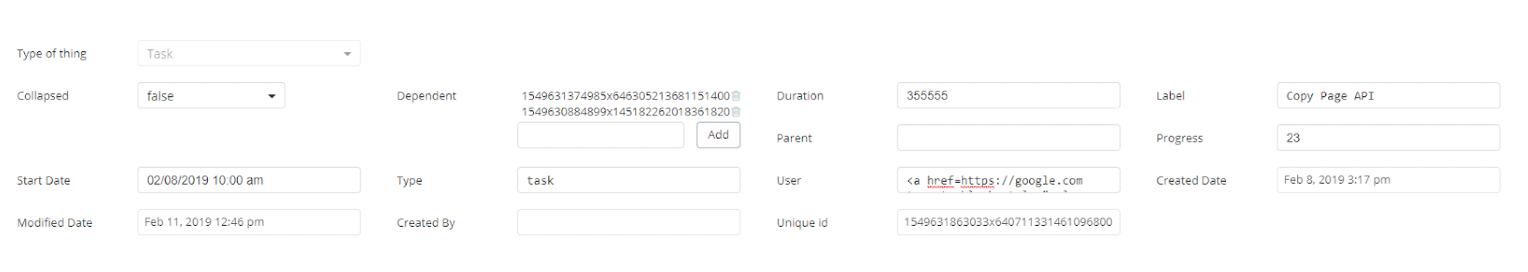

An example of Task type in Bubble:

Exposed states

Clicked Task ID - the id of the latest clicked task (text).

Clicked Task Label - the label of the latest clicked task (text).

Clicked Task Start - the task start time of the latest clicked task (text).

Clicked Task Duration - the duration of the latest clicked task (number).

Clicked Task Progress - the progress of the latest clicked task (number).

Clicked Task Type - the type of the latest clicked task (text).

Clicked Task Parent- the parent of the latest clicked task (text).

Clicked Task Dependent on - the dependent on the latest clicked task (text).

Hovered Taks ID - the ID of the latest hovered at task (text).

Hovered Task Label - the label of the latest hovered-at task (text).

Hovered Task Start - the task start time of the latest hovered at task (text).

Hovered Task Duration - the task duration time of the latest hovered-at task (text).

Hovered Task Progress - the progress of the latest hovered at task (text).

Hovered Task Type - the type of the latest hovered task (text).

Hovered Task Parents - the parents of the latest hovered at task (text).

Hovered Task Dependent - the dependent of the latest hovered at task (text).

Events

Item Clicked - a task has been clicked and the states related to the click event have been populated.

Item Hovered - a task has been hovered over and the states related to the hover event have been populated.

Element Actions

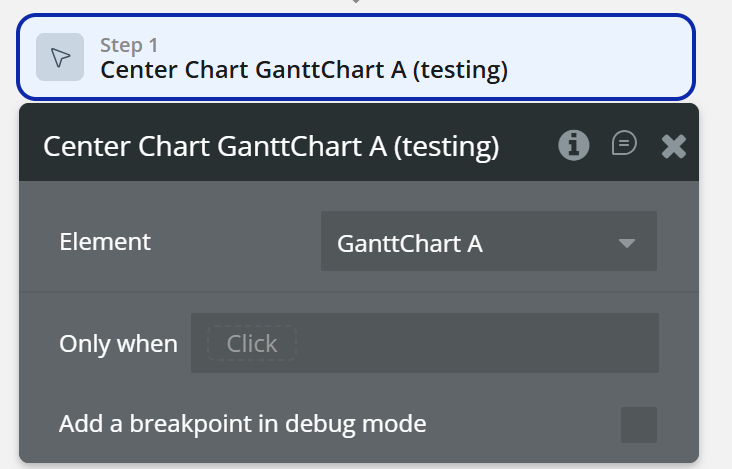

Center Chart - will centre the chart on the current date/time.

Timeline Chart

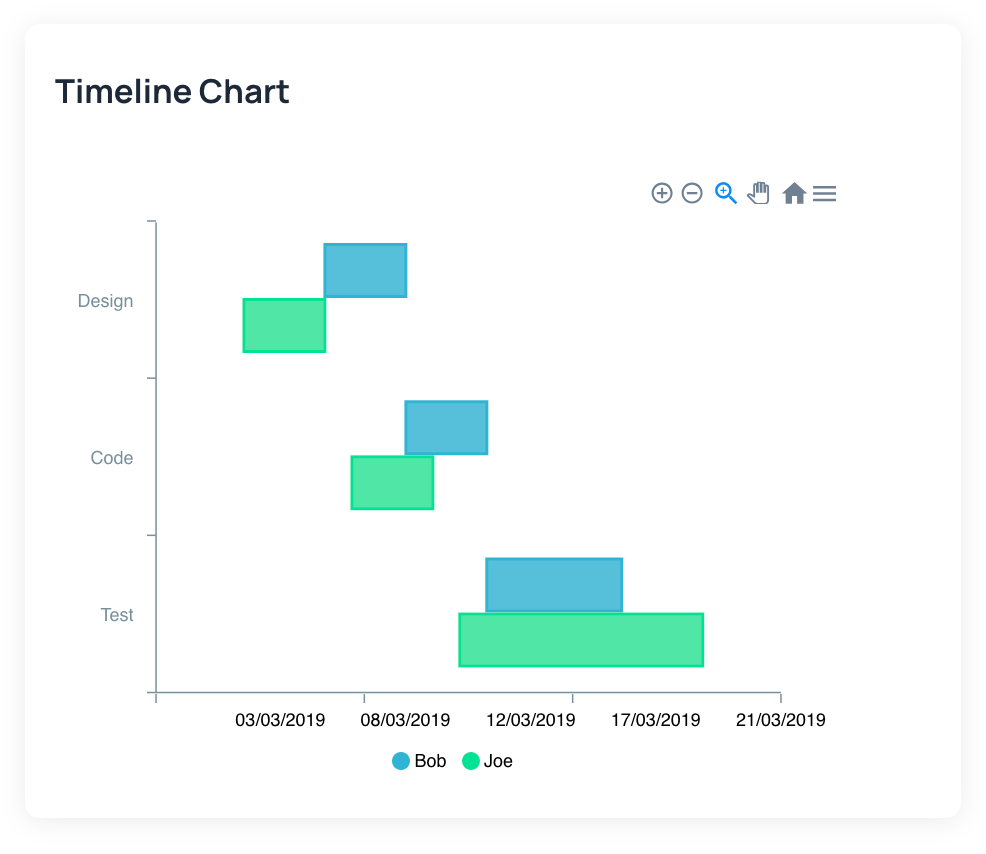

A timeline chart is a visual representation of a sequence of events in chronological order. It's used to display the progression of time, helping to illustrate when specific events occurred or are expected to occur. Timeline charts are widely used in project management, history education, and business planning.

Examples:

Fields:

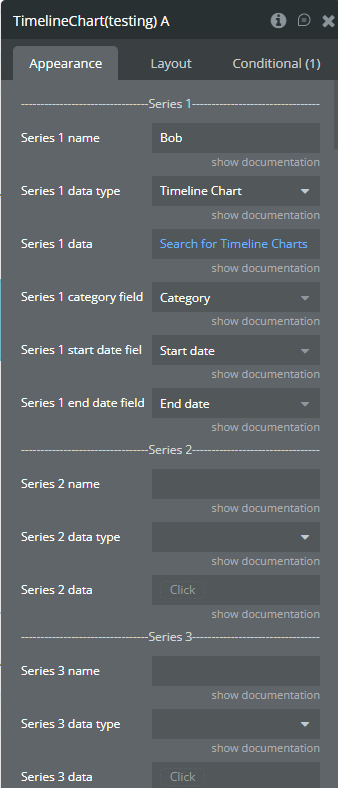

Title	Description	Type
Series 1
Series 1 name	Unique name of the 1st series	text
Series 1 data type	The data type with “category”, “start date”, and “end date”	dropdown
Series 1 data	The source of the data from the DB	dynamic field
Series 1 category field	The field from the data type that represents the category	dropdown
Series 1 start date field	The field from the data type that represents the start date	dropdown
Series 1 end date field	The field from the data type that represents the end date	dropdown
Series 2 (Optional)
Series 2 name	Unique name of the 2nd series	text
Series 2 data type	The data type with “category”, “start date”, and “end date”	dropdown
Series 2 data	The source of the data from the DB	dynamic field
Series 3 (Optional)
Series 3 name	Unique name of the 3rd series	text
Series 3 data type	The data type with “category”, “start date”, and “end date”	dropdown
Series 3 data	The source of the data from the DB	dynamic field
Data formatting
Date format	The format of the date on chart	dropdown
Style
Enable sparkline	Hides all the elements of the chart other than the primary paths. Helps visualize data in small areas.	checkbox
Bar width	The size of the bar in percentages related to the grid size	number
Stroke width	The size of the stroke on the bar	number
Stoke dashed width	If this value is more than 0 the stroke will be dashed	number
Chart color 1	The color of the 1st series	color
Chart color 2	The color of the 2nd series	color
Chart color 3	The color of the 3rd series	color
Color style	Solid or gradient	dropdown
Gradient type	Horizontal or vertical	dropdown
Gradient color 1	The 2nd color for the gradient for the 1st series	color
Gradient color 2	The 2nd color for the gradient for the 2nd series	color
Gradient color 3	The 2nd color for the gradient for the 3rd series	color
Gradient opacity from	The opacity of the first gradient color	number
Gradient opacity to	The opacity of the second gradient color	number
Enable drop shadow	Draws a drop shadow for the series	checkbox
Drop shadow color	The color of the shadow	color
Drop shadow offset from the top	The offset of the shadow from top	number
Drop shadow offset from the left	The offset of the shadow from left	number
Drop shadow blur	The blur distance of the shadow	number
Chart padding top	The indent of the chart from top	number
Chart padding bottom	The indent of the chart from bottom	number
Chart padding left	The indent of the chart from left	number
Chart padding right	The indent of the chart from right	number
Grid
Enable grid lines for the X axis	Display vertical grid lines	checkbox
Enable grid lines for the Y axis	Display horizontal grid lines	checkbox
Grid line color	The color of grid lines	color
Grid stroke dashed width	If this value is greater than 0 the line will be dashed	number
Background grid color
Enable grid column color	Adds background color to the vertical grid spaces	checkbox
Odd column color	The color of the odd grid columns	color
Even column color	The color of the even grid columns	color
Column color opacity	The opacity of the grid column color	number
Enable grid row color	Adds background color to the horizontal grid spaces	checkbox
Odd row color	The color of the odd grid rows	color
Even row color	The color of the even grid rows	color
Row color opacity	The opacity of the grid row color	number
Animation
Enable animation	Animate the chart on change	checkbox
Animation speed	How fast the animation should end	number
Animation delay	How much the animation should wait before starting	number
X-axis
Show X-axis border	Show or hide the X axis	checkbox
X-axis border size	The thickness of the X axis	number
X-axis title	X-axis title	text
X-axis title color	X-axis title color	color
X-axis title size	The font size of the X-axis title	number
X-axis title offset from the top	The top indent of the X-axis title	number
X-axis title offset from the left	The left indent of the X-axis title	number
Show X-axis ticks	Show or hide ticks on the X-axis	checkbox
X-axis ticks color	The color of the X-axis ticks	color
X-axis ticks height	The height of the X-axis ticks	number
Show X-axis labels	Show or hide X-axis labels	checkbox
X-axis label count	The count of X-axis labels. Using a value that is less than half of the count of initial labels is recommended for displaying fewer values.	number (optional)
X-axis label color	The color of the X-axis labels	color
X-axis label size	The text size of the X-axis label	number
X-axis labels offset from the top	The indent from top of the X-axis label	number
X-axis labels max height	The max height of the X-axis labels	number
Hide overlapping X-axis labels	Hide some of the X-axis labels if they overlap each other	checkbox
Trim X-axis labels	Trim X-axis labels adding … to them	checkbox
Rotate X-axis labels	Rotate X-axis labels if they are too long	checkbox
Always rotate X-axis labels	Rotates X-axis labels by default	checkbox
X-axis labels rotation	The angle of rotation of the labels	number
Enable X-axis tooltip	Shows a tooltip on the x-axis on hover	checkbox
X-axis crosshair width	The size of the crosshair. If the value is greater than 0, the crosshair will be displayed.	number
X-axis crosshair dashed width	If this value is greater than 0 the crosshair will be dashed	number
X-axis crosshair color	The color of the crosshair line	color
Y-axis
Show Y-axis border	Show or hide the Y-axis	checkbox
Y-axis border color	The color of the Y-axis border	color
Y-axis border size	The thickness of the Y-axis	number
Y-axis title	The title of the Y-axis	text
Y-axis title color	The color of the title of the Y-axis	color
Y-axis title size	The size of the text of the Y-axis	number
Y-axis title offset from the top	The top indent of the Y-axis title	number
Y-axis title offset from the left	The left indent of the Y-axis title	number
Show Y-axis ticks	Show or hide ticks on the Y-axis	checkbox
Y-axis ticks color	The color of the Y-axis ticks	color
Y-axis ticks width	The size of the Y-axis ticks	number
Show Y-axis labels	Show or hide Y-axis labels	checkbox
Y-axis labels color	The color of the Y-axis label	color
Y-axis labels size	The size of the Y-axis text	number
Enable Y-axis tooltip	Enable or disable Y-axis tooltip	checkbox
Y-axis crosshair width	The size of the crosshair. If the value is greater than 0 the crosshair will be displayed.	number
Y-axis crosshair dashed width	If this value is greater than 0 the crosshair will be dashed.	number
Y-axis crosshair color	The color of the Y-axis crosshair	color
Tooltip
Show tooltip	Show / hide tooltip on the chart on hover	checkbox
Show category on tooltip	Show / hide the category of the element that’s being hovered over in the tooltip	checkbox
Tooltip theme	The theme of the tooltip	dropdown
Enable fixed tooltip	Show tooltip in a specified place	checkbox
Fixed tooltip position	Selects the place where the fixed tooltip will be shown	dropdown
Legend
Show legend	Show / hide the legend. Needs at least 2 series to be on chart.	checkbox
Legend position	The position of the legend	dropdown
Horizontal legend alignment	Horizontal legend alignment	dropdown
Legend font size	The size of the text on legend	number
Toolbar
Enable toolbar	Show / hide the toolbar in the top right corner	checkbox
Enable download	Add a download option to the toolbar	checkbox
Enable zoom	Add a zoom option to the toolbar	checkbox
Zoom selection color	The color of the zoom rectangle	color
Zoom selection opacity	The transparency of the zoom rectangle	number
Zoom selection stroke width	The size of the zoom square stroke	number
Zoom selection stroke color	The color of the zoom rectangle stroke	color
Zoom selection stroke opacity	The opacity of zoom square stroke	number

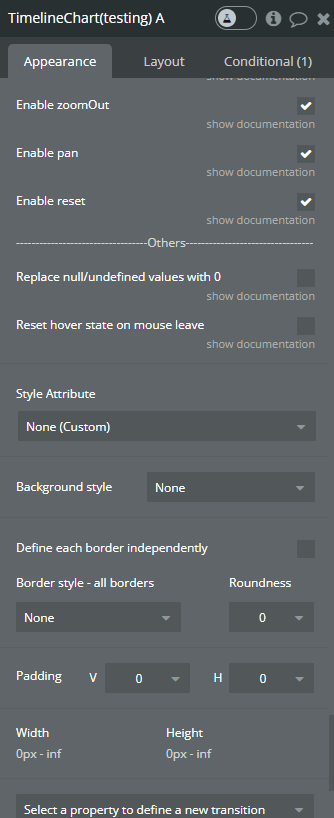

Enable zoomIn	Adds a zoom in chart option to the toolbar	checkbox
Enable zoomOut	Adds a zoom out chart option to the toolbar	checkbox
Enable pan	Adds a pan option to the chart toolbar	checkbox
Enable reset	Adds a reset option to the chart toolbar	checkbox
Others
Replace null / undefined values with 0	Replaces null / undefined values with 0	checkbox
Reset hover state on mouse leave	Resets the element state when the mouse leaves the hovered area	checkbox

💡

Tip: The best practice is to create a separate type for tasks in Bubble DB, for example, “Timeline Chart”.

Bubble DB:

You will need at least four fields: Category, End date, Name, Start date.

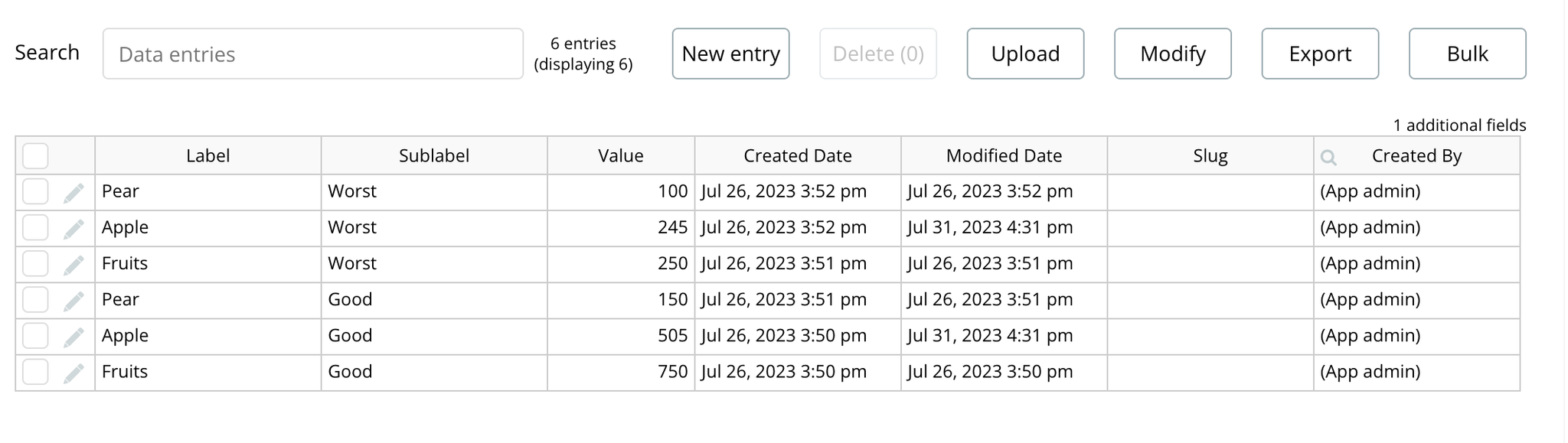

An example of data from Bubble Timeline Chart type:

Exposed states

Series name on click - (text) Returns the clicked series name.

Label on click - (text) Returns the Y-axis label when the chart is clicked.

Start date on click - (date) Returns the start date for the clicked item.

End date on click - (date) Returns the end date for the clicked item.

Series name on hover - (text) Returns the hovered series name.

Label on hover - (text) Returns the Y-axis label when the chart has hovered.

Start date on hover - (date) Returns the start date for the hovered item.

End date on hover - (date) Returns the end date for the hovered item.

PNG url - (text) Returns the generated PNG url after execution of the "Generate PNG Url" action.

Series names - (list of texts) Returns the list of all series names that are present on the chart.

Events

Chart is drawn - This event is triggered when the chart is completely drawn.

Chart is clicked - This event is triggered when the chart is clicked.

Chart has hovered - This event is triggered when the chart was hovered over.

PNG Url is available - This event is triggered when the PNG URL is available.

Element Actions

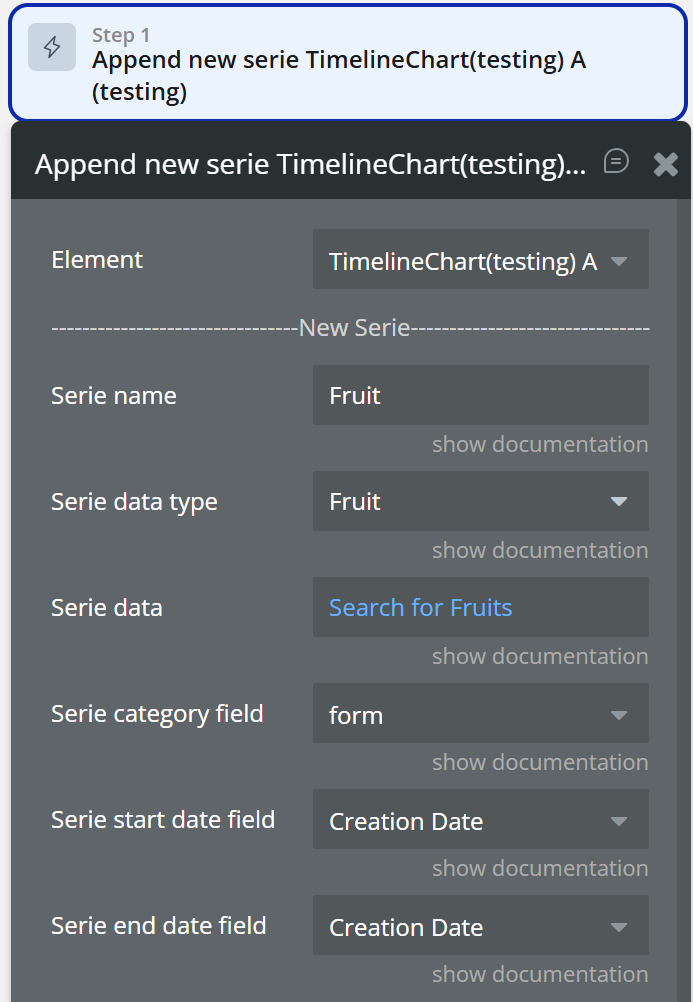

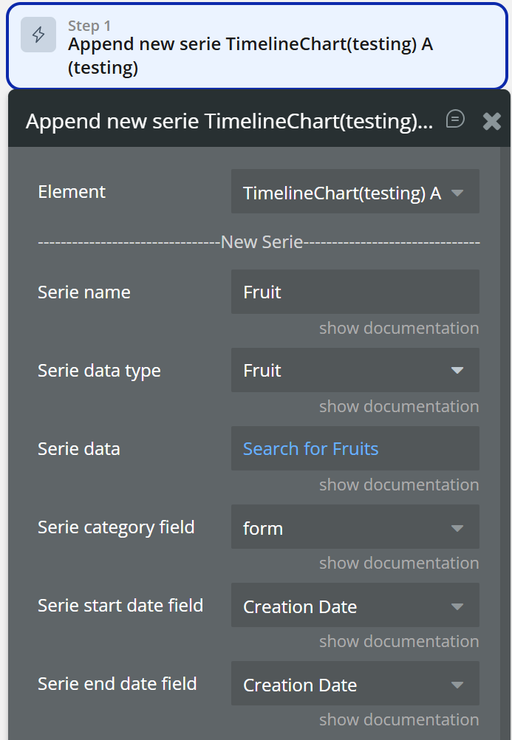

Append new serie - This action is used to add new serie.

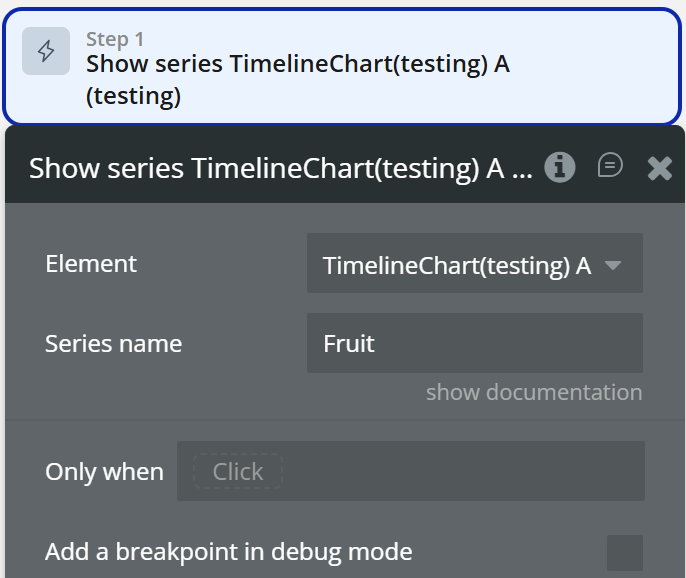

Show series - This action is used to show specific series on the chart.

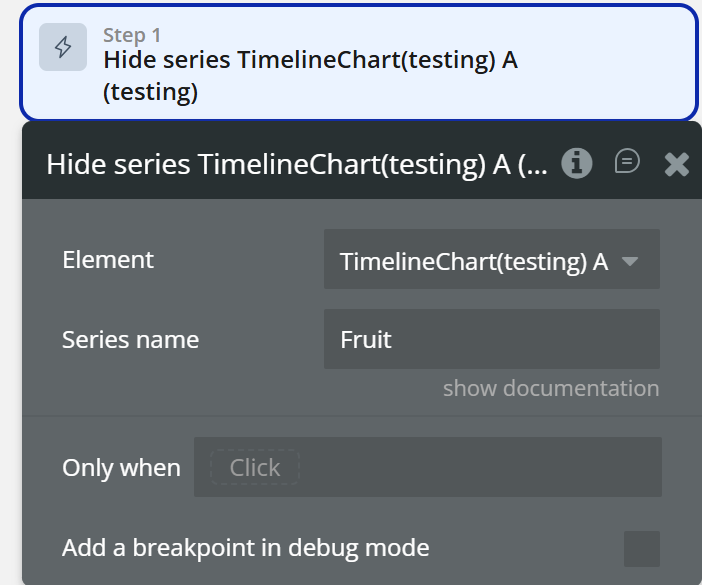

Hide series - This action is used to hide specific series on the chart.

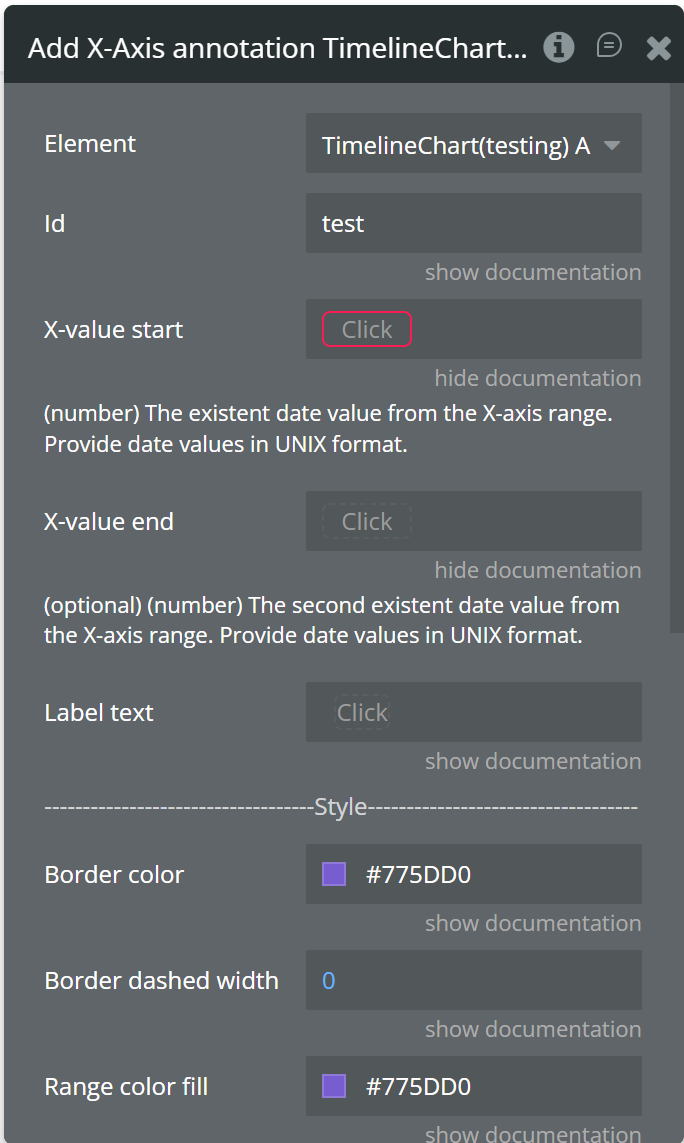

Add X-Axis annotation - This action is used to add the X-axis annotation on the chart.

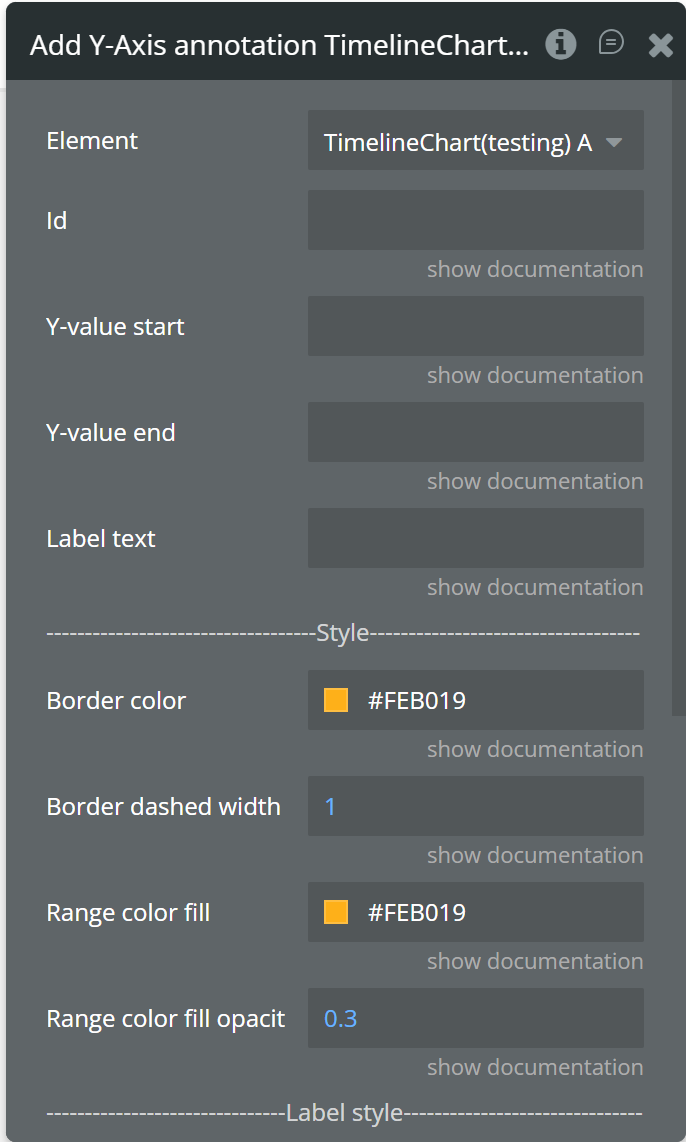

Add Y-Axis annotation - This action is used to add the Y-axis annotation on chart.

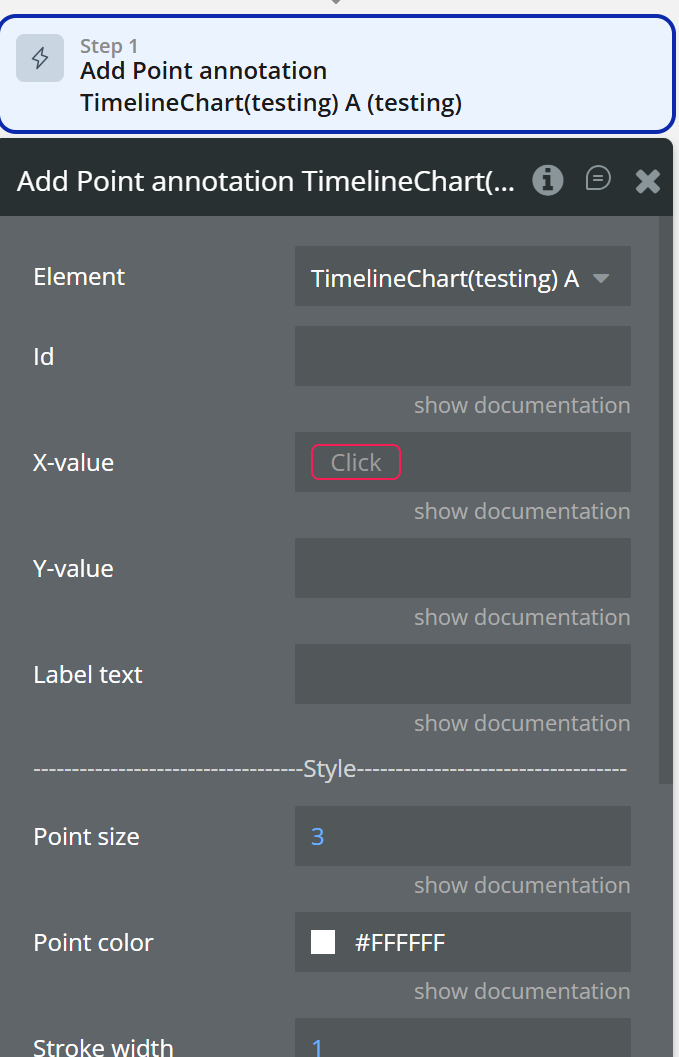

Add Point annotation - This action is used to add the point annotation on the chart.

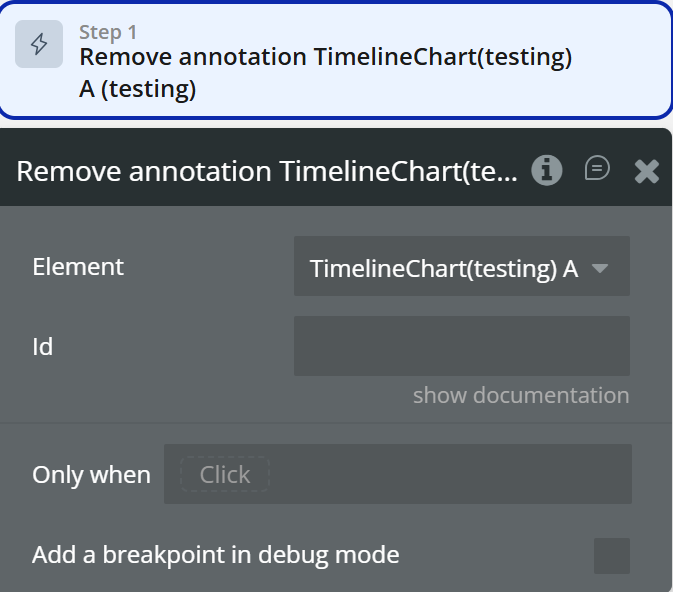

Remove annotation - This action is used to remove an annotation from the chart.

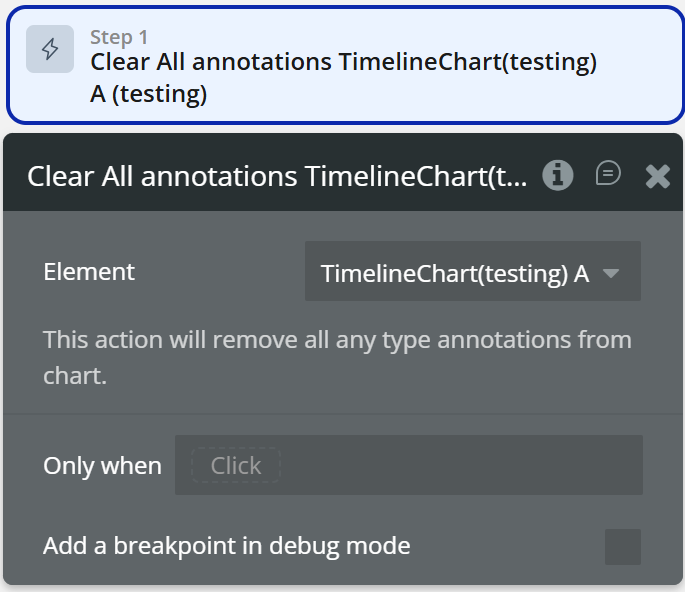

Clear All annotations - This action is used to remove all annotations from the chart.

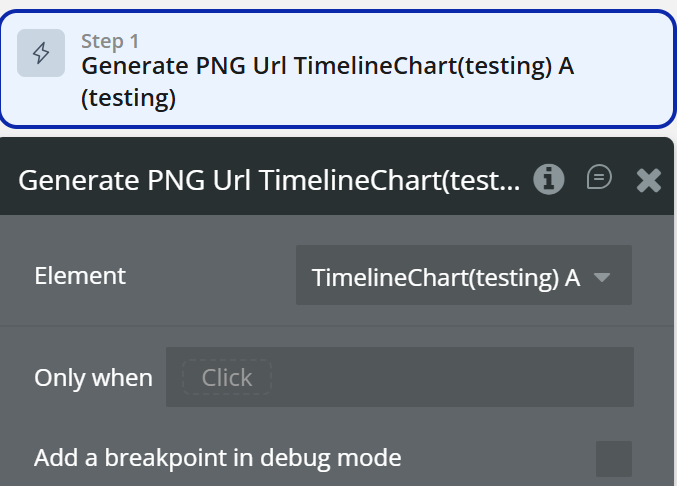

Generate PNG Url - This action is used to generate the PNG URL for the chart.

Air Gantt + Funnel + Timeline Chart

Demo to preview the settings

Introduction

How to setup

The plugin has five elements:

Funnel 1D Chart

Funnel 2D Chart

Funnel chart

Exposed states

Events

Gantt Chart

Exposed states

Events

Element Actions

Timeline Chart

Exposed states

Events

Element Actions

Changelogs

Update 22.08.24 - Version 1.16.0

Update 25.07.24 - Version 1.15.0

Update 16.07.24 - Version 1.14.0

Update 24.06.24 - Version 1.13.0

Update 06.06.24 - Version 1.12.0

Update 29.05.24 - Version 1.11.0

Update 20.05.24 - Version 1.10.0

Update 17.05.24 - Version 1.9.0

Update 03.04.24 - Version 1.8.0

Update 21.03.24 - Version 1.7.0

Update 13.03.24 - Version 1.6.0

Update 30.01.24 - Version 1.5.0

Update 29.01.24 - Version 1.4.0

Update 24.01.24 - Version 1.3.0

Update 24.01.24 - Version 1.2.0

Update 26.10.23 - Version 1.1.0

Update 19.10.23 - Version 1.0.0
