Mobile Charts Pro

✅

Link to the plugin page: https://zeroqode.com/plugin/charts-for-bubble-mobile-1743422416736x503435475852947300

Demo to preview the plugin:

✅

Live Demo: https://zeroqode-native-demo-01.bubbleapps.io/api/1.1/mobile/preview?debug_mode=true&preview_view=Charts

✅

Bubble Editor: https://bubble.io/page?id=zeroqode-native-demo-01&test_plugin=1743075669347x547602253682573300_current&tab=Design&name=Charts&type=page&version=live

Introduction

Mobile Charts Pro is a lightweight and versatile charting plugin for Bubble applications. It allows you to easily create and customize various chart types including line, bar, and pie charts. You can provide data either as a JSON string or directly as Bubble lists (for example, the results of a search), so no JSON formatting is required. The plugin is designed to be responsive and works well in various screen sizes, making it perfect for both desktop and mobile applications.

Prerequisites

No external API accounts or services are required for this plugin. The plugin works natively within your Bubble application with no additional dependencies.

This plugin is designed specifically for the mobile version of the Bubble editor. To test the plugin on your mobile device, use the TestFlight app available at: https://testflight.apple.com/join/4fXUggud

⚠️

Please note that the testing app is currently available for iOS only.

How to setup

Setting up Mobile Charts Pro is straightforward as it does not require any external API keys or configurations:

Install the Mobile Charts Pro plugin from the Bubble plugin marketplace.

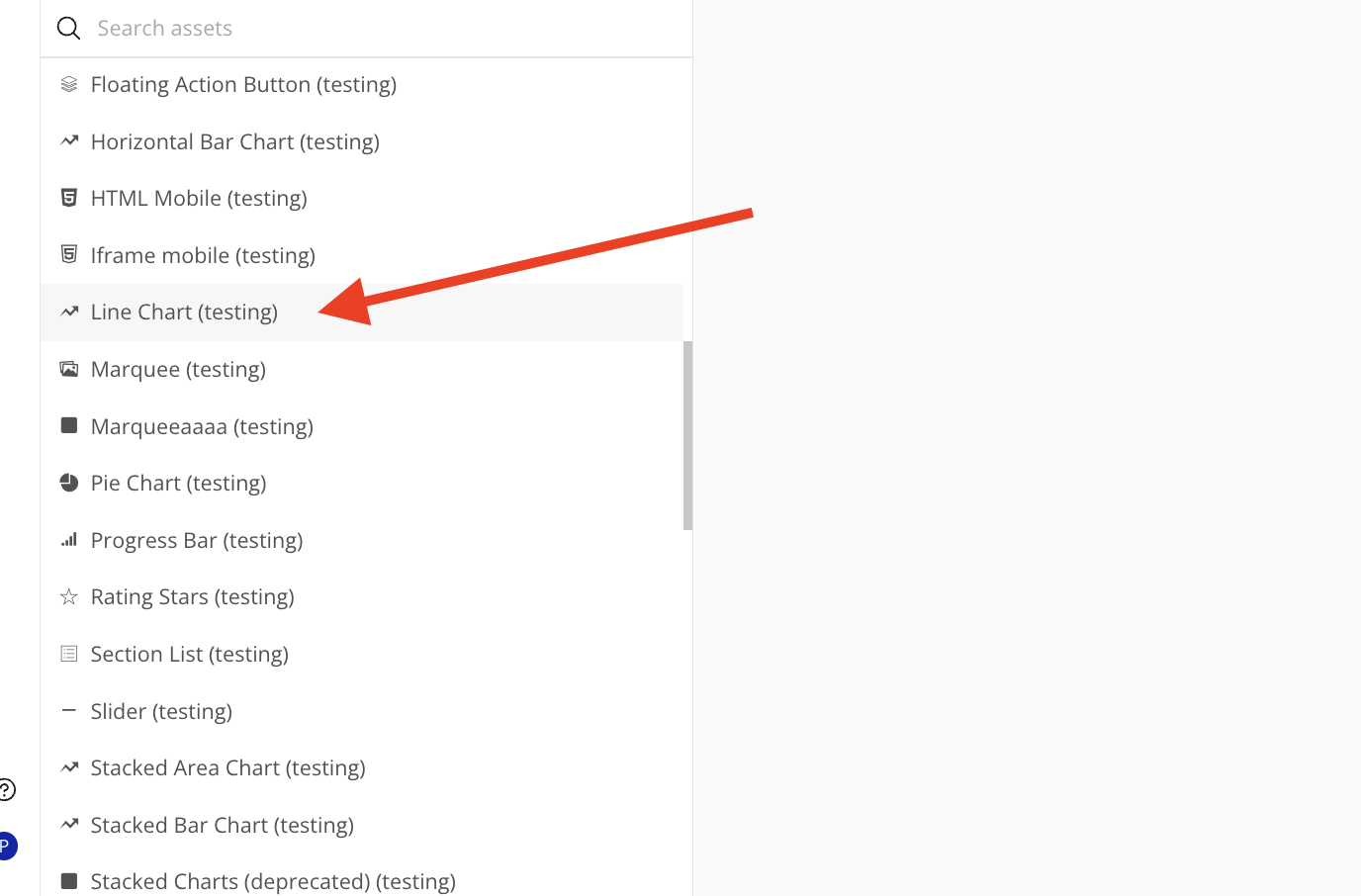

Add the desired chart element to your page from the Elements panel.

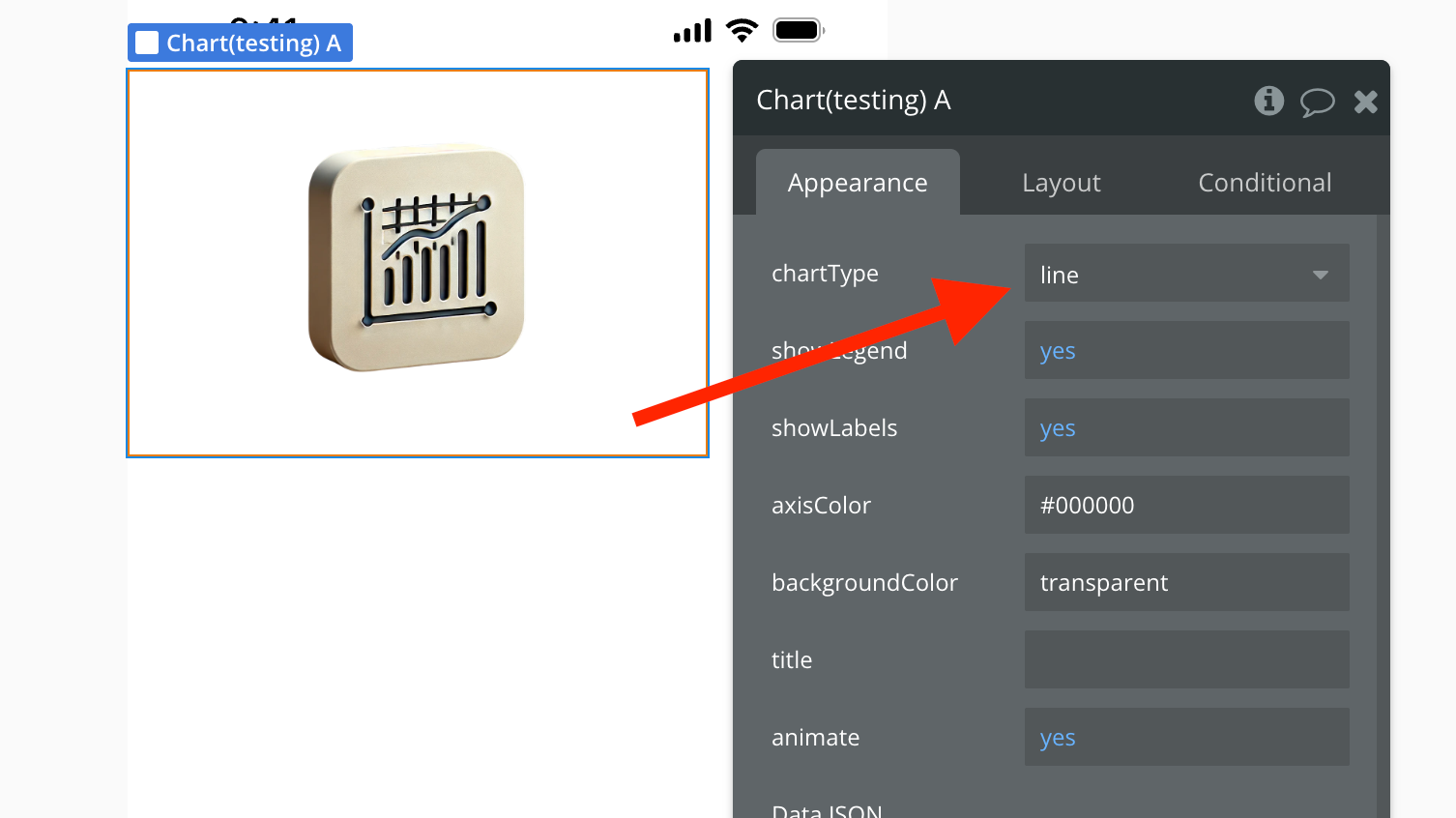

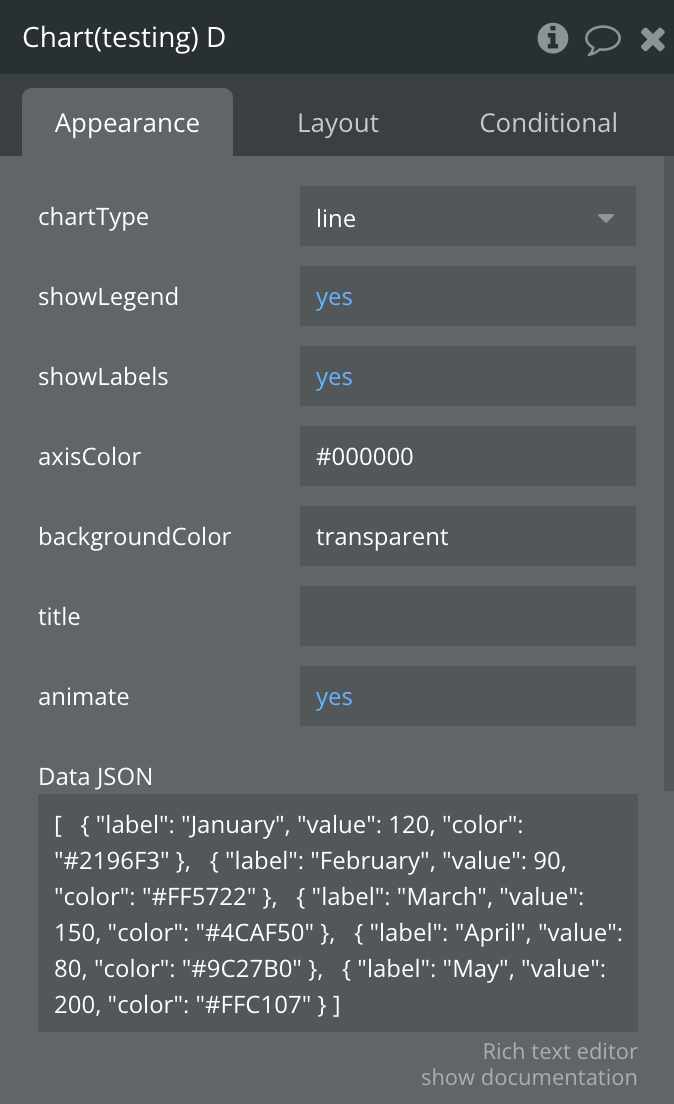

Configure the chart properties in the Property Editor panel.

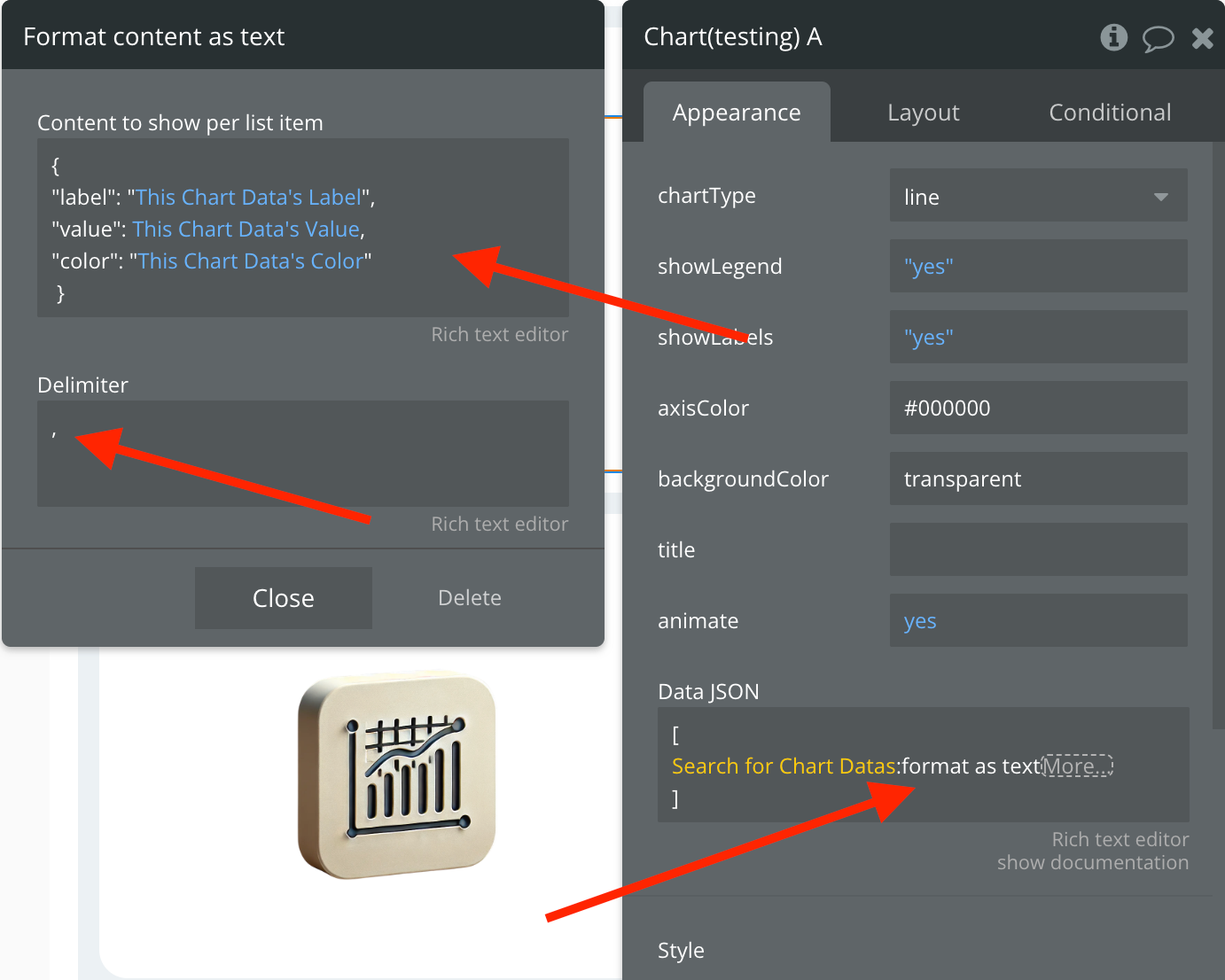

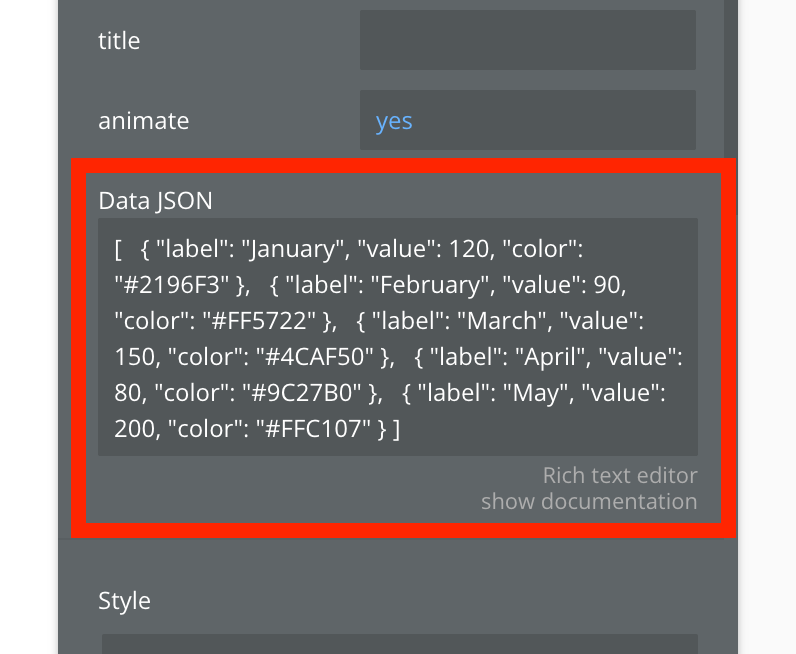

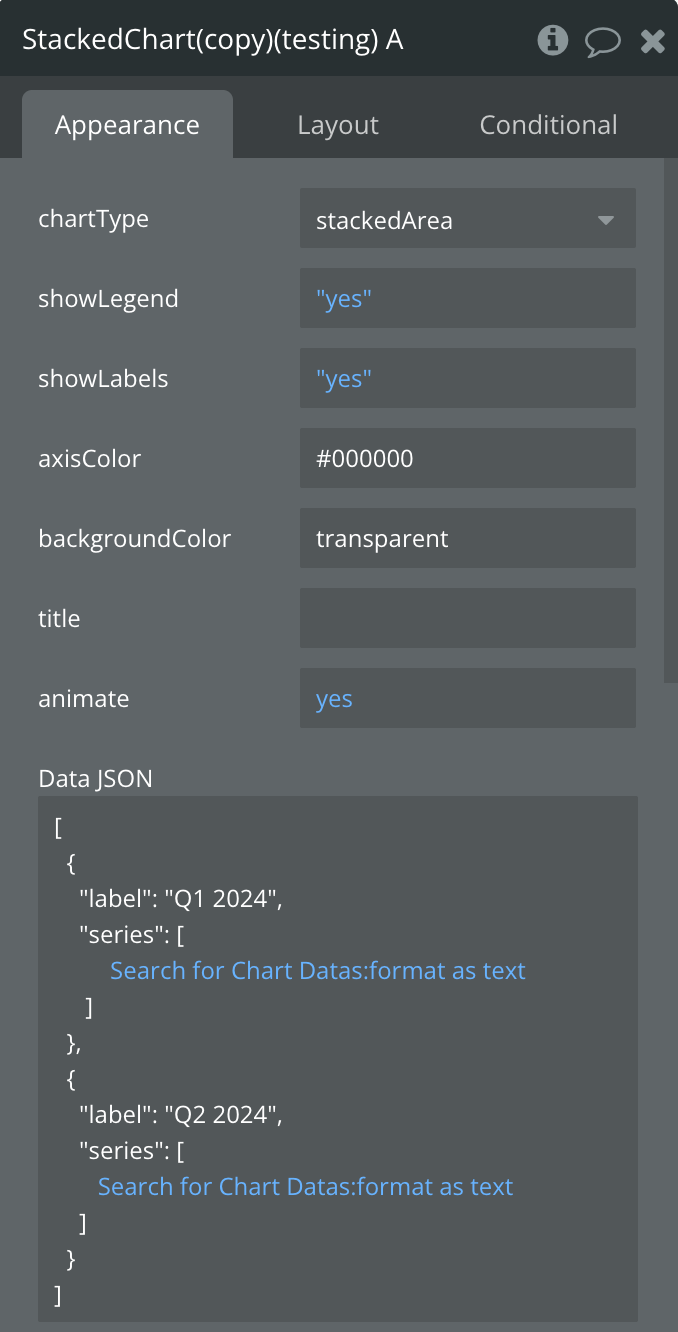

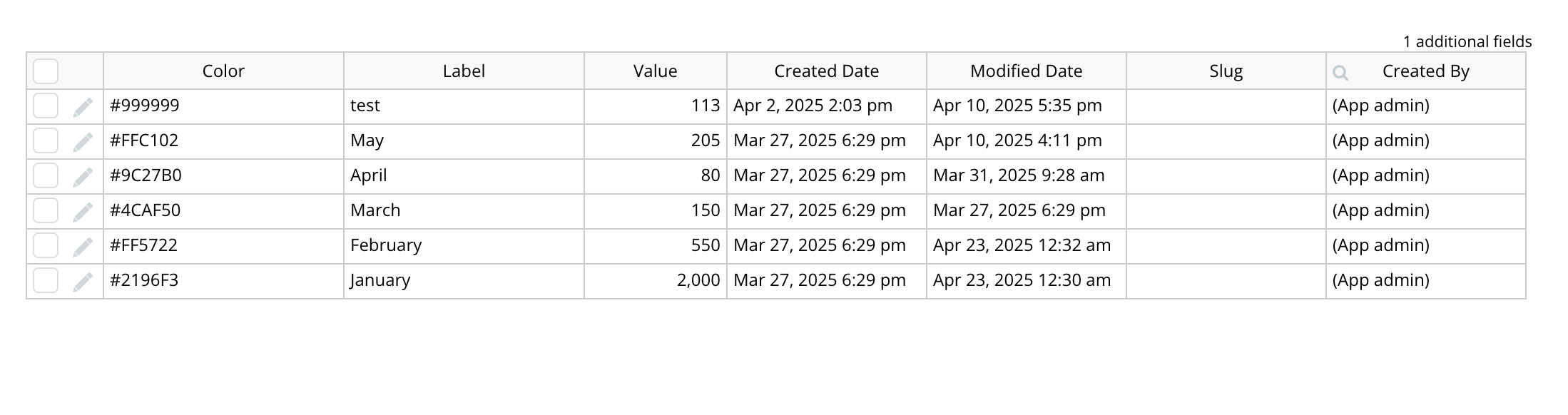

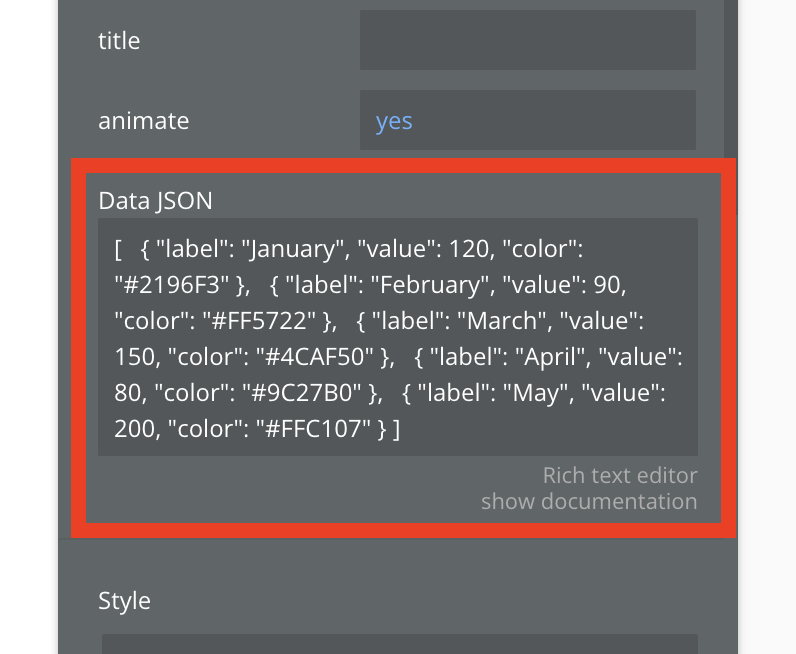

Choose how to provide data in the Data source field: JSON (a JSON string in the Data JSON field) or Lists (bind Labels and Series fields to Bubble lists). Then customize the appearance as needed.

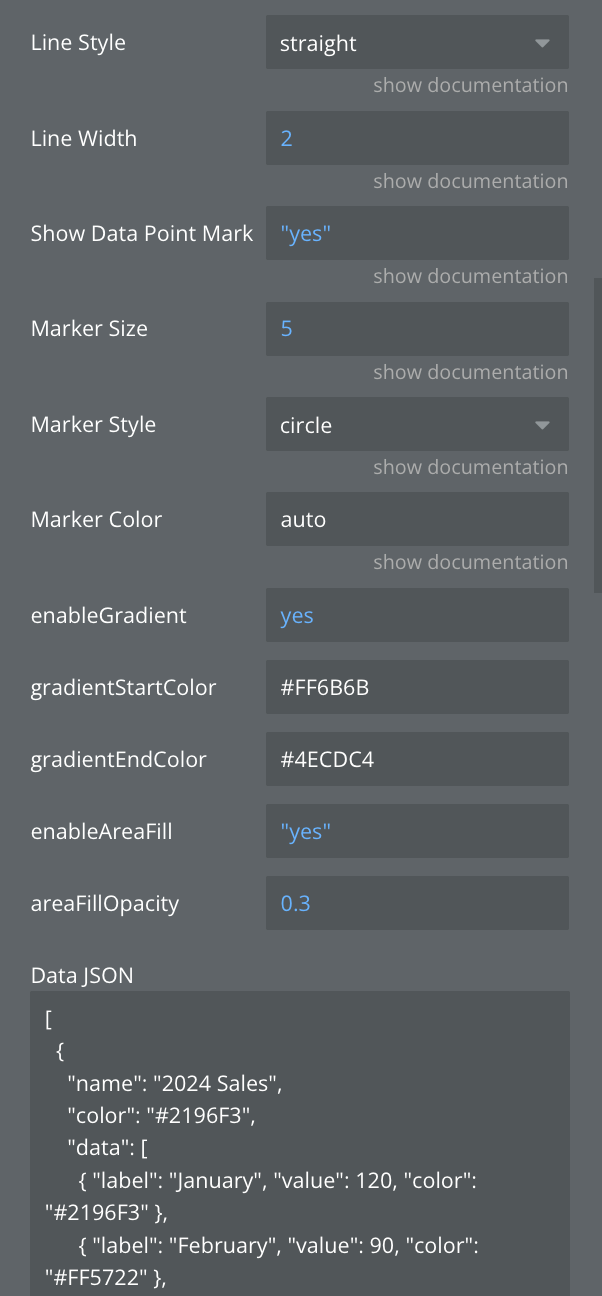

Plugin Element Properties

The plugin contains different main visual elements that should be used on mobile pages.

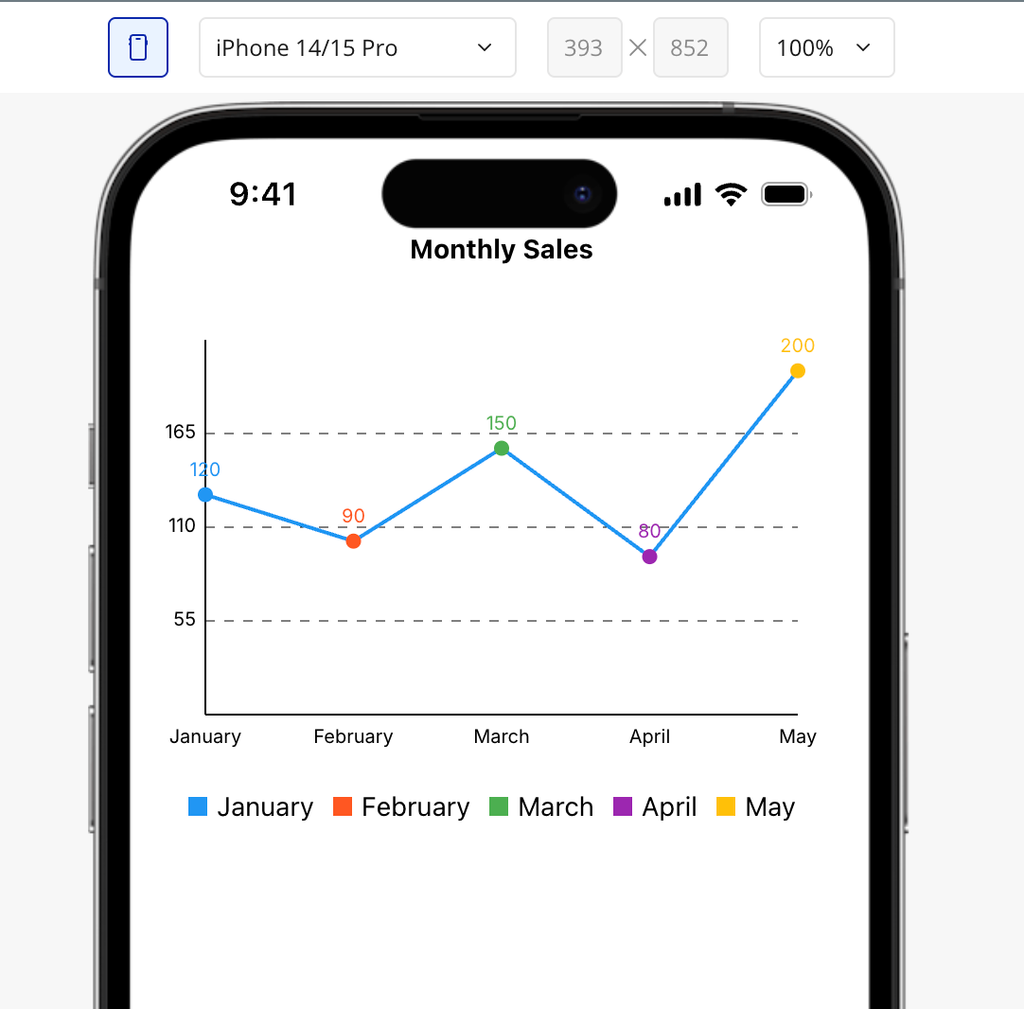

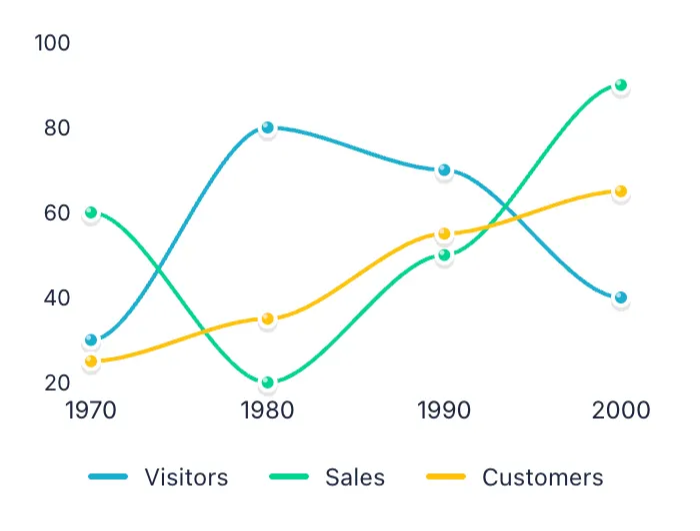

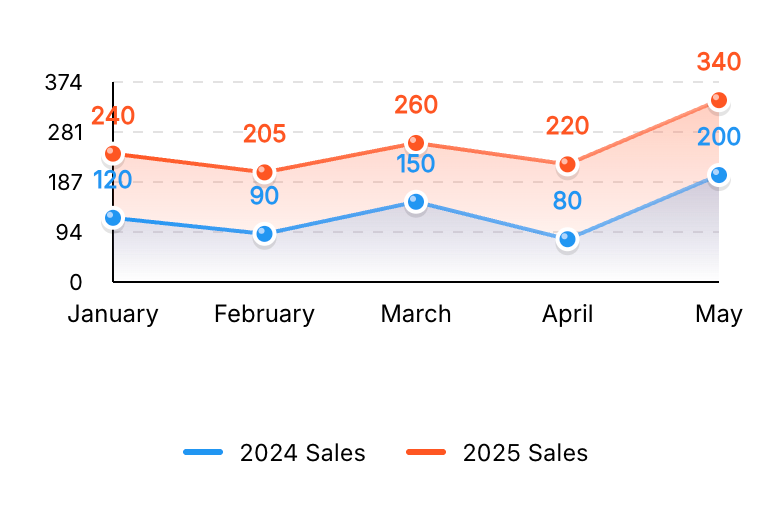

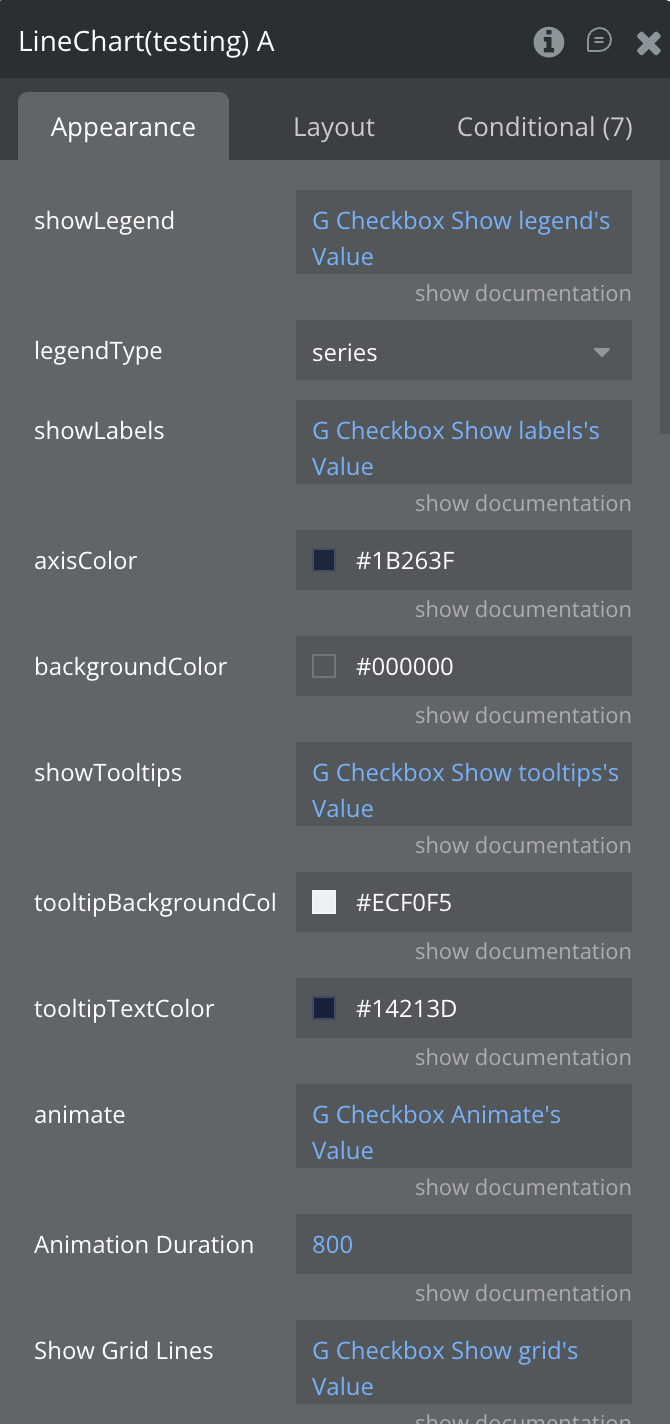

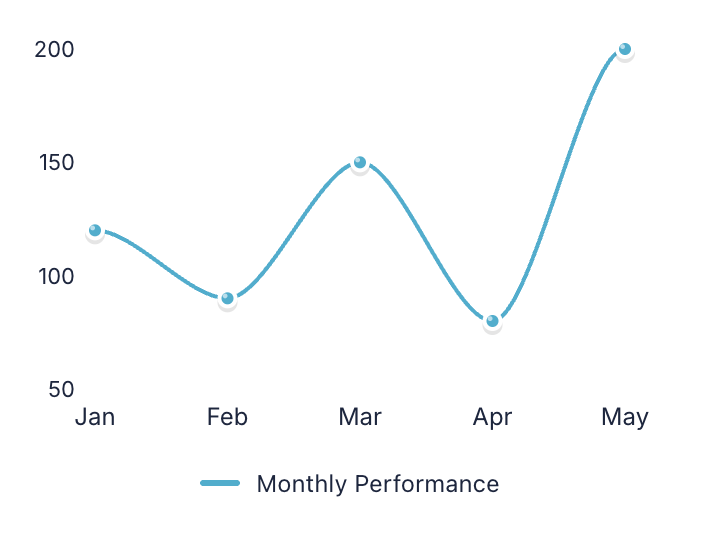

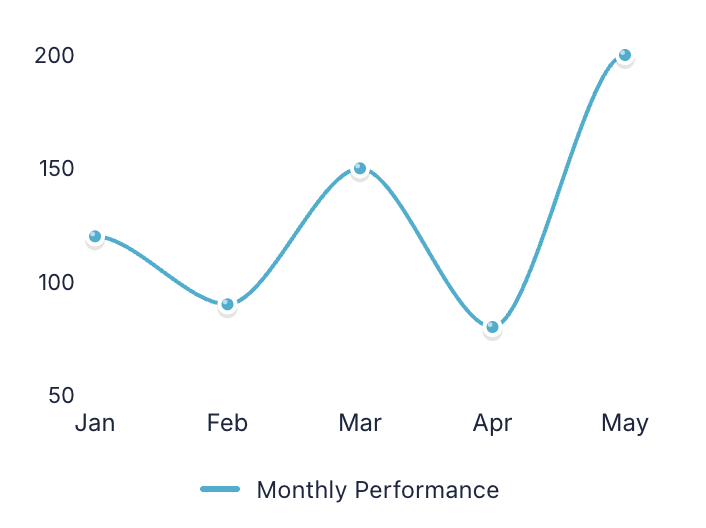

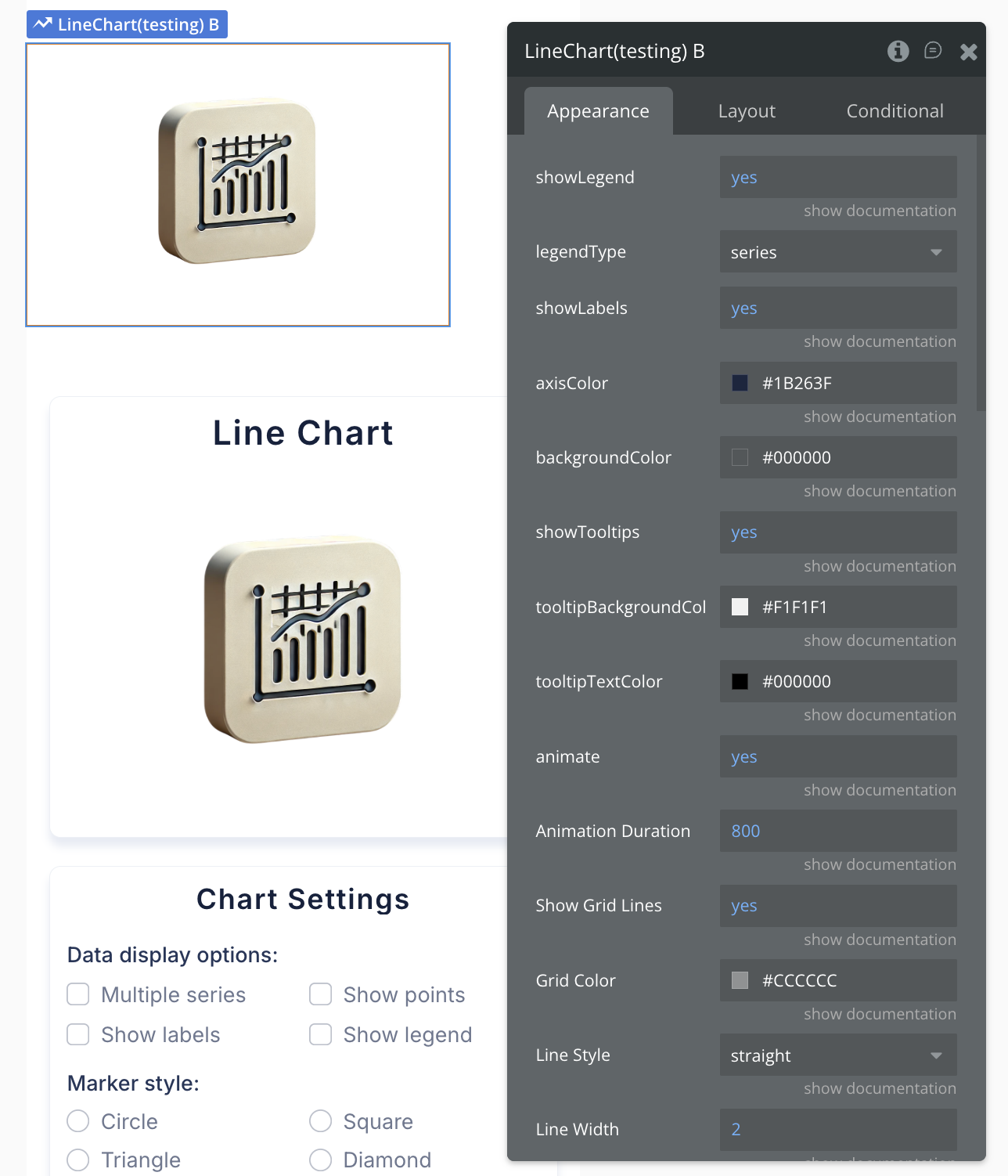

Line Chart

Perfect for displaying trends and changes over time with connected data points. Ideal for tracking metrics like sales growth, temperature variations, or stock prices across different periods.

Single series

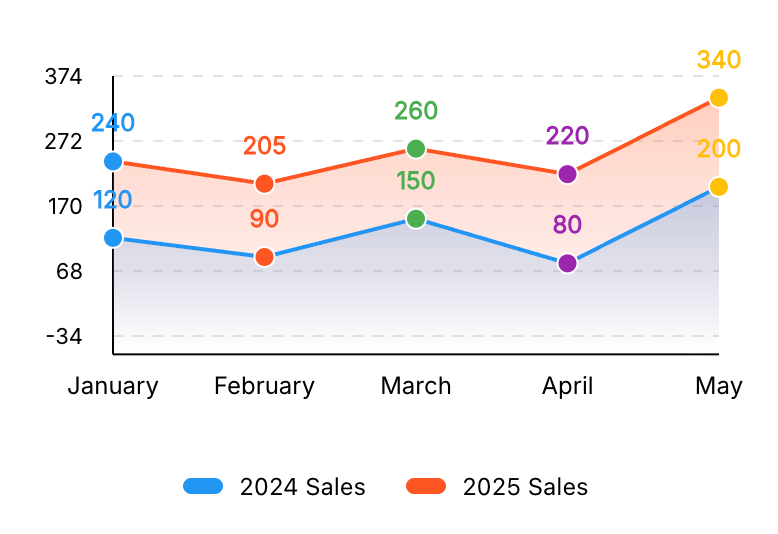

Multiple series

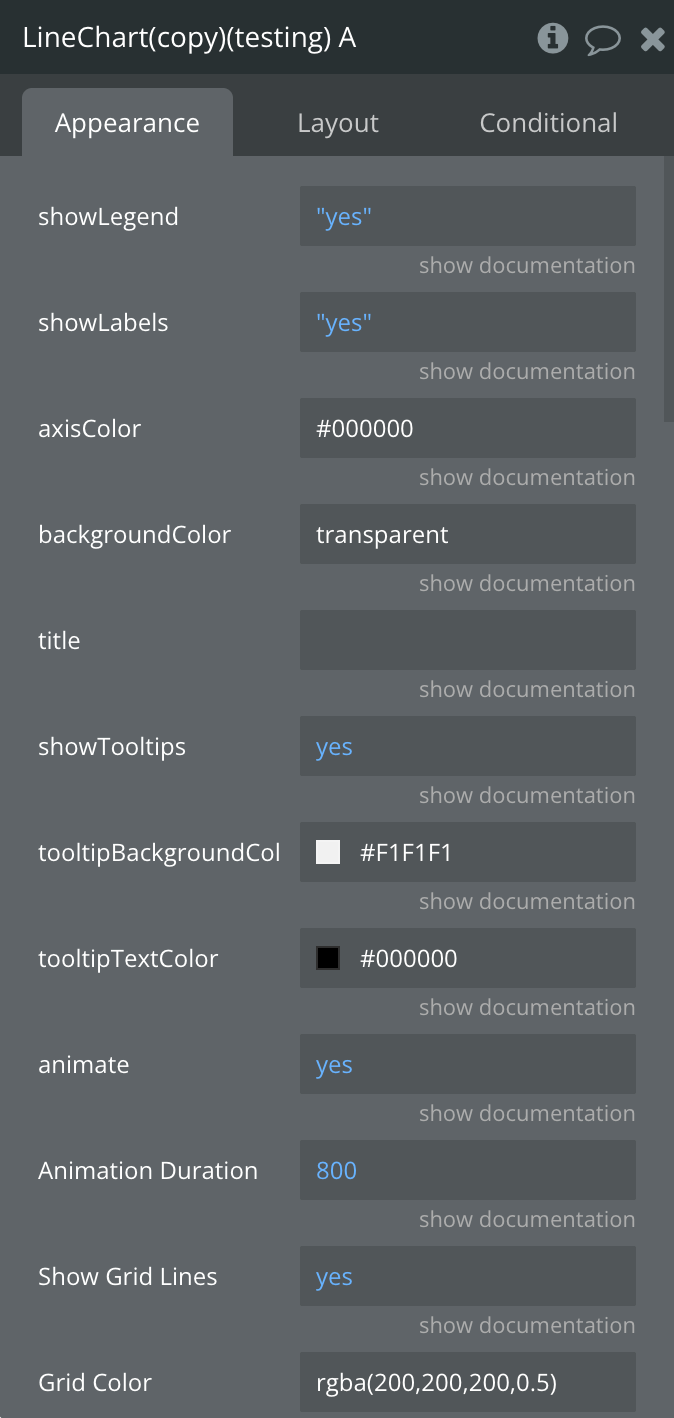

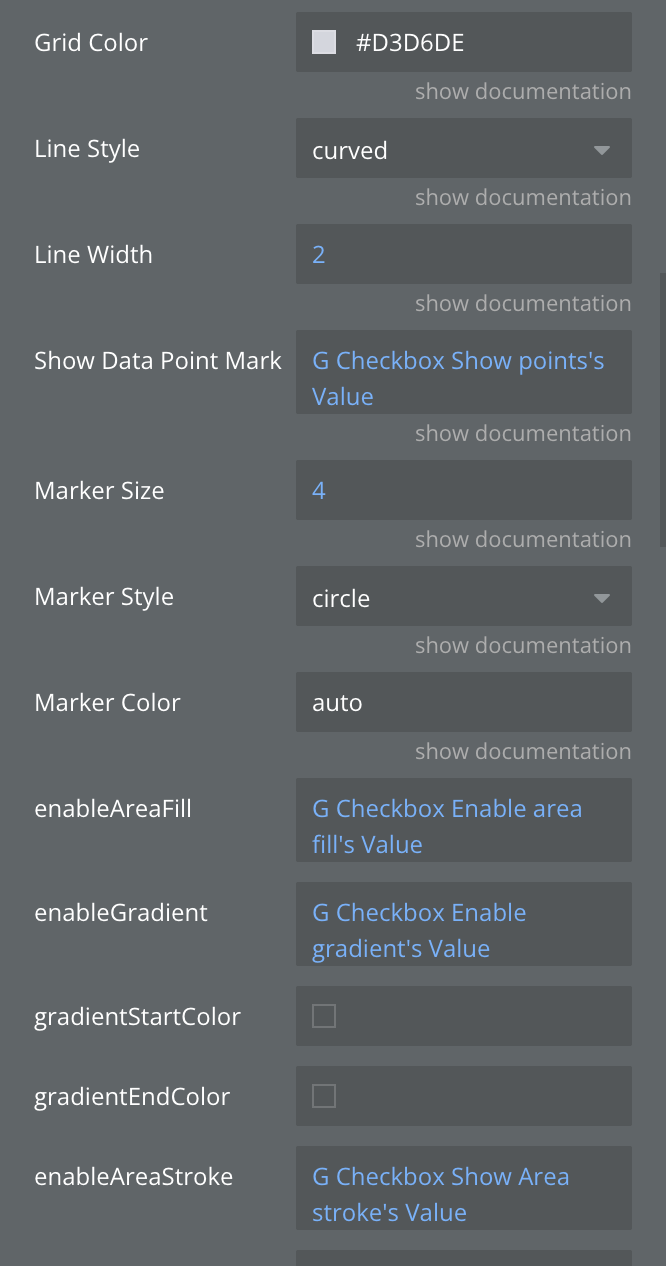

Fields:

Title	Description	Type
Data JSON	JSON string with chart data. Used when Data source = JSON.	Text
Data source	JSON: use the Data JSON field. Lists: use the Labels and Series fields below.	Dropdown
Labels (list)	X-axis labels. Must be unique (e.g. "Jan 2024", not "Jan"). Used when Data source = Lists.	List of texts
Point colors (list)	Optional color for each point, in the same order as Labels. Applied only when a single series is filled.	List of texts
Series 1–5 name	Series name shown in the legend and tooltip.	Text
Series 1–5 values (list)	Values in the same order as Labels. Missing values are treated as 0. Empty series are skipped.	List of numbers
Series 1–5 color	Series color. If empty, the default palette is used.	Color
Animation Duration (ms)	Duration of chart animations in milliseconds	Number
Grid Color	Color of the grid lines	Text
Line Style	Style of the line: straight, curved, or stepped	Dropdown
Line Width	Width of the line in pixels	Number
Marker Color	Color of markers (auto uses line color)	Text
Marker Size	Size of data point markers in pixels	Number
Marker Style	Style of data point markers	Dropdown
Show Data Point Markers	Whether to show markers at data points	Boolean
Show Grid Lines	Whether to show grid lines on the chart	Boolean
animate	Enables or disables chart animations	Boolean
areaFillOpacity	areaFillOpacity	Number
axisColor	Sets the color of the chart axes (for line and bar charts)	Text
backgroundColor	Sets the background color of the chart area	Text
enableAreaFill	Fill the area under the line with color	Boolean
enableAreaStroke	Add border line around filled areas	Boolean
enableGradient	Apply gradient color effects to chart elements	Boolean
gradientEndColor	Ending color for gradient effect	Text
gradientStartColor	Starting color for gradient effect	Text
legendType	Legend display mode: by areas, series, bars, or segments	Dropdown
show Data Labels	Display numeric values on or near chart elements	Boolean
showLabels	Toggles the visibility of data labels on the chart	Boolean
showLegend	Toggles the visibility of the chart legend	Boolean
showTooltips	Enable interactive tooltips on hover/tap over data points	Boolean
tooltipBackgroundColor	Background color of tooltips	Color
tooltipTextColor	Text color of tooltips	Color

States:

Name	Description	Type
currentData	Current chart data in JSON format	Text
Error	Error message if chart fails to render	Text
Selected label	Label of the selected chart item	Text
Selected value	Value of the selected chart item	Number
tooltip Visible	Whether tooltip is currently visible	Boolean
tooltipData	Data of the currently displayed tooltip	Text
animationState	animationState	Text
currentMarkerStyle	currentMarkerStyle	Text
currentMarkerColor	currentMarkerColor	Text

Events:

Name	Description
Item Selected	Triggered when a user taps/clicks on a chart item
onTooltipShow	Triggered when a tooltip becomes visible
onTooltipHide	Triggered when a tooltip is hidden
animation_completed	animation_completed
series_selected	series_selected

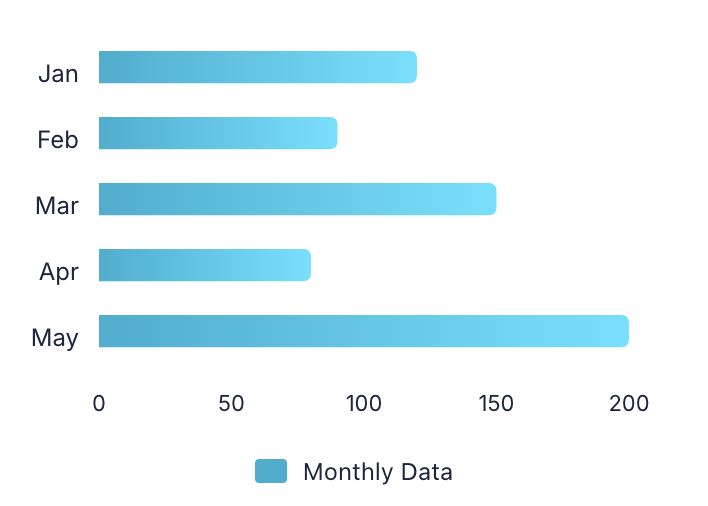

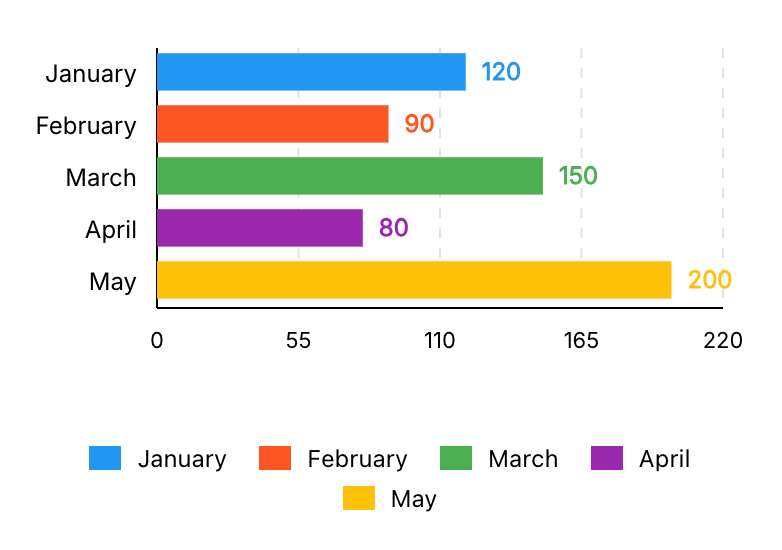

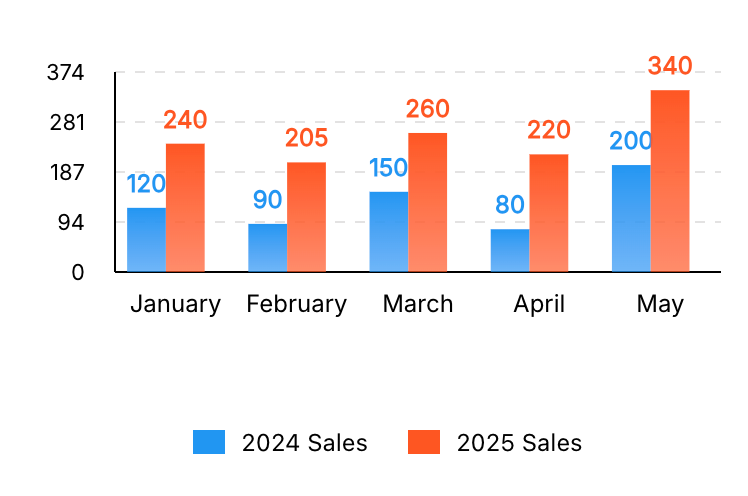

Bar Chart

Displays data using vertical rectangular bars to compare values across different categories. Great for comparing sales by product, survey results, or performance metrics between departments.

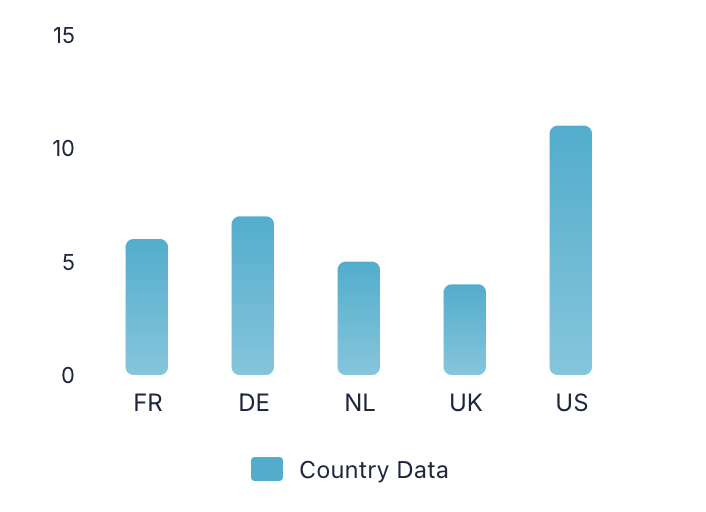

Single series

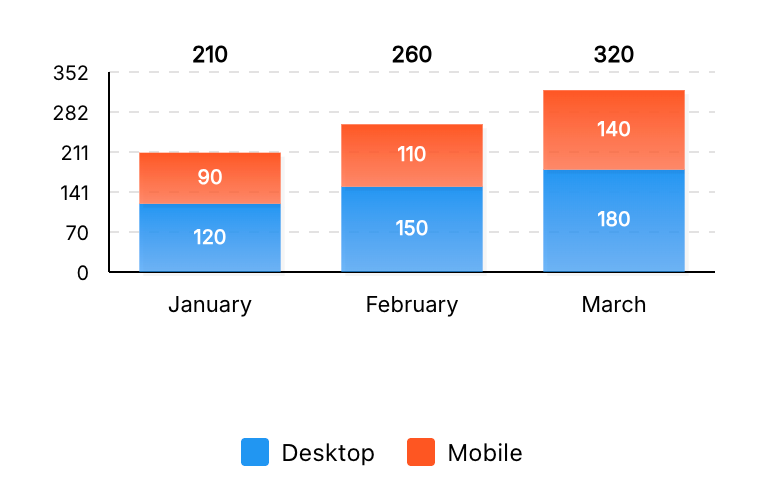

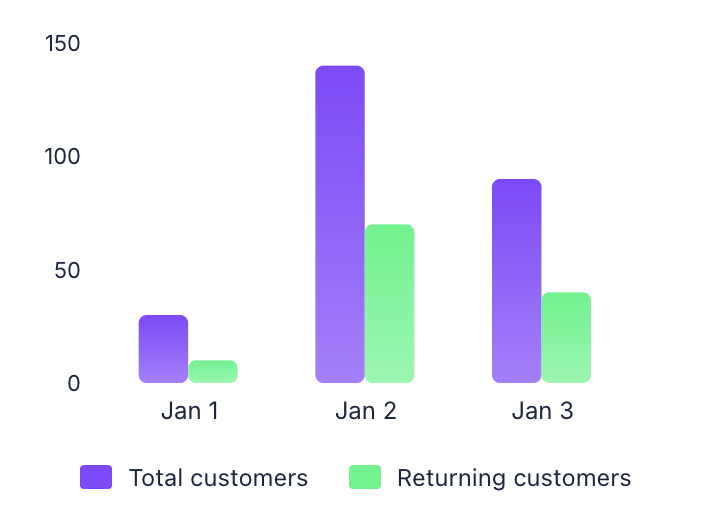

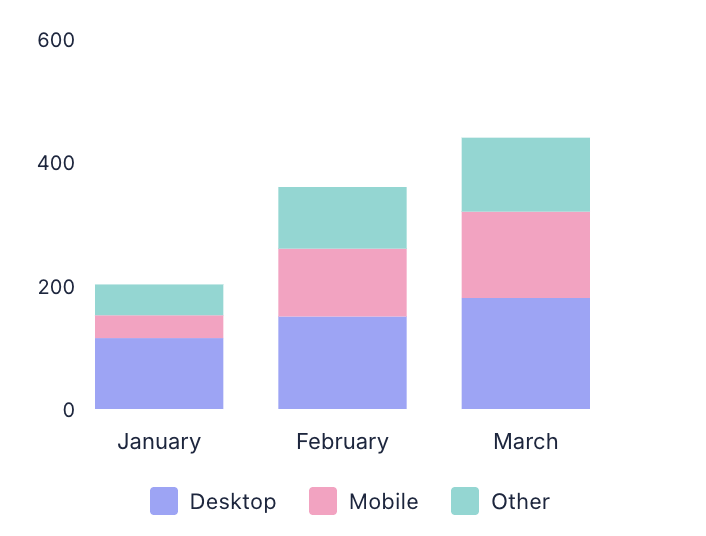

Multiple series

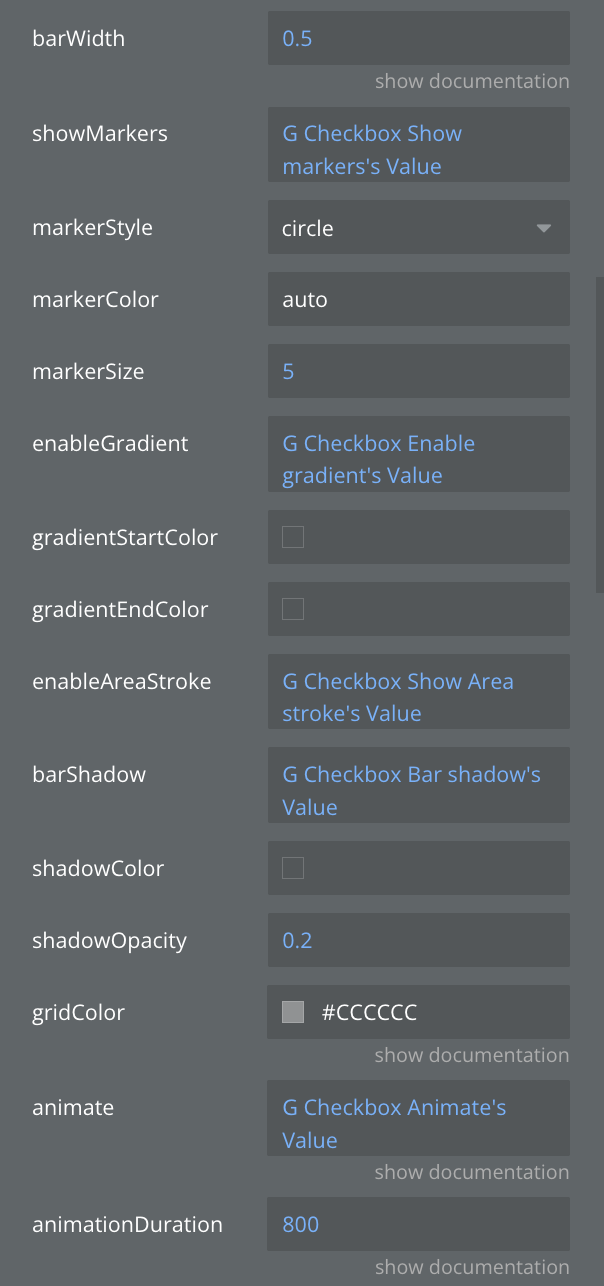

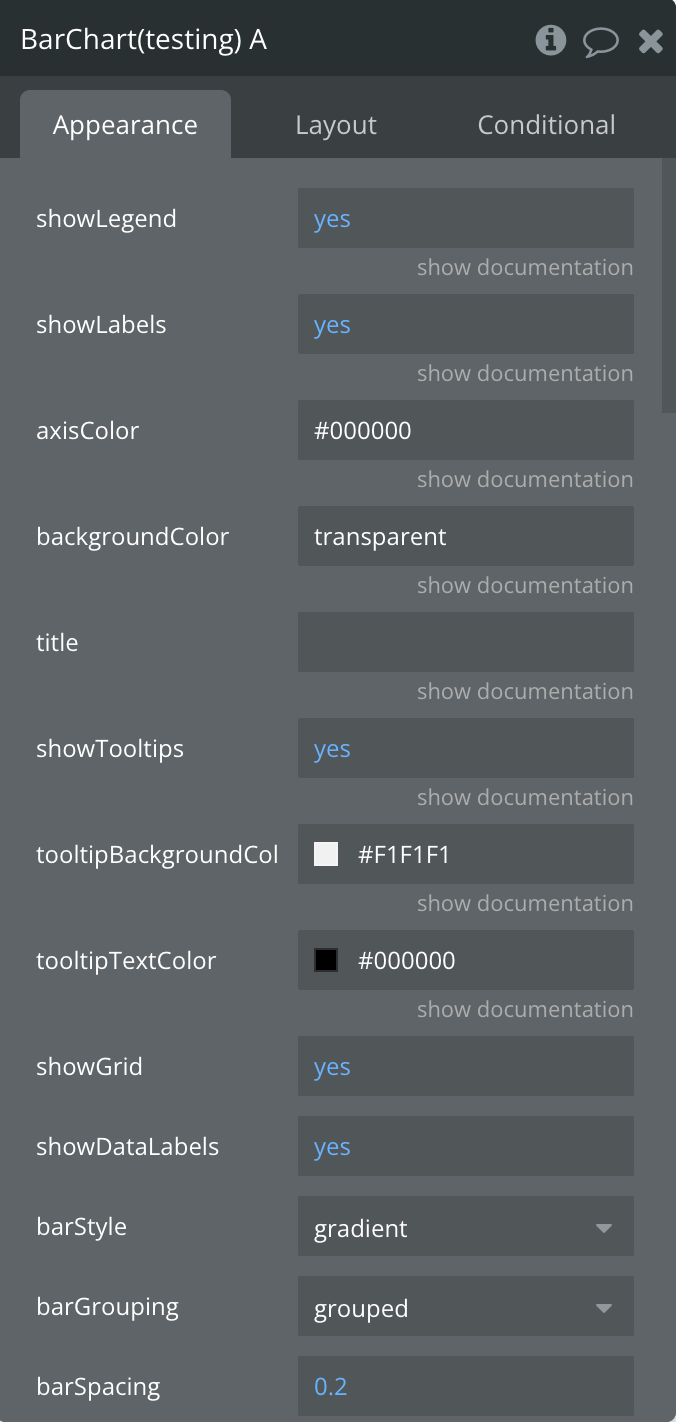

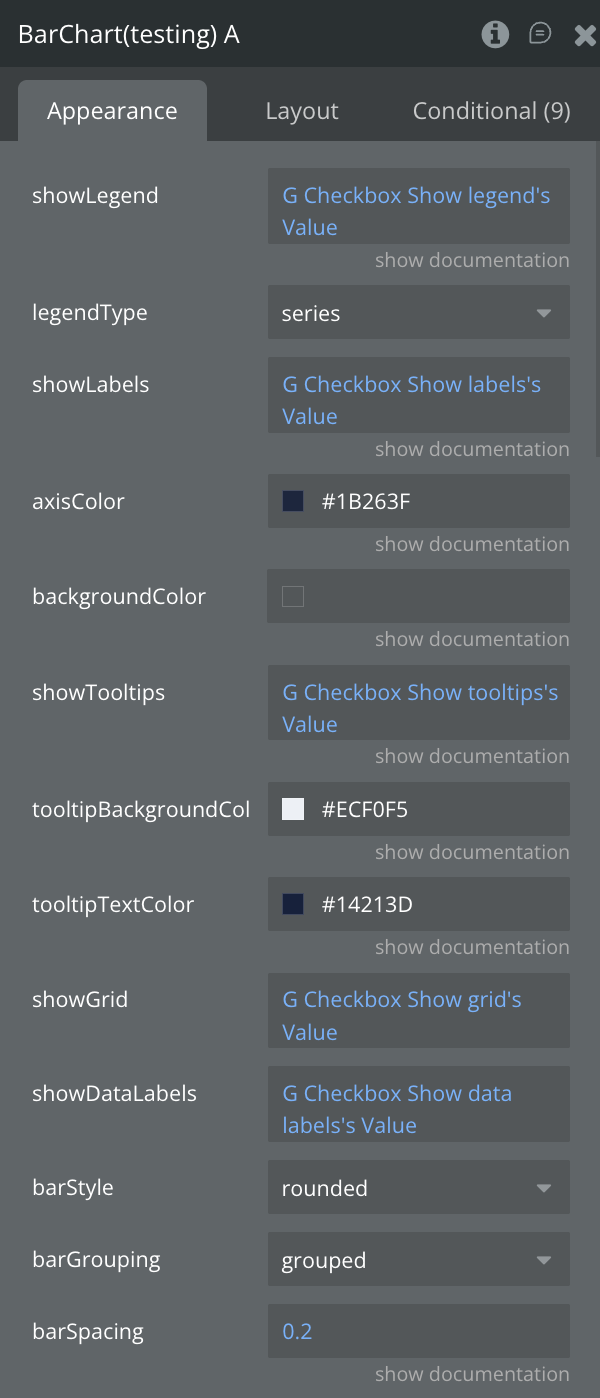

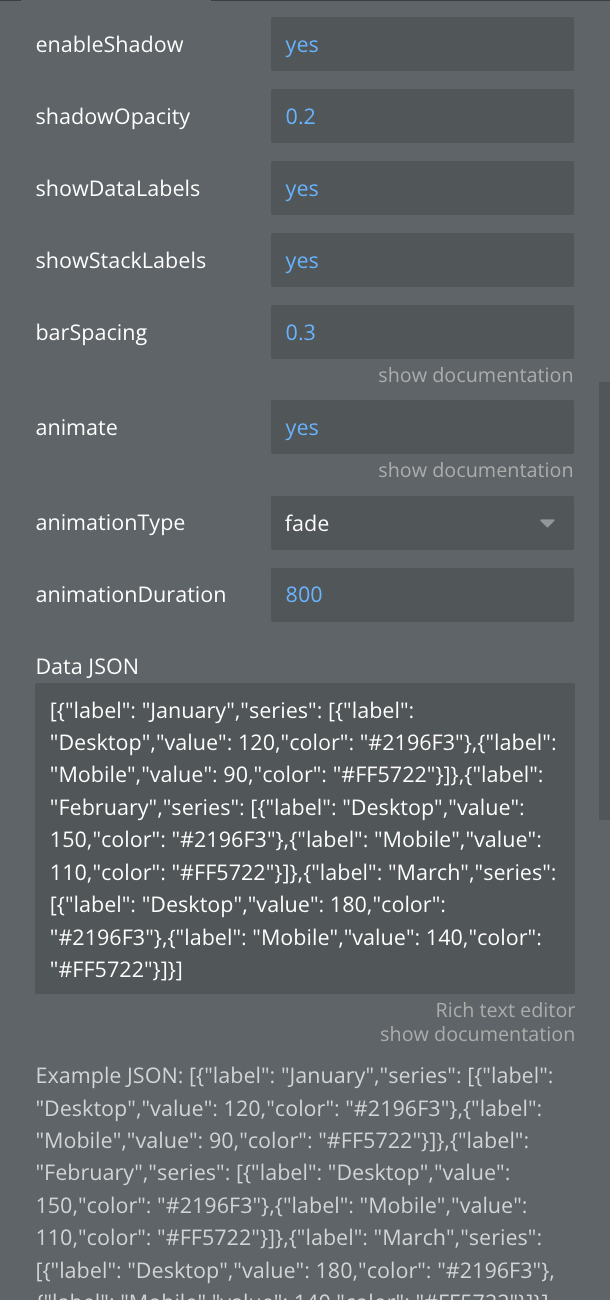

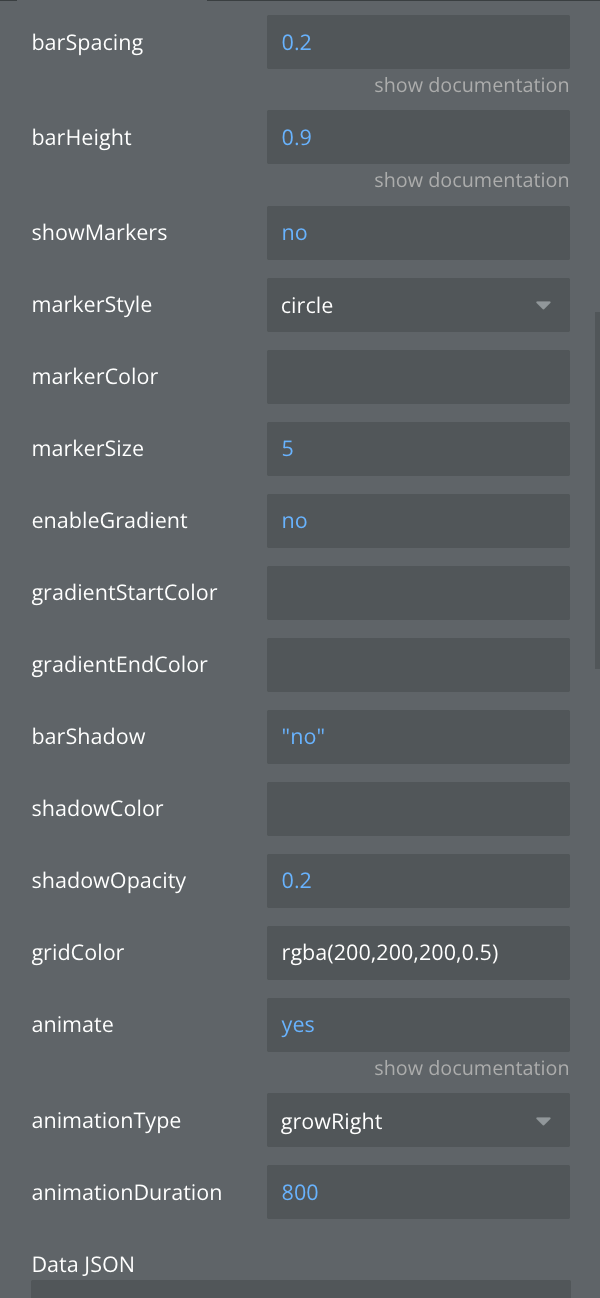

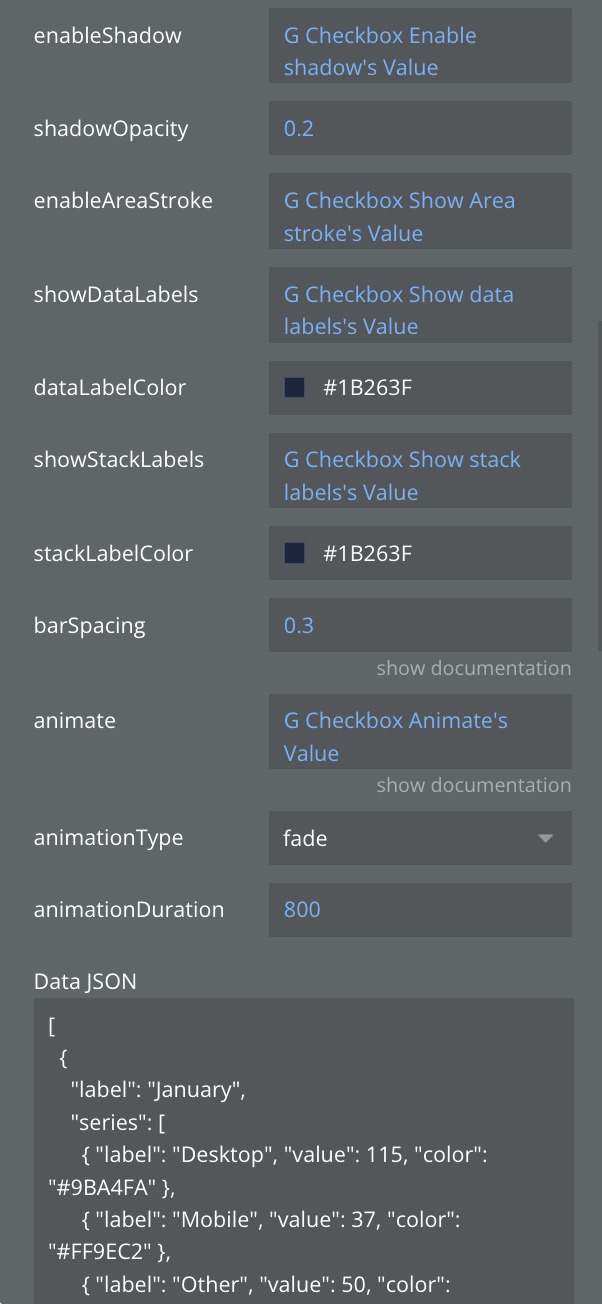

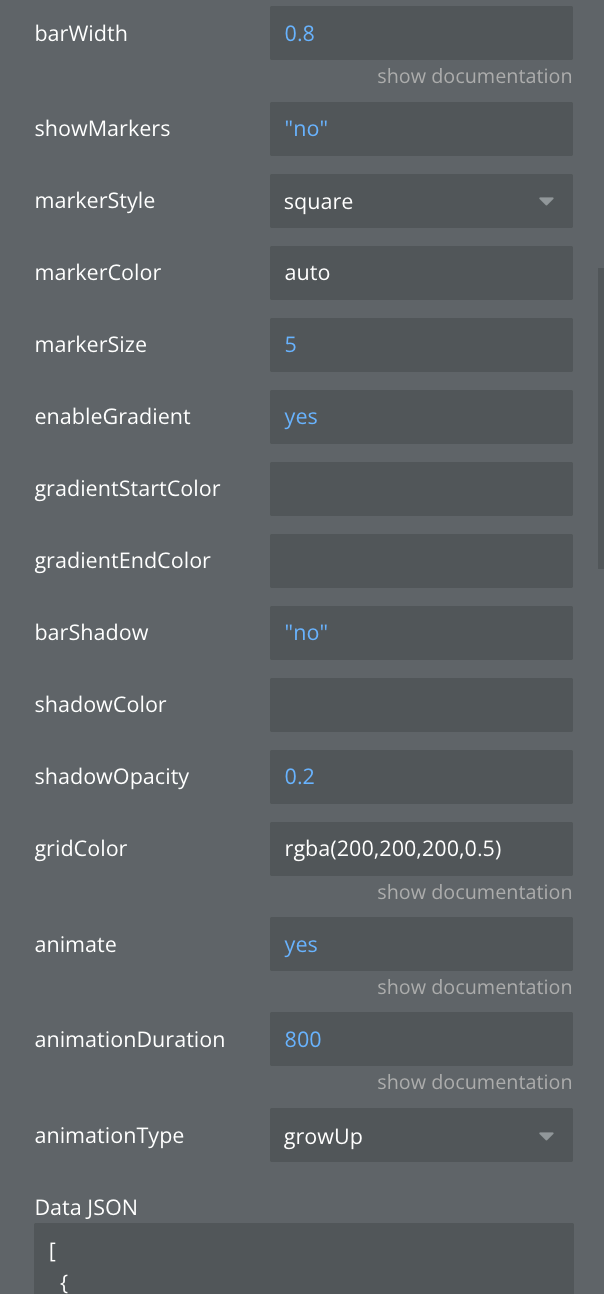

Fields:

Title	Description	Type
Data JSON	JSON string with chart data. Used when Data source = JSON.	Text
Data source	JSON: use the Data JSON field. Lists: use the Labels and Series fields below.	Dropdown
Labels (list)	X-axis labels. Must be unique (e.g. "Jan 2024", not "Jan"). Used when Data source = Lists.	List of texts
Point colors (list)	Optional color for each point, in the same order as Labels. Applied only when a single series is filled.	List of texts
Series 1–5 name	Series name shown in the legend and tooltip.	Text
Series 1–5 values (list)	Values in the same order as Labels. Missing values are treated as 0. Empty series are skipped.	List of numbers
Series 1–5 color	Series color. If empty, the default palette is used.	Color

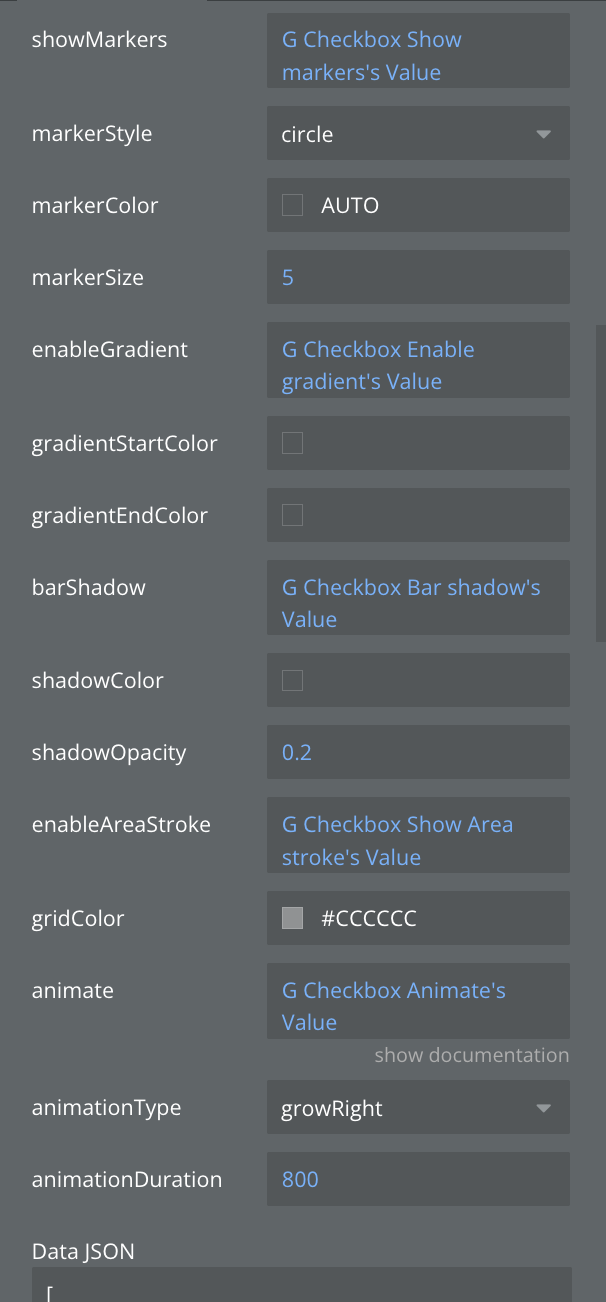

animate	Enable smooth animations when chart loads or updates	Boolean
animationDuration	Animation duration in milliseconds (e.g., 800ms)	Number
animationType	Animation style when chart appears: grow, fade, slide, or rotate	Dropdown
axisColor	Customize the color of X and Y axes	Text
backgroundColor	Set the background color for the entire chart area	Text
barGrouping	How multiple bars are arranged: grouped side-by-side or stacked	Dropdown
barShadow	Add shadow effect to bars for depth	Boolean
barSpacing	Space between bars as a ratio (0.0 = no space, 1.0 = max space)	Number
barStyle	Visual style of bars: rounded corners, square, or gradient	Dropdown
barWidth	Width of individual bars as a ratio (0.0 to 1.0)	Number
enableAreaStroke	Add border line around filled areas	Boolean
enableGradient	Apply gradient color effects to chart elements	Boolean
gradientEndColor	Ending color for gradient effect	Text
gradientStartColor	Starting color for gradient effect	Text
gridColor	Color of the background grid lines	Text
legendType	Legend display mode: by areas, series, bars, or segments	Dropdown
markerColor	Color of data point markers (use "auto" to match line color)	Text
markerSize	Size of data point markers in pixels	Number
markerStyle	Shape of markers: circle, square, triangle, or diamond	Dropdown
shadowColor	Color of the shadow effect	Text
shadowOpacity	Transparency of shadow (0.0 = invisible, 1.0 = solid)	Number
showDataLabels	Display numeric values on or near chart elements	Boolean
showGrid	Display grid lines for better data reading	Boolean
showLabels	Show or hide data point labels on the chart	Boolean
showLegend	Enable or disable the chart legend display	Boolean
showMarkers	Show circular markers at each data point	Boolean
showTooltips	Enable interactive tooltips on hover/tap over data points	Boolean
tooltipBackgroundColor	Background color for tooltip popup	Color
tooltipTextColor	Text color inside the tooltip	Color

States:

Name	Description	Type
currentType	Current chart type being displayed	Text
currentData	Current chart data in JSON format	Text
Error	Error message if chart fails to render	Text
Selected label	Label of the selected chart item	Text
Selected value	Value of the selected chart item	Number
tooltip Visible	Whether tooltip is currently visible	Boolean
tooltipData	Data of the currently displayed tooltip	Text
currentBarStyle	Current bar style being used	Text
animationState	Current animation state	Text
currentGrouping	Current grouping mode	Text
selectedSeries	Currently selected series	Text
hoveredBar	Currently hovered bar information	Text

Events:

Name	Description
Item Selected	Triggered when a user taps/clicks on a chart item
onTooltipShow	Triggered when a tooltip becomes visible
onTooltipHide	Triggered when a tooltip is hidden
Animation Completed	Triggered when chart animation completes
Chart Complete	Triggered when chart rendering is complete
series_selected	Triggered when a series is selected
bar_hover	Triggered when hovering over a bar
bar_leave	Triggered when leaving a bar

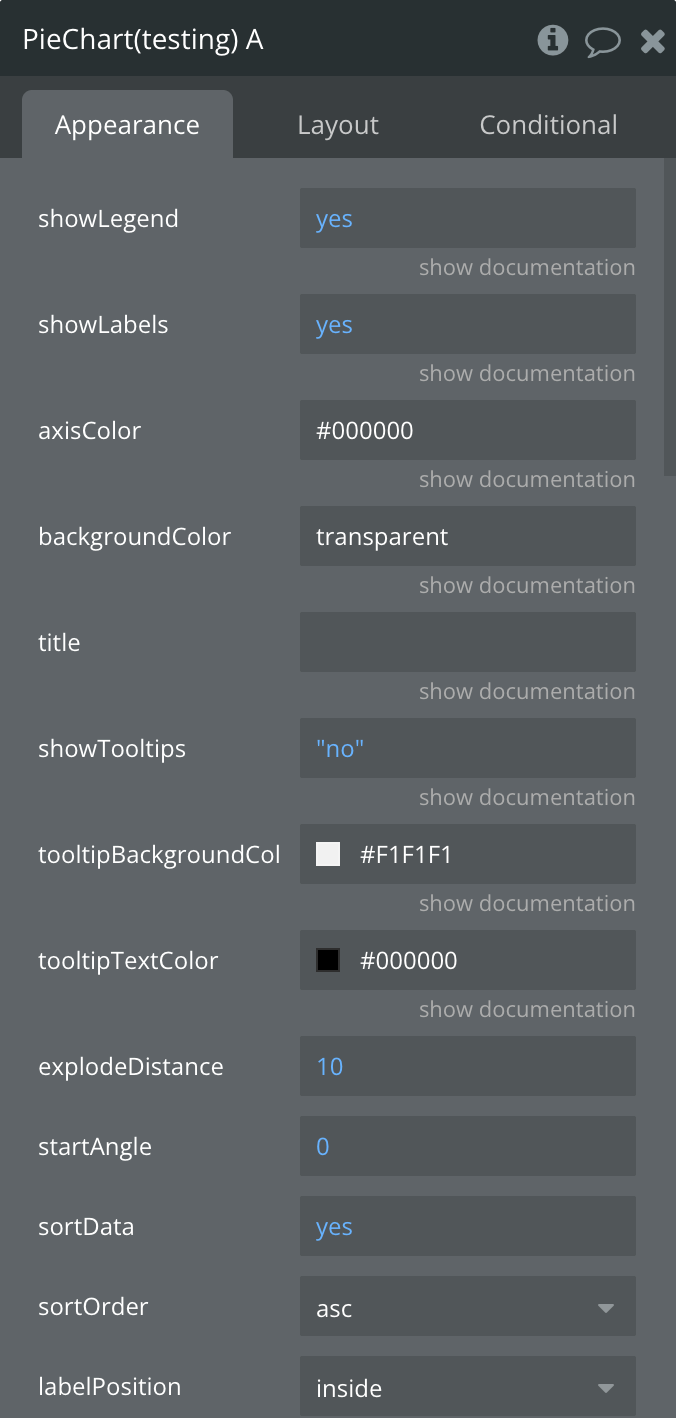

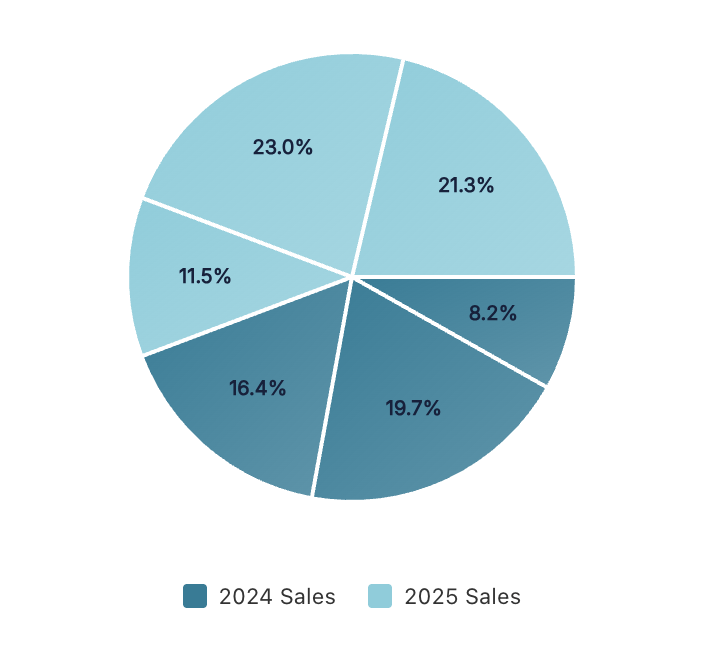

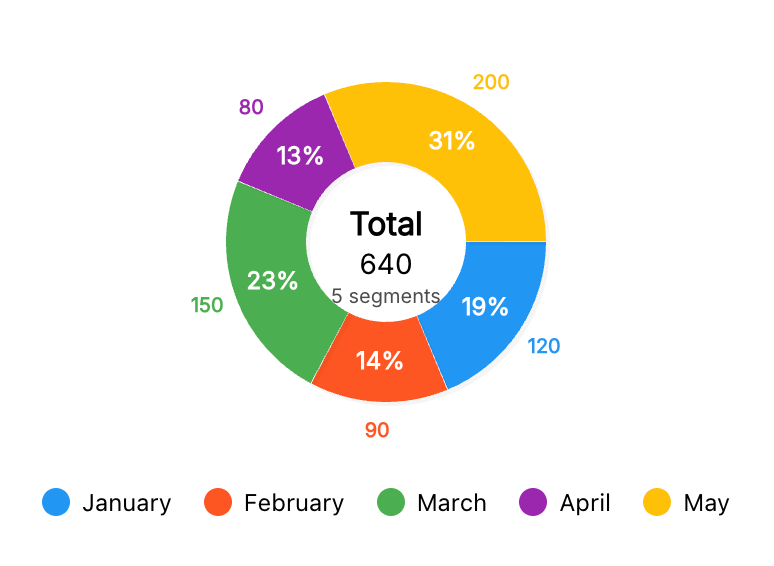

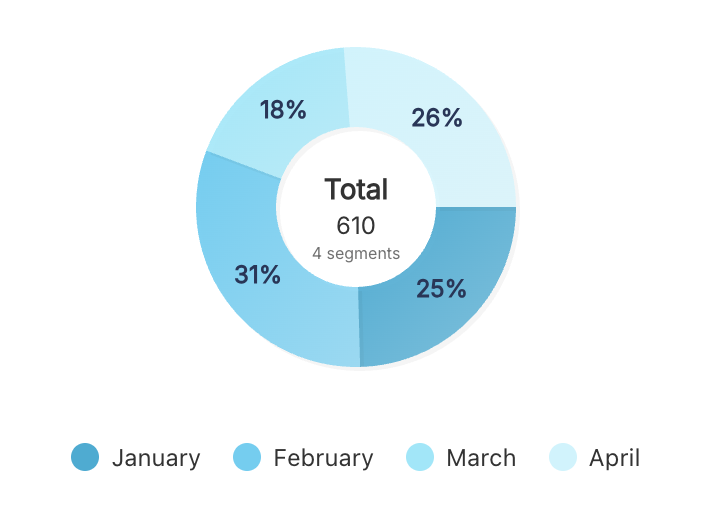

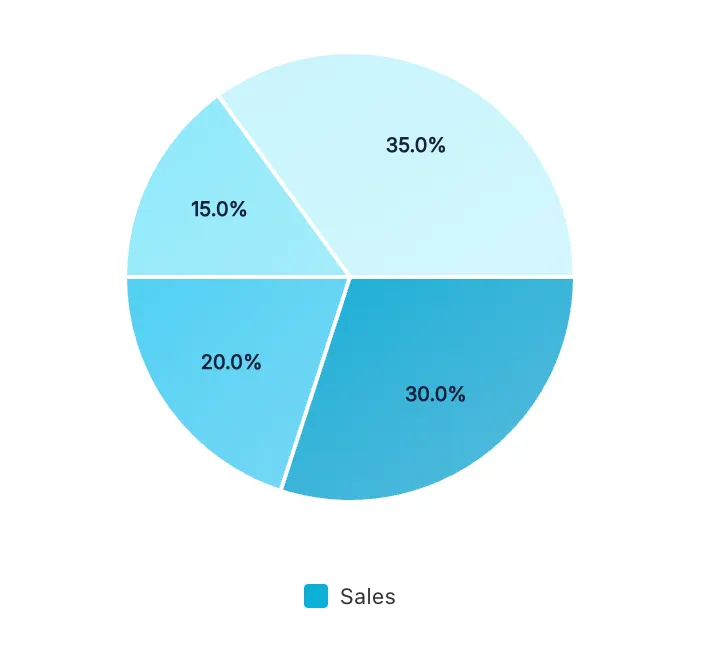

Pie Chart

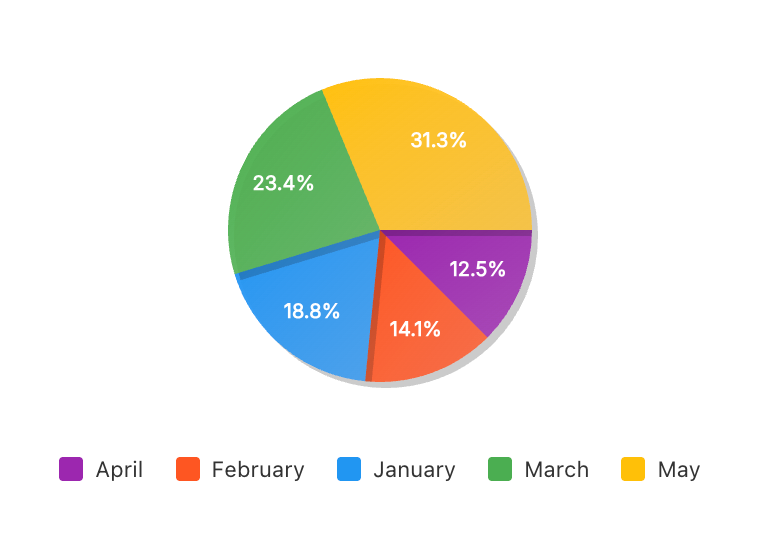

Represents data as slices of a circular chart, showing the proportional relationship of parts to a whole. Best suited for displaying market share, budget allocation, or percentage distributions with a limited number of categories.

Single series

Multiple series

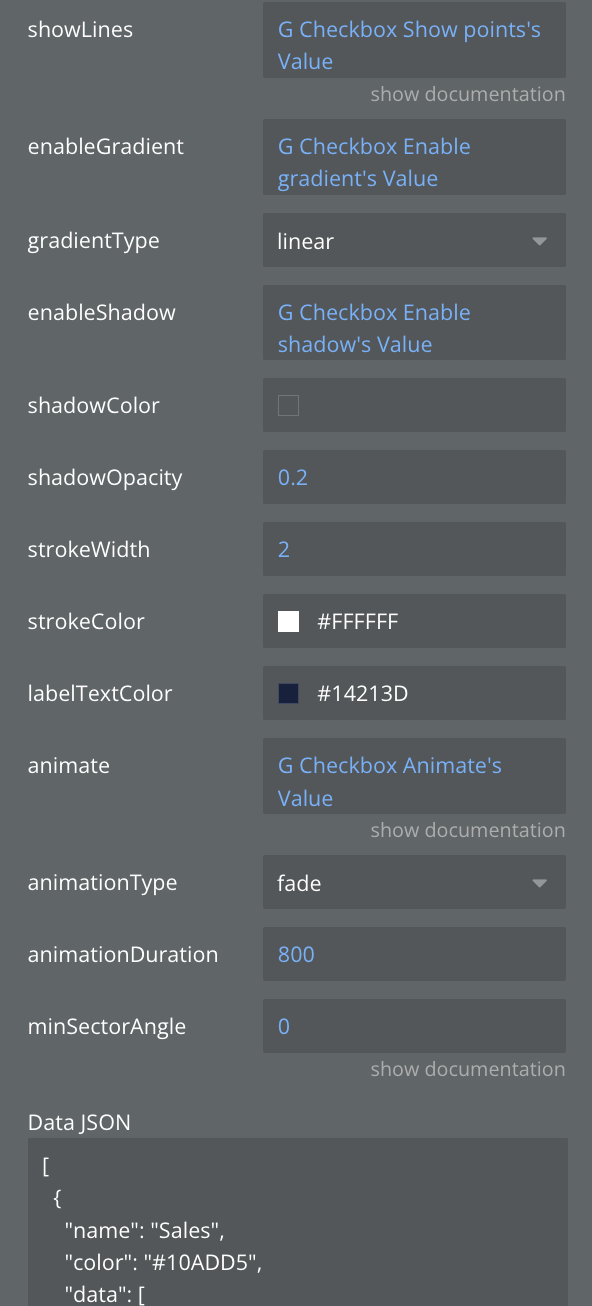

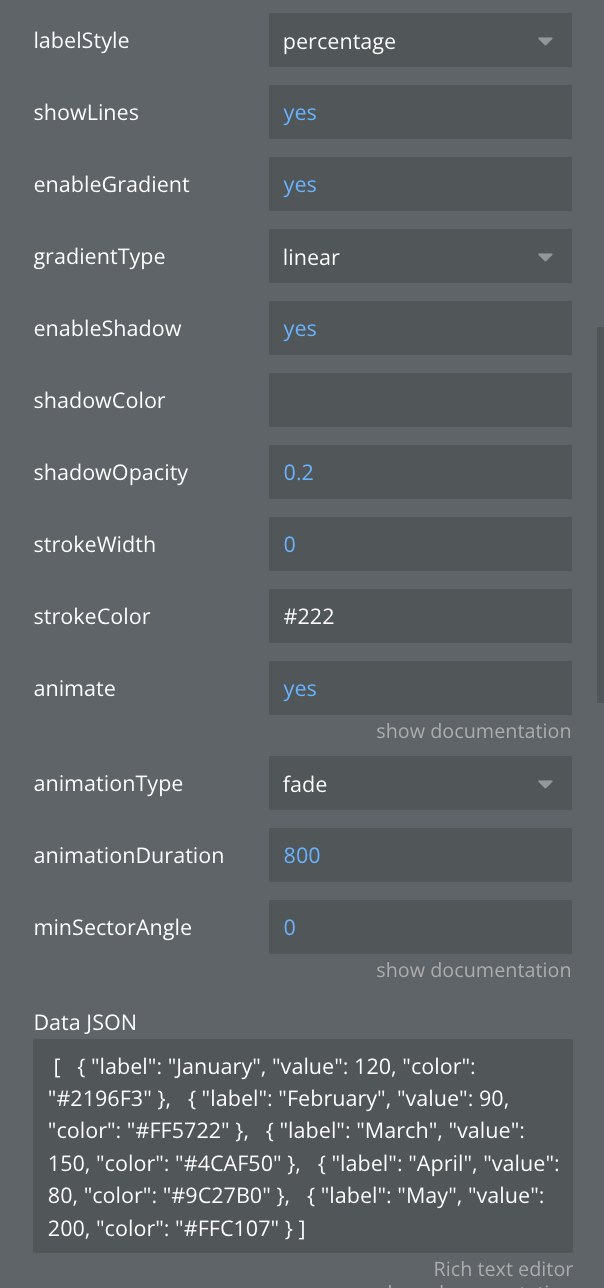

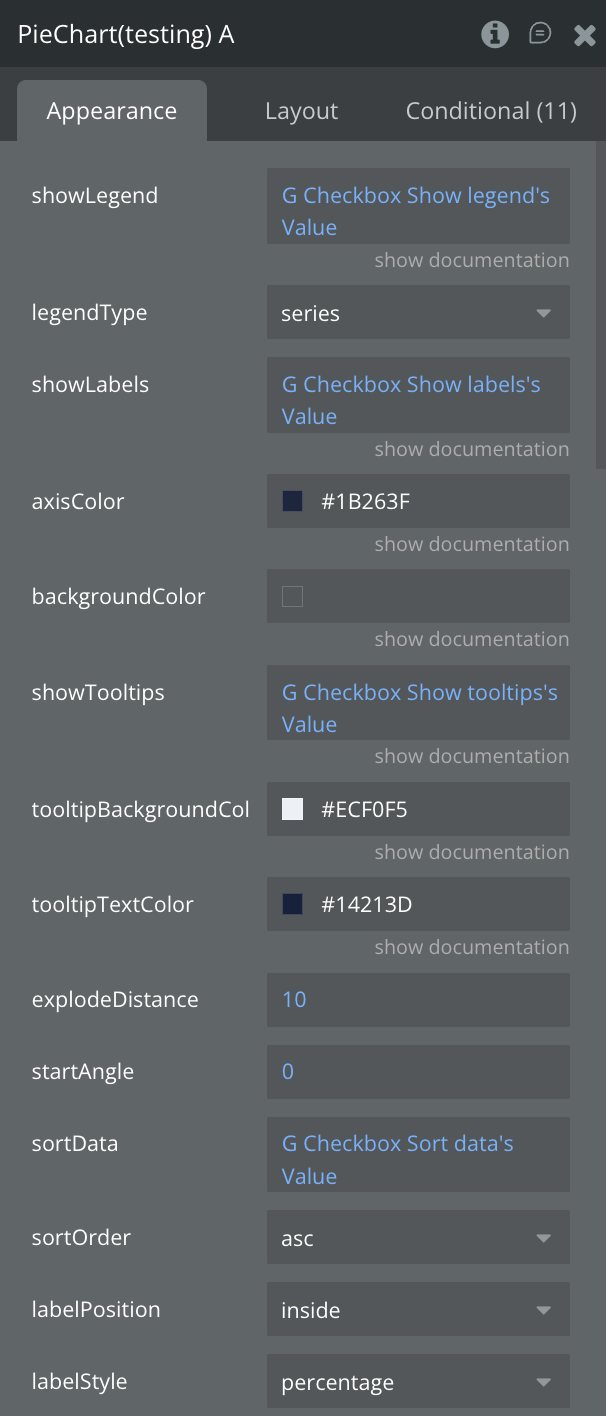

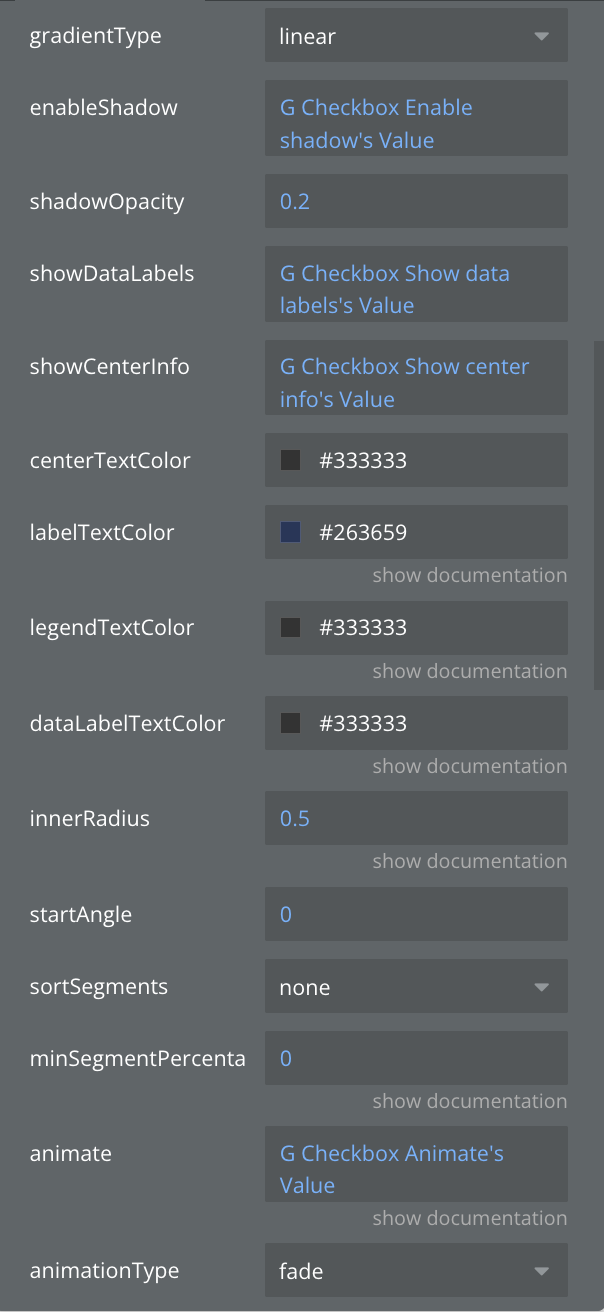

Fields:

Title	Description	Type
Data JSON	JSON string with chart data. Used when Data source = JSON.	Text
Data source	JSON: use the Data JSON field. Lists: use the Labels and Values fields below.	Dropdown
Labels (list)	Sector labels. Must be unique. Used when Data source = Lists.	List of texts
Point colors (list)	Optional color for each sector, in the same order as Labels.	List of texts
Values (list)	Sector values in the same order as Labels. Missing values are treated as 0.	List of numbers
animate	Enable smooth animations when chart loads or updates	Boolean
animationDuration	Animation duration in milliseconds (e.g., 800ms)	Number
animationType	Animation style when chart appears: grow, fade, slide, or rotate	Dropdown
axisColor	Customize the color of X and Y axes	Text
backgroundColor	Set the background color for the entire chart area	Text
enableGradient	Apply gradient color effects to chart elements	Boolean
enableShadow	Add shadow effects to chart elements	Boolean
explodeDistance	Distance segments move outward when selected (pie/donut charts)	Number
gradientType	Gradient pattern: linear (straight) or radial (circular)	Dropdown
labelPosition	Where labels appear: inside segments, outside, or on edge	Dropdown
labelStyle	Label content: show percentage, value, both, or label name only	Dropdown
labelTextColor	labelTextColor	Color
legendType	Legend display mode: by areas, series, bars, or segments	Dropdown
minSectorAngle	Minimum angle for small pie segments in degrees (prevents tiny slices)	Number
shadowColor	Color of the shadow effect	Text
shadowOpacity	Transparency of shadow (0.0 = invisible, 1.0 = solid)	Number
showLabels	Show or hide data point labels on the chart	Boolean
showLegend	Enable or disable the chart legend display	Boolean
showLines	Display connecting lines between labels and segments	Boolean
showTooltips	Enable interactive tooltips on hover/tap over data points	Boolean
sortData	Automatically sort data by value	Boolean
sortOrder	Sort direction: ascending (low to high) or descending (high to low)	Text
startAngle	Starting rotation angle of the chart in degrees (0-360)	Number
strokeColor	Color of stroke/border lines	Text
strokeWidth	Width of stroke/border lines in pixels	Number
tooltipBackgroundColor	Background color for tooltip popup	Color
tooltipTextColor	Text color inside the tooltip	Color

States:

Name	Description	Type
currentType	Current chart type being displayed	Text
currentData	Current chart data in JSON format	Text
error	Error message if chart fails to render	Text
selected_label	Label of the selected chart item	Text
selected_value	Value of the selected chart item	Number
tooltipVisible	Whether tooltip is currently visible	Boolean
tooltipData	Data of the currently displayed tooltip	Text
selectedSector	Currently selected sector	Text
animationState	Current animation state	Text
currentChartStyle	Current chart style	Text
hoveredSector	Currently hovered sector	Text
totalValue	Total value of all pie segments	Number

Events:

Name	Description
Item Selected	Triggered when a user taps/clicks on a chart item
onTooltipShow	Triggered when a tooltip becomes visible
onTooltipHide	Triggered when a tooltip is hidden
Animation Completed	Triggered when chart animation completes
Sector Hover	Triggered when hovering over a sector
Sector Leave	Triggered when leaving a sector
Chart Complete	Triggered when chart rendering is complete
Sector Exploded	Triggered when a sector is exploded

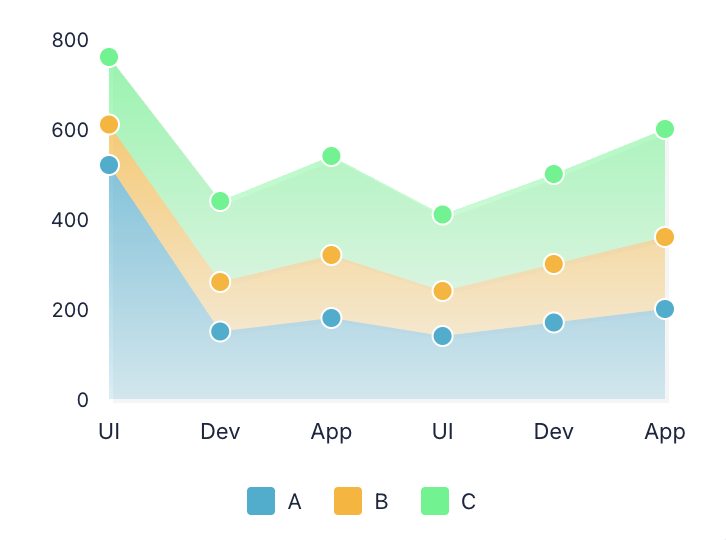

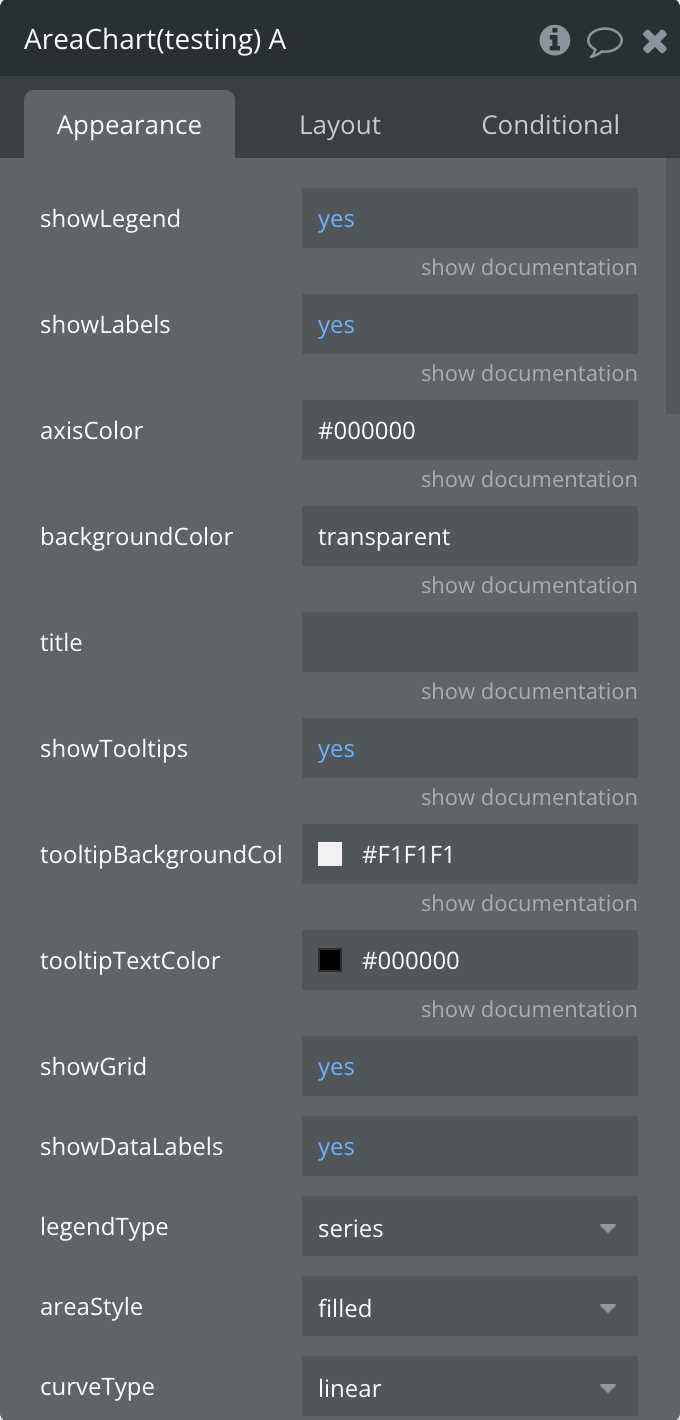

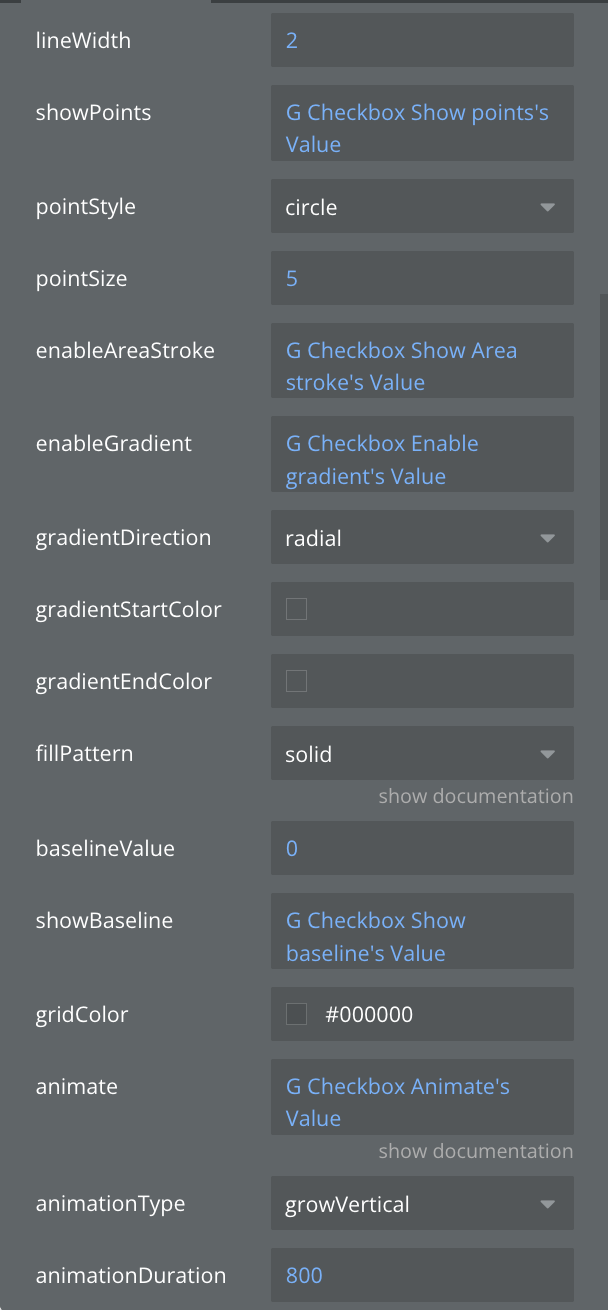

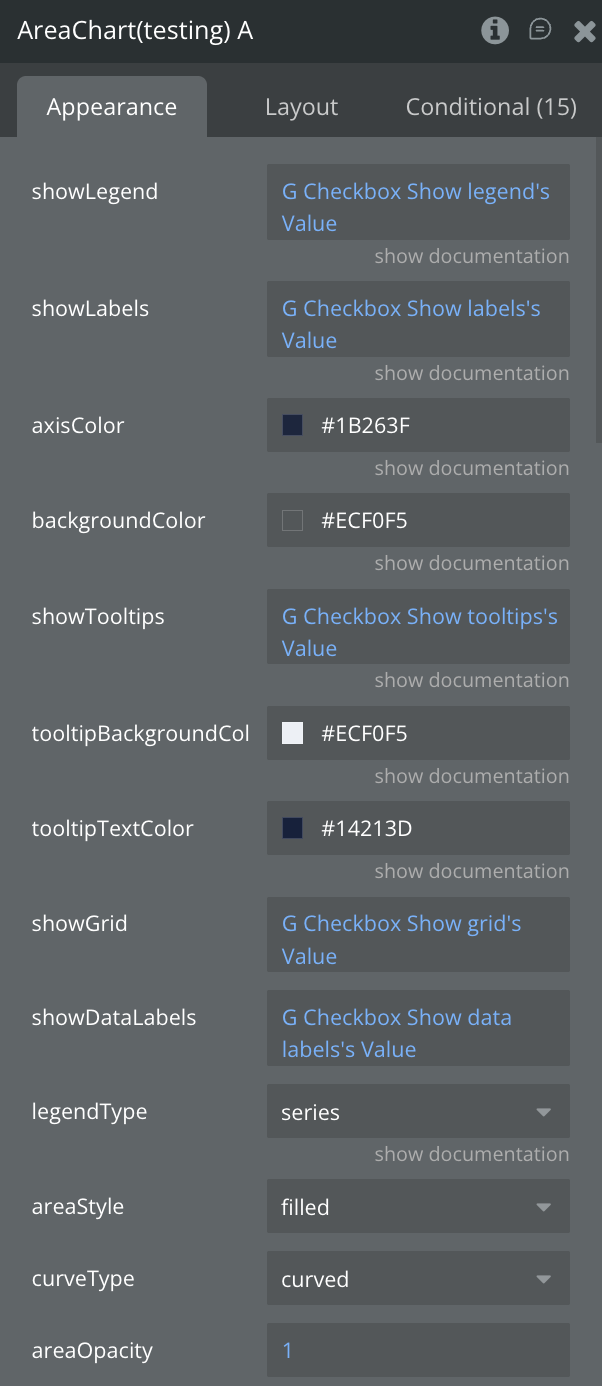

Area Chart

Similar to line charts but with the area below the line filled with color to emphasize magnitude. Excellent for showing cumulative totals over time, such as revenue accumulation or resource consumption.

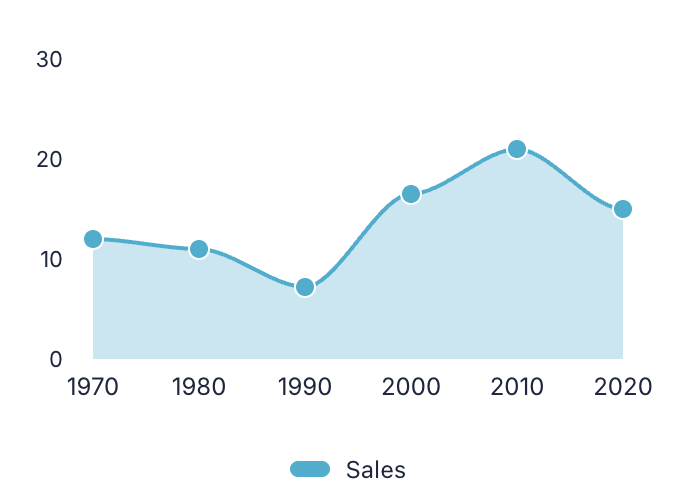

Single series

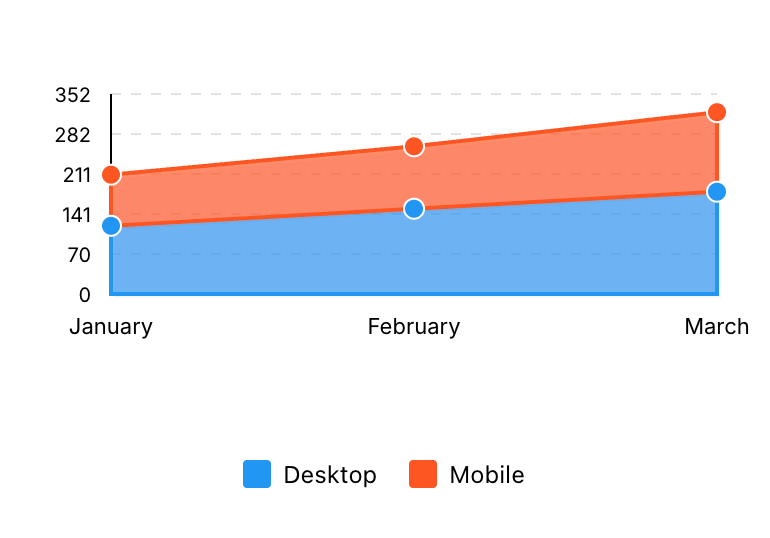

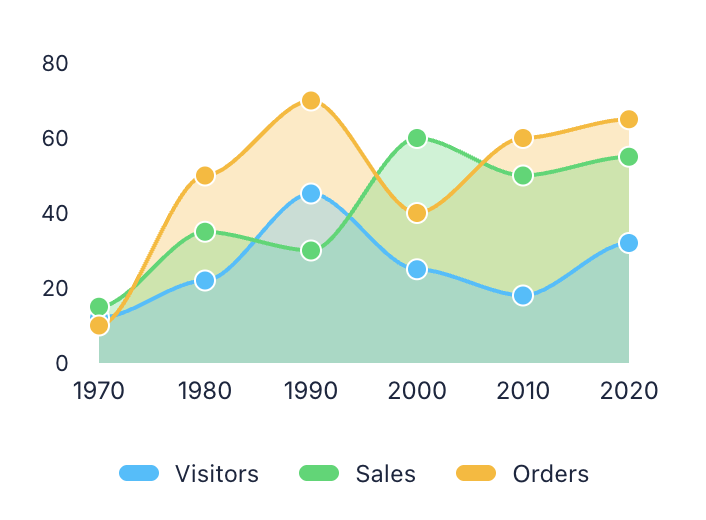

Multiple series

Fields:

Title	Description	Type
Data JSON	JSON string with chart data. Used when Data source = JSON.	Text
Data source	JSON: use the Data JSON field. Lists: use the Labels and Series fields below.	Dropdown
Labels (list)	X-axis labels. Must be unique (e.g. "Jan 2024", not "Jan"). Used when Data source = Lists.	List of texts
Point colors (list)	Optional color for each point, in the same order as Labels. Applied only when a single series is filled.	List of texts
Series 1–5 name	Series name shown in the legend and tooltip.	Text
Series 1–5 values (list)	Values in the same order as Labels. Missing values are treated as 0. Empty series are skipped.	List of numbers
Series 1–5 color	Series color. If empty, the default palette is used.	Color
animate	Enable smooth animations when chart loads or updates	Boolean
animationDuration	Animation duration in milliseconds (e.g., 800ms)	Number
animationType	Animation style when chart appears: grow, fade, slide, or rotate	Dropdown
areaOpacity	Transparency of area fills (0.0 = transparent, 1.0 = solid)	Number
areaStyle	Area visualization: filled, stacked, overlapped, or streamgraph	Dropdown
axisColor	Customize the color of X and Y axes	Text
backgroundColor	Set the background color for the entire chart area	Text
baselineValue	Y-axis value where area fill starts from	Number

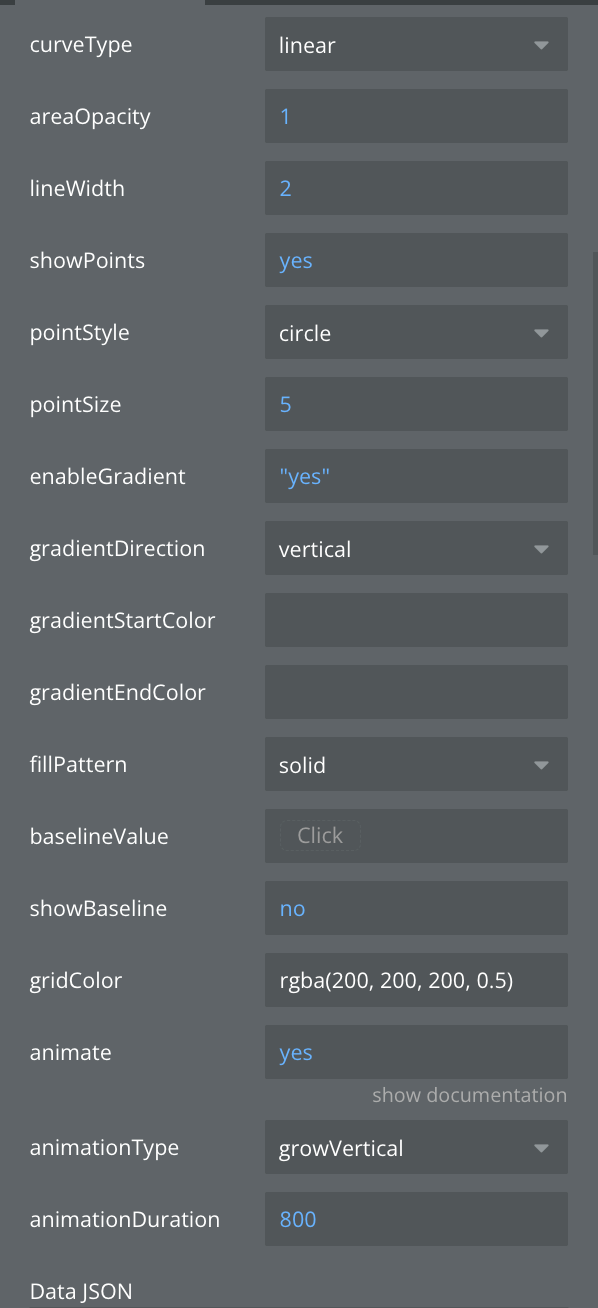

curveType	Line curve style: linear (straight), curved (smooth), or stepped	Dropdown
enableAreaStroke	Add border line around filled areas	Boolean
enableGradient	Apply gradient color effects to chart elements	Boolean
fillPattern	Pattern for area fill: solid color, dots, lines, or cross-hatch	Dropdown
gradientDirection	Direction of gradient: vertical, horizontal, or radial	Dropdown
gradientEndColor	Ending color for gradient effect	Text
gradientStartColor	Starting color for gradient effect	Text
gridColor	Color of the background grid lines	Text
legendType	Legend display mode: by areas, series, bars, or segments	Dropdown
lineWidth	Thickness of the line in pixels	Number
pointSize	Size of point markers in pixels	Number
pointStyle	Shape of point markers: circle, square, triangle, or diamond	Dropdown
showBaseline	Display horizontal baseline reference line	Boolean
showDataLabels	Display numeric values on or near chart elements	Boolean
showGrid	Display grid lines for better data reading	Boolean
showLabels	Show or hide data point labels on the chart	Boolean
showLegend	Enable or disable the chart legend display	Boolean
showPoints	Display markers at each data point on lines	Boolean
showTooltips	Enable interactive tooltips on hover/tap over data points	Boolean
tooltipBackgroundColor	Background color for tooltip popup	Color
tooltipTextColor	Text color inside the tooltip	Color

States:

Name	Description	Type
currentData	Current chart data in JSON format	Text
error	Error message if chart fails to render	Text
selected_label	Label of the selected chart item	Text
selected_value	Value of the selected chart item	Number
tooltipVisible	Whether tooltip is currently visible	Boolean
tooltipData	Data of the currently displayed tooltip	Text
selectedSeries	Currently selected series	Text
animationState	Current animation state	Text
currentAreaStyle	Current area style	Text
currentCurveType	Current curve type	Text
hoveredPoint	Currently hovered point information	Text

Events:

Name	Description
Item Selected	Triggered when a user taps/clicks on a chart item
onTooltipShow	Triggered when a tooltip becomes visible
onTooltipHide	Triggered when a tooltip is hidden
animation_completed	Triggered when chart animation completes
series_selected	Triggered when a series is selected
point_hover	Triggered when hovering over a point
point_leave	Triggered when leaving a point
chart_complete	Triggered when chart rendering is complete

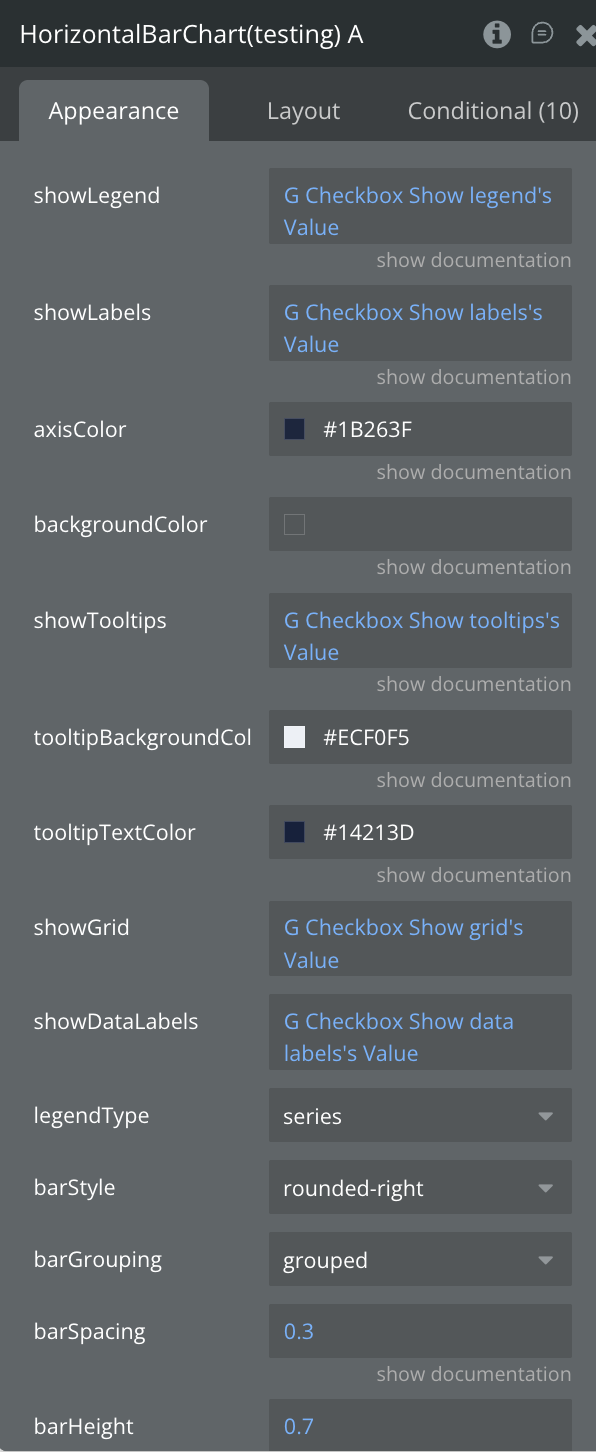

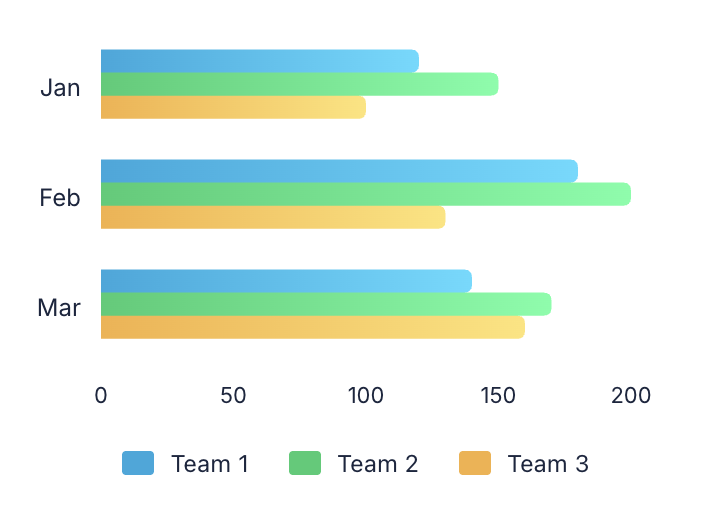

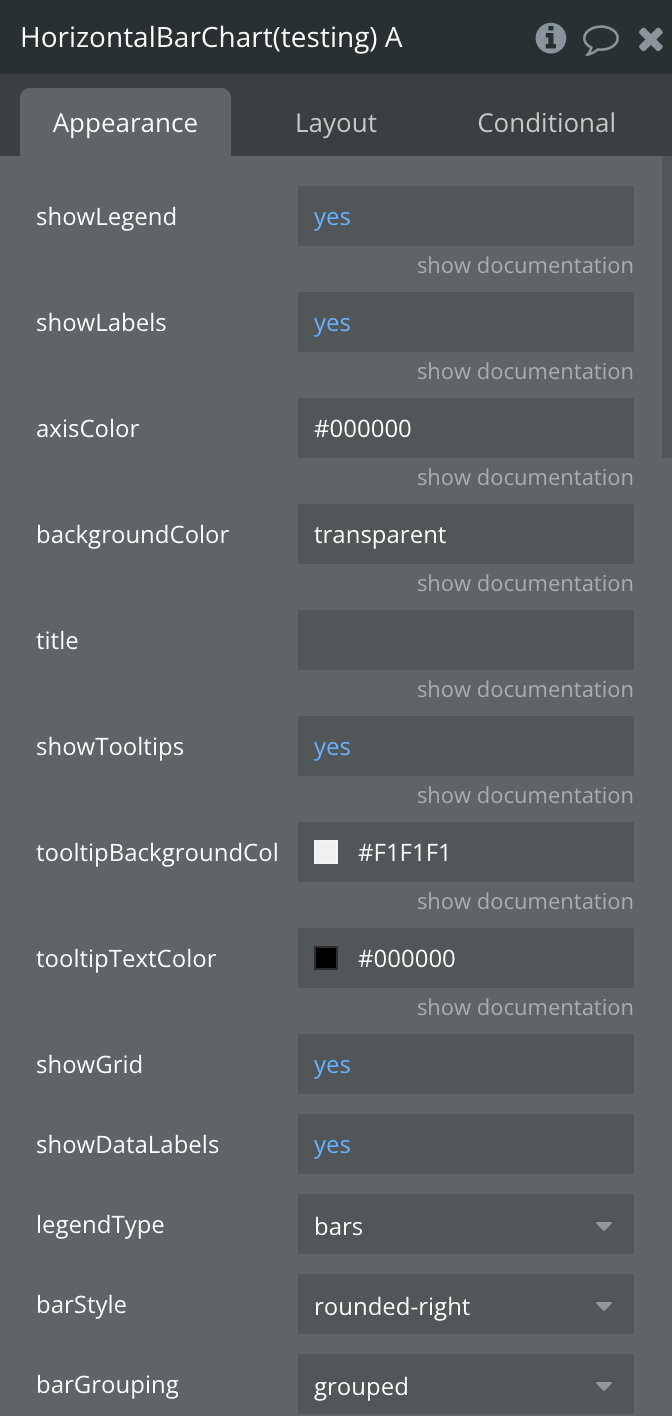

Horizontal Bar Chart

Displays data using horizontal rectangular bars extending from left to right. Particularly useful when category labels are long or when comparing many items, such as country populations or product rankings.

Single series

Multiple series

Fields:

Title	Description	Type
Data JSON	JSON string with chart data. Used when Data source = JSON.	Text
Data source	JSON: use the Data JSON field. Lists: use the Labels and Series fields below.	Dropdown
Labels (list)	Category labels (Y-axis). Must be unique (e.g. "Jan 2024", not "Jan"). Used when Data source = Lists.	List of texts
Point colors (list)	Optional color for each point, in the same order as Labels. Applied only when a single series is filled.	List of texts
Series 1–5 name	Series name shown in the legend and tooltip.	Text
Series 1–5 values (list)	Values in the same order as Labels. Missing values are treated as 0. Empty series are skipped.	List of numbers
Series 1–5 color	Series color. If empty, the default palette is used.	Color
animate	Enable smooth animations when chart loads or updates	Boolean
animationDuration	Animation duration in milliseconds (e.g., 800ms)	Number
animationType	Animation style when chart appears: grow, fade, slide, or rotate	Dropdown
axisColor	Customize the color of X and Y axes	Text
backgroundColor	Set the background color for the entire chart area	Text
barGrouping	How multiple bars are arranged: grouped side-by-side or stacked	Dropdown
barHeight	Height of individual bars as a ratio (0.0 to 1.0)	Number
barShadow	Add shadow effect to bars for depth	Boolean
barSpacing	Space between bars as a ratio (0.0 = no space, 1.0 = max space)	Number
barStyle	Visual style of bars: rounded corners, square, or gradient	Text
enableAreaStroke	Add border line around filled areas	Boolean
enableGradient	Apply gradient color effects to chart elements	Boolean
gradientEndColor	Ending color for gradient effect	Text
gradientStartColor	Starting color for gradient effect	Text
gridColor	Color of the background grid lines	Text
legendType	Legend display mode: by areas, series, bars, or segments	Dropdown
markerColor	Color of data point markers (use "auto" to match line color)	Text
markerSize	Size of data point markers in pixels	Number
markerStyle	Shape of markers: circle, square, triangle, or diamond	Dropdown
shadowColor	Color of the shadow effect	Text
shadowOpacity	Transparency of shadow (0.0 = invisible, 1.0 = solid)	Number
showDataLabels	Display numeric values on or near chart elements	Boolean
showGrid	Display grid lines for better data reading	Boolean
showLabels	Show or hide data point labels on the chart	Boolean
showLegend	Enable or disable the chart legend display	Boolean
showMarkers	Show circular markers at each data point	Boolean
showTooltips	Enable interactive tooltips on hover/tap over data points	Boolean
tooltipBackgroundColor	Background color for tooltip popup	Color
tooltipTextColor	Text color inside the tooltip	Color

States:

Name	Description	Type
currentType	Current chart type being displayed	Text
currentData	Current chart data in JSON format	Text
error	Error message if chart fails to render	Text
selected_label	Label of the selected chart item	Text
selected_value	Value of the selected chart item	Number
tooltipVisible	Whether tooltip is currently visible	Boolean
tooltipData	Data of the currently displayed tooltip	Text
selectedSeries	Currently selected series	Text
animationState	Current animation state	Text
currentBarStyle	Current bar style	Text
currentGrouping	Current grouping mode	Text
hoveredBar	Currently hovered bar information	Boolean

Events:

Name	Description
Item Selected	Triggered when a user taps/clicks on a chart item
onTooltipShow	Triggered when a tooltip becomes visible
onTooltipHide	Triggered when a tooltip is hidden
Animation Completed	Triggered when chart animation completes
Series Selected	Triggered when a series is selected
Bar Hover	Triggered when hovering over a bar
Bar Leave	Triggered when leaving a bar
Chart Complete	Triggered when chart rendering is complete

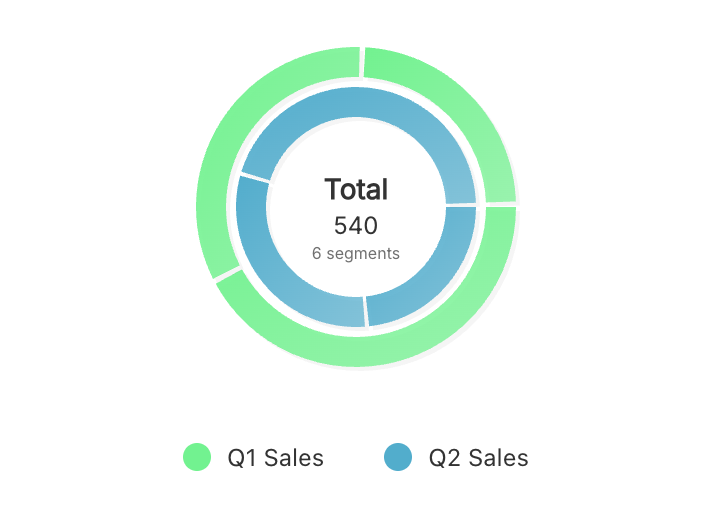

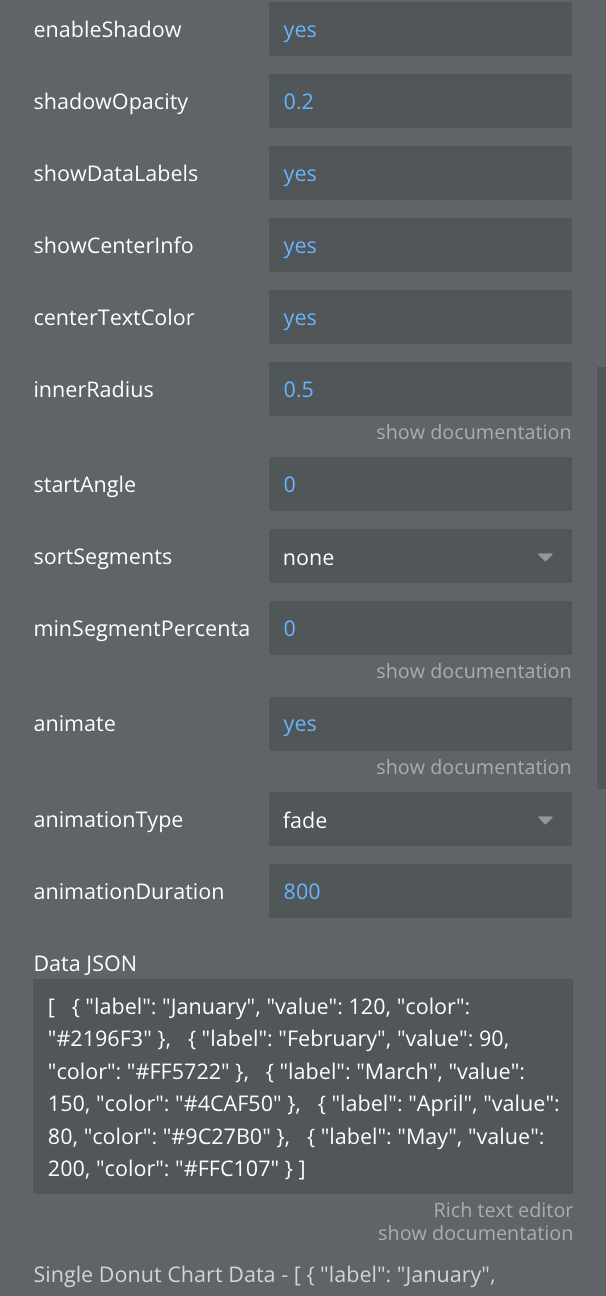

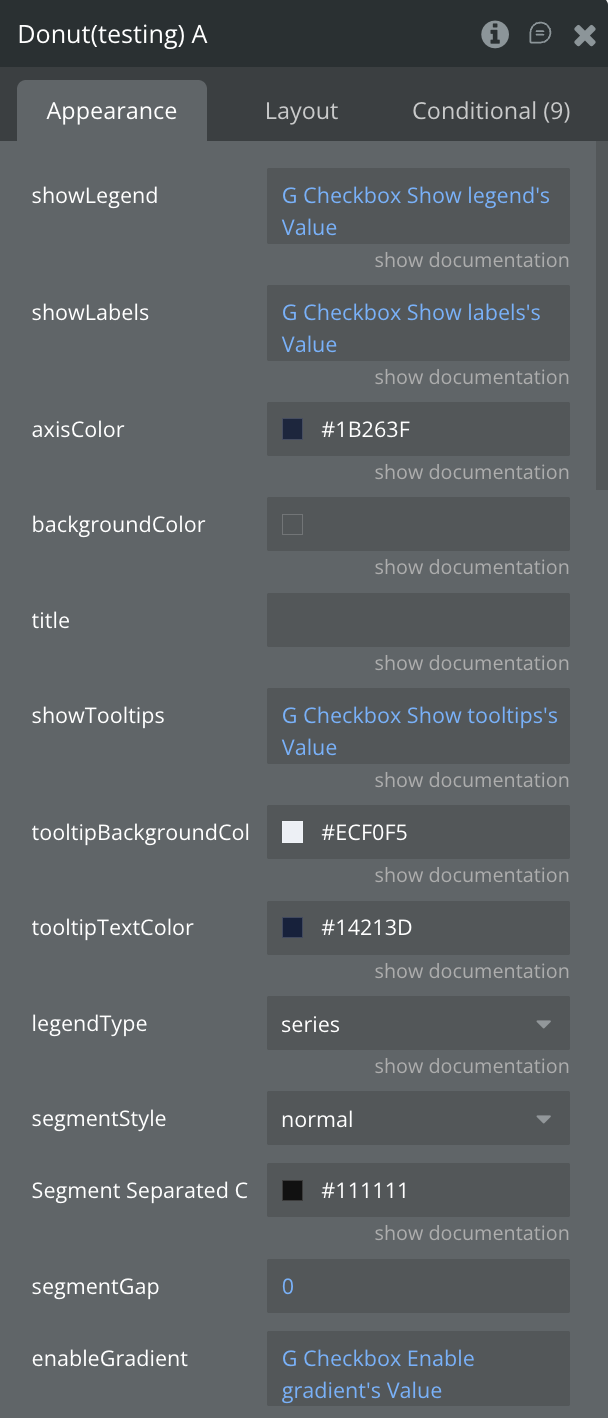

Donut Chart

A pie chart with a hollow center, providing space for additional information or totals. Perfect for displaying composition data while maintaining a modern, clean aesthetic with the ability to show key metrics in the center.

Single series

Multiple series

Fields:

Title	Description	Type
Data JSON	JSON string with chart data. Used when Data source = JSON.	Text
Data source	JSON: use the Data JSON field. Lists: use the Labels and Values fields below.	Dropdown
Labels (list)	Sector labels. Must be unique. Used when Data source = Lists.	List of texts
Point colors (list)	Optional color for each sector, in the same order as Labels.	List of texts
Values (list)	Sector values in the same order as Labels. Missing values are treated as 0.	List of numbers
Segment Separated Color	color outline, when segmentStyle - separated	Color
animate	Enable smooth animations when chart loads or updates	Boolean
animationDuration	Animation duration in milliseconds (e.g., 800ms)	Number
animationType	Animation style when chart appears: grow, fade, slide, or rotate	Dropdown
axisColor	Customize the color of X and Y axes	Text
backgroundColor	Set the background color for the entire chart area	Text
centerTextColor	Color of text displayed in donut center	Text
dataLabelTextColor	you can set your own color or the color will be taken from the general color	Color
enableGradient	Apply gradient color effects to chart elements	Boolean
enableShadow	Add shadow effects to chart elements	Boolean
gradientType	Gradient pattern: linear (straight) or radial (circular)	Dropdown
innerRadius	Inner circle size of donut as ratio (0.0 = pie, 0.5 = medium, 0.8 = thin ring)	Number
labelTextColor	Color for percentage labels on segments	Color
legendTextColor	Color for legend text	Color
legendType	Legend display mode: by areas, series, bars, or segments	Dropdown
minSegmentPercentage	Minimum percentage required to display a segment	Number
segmentGap	Space between donut segments in pixels	Number
segmentStyle	Donut segment appearance: normal, rounded edges, or separated	Dropdown
shadowOpacity	Transparency of shadow (0.0 = invisible, 1.0 = solid)	Number
showCenterInfo	Display information in the center of donut chart	Boolean
showDataLabels	Display numeric values on or near chart elements	Boolean
showLabels	Show or hide data point labels on the chart	Boolean
showLegend	Enable or disable the chart legend display	Boolean
showTooltips	Enable interactive tooltips on hover/tap over data points	Boolean
sortSegments	Sort segments: none, ascending, or descending by value	Dropdown
startAngle	Starting rotation angle of the chart in degrees (0-360)	Number
title	Chart title text displayed at the top	Text
tooltipBackgroundColor	Background color for tooltip popup	Color
tooltipTextColor	Text color inside the tooltip	Color

States:

Name	Description	Type
currentType	Current chart type being displayed	Text
currentData	Current chart data in JSON format	Text
error	Error message if chart fails to render	Text
selected_label	Label of the selected chart item	Text
selected_value	Value of the selected chart item	Number
tooltipVisible	Whether tooltip is currently visible	Boolean
tooltipData	Data of the currently displayed tooltip	Text
animationState	Current animation state	Text
selected_series	Currently selected series	Text
currentSegmentStyle	Current segment style	Text
selectedSeriesIndex	Index of selected series	Number
centerData	Data displayed in center	Text
hoveredSegmentIndex	Index of hovered segment	Number
totalValue	Total value of all segments	Number
visibleSegmentsCount	Count of visible segments	Number

Events:

Name	Description
Item Selected	Triggered when a user taps/clicks on a chart item
onTooltipShow	Triggered when a tooltip becomes visible
onTooltipHide	Triggered when a tooltip is hidden
Animation Completed	Triggered when chart animation completes
Series Selected	Triggered when a series is selected
Center Pressed	Triggered when center area is pressed
Segment Double Tap	Triggered when a segment is double tapped

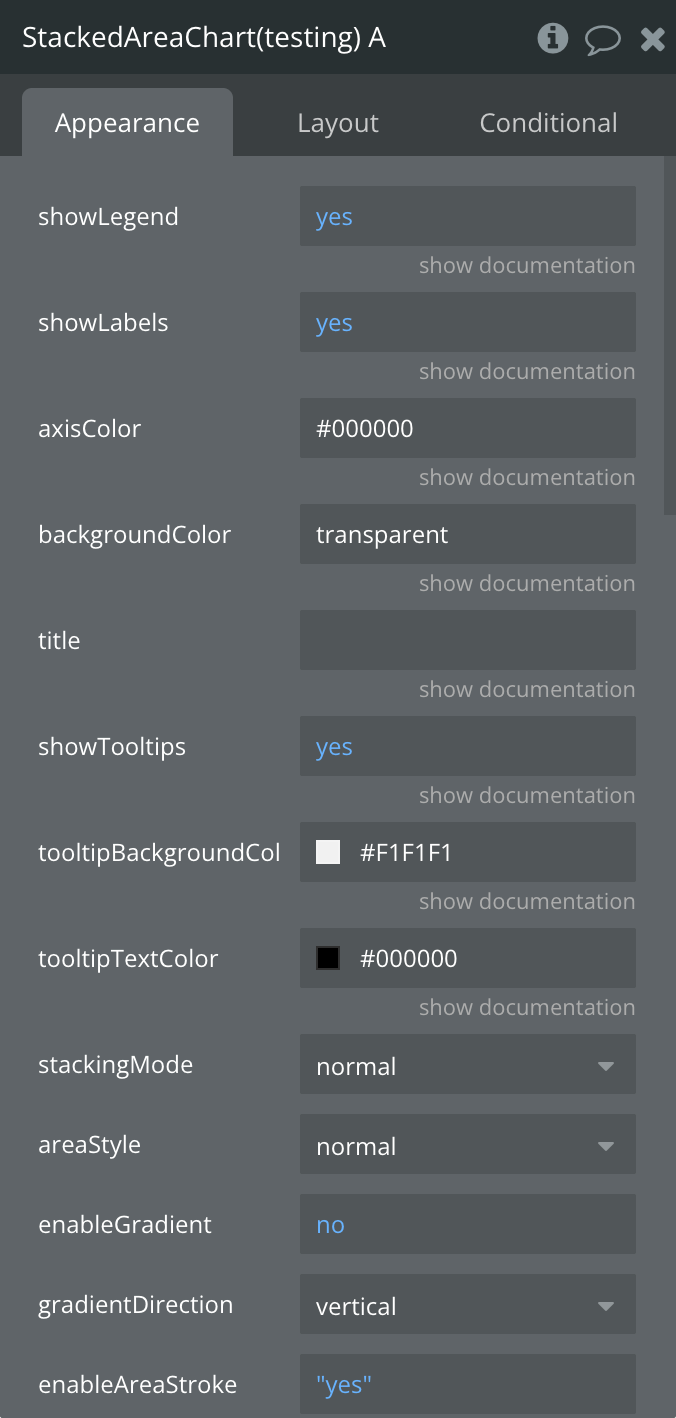

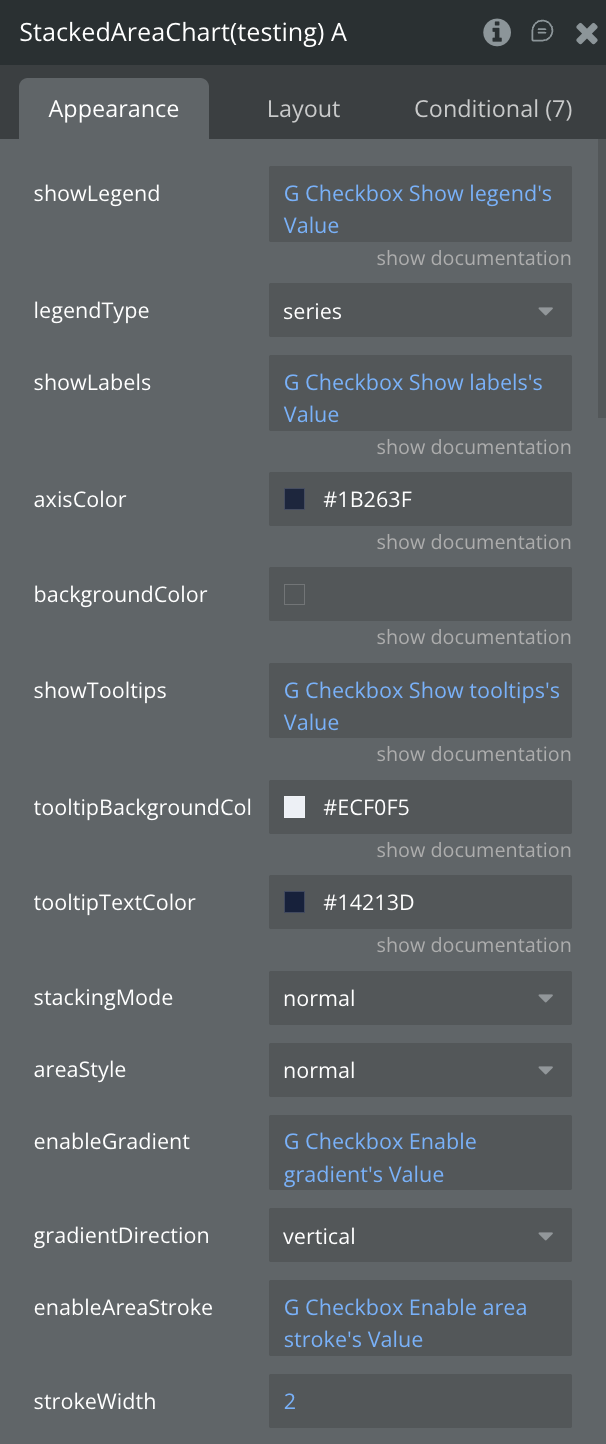

Stacked Area Chart

Shows multiple data series stacked on top of each other to display cumulative values over time. Ideal for visualizing how different components contribute to a total, such as revenue by product category or traffic sources.

Fields:

Title	Description	Type
Data JSON	Stacked chart data in JSON format. Used when Data source = JSON. Example JSON: [{"label": "January","series": [{"label": "Desktop","value": 120,"color": "#2196F3"},{"label": "Mobile","value": 90,"color": "#FF5722"}]},{"label": "February","series": [{"label": "Desktop","value": 150,"color": "#2196F3"},{"label": "Mobile","value": 110,"color": "#FF5722"}]},{"label": "March","series": [{"label": "Desktop","value": 180,"color": "#2196F3"},{"label": "Mobile","value": 140,"color": "#FF5722"}]}]	Text
Data source	JSON: use the Data JSON field. Lists: use the Labels and Series fields below.	Dropdown
Labels (list)	X-axis labels. Must be unique (e.g. "Jan 2024", not "Jan"). Used when Data source = Lists.	List of texts
Series 1–5 name	Series name shown in the legend and tooltip. Must be unique: series with the same name are merged into one layer.	Text
Series 1–5 values (list)	Values in the same order as Labels. Each series is one layer of the stack. Missing values are treated as 0.	List of numbers
Series 1–5 color	Series color. If empty, the default palette is used.	Color
animate	Enable smooth animations when chart loads or updates	Boolean
animationDuration	Animation duration in milliseconds (e.g., 800ms)	Number
animationType	Animation style when chart appears: grow, fade, slide, or rotate	Dropdown
areaStyle	Area visualization: filled, stacked, overlapped, or streamgraph	Dropdown
axisColor	Customize the color of X and Y axes	Text
backgroundColor	Set the background color for the entire chart area	Text
dataLabelColor	dataLabelColor	Color
enableAreaStroke	Add border line around filled areas	Boolean
enableGradient	Apply gradient color effects to chart elements	Boolean
enableShadow	Add shadow effects to chart elements	Boolean
gradientDirection	Direction of gradient: vertical, horizontal, or radial	Dropdown
legendType	Legend display mode: by areas, series, bars, or segments	Dropdown
markerSize	Size of data point markers in pixels	Number
shadowOpacity	Transparency of shadow (0.0 = invisible, 1.0 = solid)	Number
showDataLabels	Display numeric values on or near chart elements	Boolean
showGrid	Display grid lines for better data reading	Boolean
showLabels	Show or hide data point labels on the chart	Boolean
showLegend	Enable or disable the chart legend display	Boolean
showMarkers	Show circular markers at each data point	Boolean
showStackLabels	Display total values for each stack	Boolean
showTooltips	Enable interactive tooltips on hover/tap over data points	Boolean
stackLabelColor	stackLabelColor	Color
stackingMode	Stacking calculation: normal (absolute values) or percent (relative %)	Dropdown
strokeWidth	Width of stroke/border lines in pixels	Number
tooltipBackgroundColor	Background color for tooltip popup	Color
tooltipTextColor	Text color inside the tooltip	Color

States:

Name	Description	Type
currentType	Current chart type being displayed	Text
currentData	Current chart data in JSON format	Text
error	Error message if chart fails to render	Text
selected_label	Label of the selected chart item	Text
selected_value	Value of the selected chart item	Number
tooltipVisible	Whether tooltip is currently visible	Boolean
tooltipData	Data of the currently displayed tooltip	Text
animationState	Current animation state	Text
currentStackingMode	Current stacking mode	Text
selectedDatasetIndex	Index of selected dataset	Number
stackTotals	Total values for each stack	Text
hoveredAreaIndex	Index of hovered area	Number
maxStackValue	Maximum stack value	Number
visibleSeriesCount	Count of visible series	Number

Events:

Name	Description
Item Selected	Triggered when a user taps/clicks on a chart item
onTooltipShow	Triggered when a tooltip becomes visible
onTooltipHide	Triggered when a tooltip is hidden
animation_completed	Triggered when chart animation completes
dataset_selected	Triggered when a dataset is selected
stack_selected	Triggered when a stack is selected
area_double_tap	Triggered when an area is double tapped

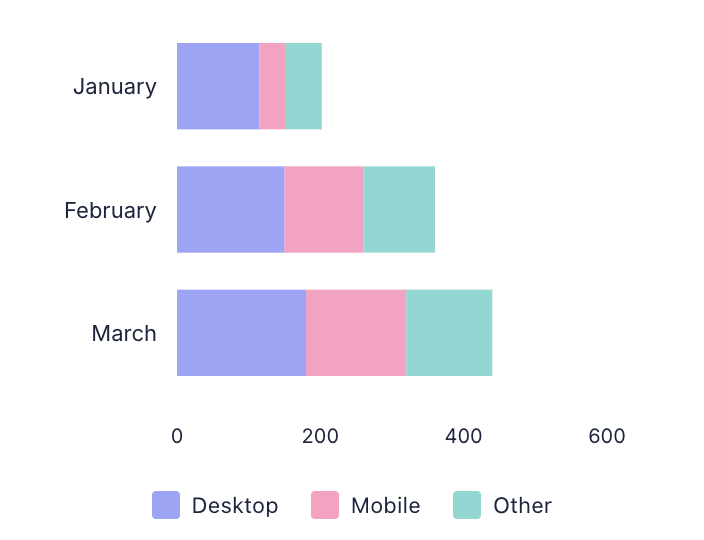

Stacked Bar Chart

Displays multiple data series stacked within bars to show both individual and total values. Excellent for comparing total quantities across categories while showing the composition of each total, like sales by region and product type.

Vertical

Horizontal

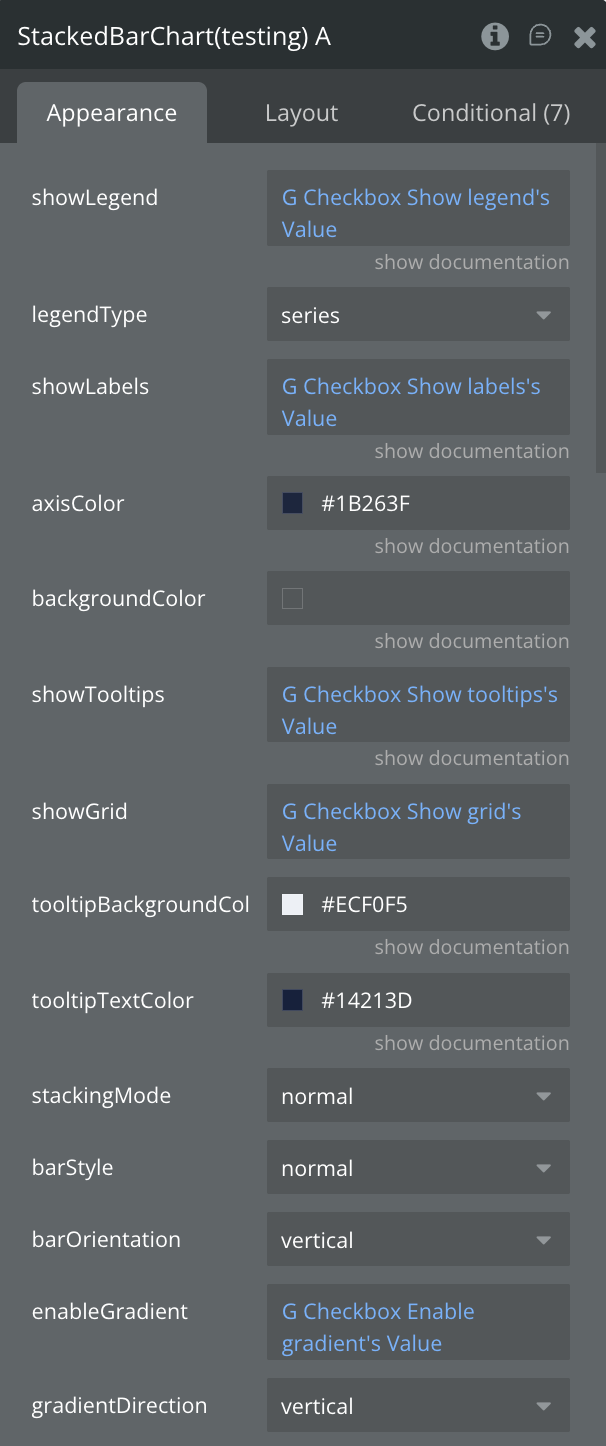

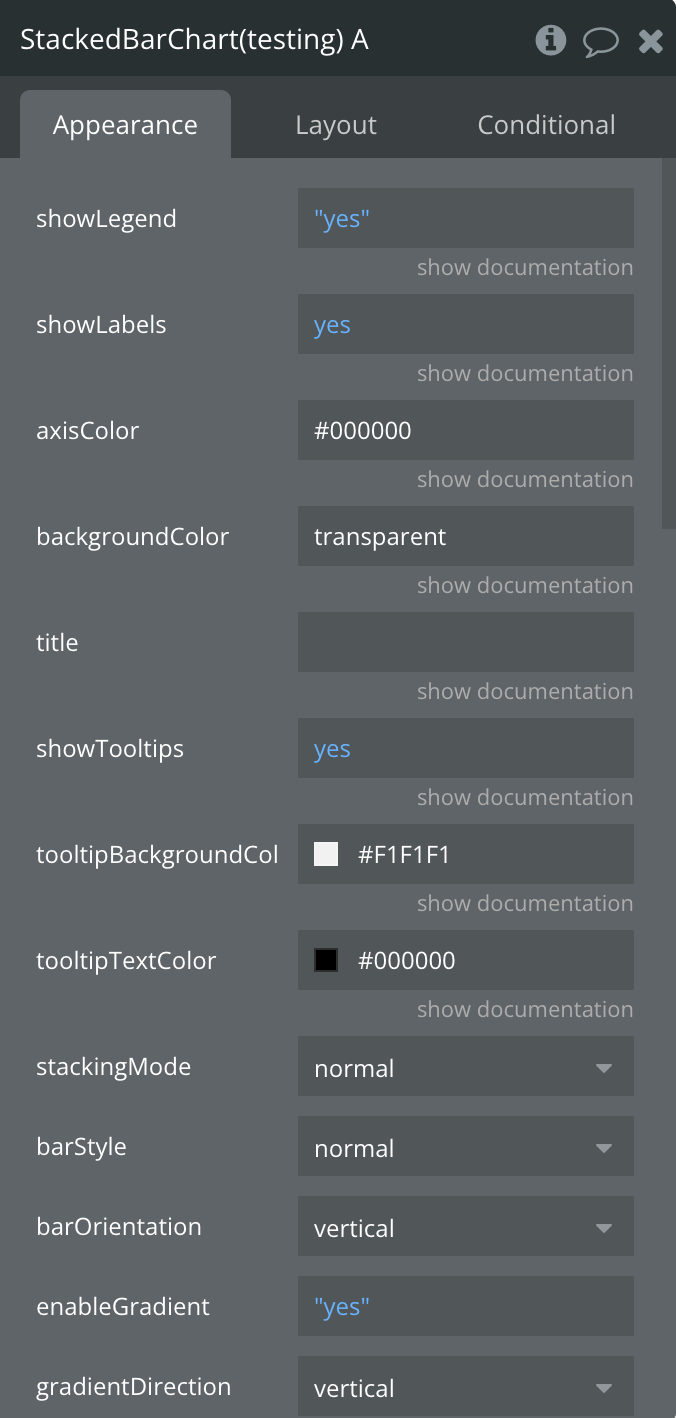

Fields:

Title	Description	Type

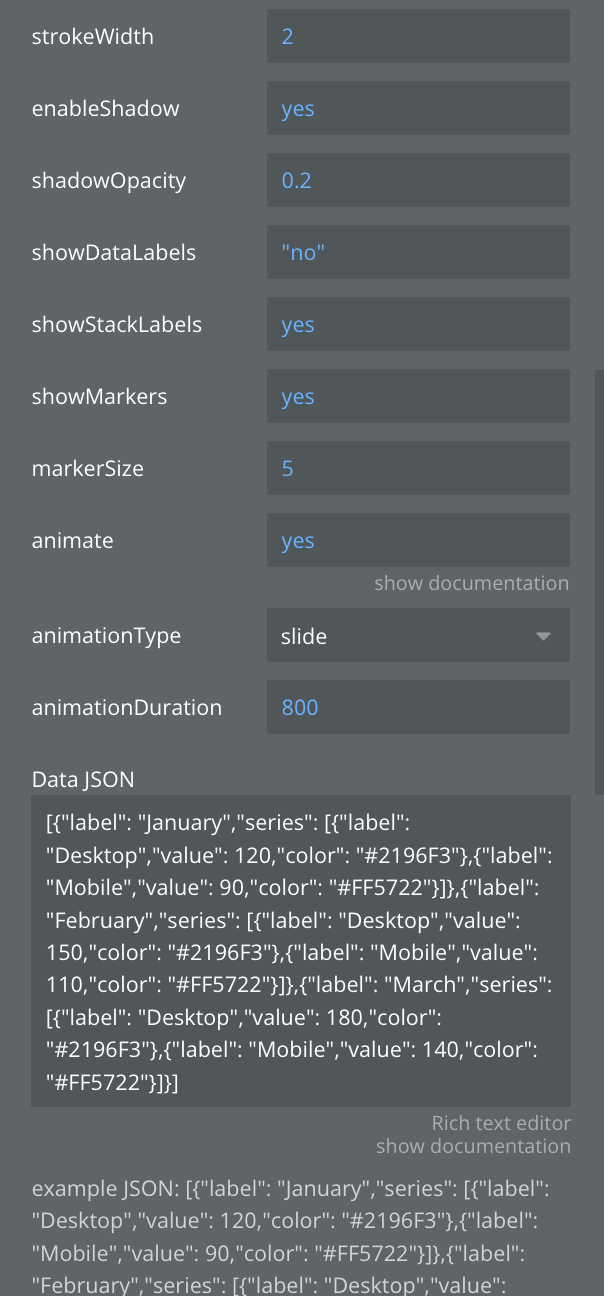

Data JSON	Stacked chart data in JSON format. Used when Data source = JSON. Example JSON: [{"label": "January","series": [{"label": "Desktop","value": 120,"color": "#2196F3"},{"label": "Mobile","value": 90,"color": "#FF5722"}]},{"label": "February","series": [{"label": "Desktop","value": 150,"color": "#2196F3"},{"label": "Mobile","value": 110,"color": "#FF5722"}]},{"label": "March","series": [{"label": "Desktop","value": 180,"color": "#2196F3"},{"label": "Mobile","value": 140,"color": "#FF5722"}]}]	Text
Data source	JSON: use the Data JSON field. Lists: use the Labels and Series fields below.	Dropdown
Labels (list)	X-axis labels. Must be unique (e.g. "Jan 2024", not "Jan"). Used when Data source = Lists.	List of texts
Series 1–5 name	Series name shown in the legend and tooltip. Must be unique: series with the same name are merged into one layer.	Text
Series 1–5 values (list)	Values in the same order as Labels. Each series is one layer of the stack. Missing values are treated as 0.	List of numbers
Series 1–5 color	Series color. If empty, the default palette is used.	Color
animate	Enable smooth animations when chart loads or updates	Boolean
animationDuration	Animation duration in milliseconds (e.g., 800ms)	Number
animationType	Animation style when chart appears: grow, fade, slide, or rotate	Dropdown
axisColor	Customize the color of X and Y axes	Text
backgroundColor	Set the background color for the entire chart area	Text
barOrientation	Bar direction: vertical (columns) or horizontal (rows)	Dropdown
barSpacing	Space between bars as a ratio (0.0 = no space, 1.0 = max space)	Number
barStyle	Visual style of bars: rounded corners, square, or gradient	Dropdown
dataLabelColor	dataLabelColor	Color
enableAreaStroke	Add border line around filled areas	Boolean
enableGradient	Apply gradient color effects to chart elements	Boolean
enableShadow	Add shadow effects to chart elements	Boolean
gradientDirection	Direction of gradient: vertical, horizontal, or radial	Dropdown
legendType	Legend display mode: by areas, series, bars, or segments	Dropdown
shadowOpacity	Transparency of shadow (0.0 = invisible, 1.0 = solid)	Number
showDataLabels	Display numeric values on or near chart elements	Boolean
showGrid	Display grid lines for better data reading	Boolean
showLabels	Show or hide data point labels on the chart	Boolean
showLegend	Enable or disable the chart legend display	Boolean
showStackLabels	Display total values for each stack	Boolean
showTooltips	Enable interactive tooltips on hover/tap over data points	Boolean
stackLabelColor	stackLabelColor	Color
stackingMode	Stacking calculation: normal (absolute values) or percent (relative %)	Dropdown
tooltipBackgroundColor	Background color for tooltip popup	Color
tooltipTextColor	Text color inside the tooltip	Color

States:

Name	Description	Type
currentType	Current chart type being displayed	Text
currentData	Current chart data in JSON format	Text
error	Error message if chart fails to render	Text
selected_label	Label of the selected chart item	Text
selected_value	Value of the selected chart item	Number
tooltipVisible	Whether tooltip is currently visible	Boolean
tooltipData	Data of the currently displayed tooltip	Text
animationState	Current animation state	Text
currentStackingMode	Current stacking mode	Text
selectedDatasetIndex	Index of selected dataset	Number
stackTotals	Total values for each stack	Text
hoveredBarIndex	Index of hovered bar	Number
maxStackValue	Maximum stack value	Number
visibleSeriesCount	Count of visible series	Number
barWidth	Current bar width	Number

Events:

Name	Description
Item Selected	Triggered when a user taps/clicks on a chart item
onTooltipShow	Triggered when a tooltip becomes visible
onTooltipHide	Triggered when a tooltip is hidden
Animation Completed	Triggered when chart animation completes
Dataset Selected	Triggered when a dataset is selected
Stack Selected	Triggered when a stack is selected
Bar Double Tap	Triggered when a bar is double tapped
