360 Virtual Tour

Introduction

Virtual tour is a simulation of the real world through viewers’ digital screen. With a 360 virtual tour, you can enjoy the environment of real places without actually being present there.Use this plugin to create interactive & virtual tours simply with a 360-degree panoramic photo. What’s more, you can utilize it to make intelligent and virtual visits, maps, introductions. The plugin supports markers for providing information about any part of the scene or for navigation to other rooms/areas. Just upload 360 panoramic images and this plugin will help you turn them into a nice realistic virtual tour.

How to setup

The plugin comes with an element- 360 Virtual Tours. It is able to create a Virtual Tour using the plugin element as well as the plugin action. For instance, place a group on the page and trigger the plugin action to enable the 360 Virtual Tours.

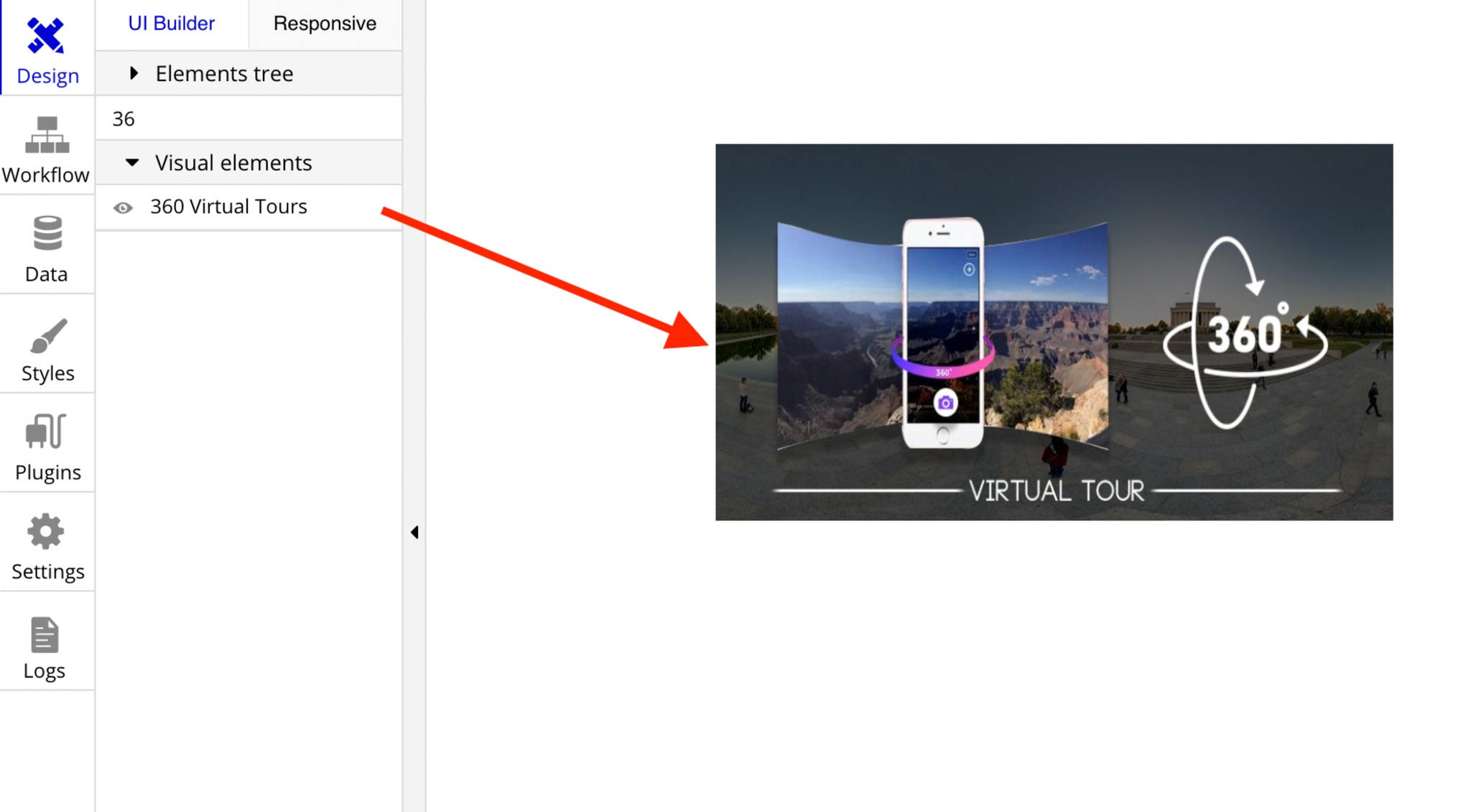

Place the element on the page.​​

Document image

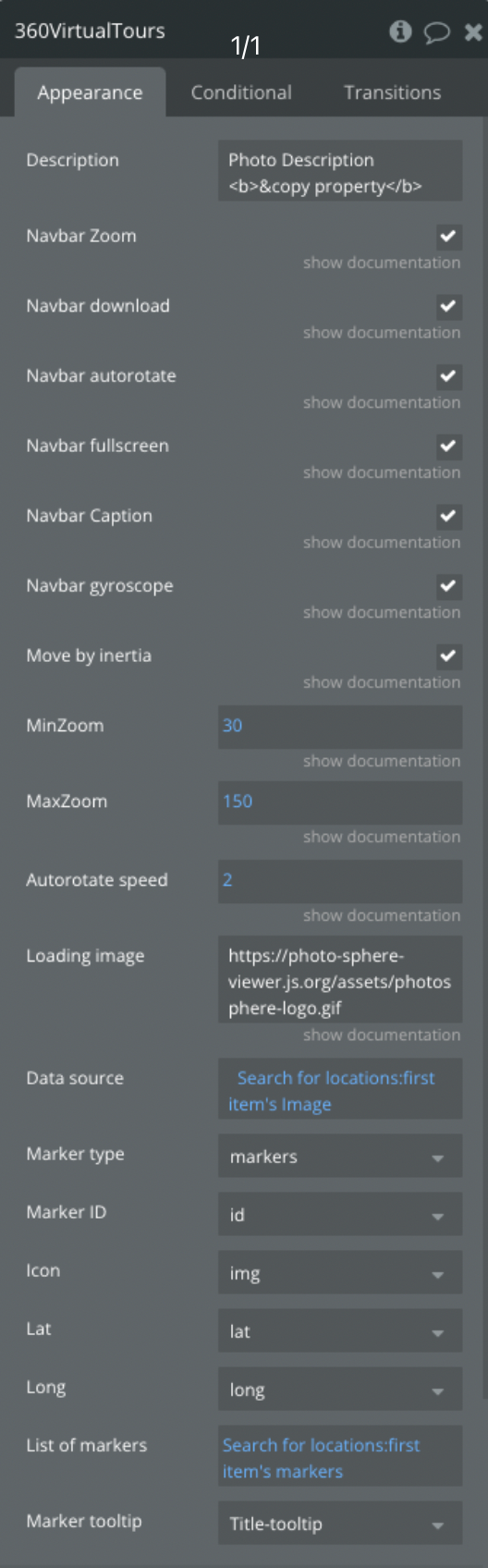

Fill in the element fields.

Document image

Fields

  • Description - Description or label on the navigation bar. (text)
  • Navabar ZoomAdd zoom control buttons to the navigation bar. (yes/no)
  • Navabar Download - Add a download button to the navigation bar. (yes/no)
  • Navabar Autorotate - Add a button to switch autorotate. (yes/no)
  • Navabar Fullscreen - Add fullscreen control button. (yes/no)
  • Navabar Caption - Display Description in navigation bar. (yes/no)
  • Navabar gyroscope - Add a button to switch gyroscope usage. (yes/no)
  • Move by inertia - Add a button move by inertia in the navigation panel. (yes/no)
  • MinZoom - Minimum zoom of the image. (number)
  • MaxZoom - Maximum zoom of the image. (number)
  • Autorotate speed - This field is responsible for autorotate speed in the virtual tour. (number)
  • Loading image - Preloading image link. (text)
  • Data source - Data source with images. (list of images)
  • Marker type - Data type from the base. Represent markers. (App Type)
  • Marker ID - Field of the Marker type representing id. (field of marker type - Evaluate to Text)
  • Icon - Field of the Marker type representing marker icon. (field of marker type - Evaluate to Image)
  • Lat - Field of the Marker type representing marker latitude. (field of marker type - Evaluate to Number)
  • Long - Field of the Marker type representing marker longitude. (field of marker type - Evaluate to Number)
  • List of marker - List of Marker type. (list of marker type)
  • Marker Tooltip - Field of the Marker type representing marker tooltip. When the marker is hovered tooltip will be displayed. (field of marker type)

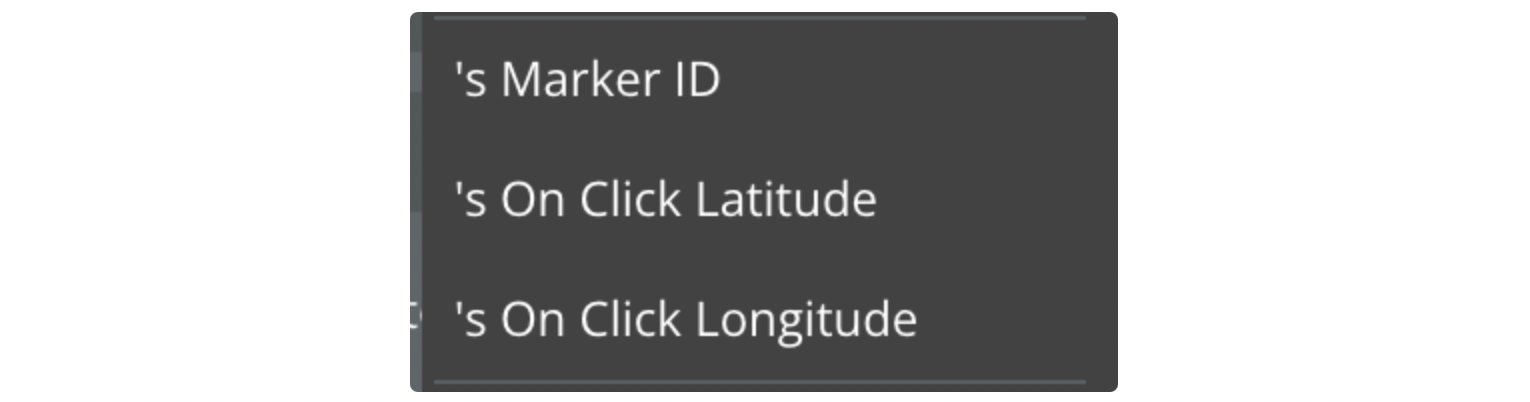

Plugin States

  • Marker ID - Representing marker id from Database (text)
  • On Click Latitude - Representing click position (number)
  • On Click Longitude - Representing click position (number)
Document image

Plugin Actions

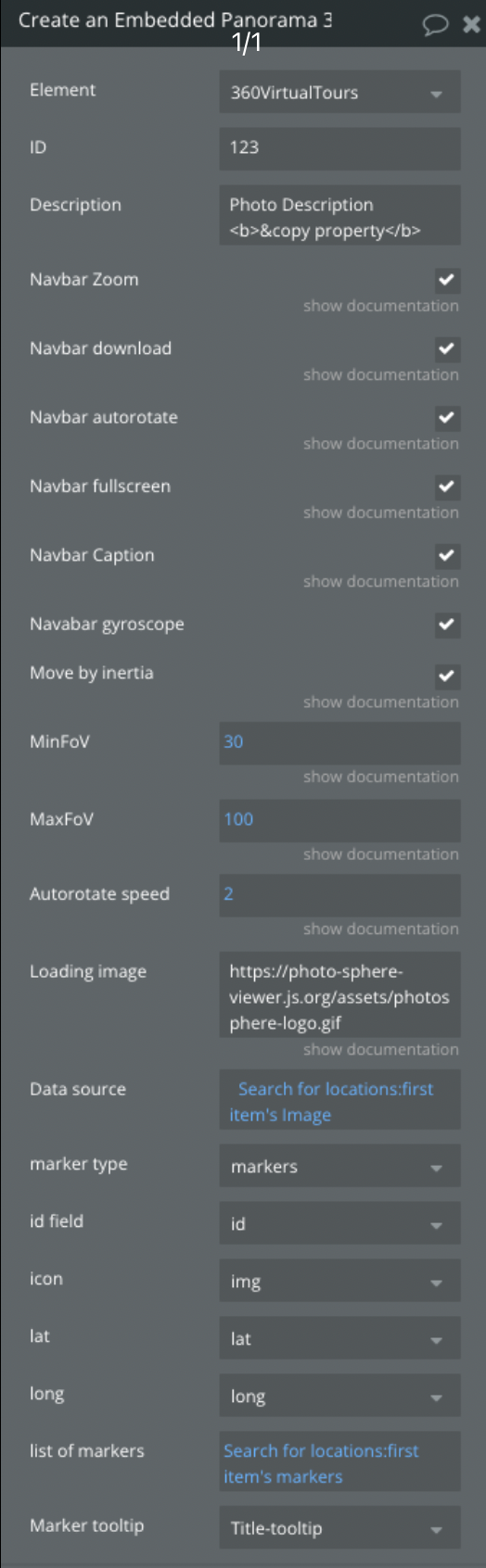

1. Create an Embedded Panorama

This action allows creating a Virtual Tour.

Document image

​Fields

  • ID - ID of the group where the Virtual Tour will be drawn. (text)

    Description - Description or label on the navigation bar. (text)

    Navabar Zoom - Add zoom control buttons to the navigation bar. (yes/no)

    Navabar Download - Add a download button to the navigation bar. (yes/no)

    Navabar Autorotate - Add a button to switch autorotate. (yes/no)

    Navabar Fullscreen - Add fullscreen control button. (yes/no)

    Navabar Caption - Display Description in navigation bar. (yes/no)

    Navabar gyroscope - Add a button to switch gyroscope usage. (yes/no)

    Move by inertia - Add a button move by inertia in navigation panel. (yes/no)

    MinZoom - Minimum zoom of the image. (number)

    MaxZoom - Maximum zoom of the image. (number)

    Autorotate speed - This field is responsible for autorotate speed in the virtual tour. (number)

    Loading image - Preloading image link. (text)

    Data source - Data source with images. (list of images)

    Marker type - Data type from the base. Represent markers. (App Type)

    Marker ID - Field of the Marker type representing id. (field of marker type - Evaluate to Text)

    Icon - Field of the Marker type representing marker icon. (field of marker type - Evaluate to Image)

    Lat - Field of the Marker type representing marker latitude. (field of marker type - Evaluate to Number)

    Long - Field of the Marker type representing marker longitude. (field of marker type - Evaluate to Number)

    List of marker - List of Marker type. (list of marker type)

    Marker Tooltip - Field of the Marker type representing marker tooltip. When the marker is hovered tooltip will be displayed. (field of marker type)

2. Destroy Tour

This action destroys the virtual tour.

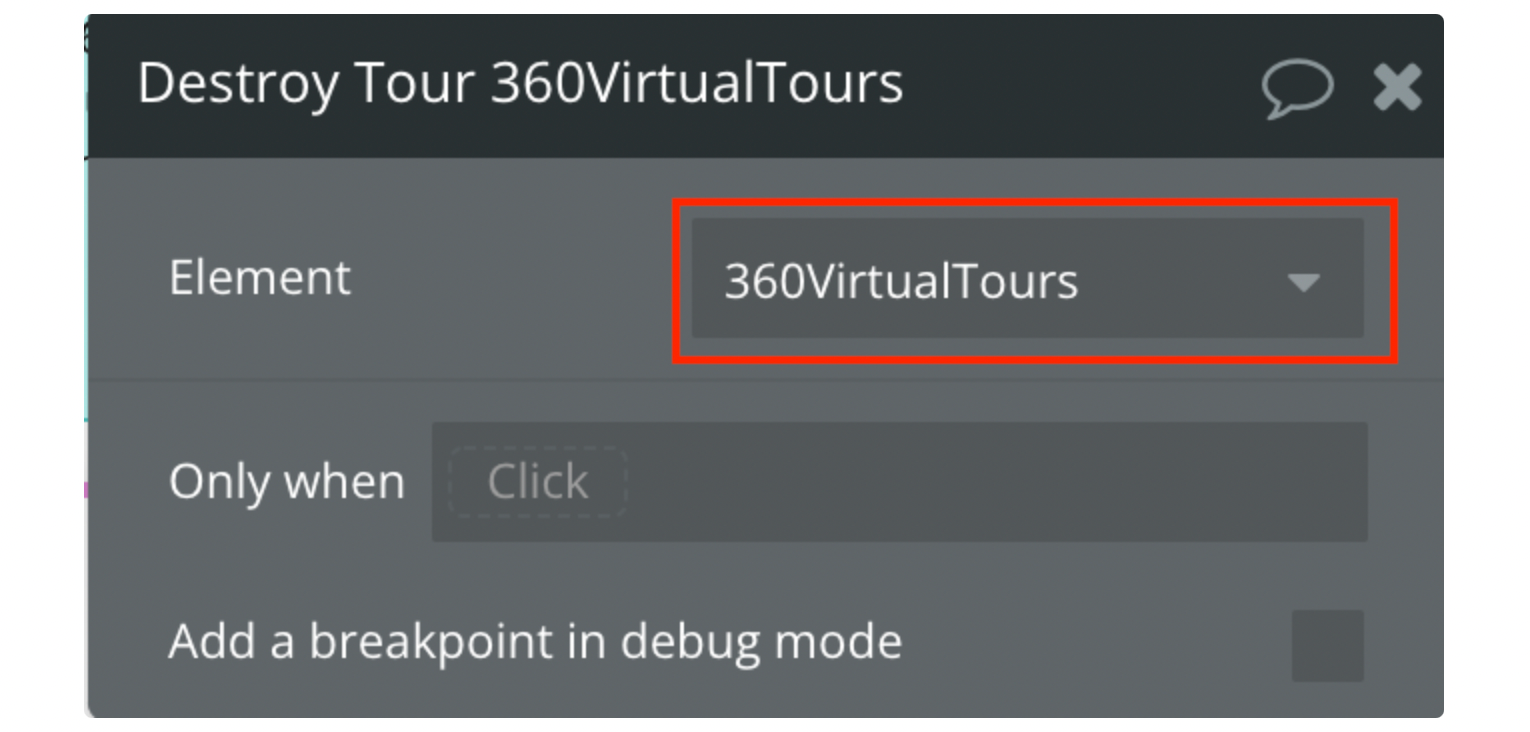

Choose an element from the dropdown which needs to be destroyed.

Document image

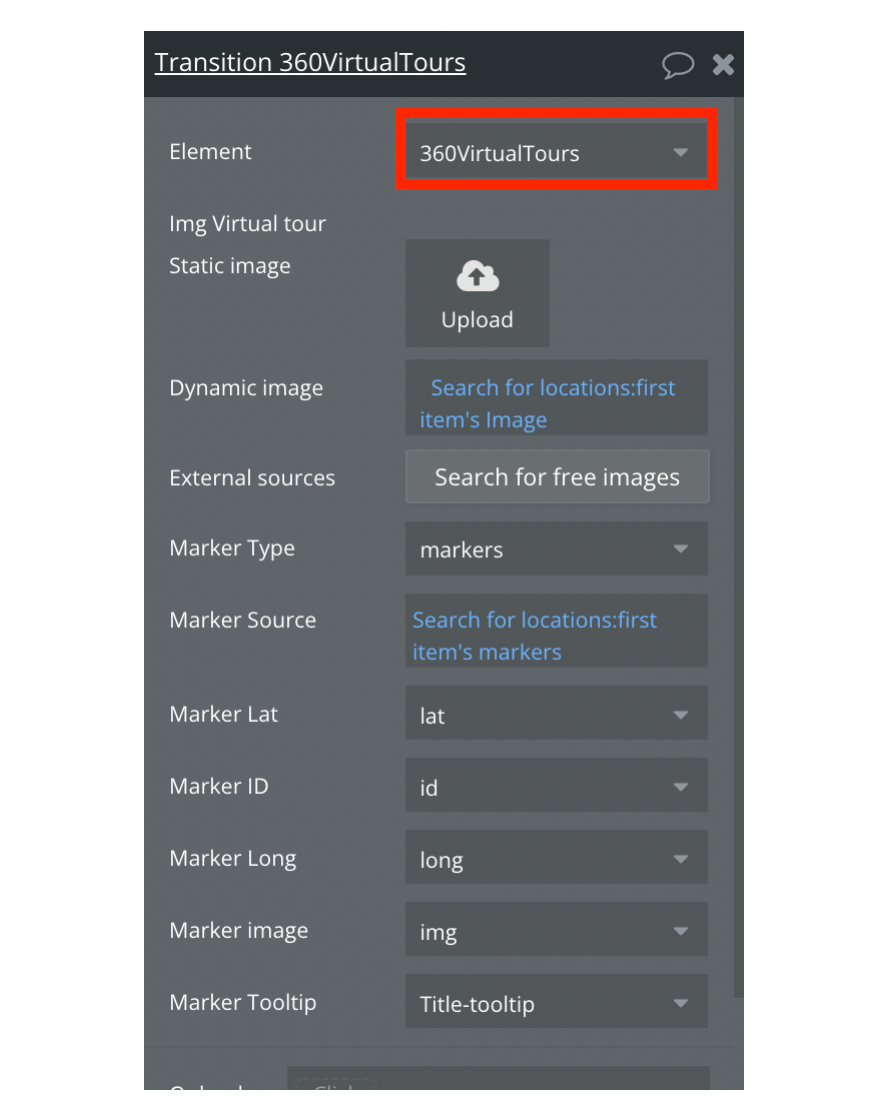

3. Transition

This action allows markers navigation.

Document image

Fields

  • Img Virtual tour - This image will be used as a panorama
  • Marker Type - App type from the base. This type will be used as a type of markers.
  • Marker Source - List of Marker Type. List of markers
  • Marker ID - Field of Marker Type representing marker id
  • Icon - Field of Marker Type representing marker icon
  • Lat - Field of Marker Type representing marker latitude
  • Long - Field of Marker Type representing marker longitudeMarker TooltipField of Marker Typerepresenting marker tooltip

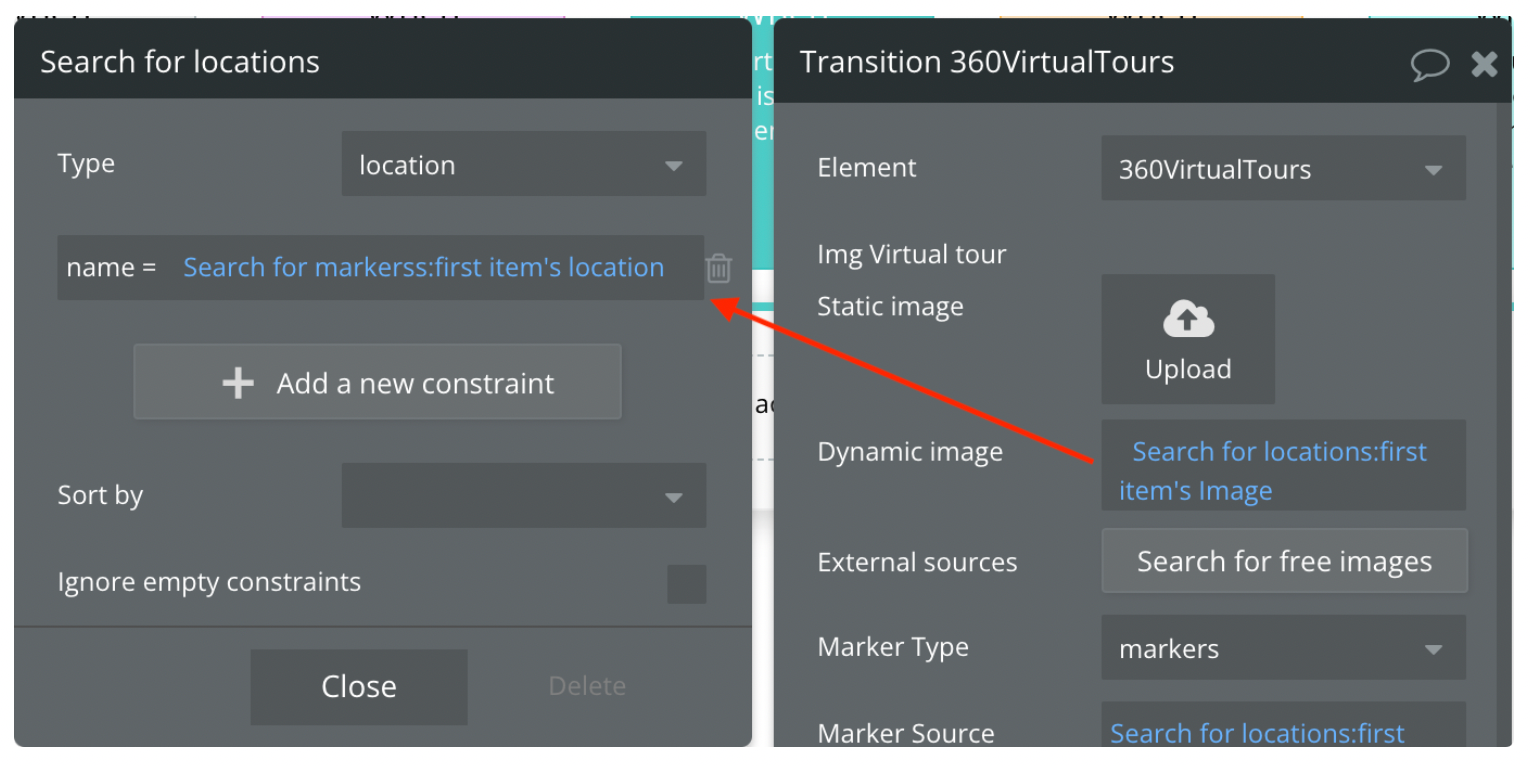

Data source example for the Dynamic image field

Document image
Document image

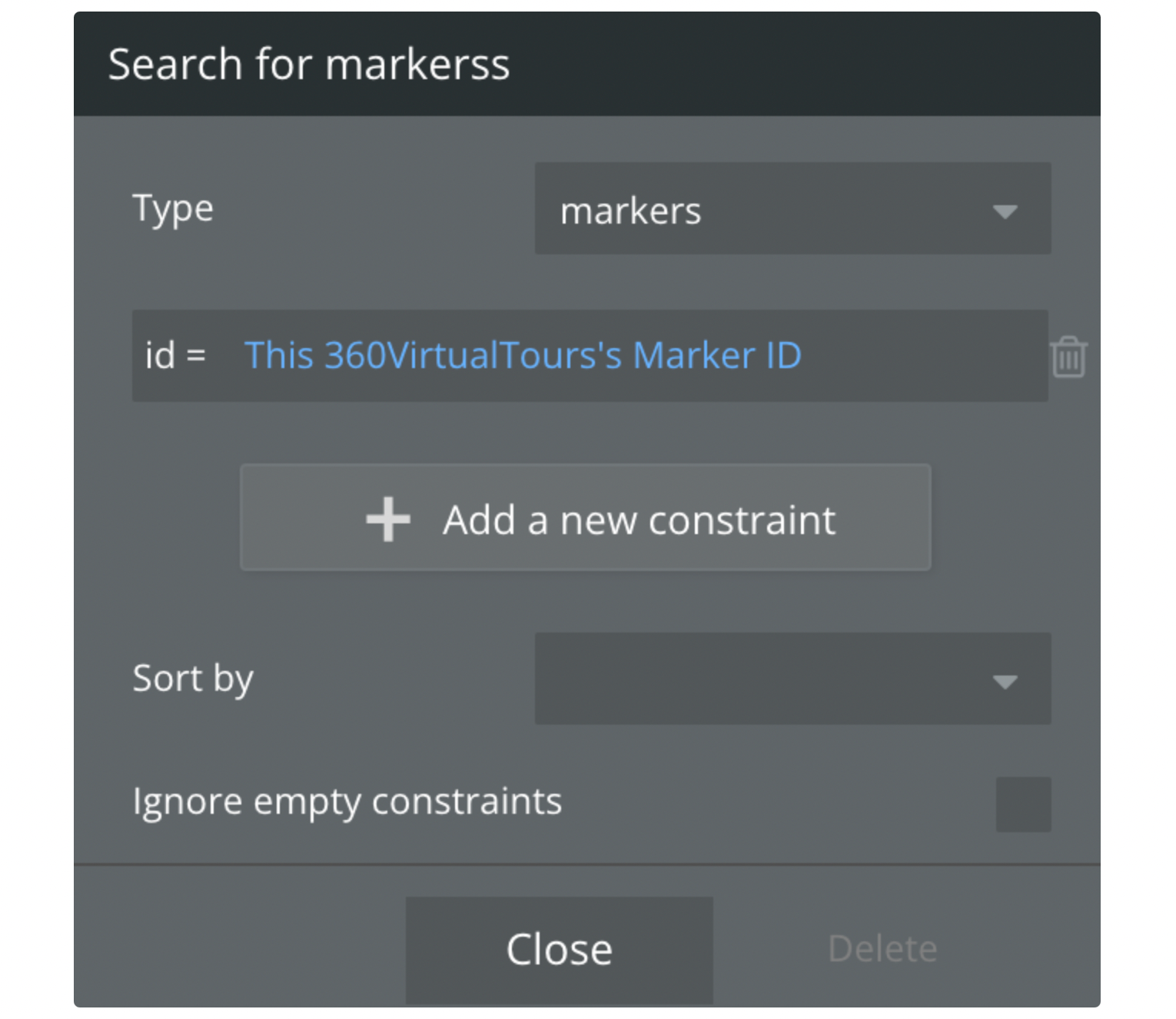

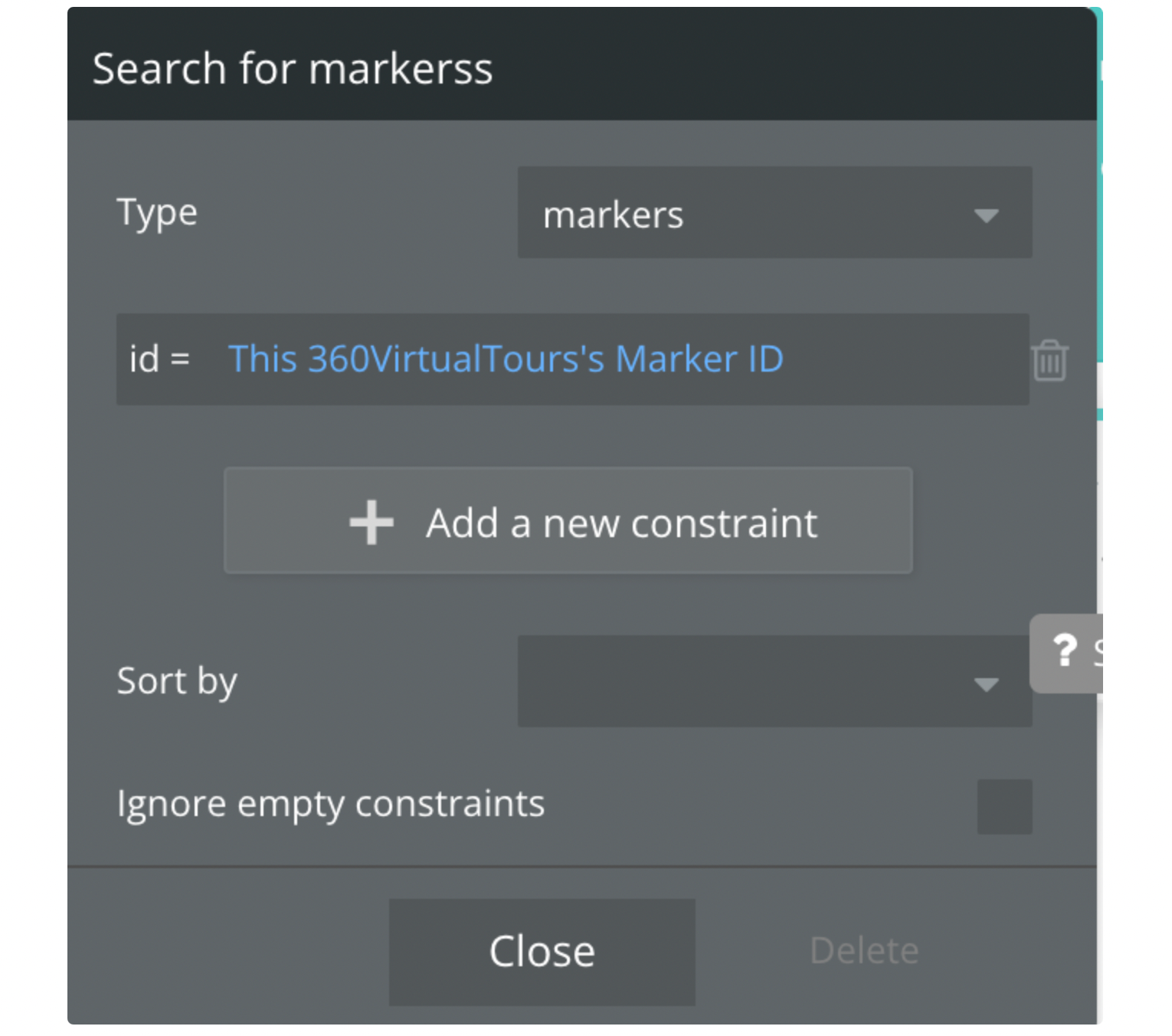

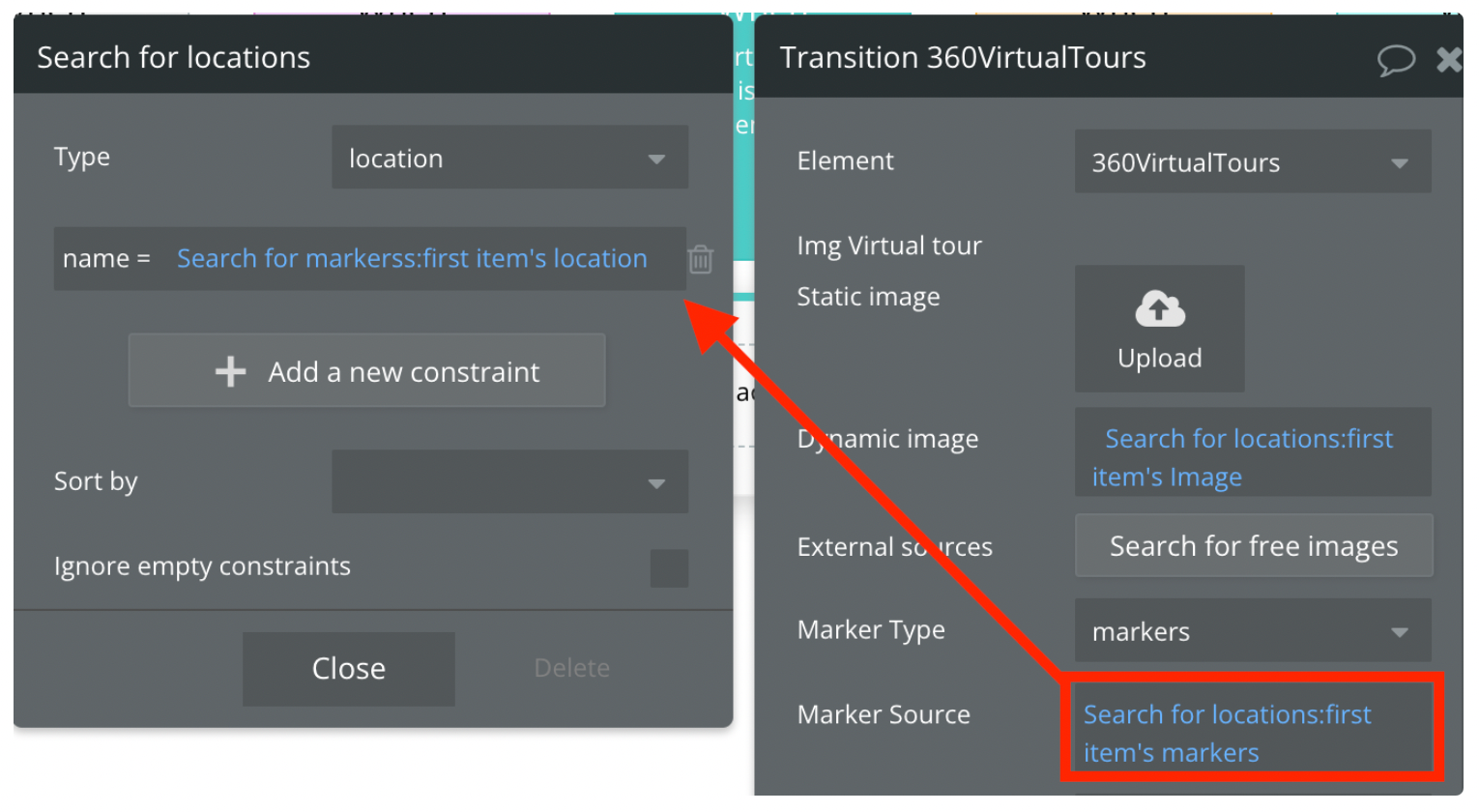

Marker Source example

Document image
Document image

Plugin Events

  • Loaded - triggers when '360 virtual Tours' is loaded.
  • Object ready - triggers when the object (for instance group with panorama) is ready.
  • Marker is clicked on element - triggers when the marker is clicked on the '360 Virtual Tours' plugin element.
  • Marker is clicked on embedded - triggers when the marker is clicked on '360 Virtual Tours' that are created by plugin action.
  • Doubleclick - triggers when '360 virtual Tours' is double-clicked.

Database structure

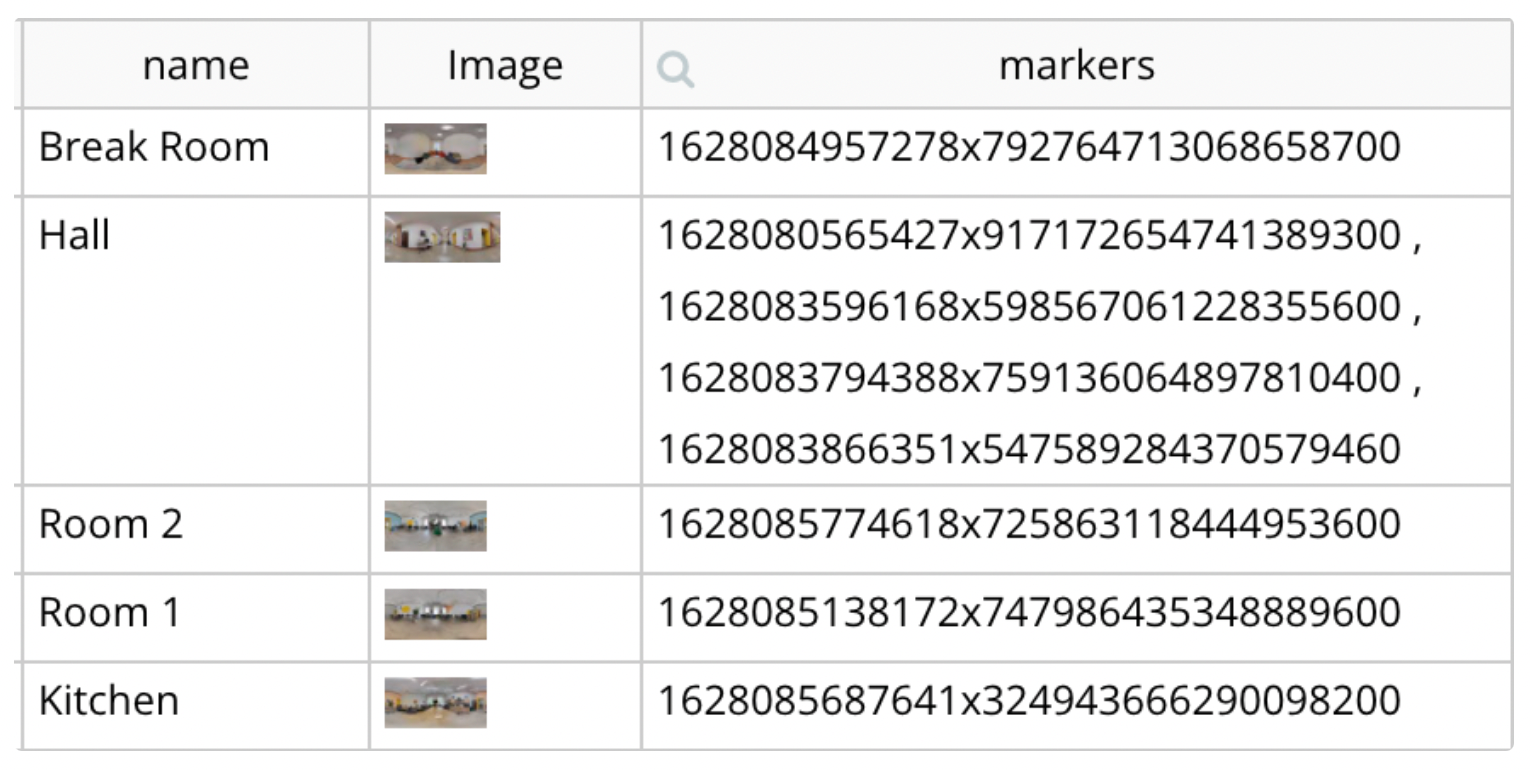

Location data table

This data table is should be created first. Save the location name and location image in it. Further, it will be needed for saving markers by unique ID for a specific location.

  1. name - Location name.
  2. image - Location image.
  3. markers - List of markers with unique ID.
Document image

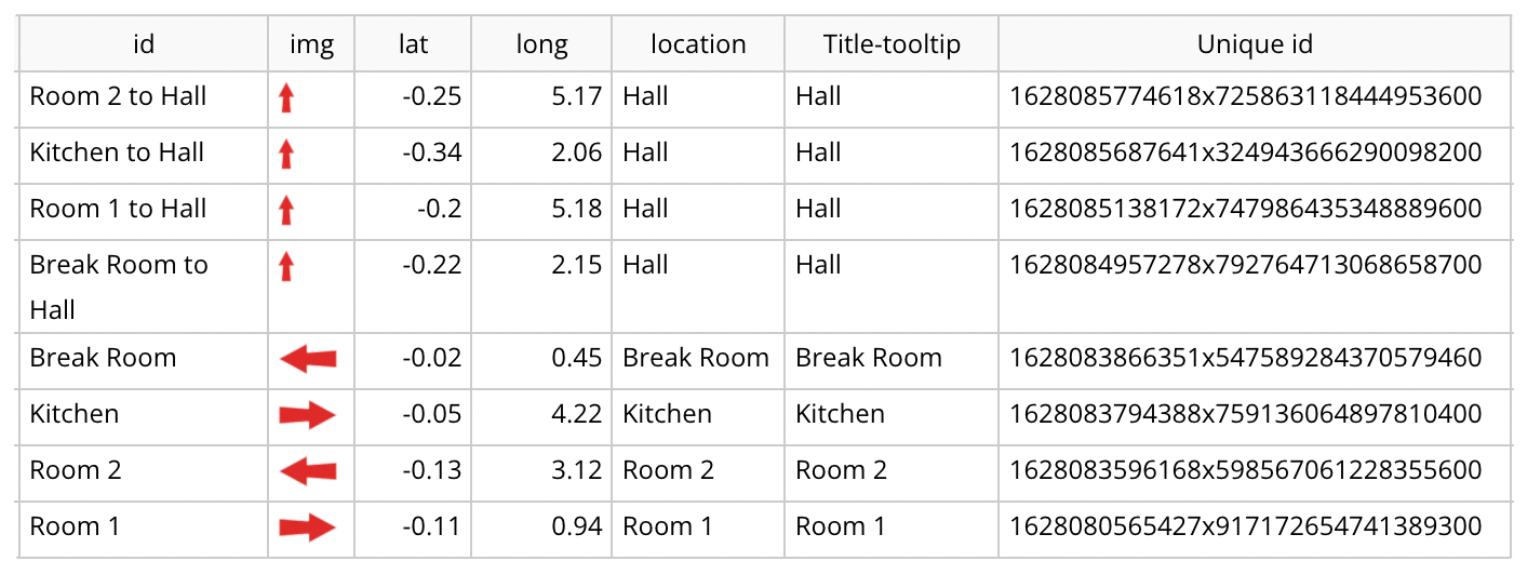

Markers data table

This table is used for marker creation. When the marker is being created the data will be stores in this table. By marker unique ID the needed location will be found.

  1. id - marker id.
  2. img - marker image.
  3. lat - marker latitude.
  4. long - marker longitude.
  5. location - where the marker will be displayed.
  6. Title-tooltip - tooltip when hovering over a marker.
Document image

Workflow example

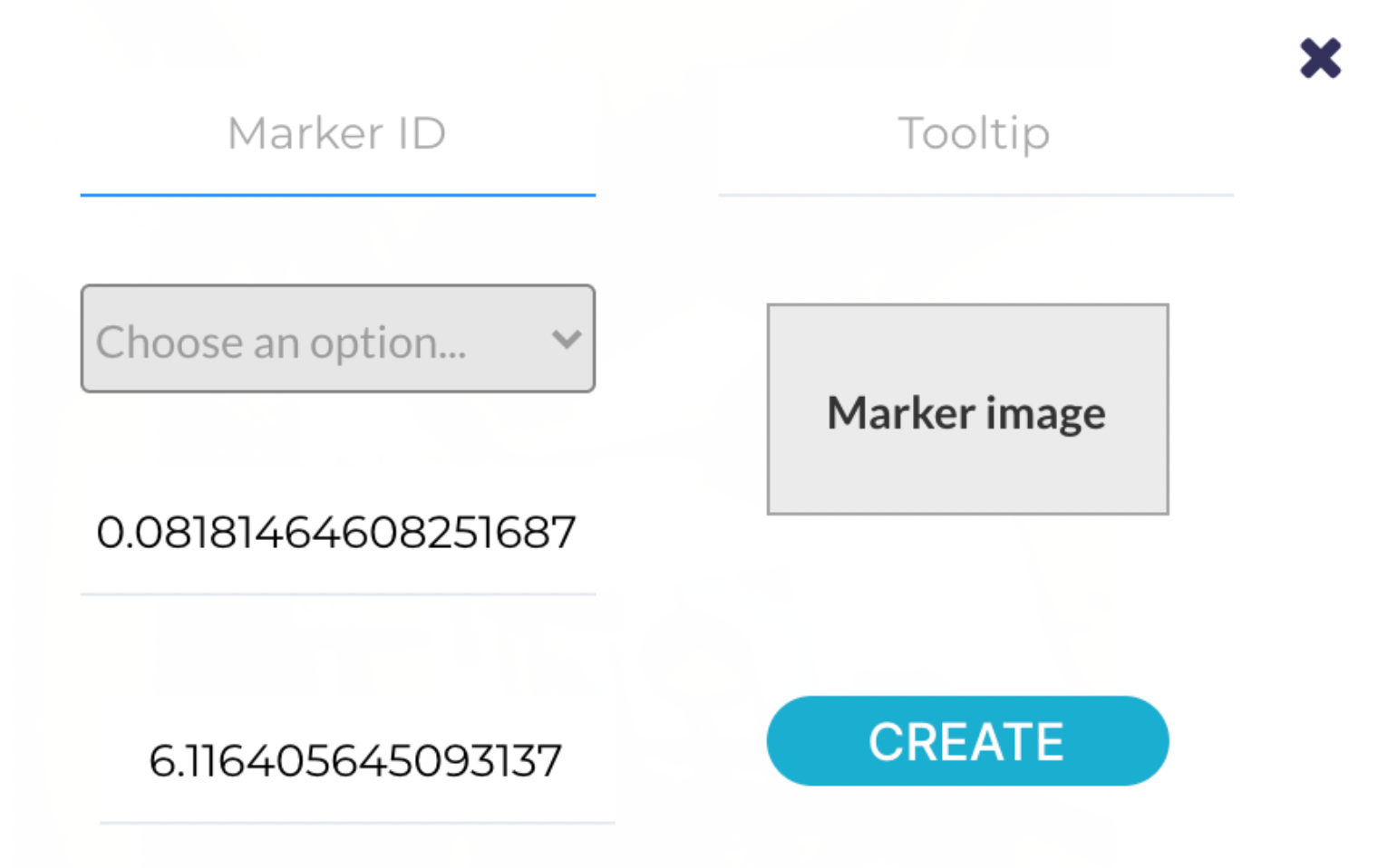

Here is represented an example of creating a marker through the Popup. Create a Popup with 4 inputs, 1 dropdown list, 1 image uploader, 1 button "create".

Document image



Marker ID - it's a value that will be saved as 'id' in the Markers Data table.

Tooltip - marker tooltip that will be saved in the Markers Data table.

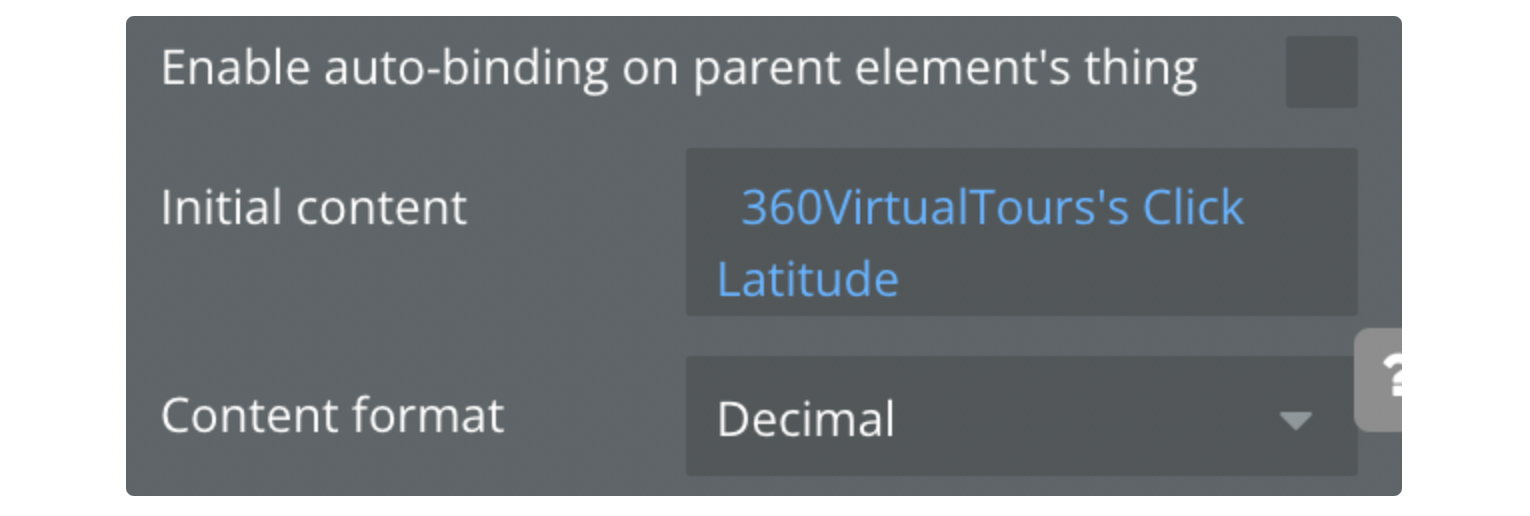

Latitude - A360VirtualTours's click Latitude

Document image

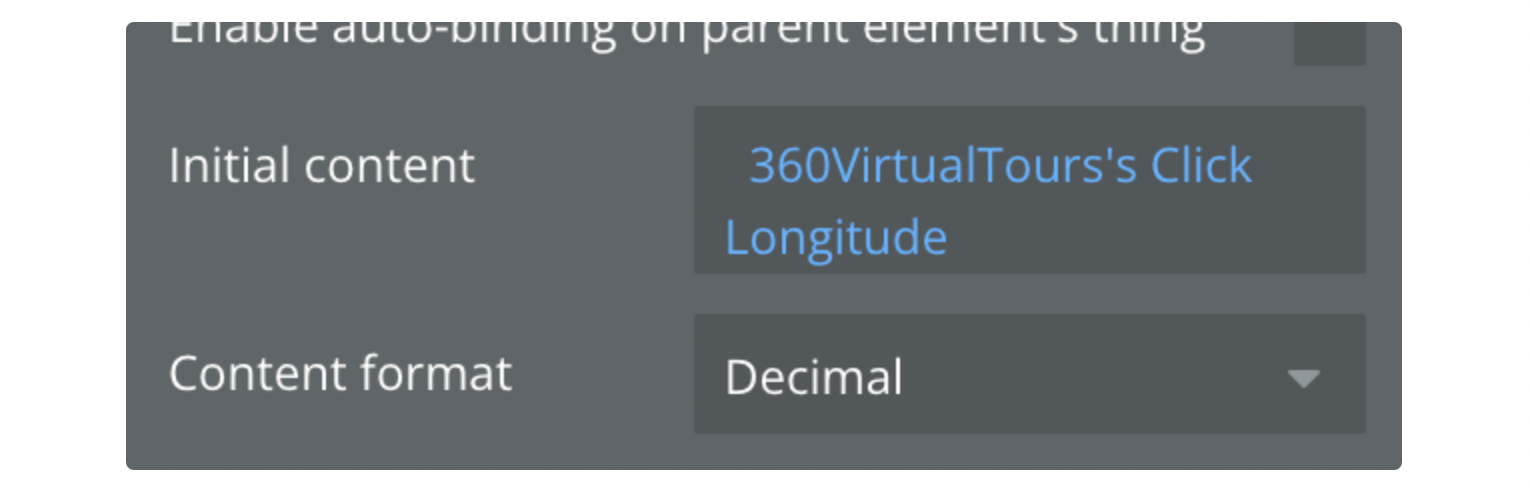

Longitude- A360VirtualTours's click Longitude

Document image

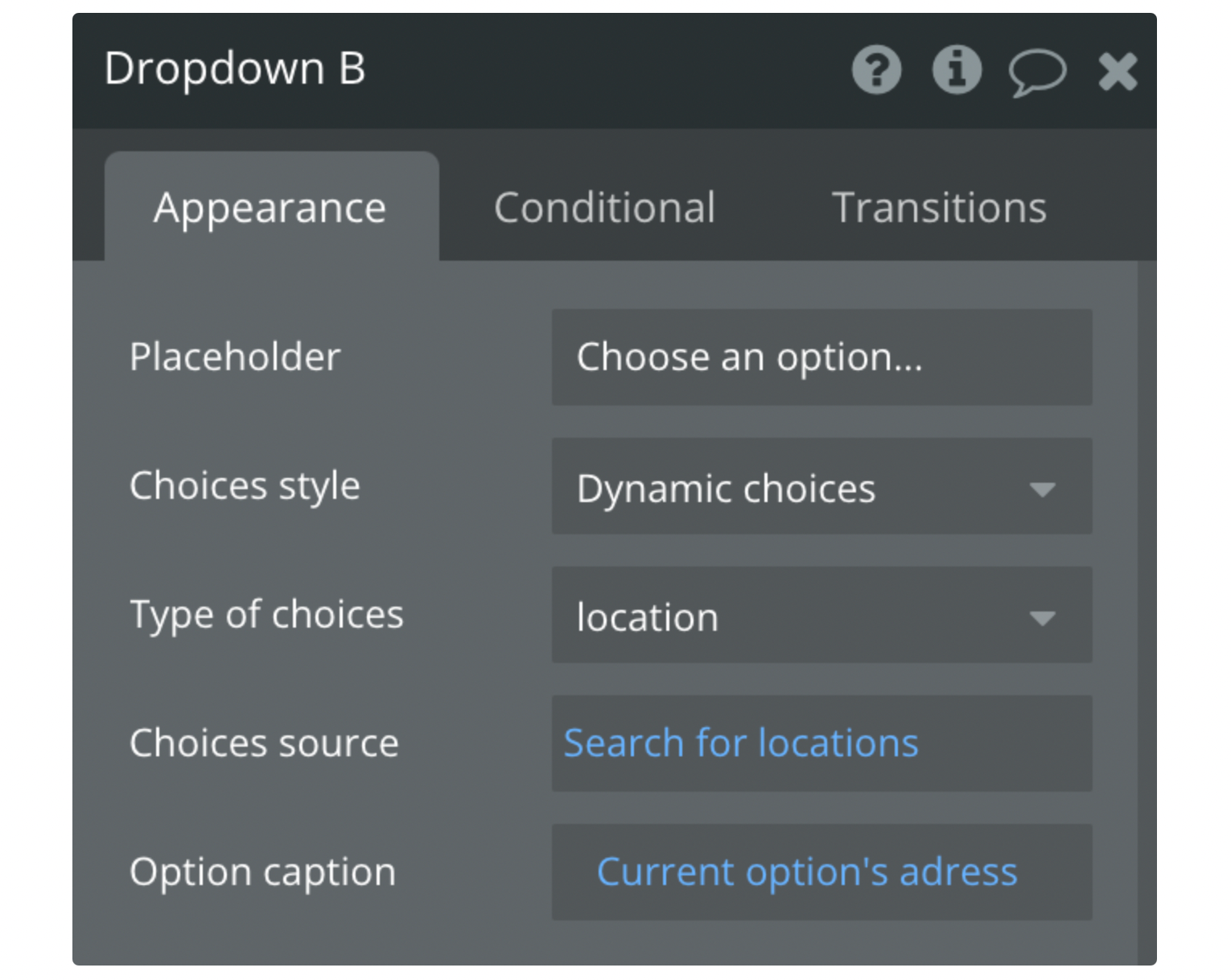

​Dropdown Location- Location options from Location Data table

Document image



​Image uploader - preferable to upload PNG format.

Button - triggers the Create Marker action.

Workflow Create Marker

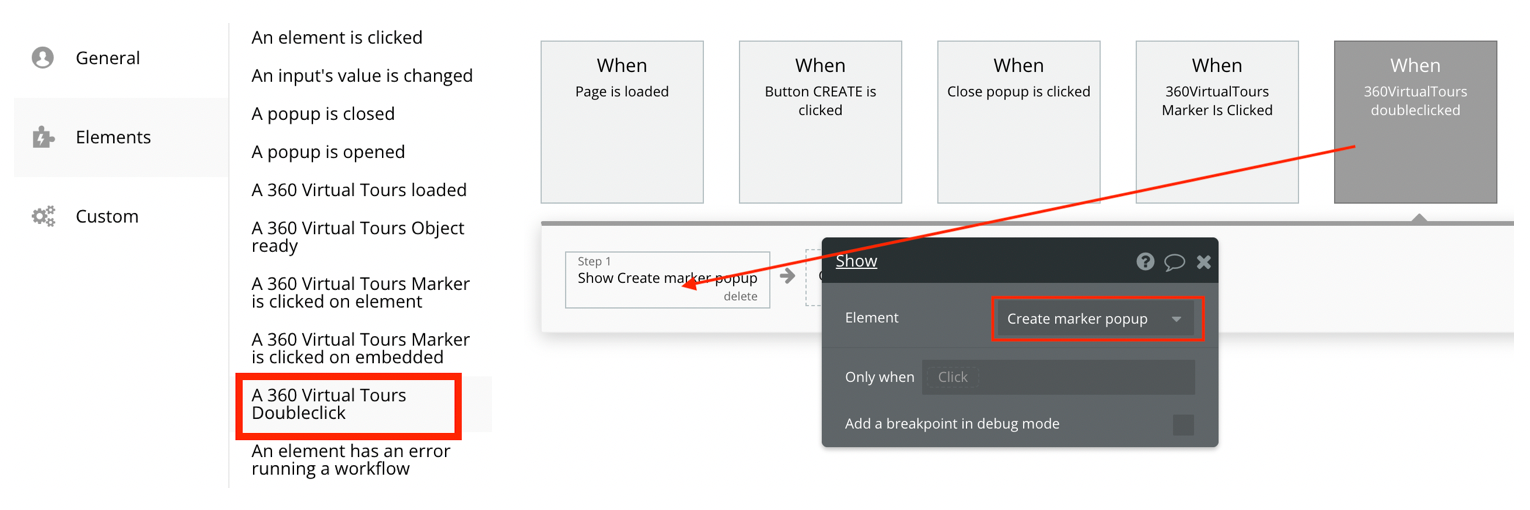

Select an event A 360 Virtual Tour Douoblclick and trigger 'show Create Marker popup' action.

Document image

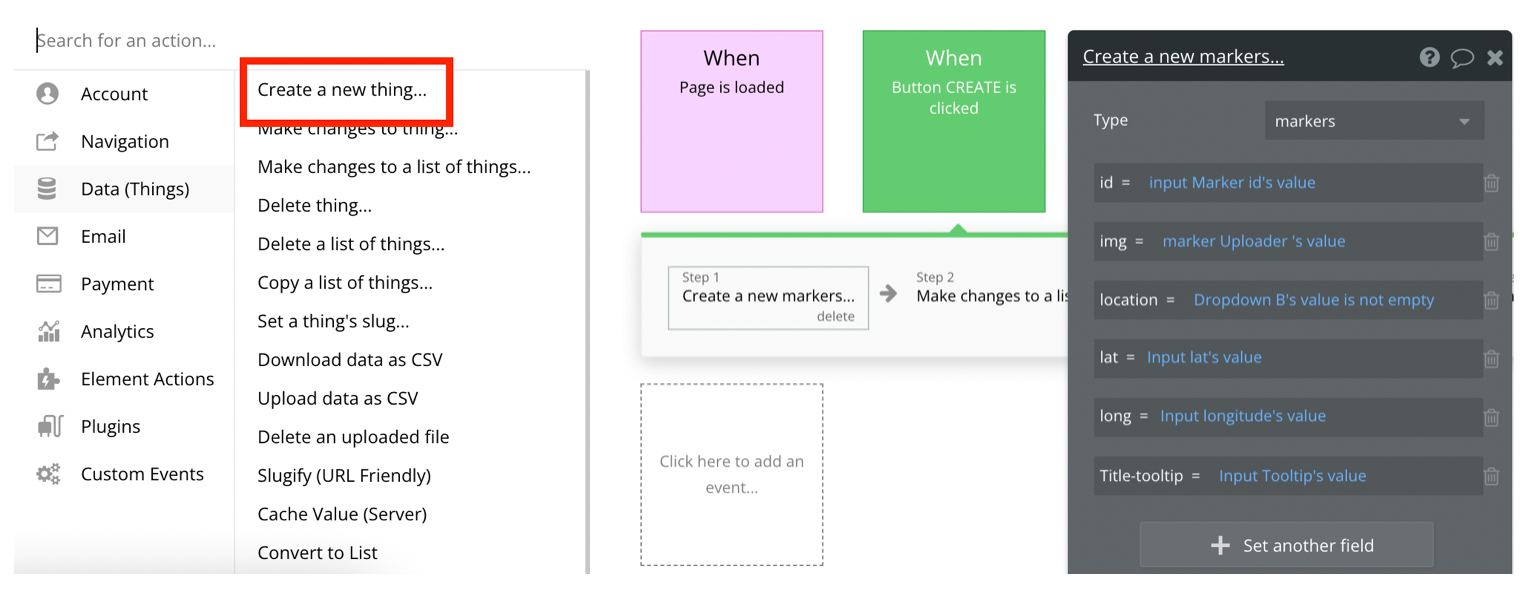

After filling all the inputs and fields in the popup, hit the 'Create' button and trigger the 'Create a new markers' action.

Document image

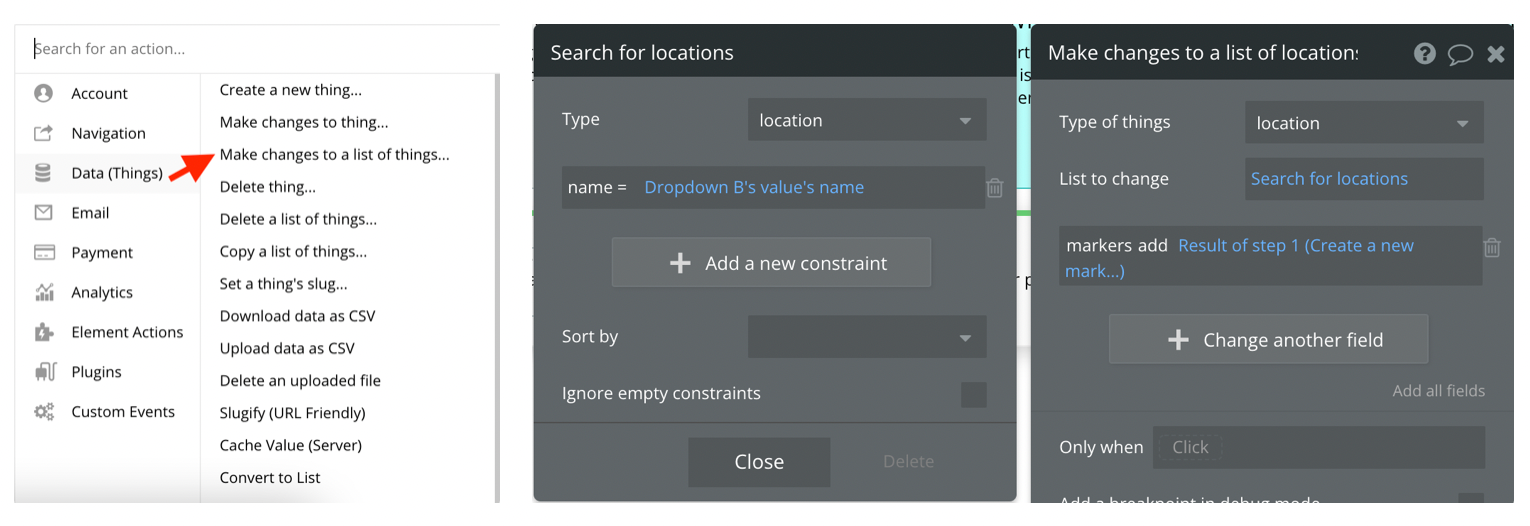

The next step will be an action - Make changes to a list of things (Location) that will connect the marker with the location.

Document image

Workflow Transition

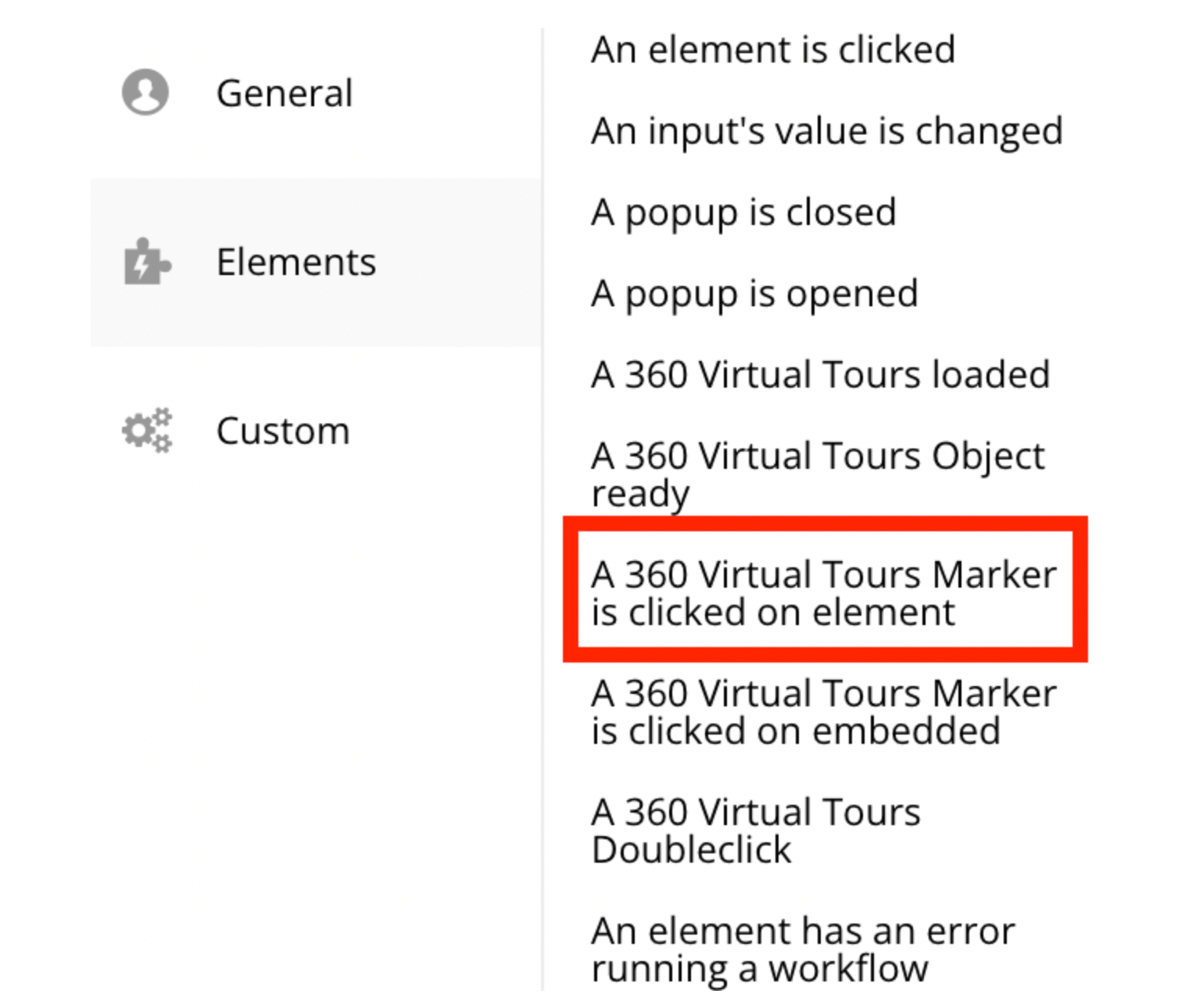

Select the event- A 360 Virtual Tours Marker is clicked

Document image

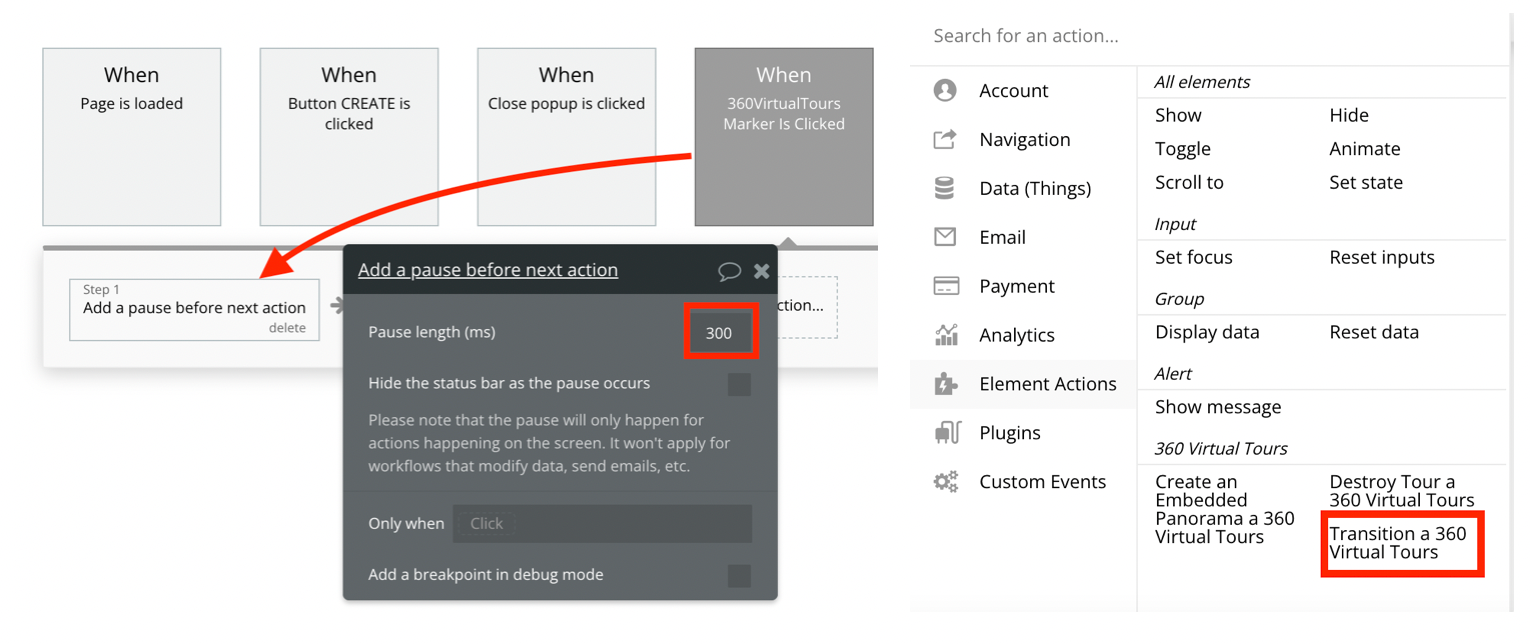

Add a pause before the next action minimum is 300 ms.

Document image

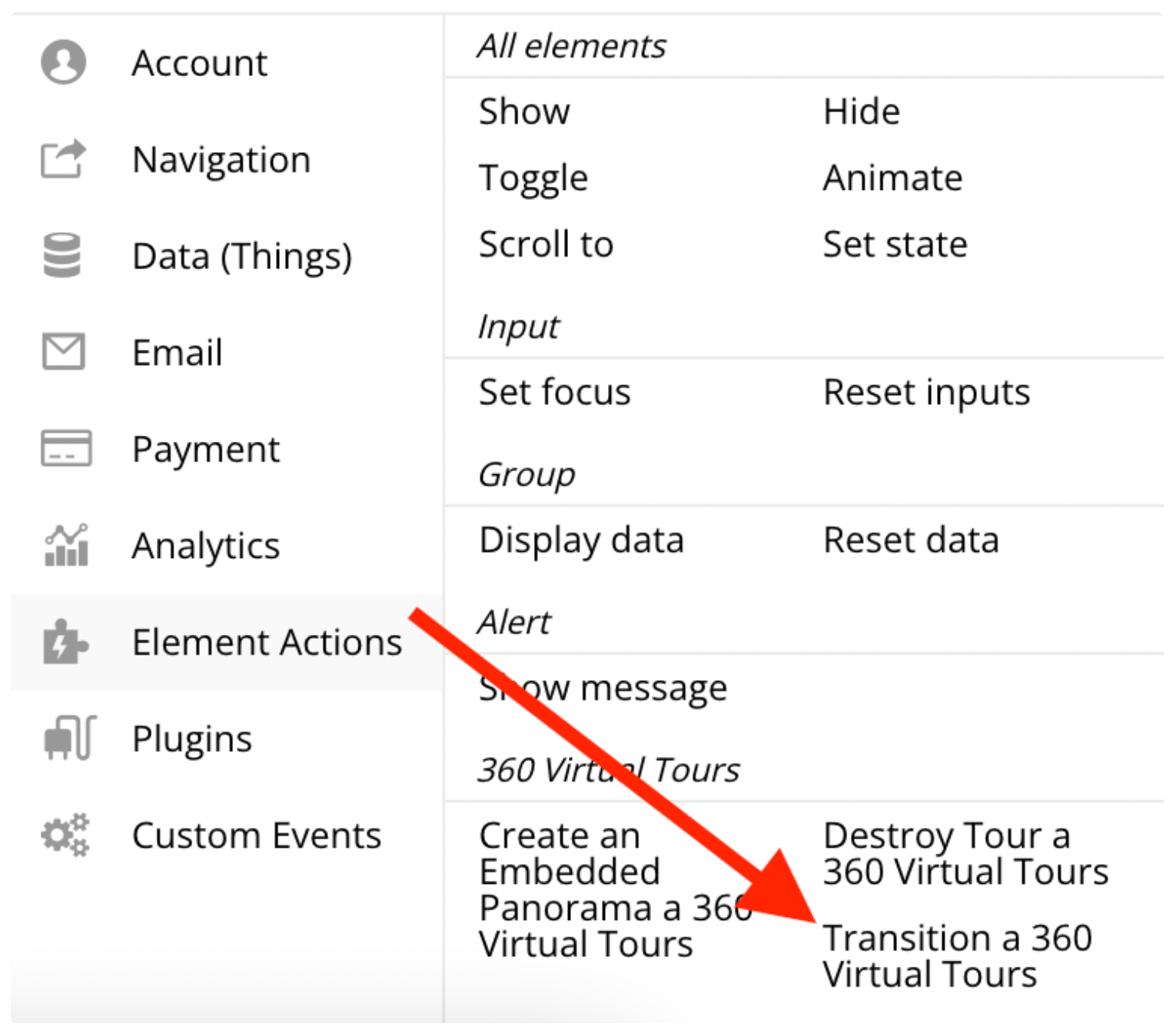

The second step is an action 'Transition 360VirtualTours' that allows switching to another Panorama.​

Document image

Demo to preview the settings
