IP Address Complete #Geolocation

Demo to preview the plugin:

Introduction

This plugin retrieves the current user IP address without requiring any API key. It also provides a lot of useful information about the user based on his IP such as address coordinates, timezone.

How to set up

Adding the plugin

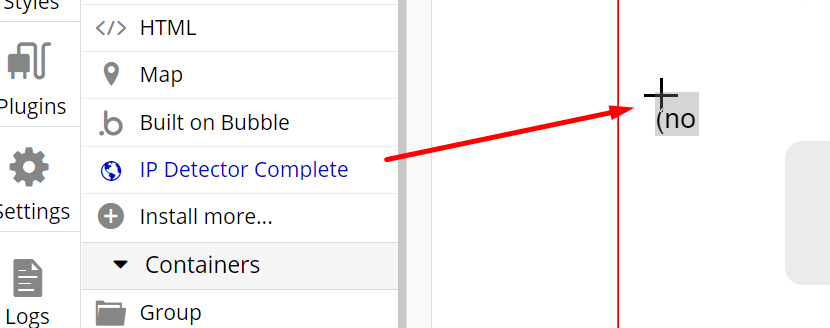

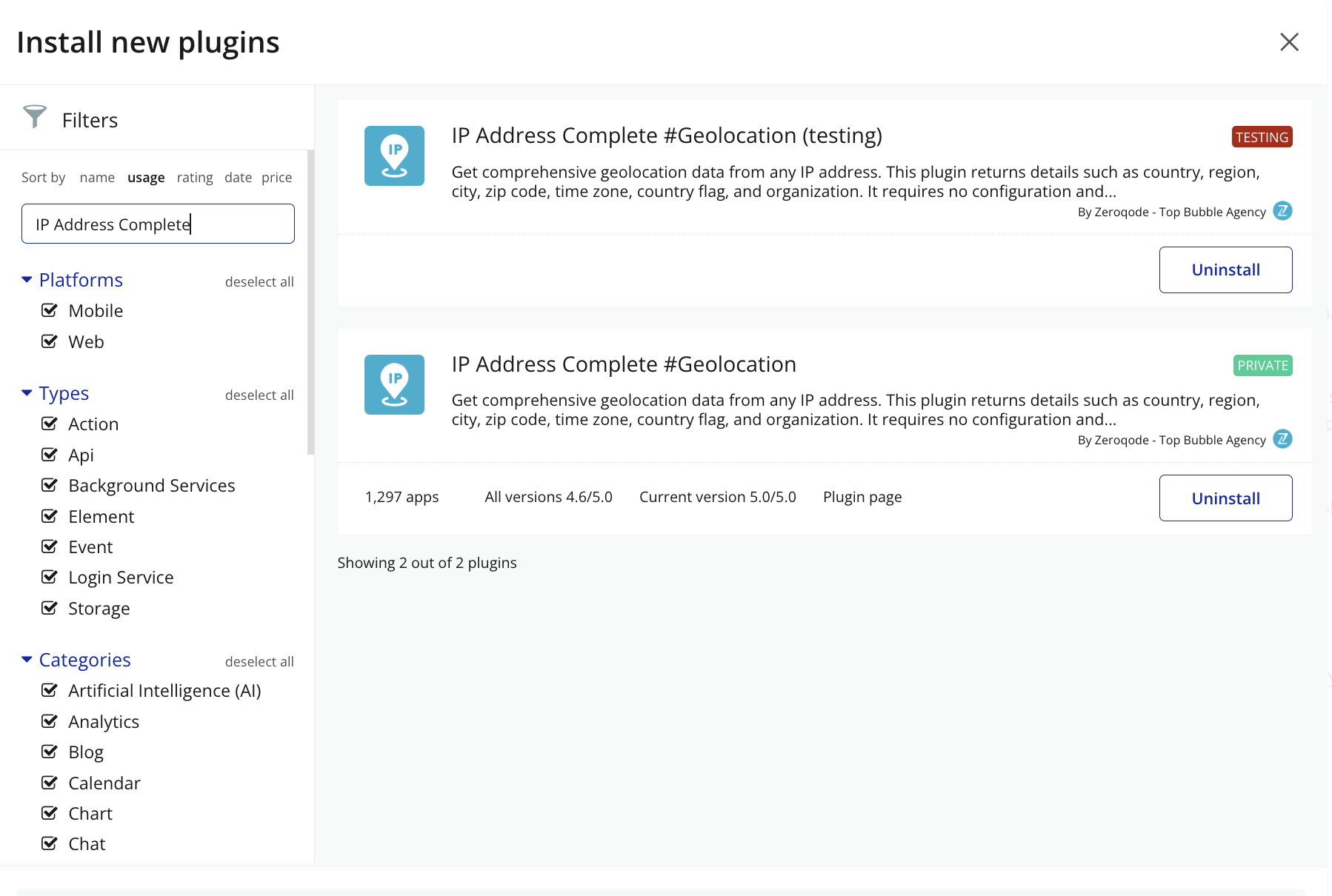

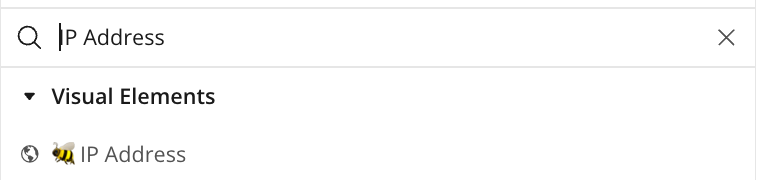

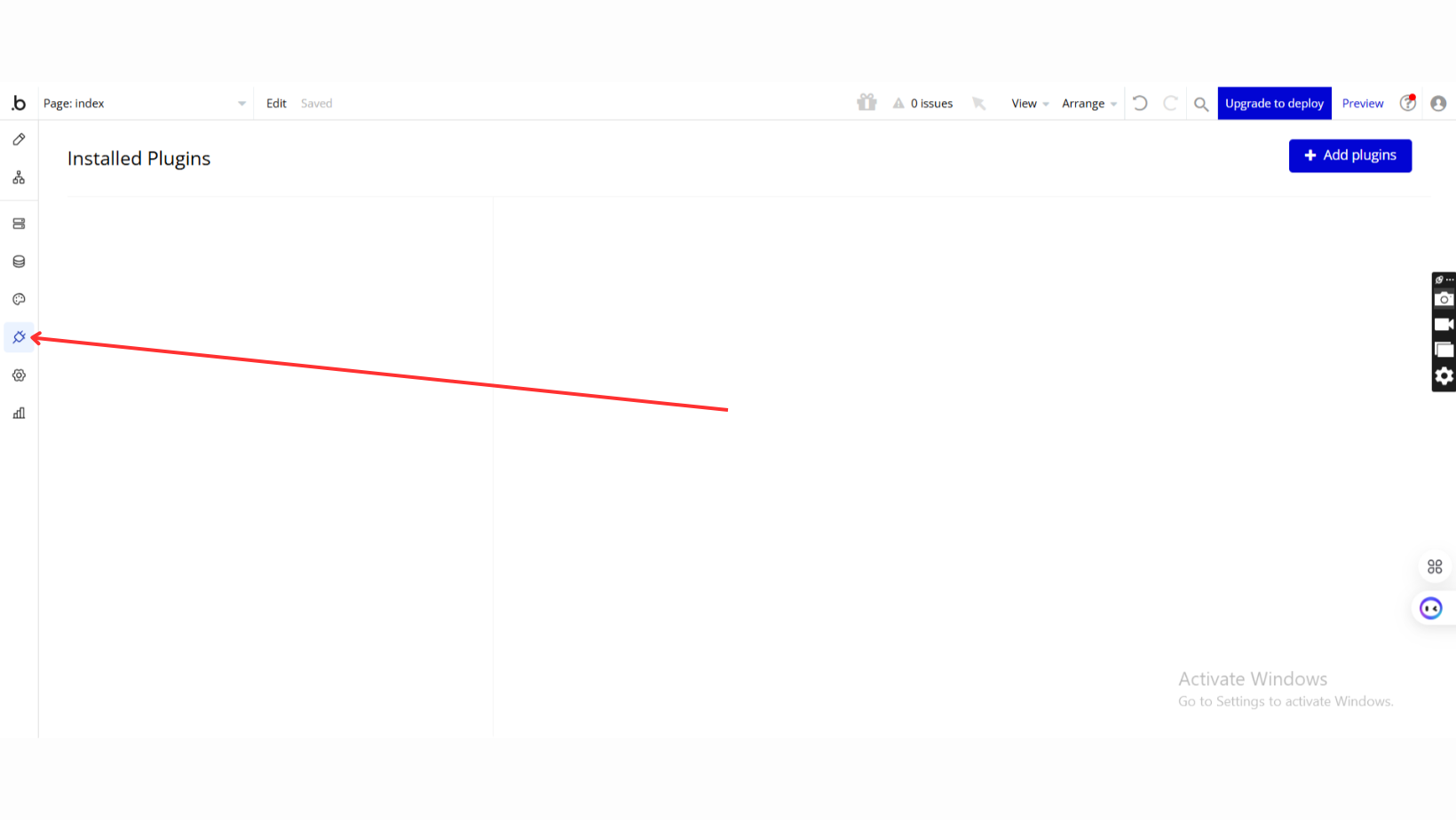

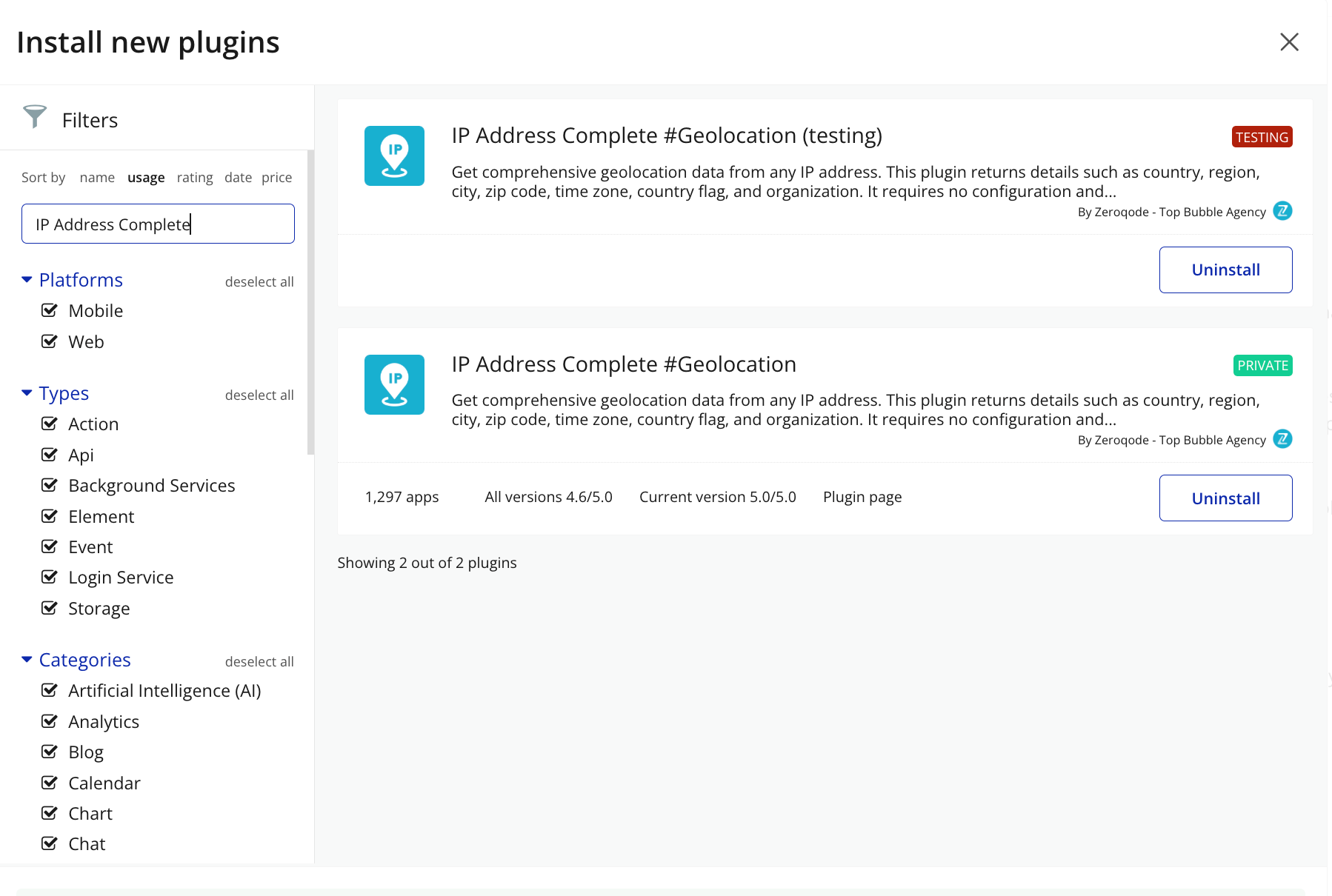

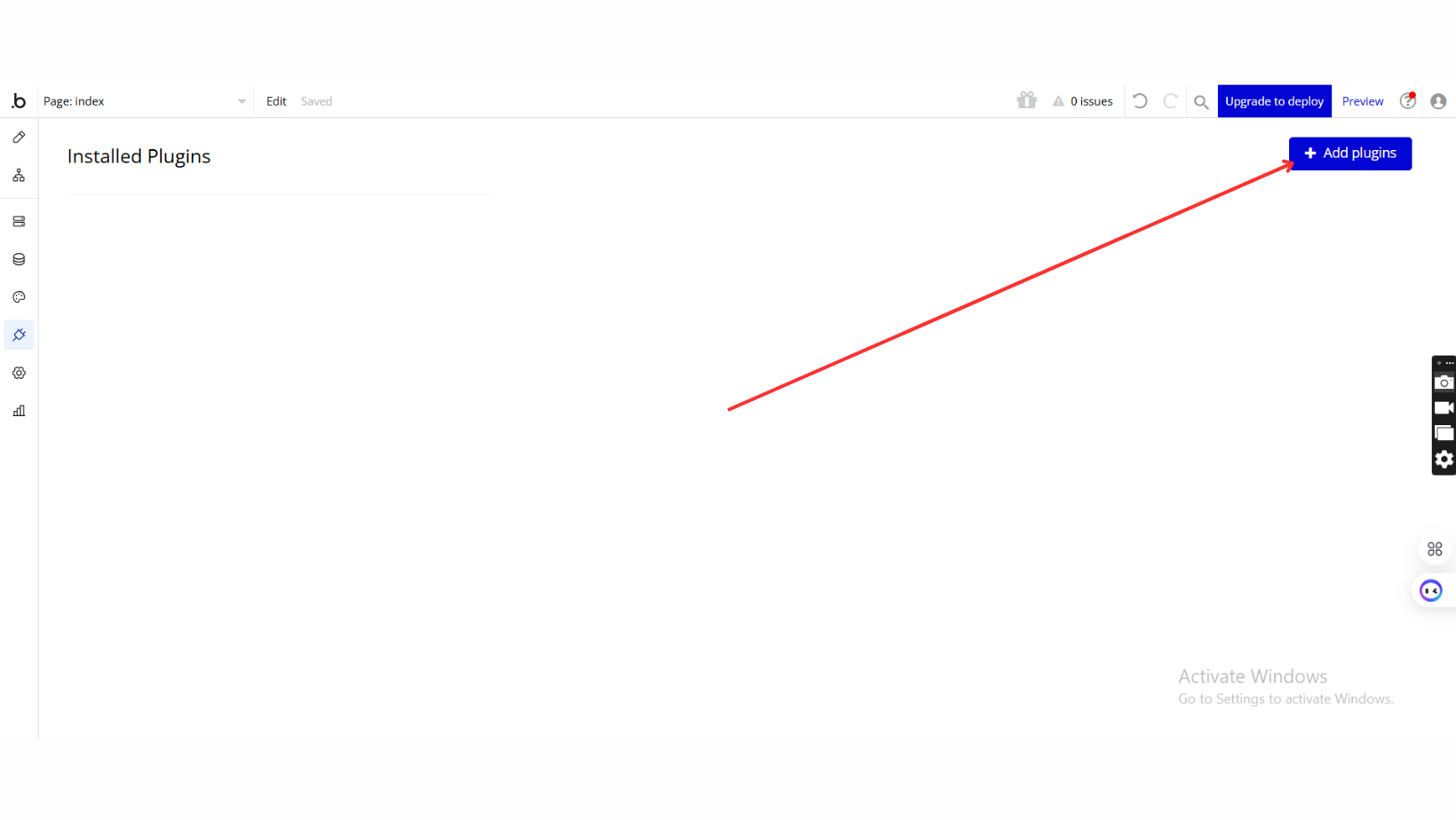

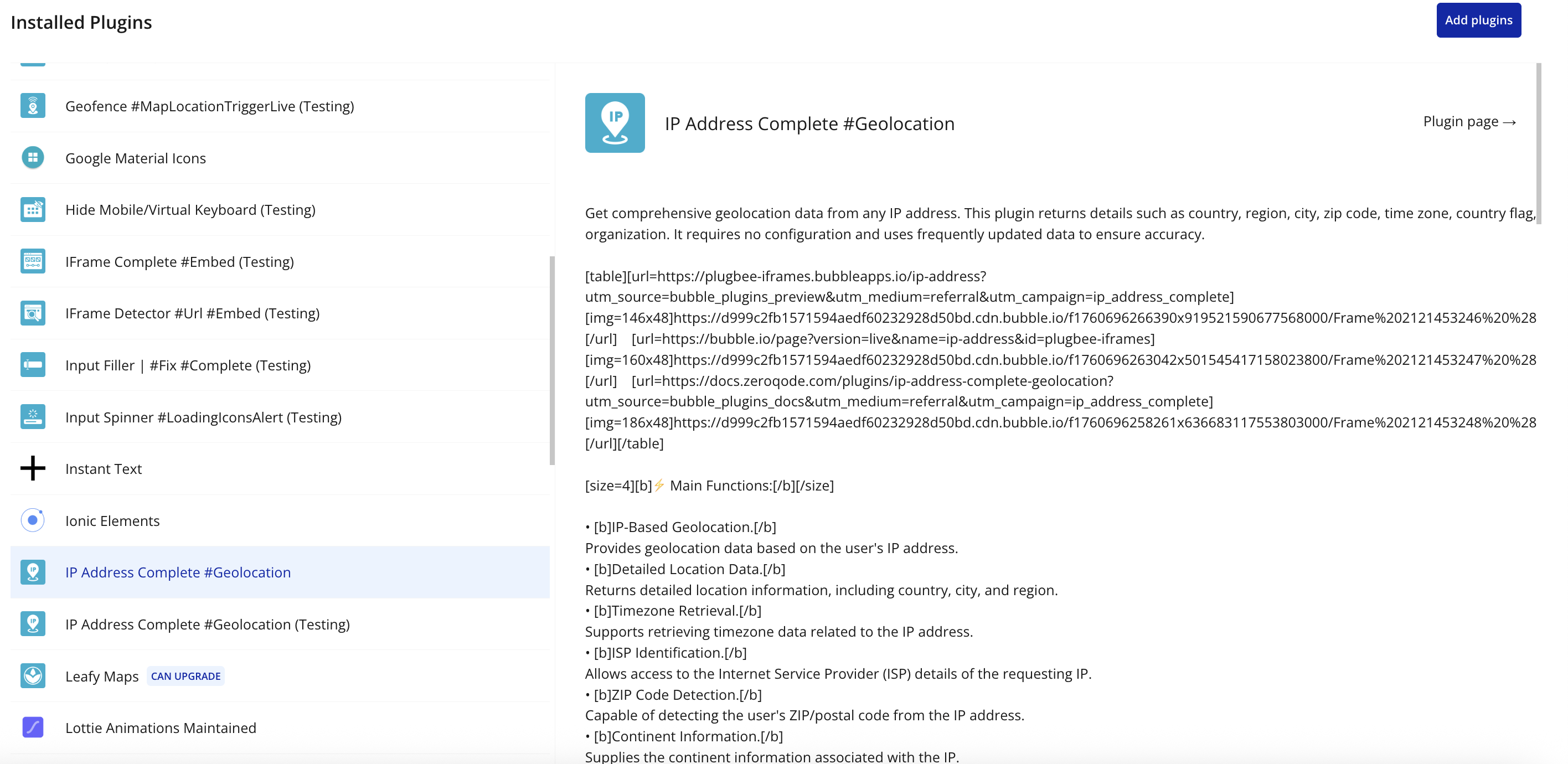

Add the plugin to your app, and place the IP Detector Complete element on the page.
Image without caption
Once added to your page, the plugin will resolve the data and IP address of the user automatically on page load and expose its data in the element states.

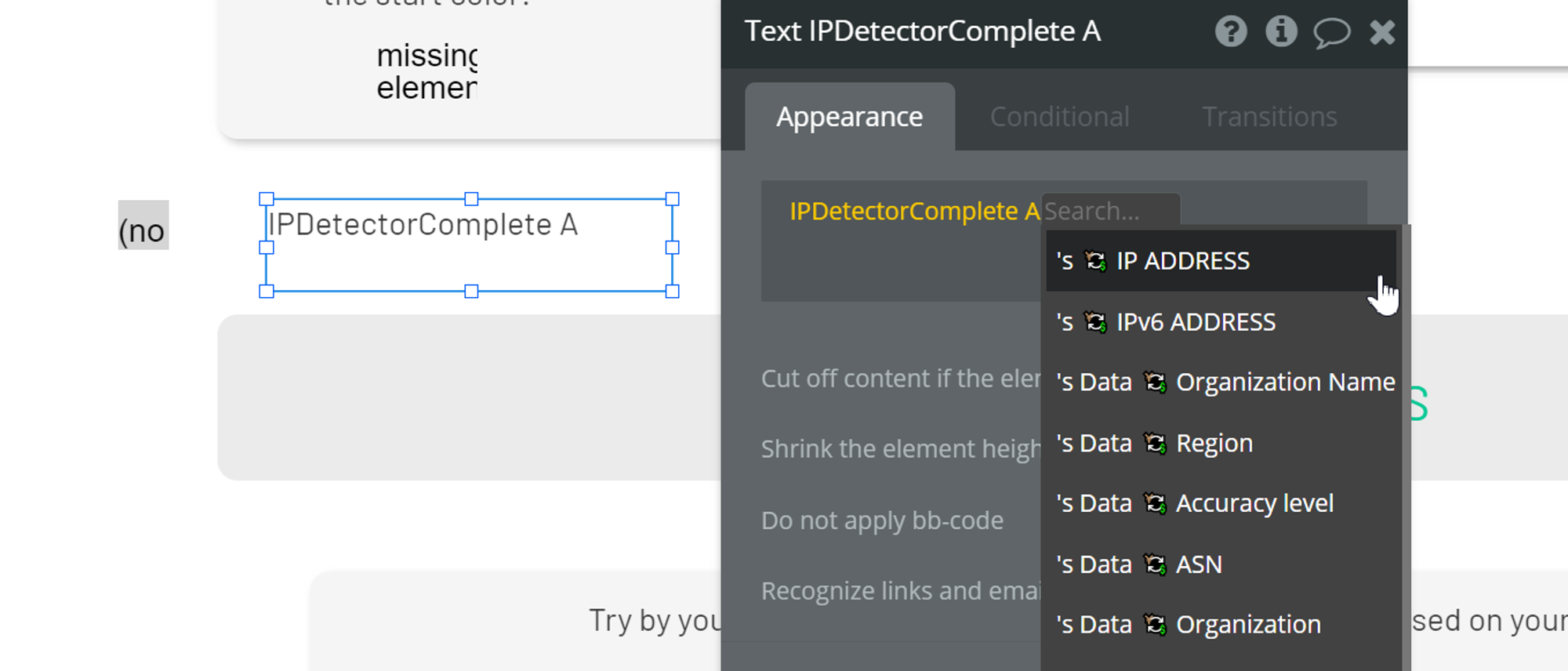

Here's how you can retrieve data :
Image without caption
The plugin is now ready to work without any additional setup.

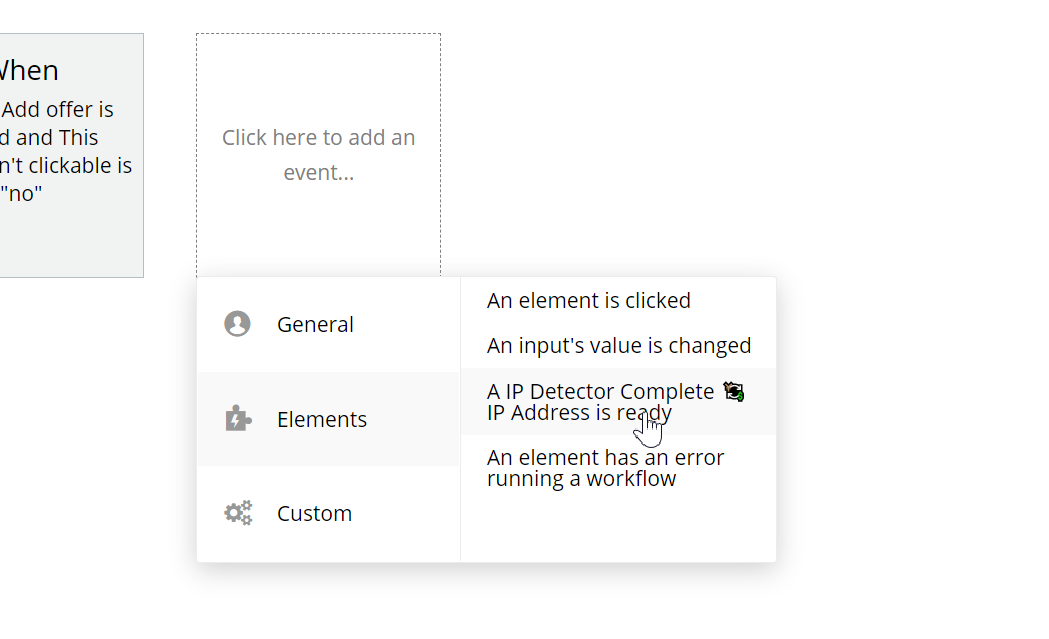

Note that there's a delay between the page load and the moment where the IP address and the data will be ready (500ms but can be up to 1500ms). If you wish to retrieve the data only when ready, you can create your workflow under the "IP Address resolved" workflow trigger.
Image without caption

Element properties

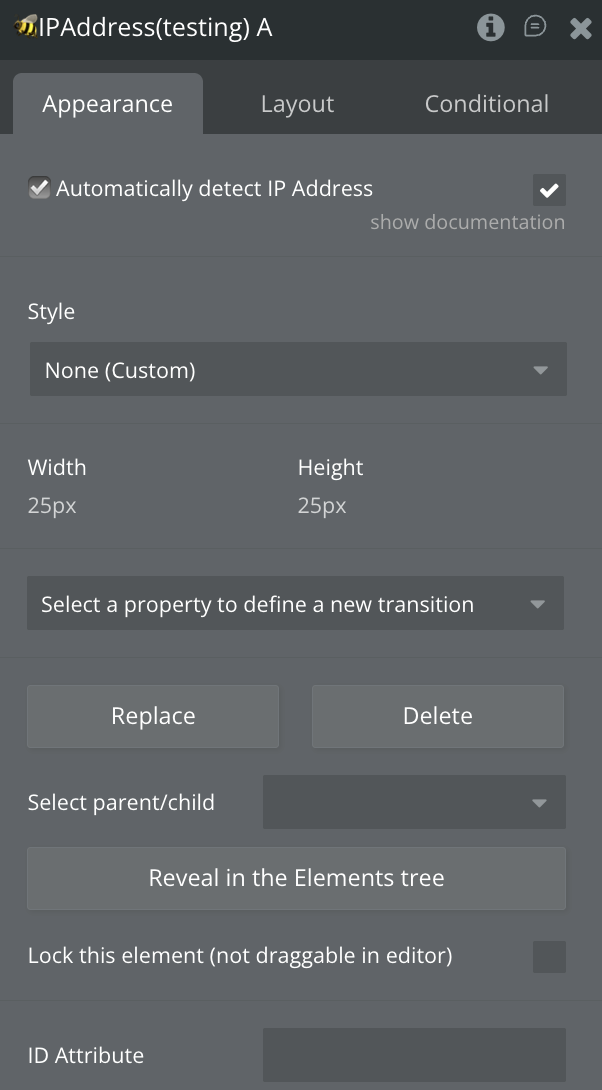

Automatically detect IP Address
Image without caption
If checked, the plugin will automatically detect and resolve the required address and data and expose it as a state. If you want to trigger the detection manually instead, uncheck this box, this is useful to avoid to add a useless script to your page.

Events

Name
Description
ready
IP Address is ready

Element actions

Name
Description
Trigger
Manually trigger the retrieval of the current IP address and data
Get an IP
Manually trigger the retrieval of a specific IP address and data

Trigger

If you wish to avoid the plugin to run every time the page load to save performances, you can also trigger it manually.
For that, uncheck the box "β˜‘οΈ Automatically detect IP Address" in the plugin element property editor.

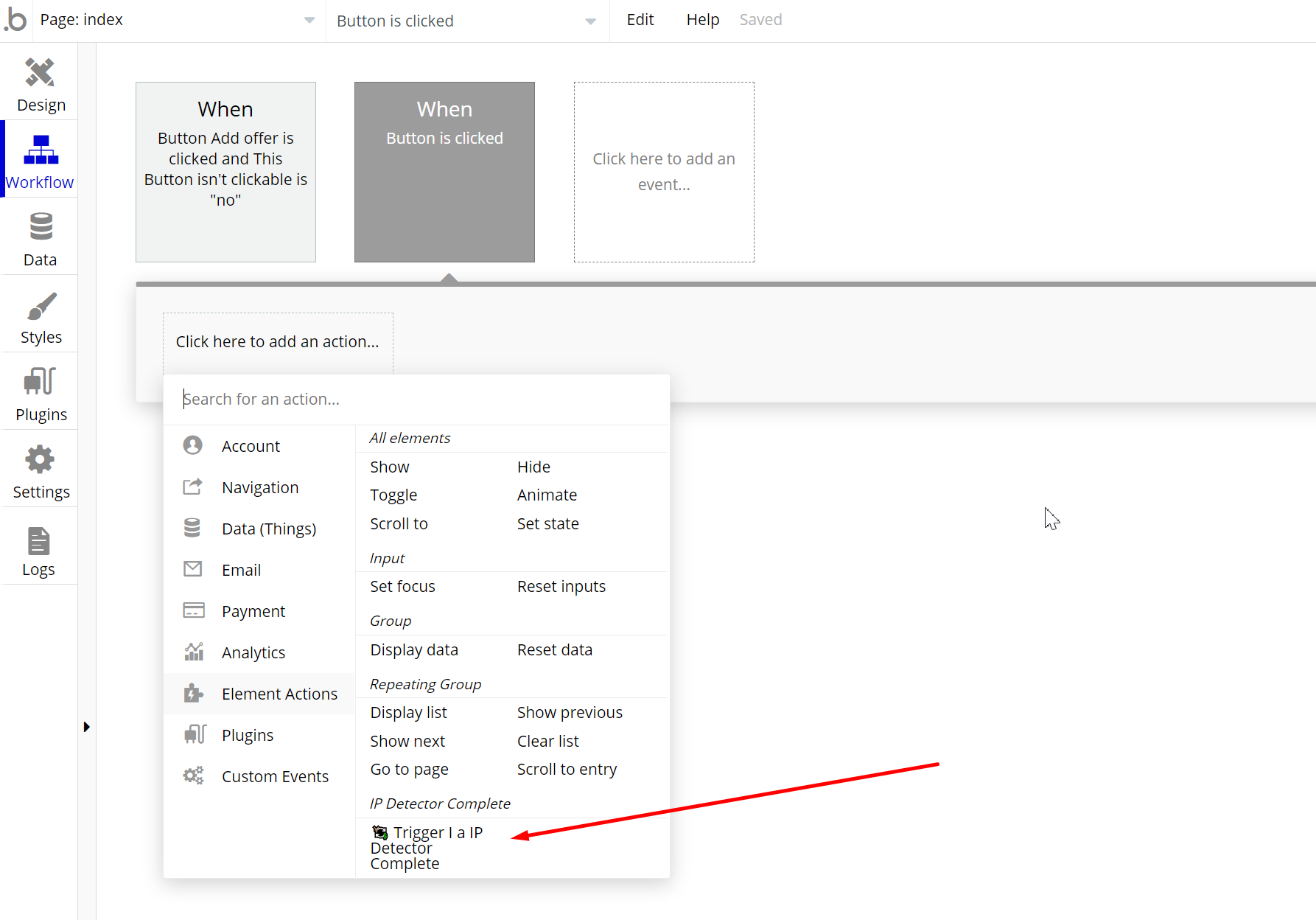

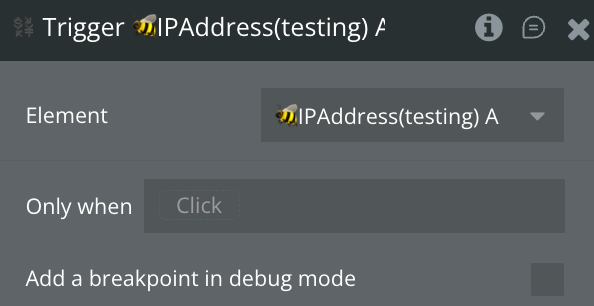

Then, you will need to trigger the element through a workflow when you wish to retrieve the IP address or data:
Image without caption
The plugin will now resolve the data and address and expose them in the element states.
Note that there's a delay between the trigger and the moment where the IP address and the data will be ready (500ms but can be up to 1500ms). If you wish to retrieve the data only when ready, you can create your workflow under the "IP Address resolved" workflow trigger.
Image without caption

Get an IP

You can also use the plugin to retrieve data (such as address, country, timezone,…) for a defined/custom IP address through a workflow

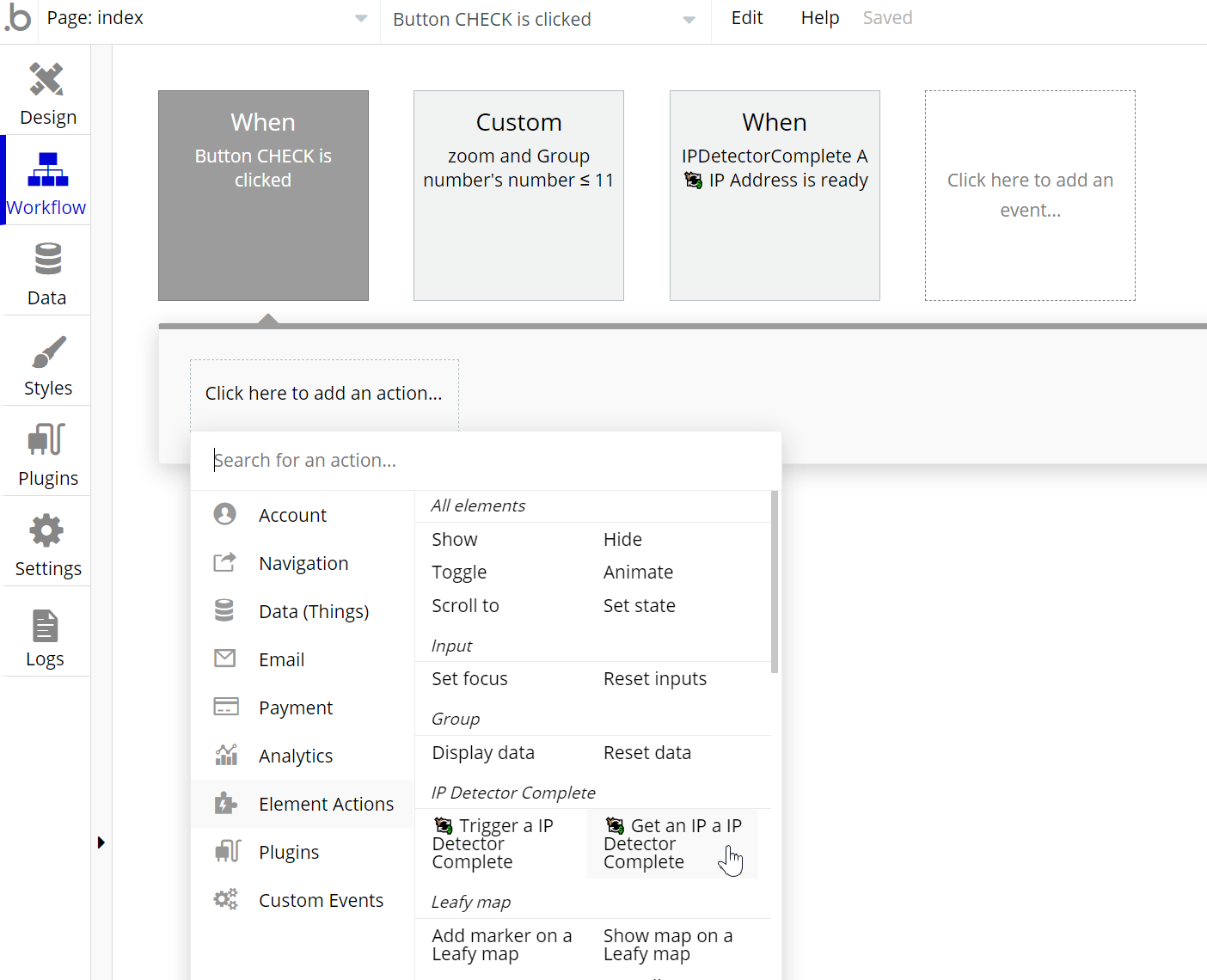

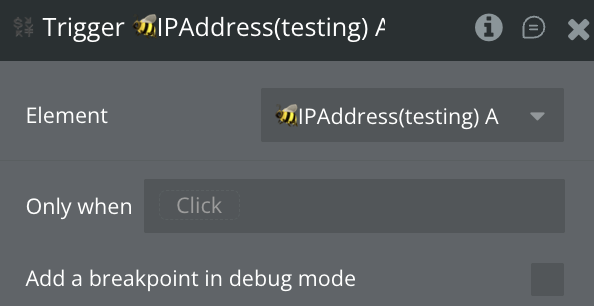

You will need to trigger the element through a workflow when you wish to retrieve the custom IP data:
Image without caption

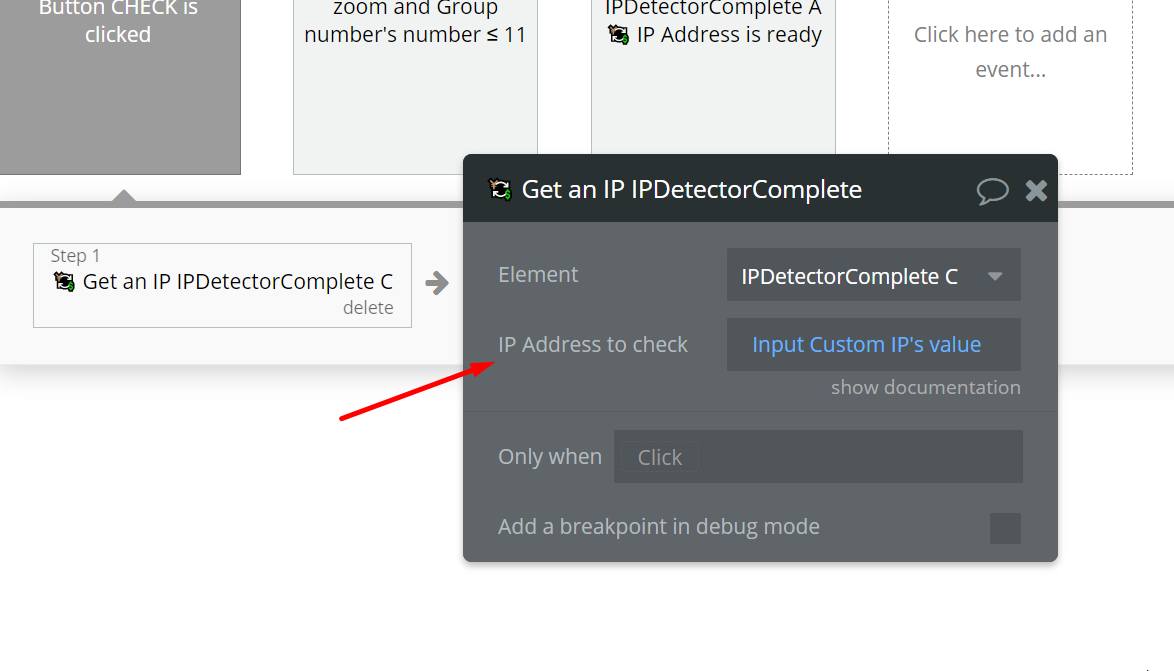

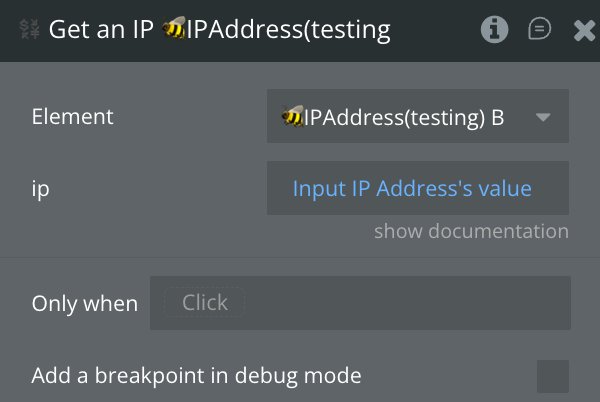

Finally, configure the field to tell the plugin which IP you want to retrieve. This field can be formatted as IPv4 or IPv6.
Image without caption
The plugin will now resolve the data and address and expose them in the element states. If the element states are not empty, they will be overridden.
πŸ†™
Note that there's a delay between the trigger and the moment where the IP address and the data will be ready (500ms but can be up to 1500ms). If you wish to retrieve the data only when ready, you can create your workflow under the "IP Address resolved" workflow trigger.
Image without caption

Exposed states

Name
Type
Description
IP ADDRESS
text
Shows the ip address of the current connection
Data Internet provider
text
The internet provider of the connection
Data Region
text
The region of the current connection
Data ASN
number
ASN number
Data Organization
text
The organization associated with the ip address
Data Timezone
text
The timezone of the ip address
Data Longitude
number
The longitude of the ip address
Data Country Code (3)
text
The three letter country code of the ip address
Data Area Code
text
The area code of the ip address
Data City
text
The city of the ip address
Data Country
text
The country of the ip address
Data Continent Code
text
The continent of the ip address
Data Country Code
text
The country code of the ip address
Data Accuracy level (m)
number
The accuracy of the detection in meters
Data Accuracy level (km)
number
The accuracy of the detection in kilometers
Data Bubble Address
geographic address
The geographic address of the ip address
Data Country Flag
The country flag of the ip address
Data Country Emoji
text
The country emoji of the ip address

Changelogs

Version 1.4.1

  • Added country flag image and emoji compatibility

Version 1.4.0

  • Fixed undefined returned Bubble address

Version 1.2.0

  • You can now make searches for custom IP addresses.

Version 1.1.0

  • No more restriction on IPv6 retrieving.
