Introduction

Use this no-code tool and enhance the app with a Mapbox map in your style. This plugin supports a wide range of features and customizations. Show your own Map styles & 3D buildings.

How to setup

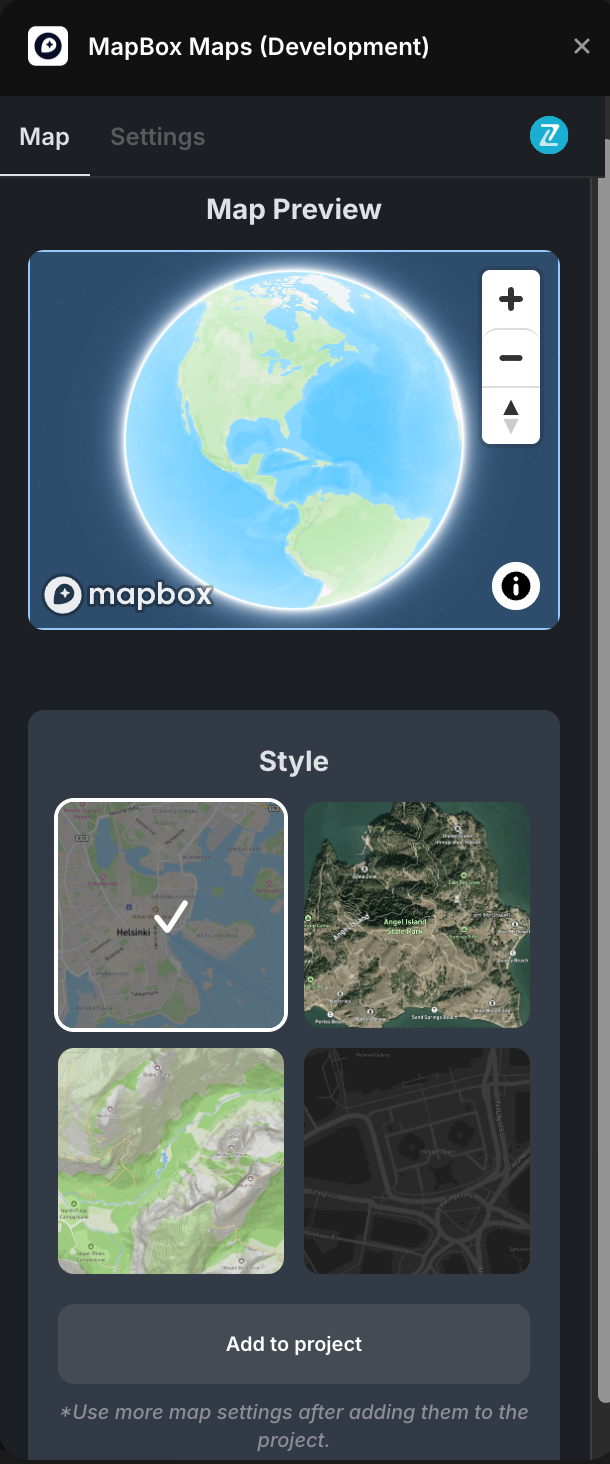

Open the plugin.

To start using the plugin, you need to create or log in to your Zeroqode account. Select Sign In or Sign Up.

Enter your account details.

A subscription to all our plugins is required. Once subscribed, you will gain access to all our plugins.

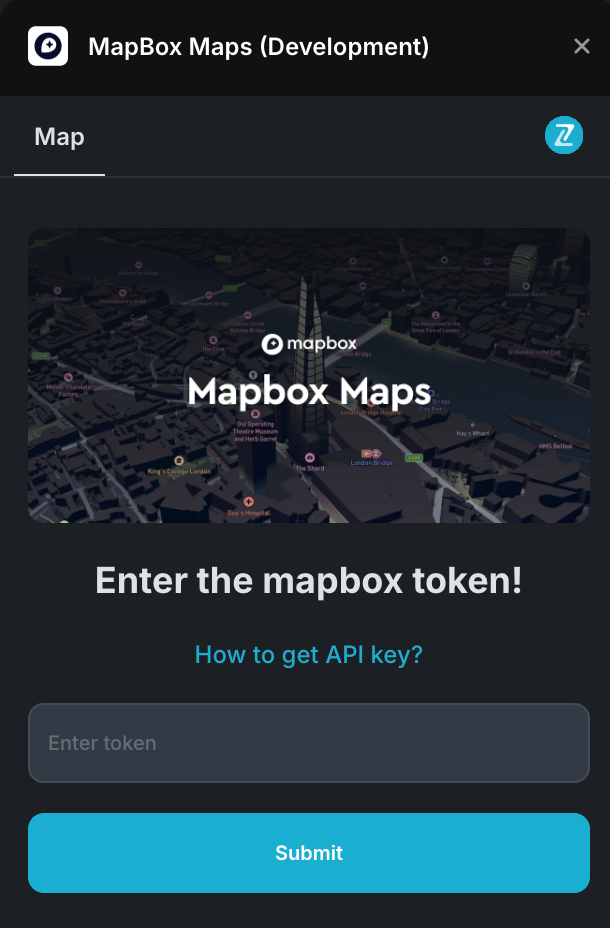

You need to insert your Mapbox key to enable the plugin.

The plugin is now ready for use!

Plugin Settings

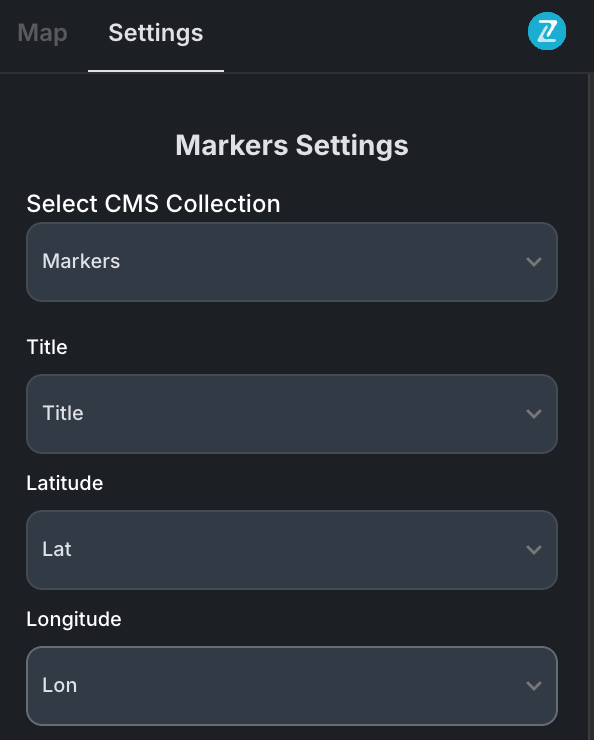

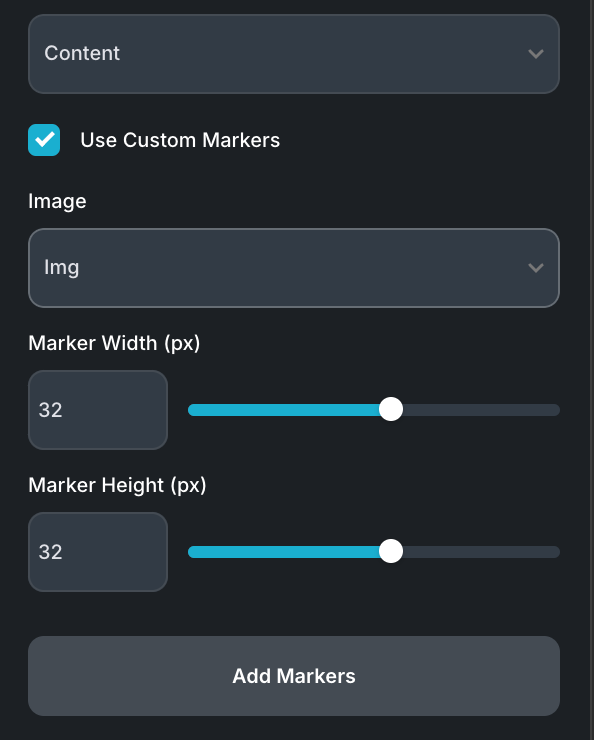

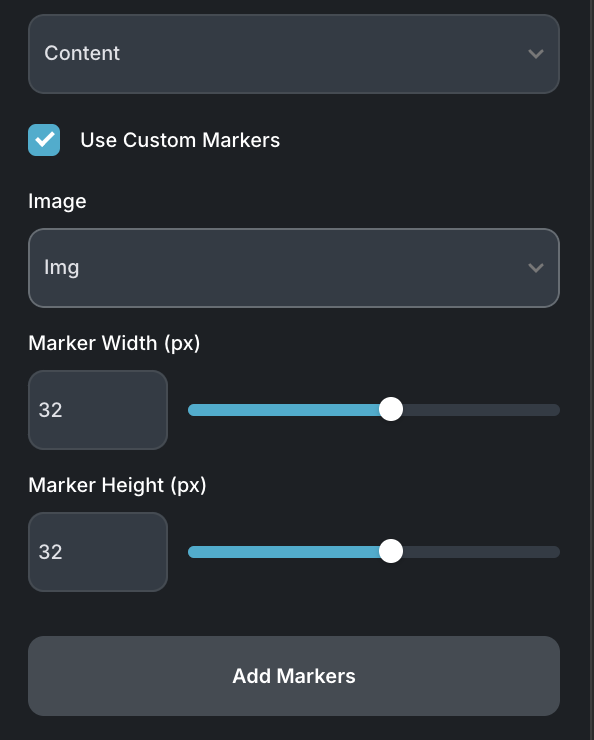

In the plugin settings, you can add your own collection of markers from the CMS.

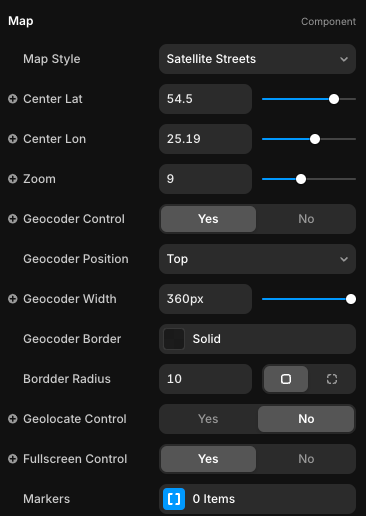

Configure the parameters of the map component in your application.

Parameters

Title	Description	Framer Type
Map Style	One of the map style options ("Streets", "Outdoors", "Light", "Dark", "Satellite", "Satellite Streets”)	Enum
Center Lat	The latitude value of the map center	Number
Center Lon	The longitude value of the map center	Number
Zoom	Zooming the map	Number
Geocoder Control	Show/hide Geocoder Control on the map	Yes/No
Geocoder Position	Location of the geocoder on the map ("Top-Left", "Top-Right", "Bottom-Left", "Bottom-Right", "Top", "Bottom”)	Enum
Geocoder Width	Geocoder Width	Number
Geocoder Borders	Geocoder Borders	Border
Border Radius	Geocoder Borders Radius	BorderRadius
Geolocate Control	Show/hide Geolocate Control on the map	Yes/No
Fullscreen Control	Show/hide Fullscreen Control on the map	Yes/No
Markers	Markers collection	Array[Object]

Marker Object

Title	Description	Framer Type
ID	Unique Marker ID	String
Title	Marker Title	String
Latitude	The latitude of the marker location	Number
Longitude	The longitude of the marker location	Number
Content	Marker Description	String
Image	Custom marker image (URL)	String
