Introduction

This no-code plugin allows you to connect your app to APIs that utilize the rare OAuth 1.0 method.

Prerequisites

You must have a developer account on the service that offers OAuth 1.0. For example, Twitter.

☝

Note: Read the documentation for used service!

How to setup

I. Getting the plugin keys (Twitter example)

☝

For getting plugin keys, read the documentation on how to create an app on wished service with OAuth 1.0 authorization.

Go to https://developer.twitter.com/en and sign in to Twitter. You will be redirected to Twitter.

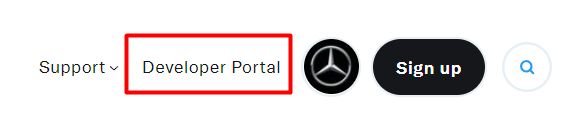

After signing in, go to https://developer.twitter.com/en and press Developer Portal.

Pass the questionnaire to be admitted to the application creation. It is for the first entry only.

Go to Projects & Apps → Overview and scroll down.

Press Create App button.

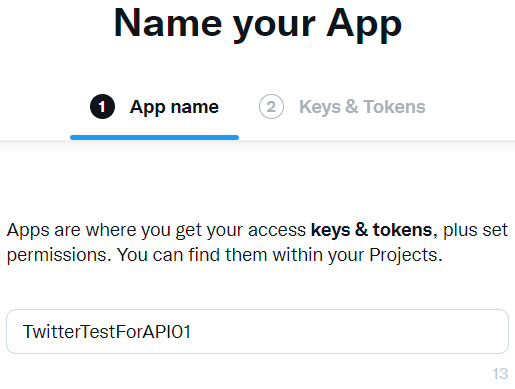

Set the name for the app and press Next.

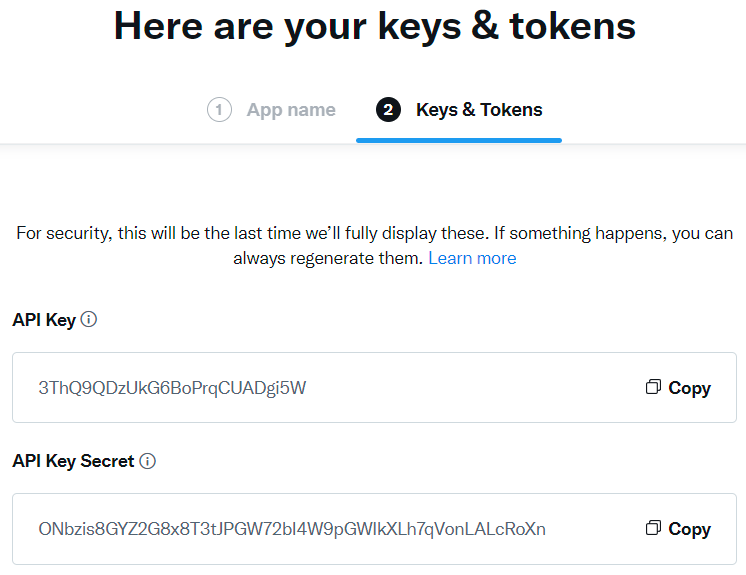

Copy and save API Key and API Key Secret in a safe place. Then press App settings.

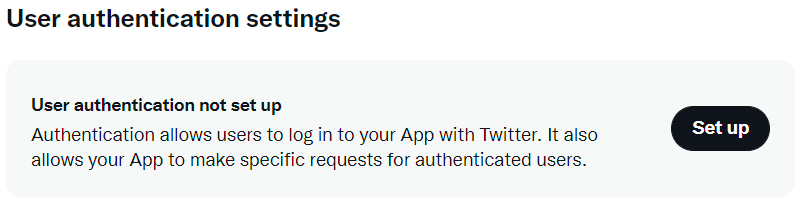

On the Settings page, press the Set up button for User authentification settings.

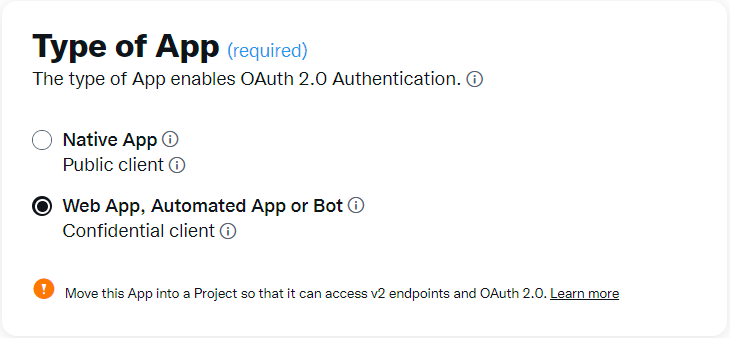

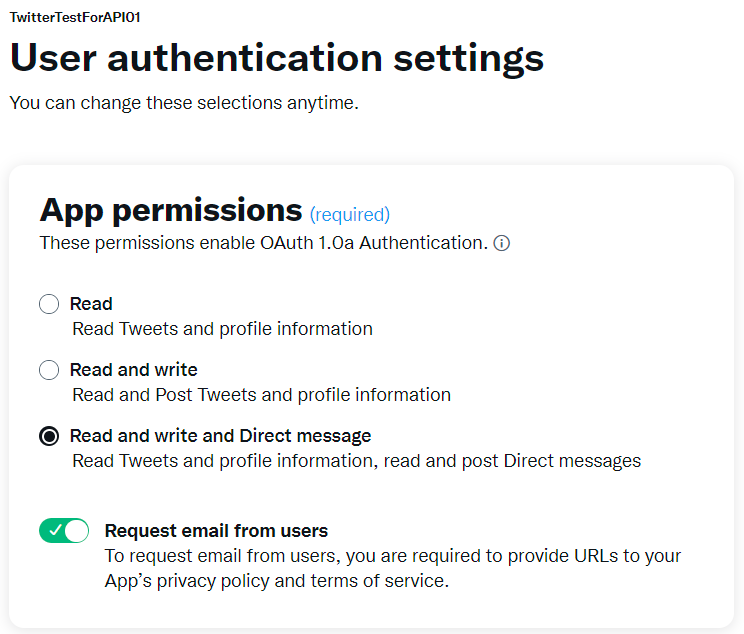

Set up the following permissions.

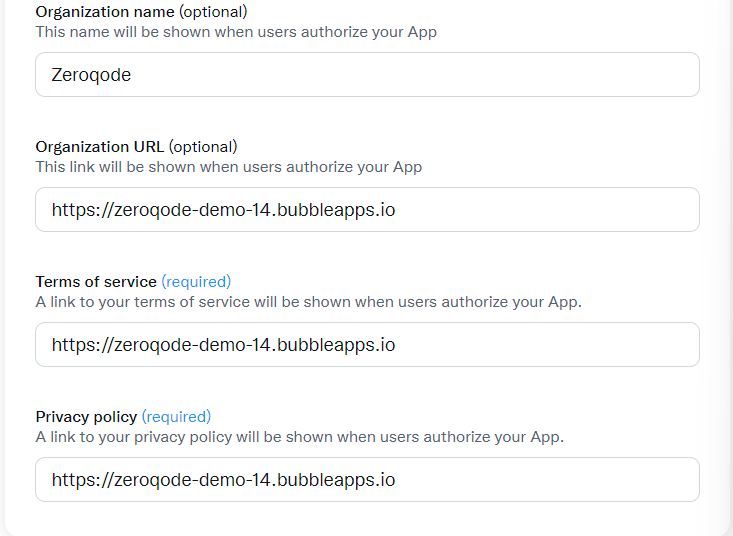

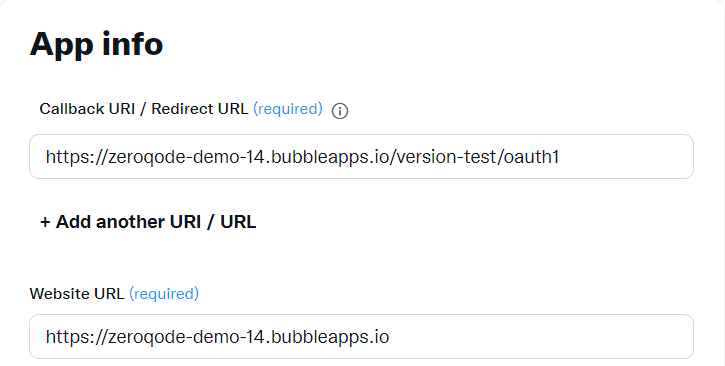

Complete all required inputs from App info and press Save button.

II. Setting up on the Bubble side with keys

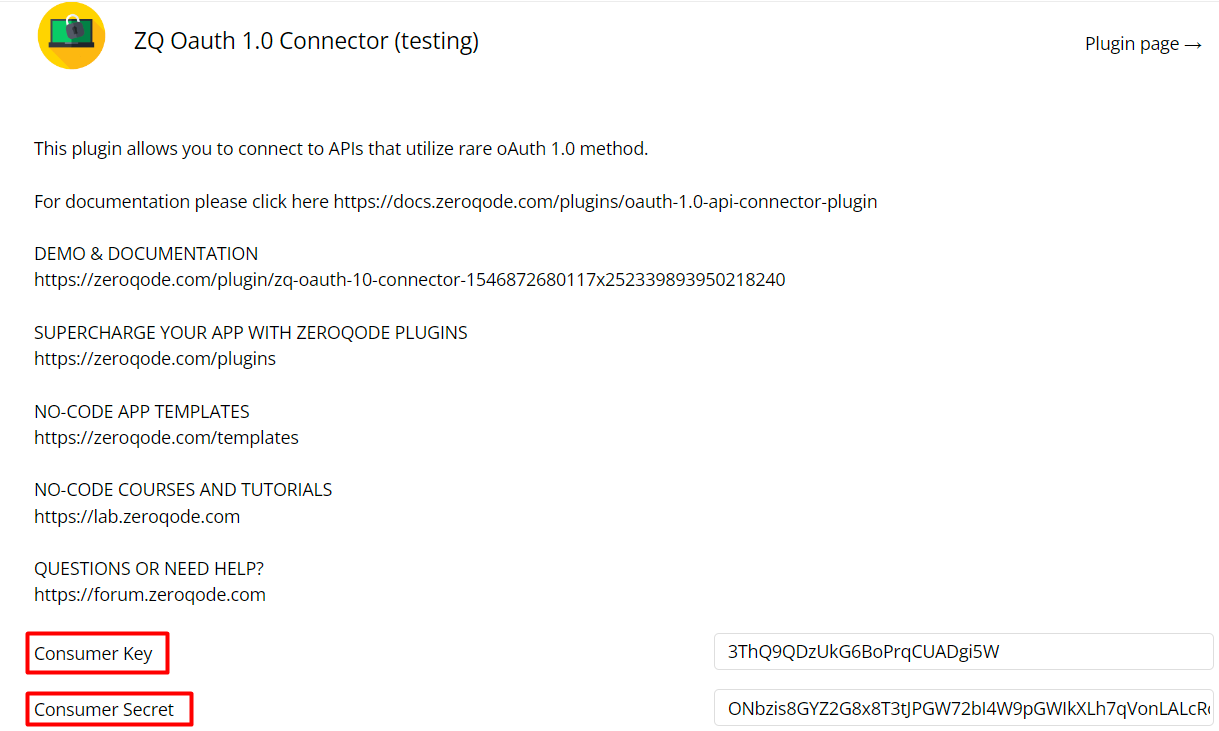

Paste copied keys on plugin settings. API Key = Consumer Key, API Key Secret = Consumer Secret.

In your Bubble app, select the Data tab and find User type.

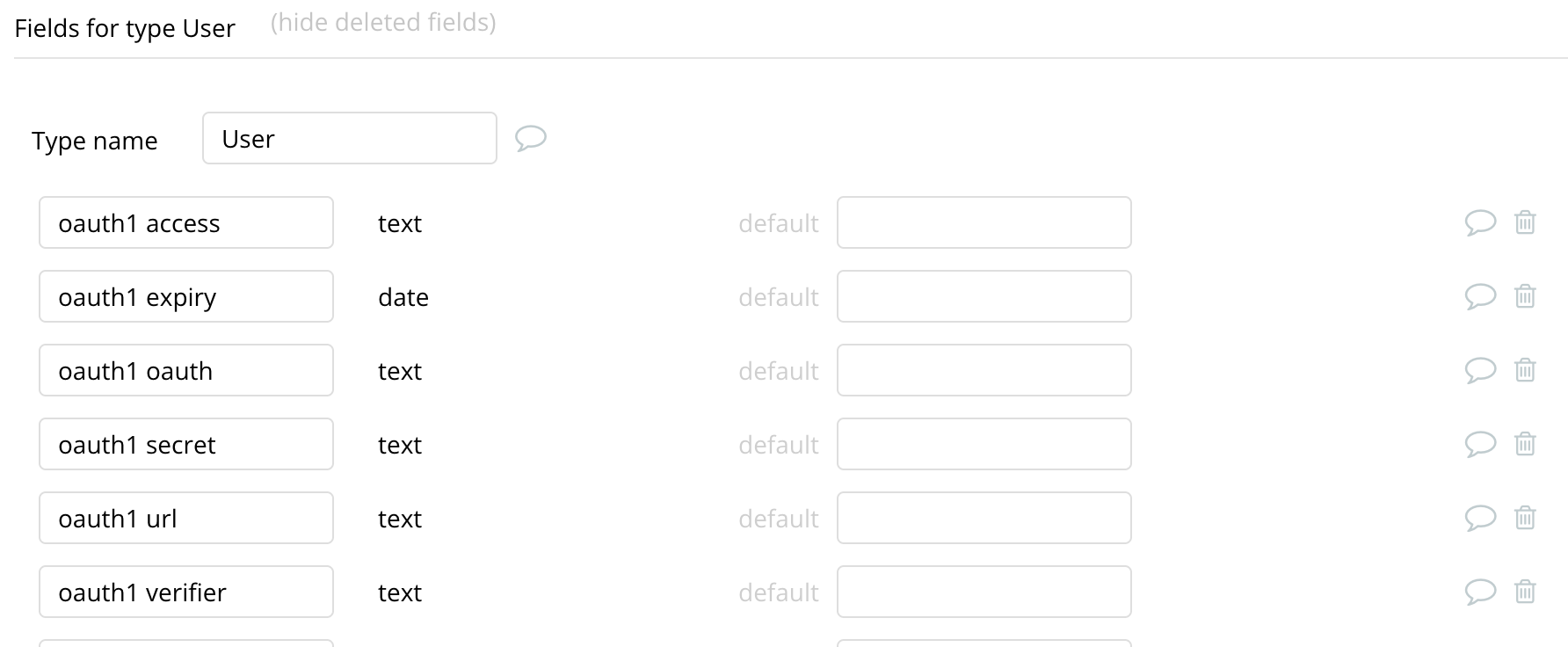

Create the following new fields for this User type, oauth1 access, oauth1 expiry, oauth1 oauth, oauth1 secret, and oauth1 verifier. It will do the authorization process easier to manage.

⚠️

The fields are case-sensitive and need to be created exactly as shown below including the type of field.

User authentification

Go to the Workflow tab of your Bubble app.

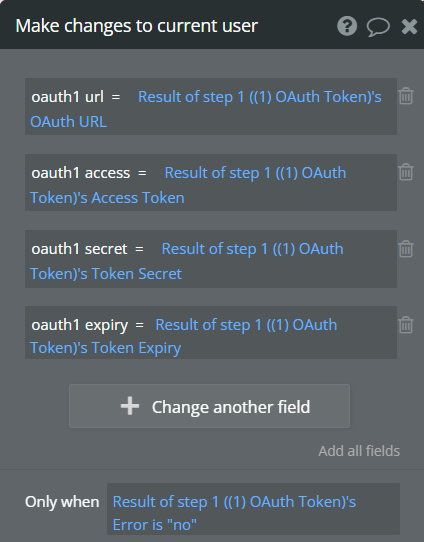

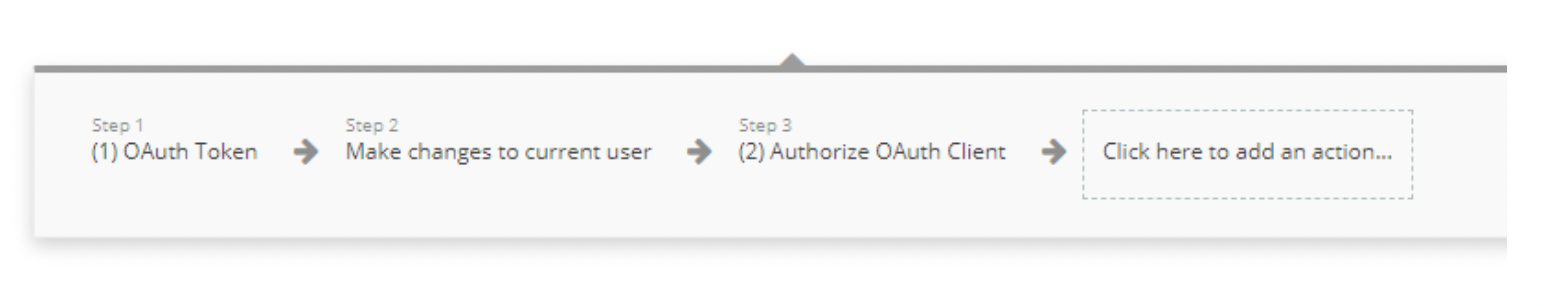

For the authorization between your user and the service you connecting, create a workflow with the following actions…

The steps of the above flow are as follows,

☝

Redirect URL - it is the URL present in the Callback URI / Redirect URL list from App Info from the developer account Token URL - it is a URL created by your service. Please read the service documentation to know how to set this URL.

☝

Authorize URL - it is a URL created by your service. Please read the service documentation to know how to set this URL.

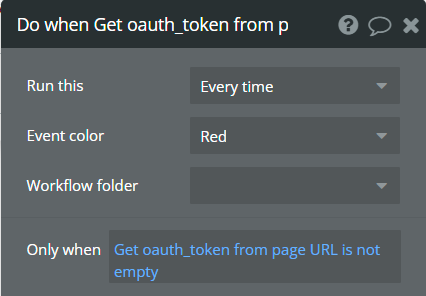

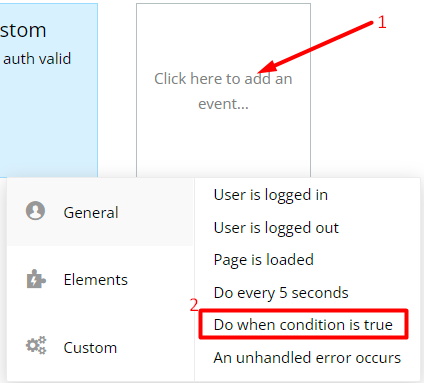

Create a new workflow Do when condition is true.

Set the following condition for created workflow

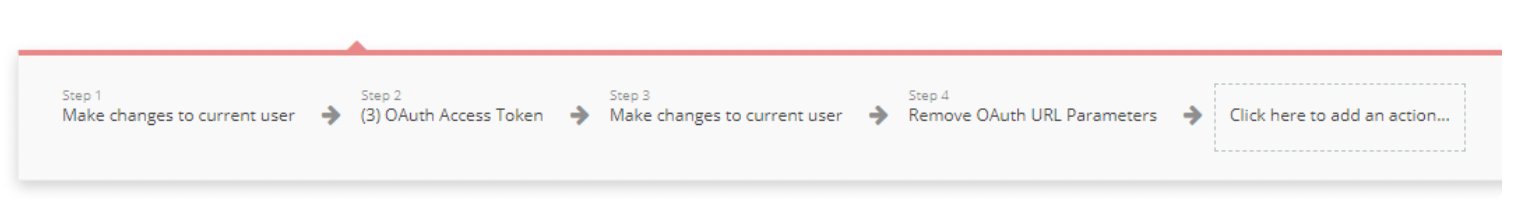

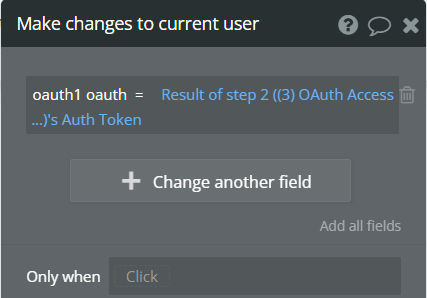

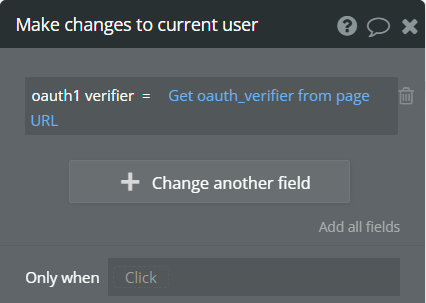

Set up the following actions for created workflow

The steps of the above flow are as follows,

☝

Access Token Server - This is the URL. It is created by your service. Please read the service documentation to know how to set this URL.

☝

You will notice the oauth_token and oauth_verifier parameters will still be in the address bar, if you prefer you can use the Remove OAuth URL Parameters action to clear these.

Create a new API Call

Now you can set up your calls.

Make sure your app is exposing a Backend Workflow.

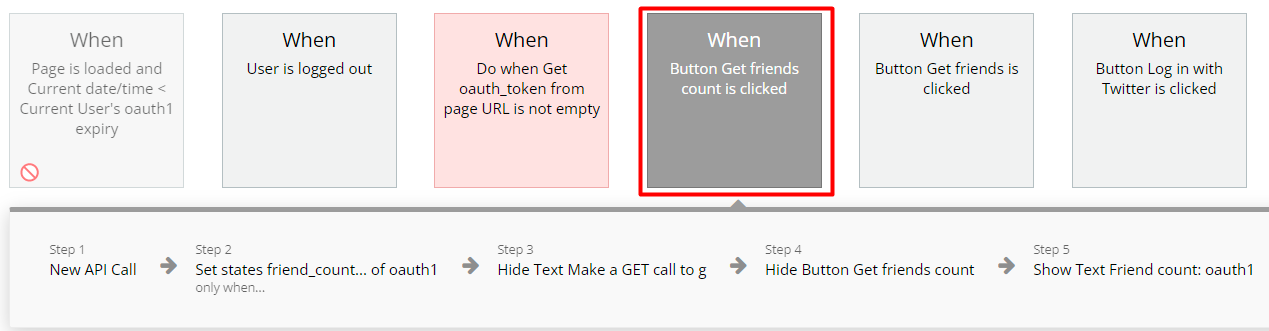

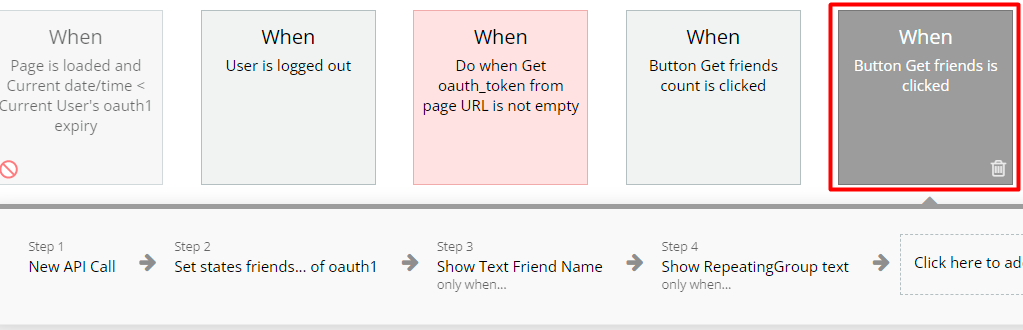

If your app exposes a Backend Workflow, create a new Frontend workflow with a New API Call action.

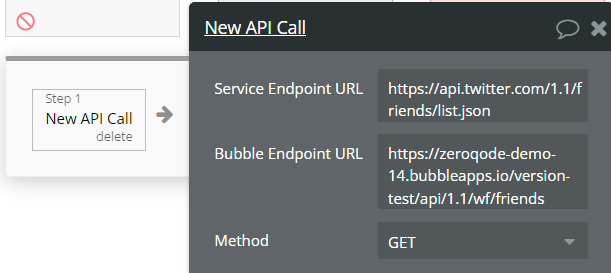

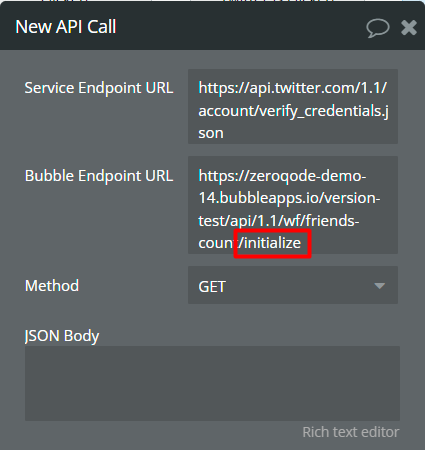

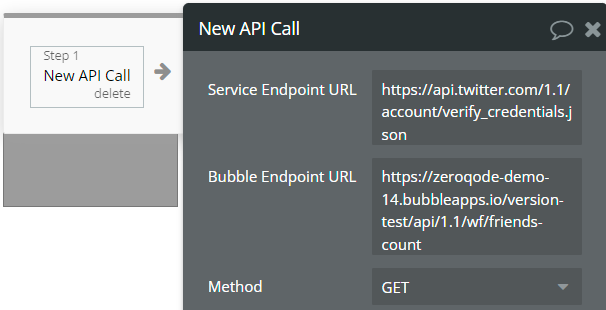

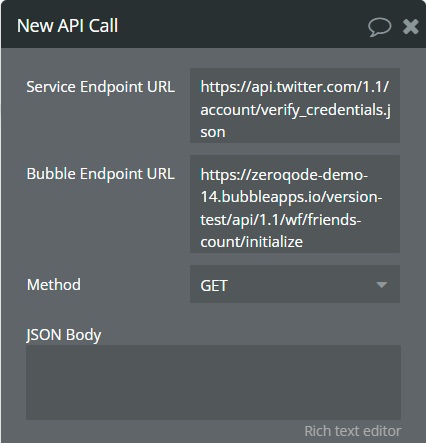

For New API Calls, set up the options

☝

Service Endpoint URL - it is a URL created by your service. Please read the service documentation to know how to set this URL. Bubble Endpoint URL - it is a URL created by yourself on the backend workflow. See the following steps… Method - it is a method for Service Endpoint URL. Please read the service documentation to know how to select the method.

💡

Your Bubble Endpoint URL should look similar to this pattern: https://yourapp.bubbleapps.io/version-test/api/1.1/wf/ + “YOUR_ENDPOINT_NAME” or when initializing: https://yourapp.bubbleapps.io/version-test/api/1.1/wf/ + “YOUR_ENDPOINT_NAME” + /initialize

Go to Backend workflow

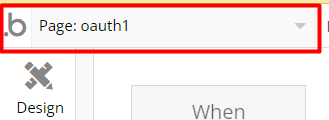

Select Current Page

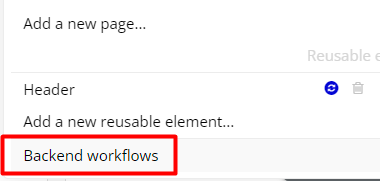

From the opened pop-up, select Backend workflows

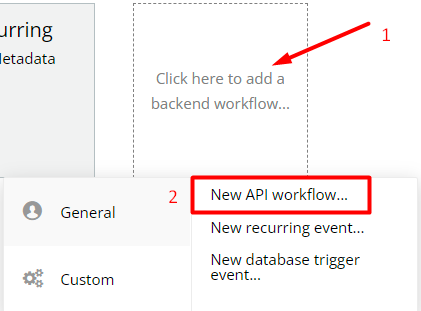

Create new workflow

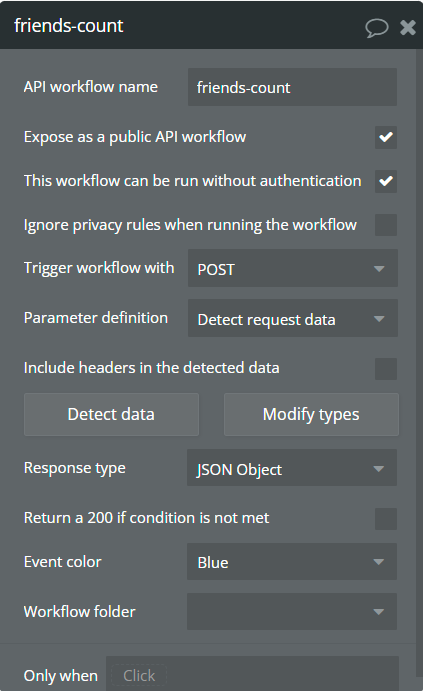

Set up the following options for created workflow

⚠️

API workflow name should match with the name from Bubble Endpoint URL from step 3, https://zeroqode-demo-14.bubbleapps.io/version-test/api/1.1/wf/friends-count/initialize.

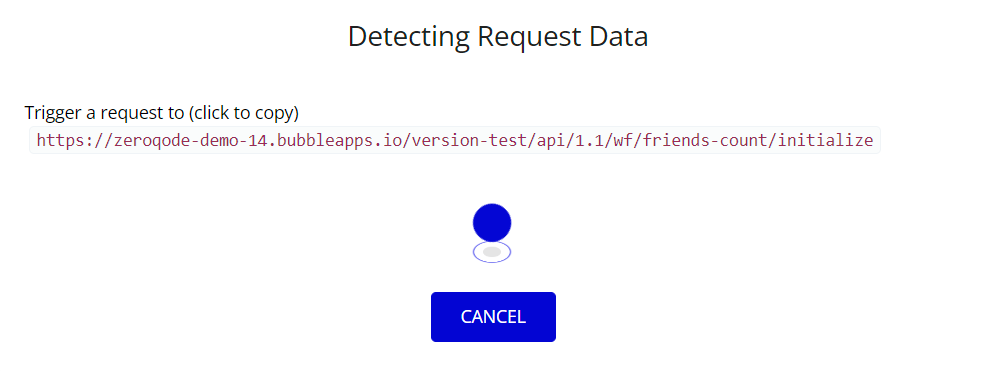

Press Detect data button.

Leave this window open and go to your Bubble app on Frontend.

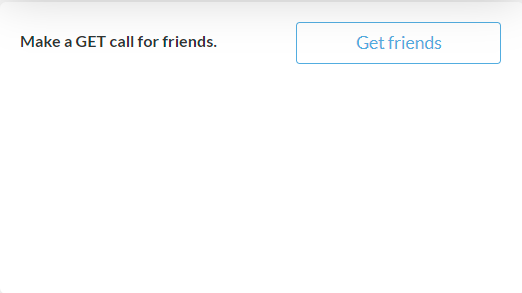

Go to your app preview and trigger created Frontend workflow with the New API Call action. It should initialize the endpoint for the first request.

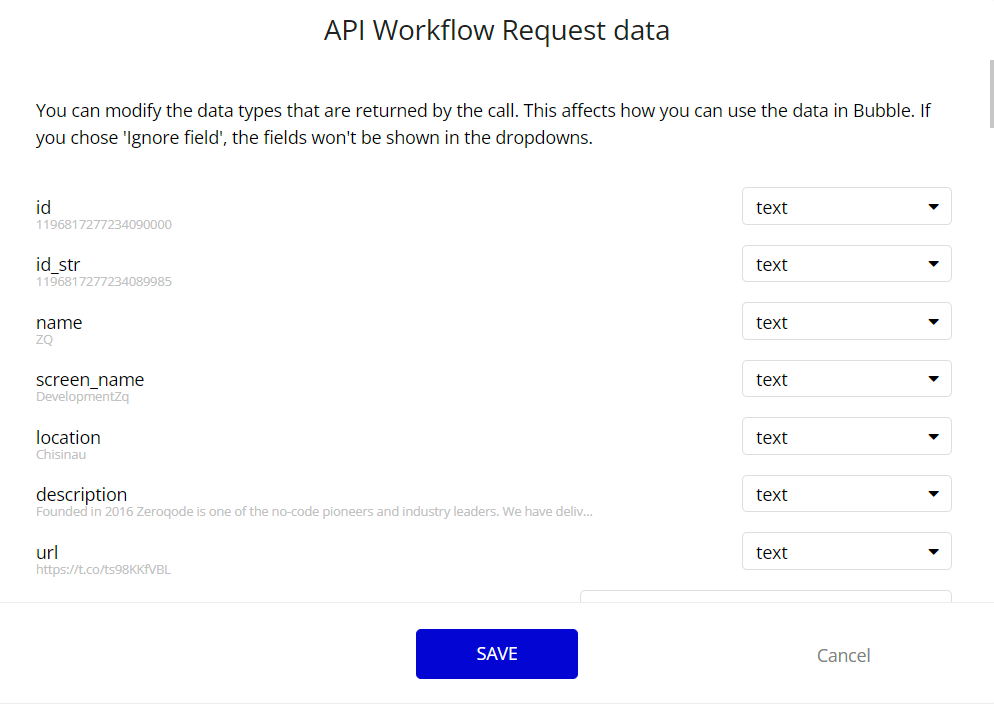

Go to the window that had left open and press Save. Endpoint received the template of requested data. Request data to the endpoint is the response from Twitter.

Go to Frontend workflow

Remove “/initialize” from created New API Call action. This is used just to initialize the endpoint.

Go to Backend workflow.

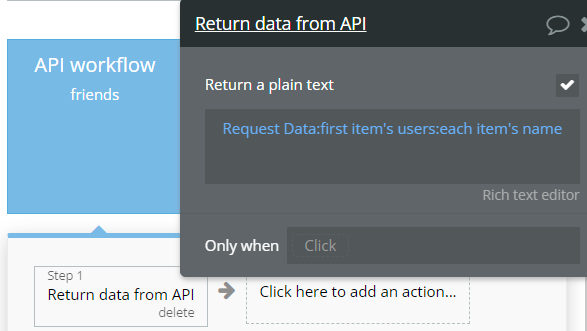

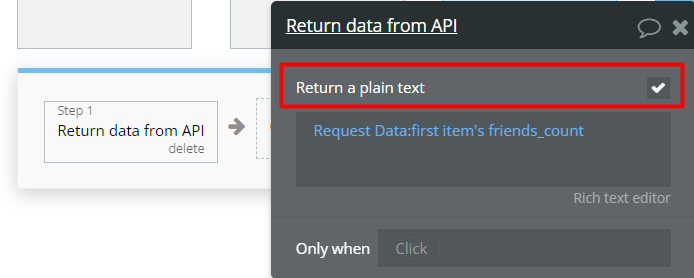

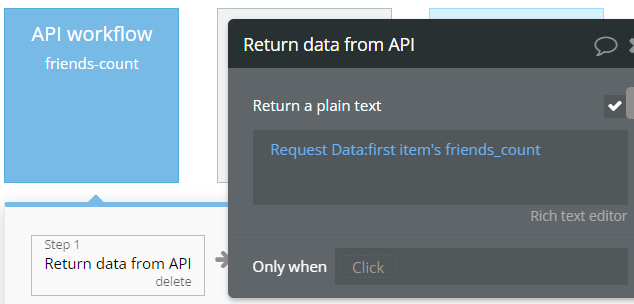

For created endpoint, add Return data from the API action.

Check Return a plain text.

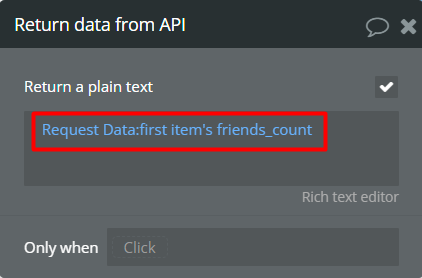

Customize your response

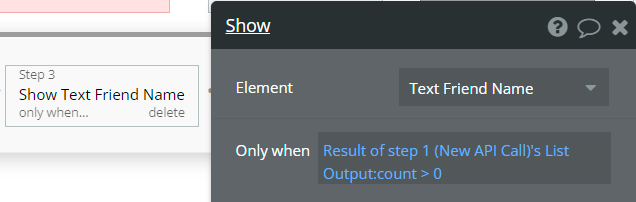

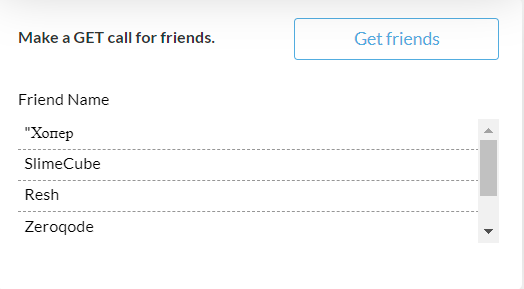

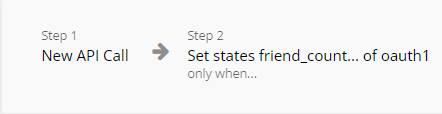

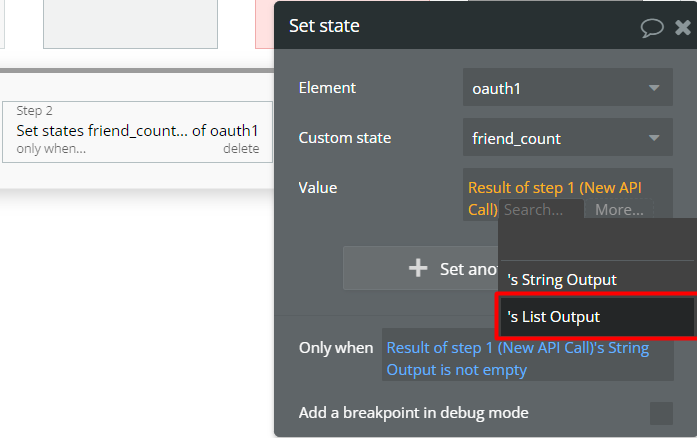

Now you can use the returned value(s) from your New API Call.

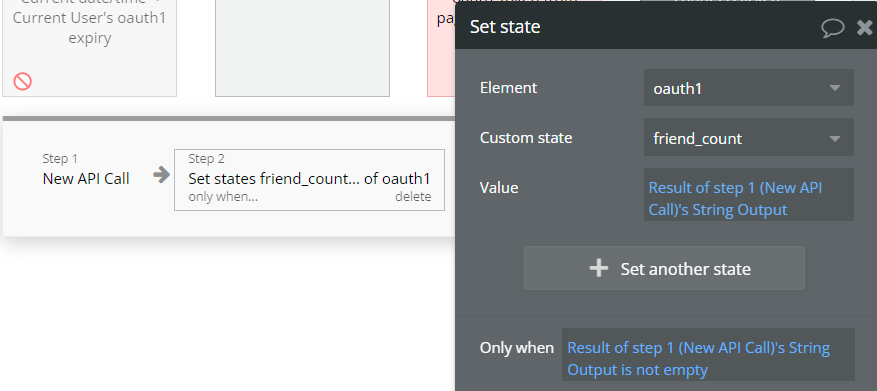

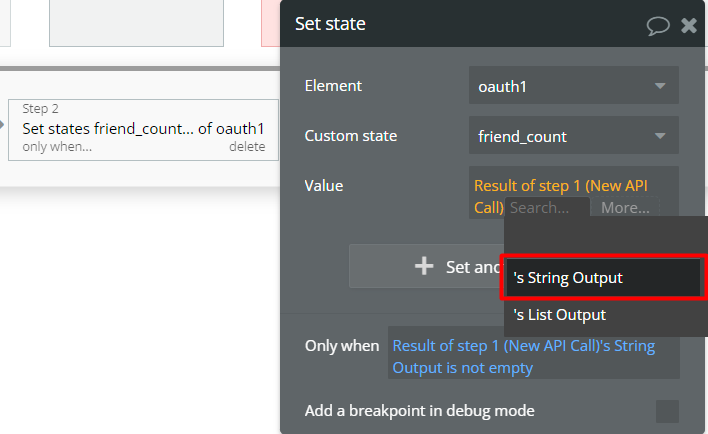

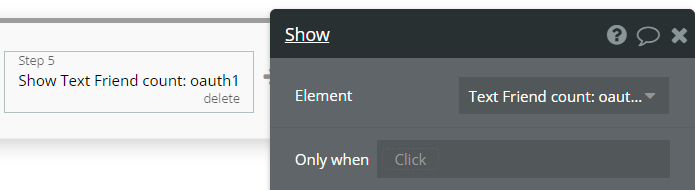

If your Bubble endpoint returns just one value, it is recommended to select String Output.

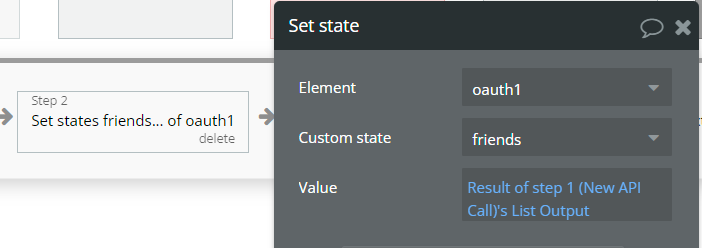

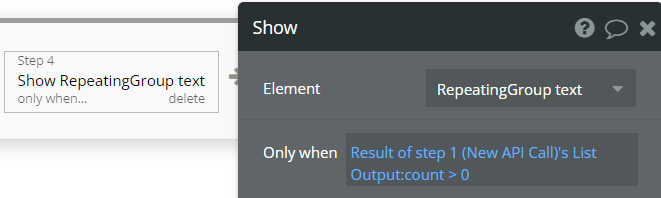

If your Bubble endpoint returns a list, it is recommended to select List Output.

To provide some insight into what we are doing imagine that when you make a call to your service for data using the 'New API Call' flow, the requested data is now going to be packaged up and sent to your Bubble endpoint. On your endpoint, you can customize what data should go to your page.

Plugin Actions List

(1) OAuth Token

(2) Authorize OAuth Client

(3) OAuth Access Token

Remove OAuth URL Parameters

New API Call

PLUGIN ACTIONS DETAILED

Actions

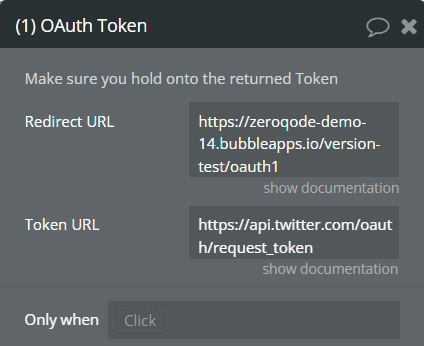

(1) OAuth Token - This action should be used to get request tokens from the service. It is the first step for OAuth 1.0 authentification.

Redirect URL: The value that will be used as the URL a user is redirected to should they approve your application’s access to their account.

Token URL: This URL is created by your service. It is used to get request tokens.

Fields:

Title	Description	Type
Info	Important info for user	Information
Redirect URL	Your Bubble app URL	string
Token URL	Token request URL from your service	string

Returned Values:

Title	Description	Type
Access Token	Access token gived from service after first step	string
OAuth URL	URL gived from service after first step	string
Token Secret	Secret token is given from the service after the first step	string
Token Expiry	The expiry date of the token	date
Error	‘yes’ in case of error, ‘no’ in case of success	yes/no

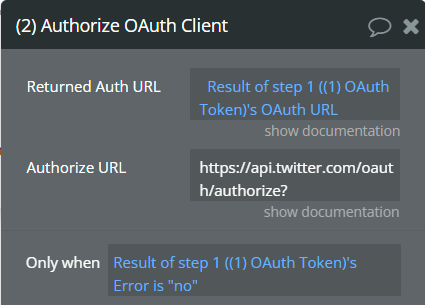

(2) Authorize OAuth Client - This action should be used to get an authorization token for the user. It is the second step for OAuth 1.0 authentification.

Returned Auth URL: This URL must be the same as the OAuth URL returned from (1) OAuth Token action.

Authorize URL: This URL is created by your service. It is used to get an authorization token.

Fields:

Title	Description	Type
Returned Auth URL	OAuth URL from (1) OAuth Token	string
Authorize URL	Authorize request URL from your service	string

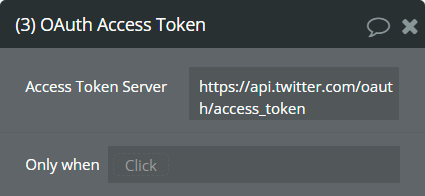

(3) OAuth Access Token - This action should be used to convert the authorization token into a usable access token. It is the third step for OAuth 1.0 authentification.

Access Token Server: This is the URL. It is created by your service. It is used to convert an authorization token into an access token.

Fields:

Title	Description	Type
Access Token Server	Access request URL from your service	string

Returned Values:

Title	Description	Type
Auth Token	Access token gived from service after the third step	string

☝

You can read about Obtaining Access Tokens using 3-legged OAuth flow

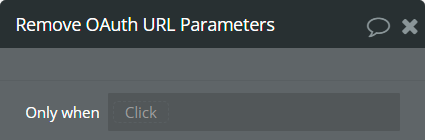

Remove OAuth URL Parameters - This action should be used to remove parameters from the URL. After getting access token service will redirect the user to your app. In URL will be present oauth_token and oauth_verifier parameters.

New API Call - This action should be used to make a request to the service endpoint.

Service Endpoint URL: This URL is created by your service. It is used to make requests.

Bubble Endpoint URL: This URL is created by yourself in the backend workflow.

Method: Method used for Service Endpoint request.

JSON Body: Body which will be sent with the Service Endpoint request.

Fields:

Title	Description	Type
Service Endpoint URL	URL for request from your service	string
Bubble Endpoint URL	Your Bubble endpoint URL	string
Method	GET, POST, PUT, PATCH, DELETE	Dropdown
JSON Body	Values that should be sent to Service Endpoint in JSON format	string (optional)
