Live Geo Tracking Plugin

Demo to preview the plugin:

Introduction

Track users live using GPS. This plugin provides Latitude, Longitude, Heading, Speed (Mps, Mph, KPH & Knots), Altitude, Accuracy & More!
Image without caption

How to setup

  1. Create API keys in Google Console.
Image without caption
  • On the Credentials page, click Create credentials > API key.
Image without caption

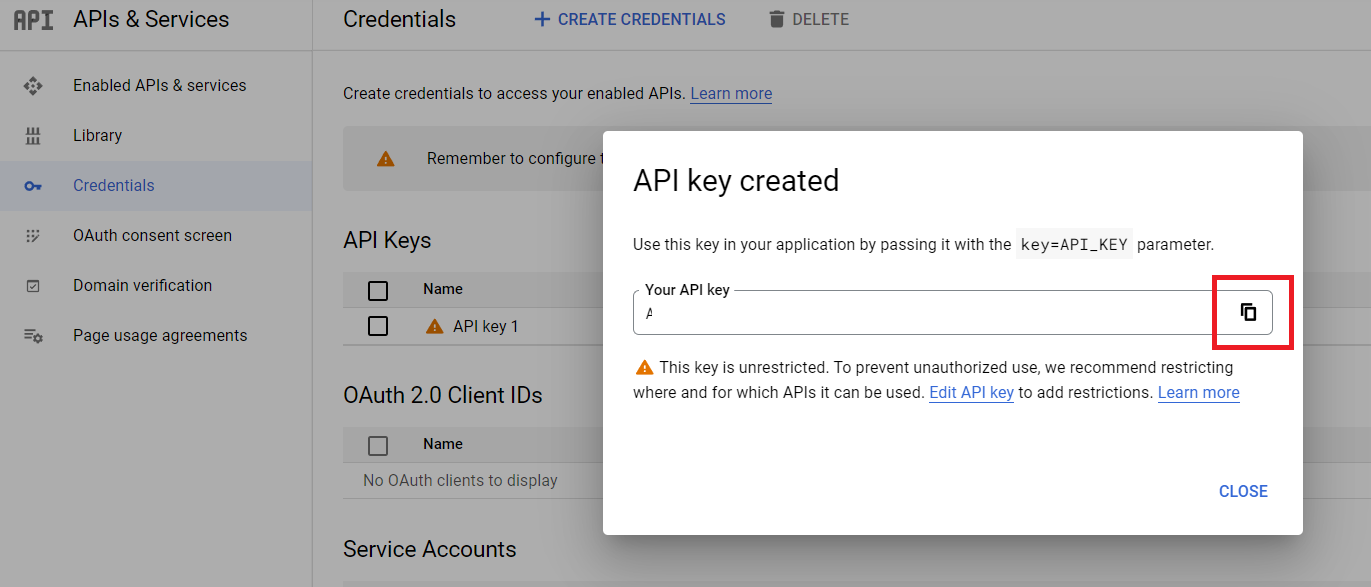

  • The API key-created dialog displays your newly created API key. ClickĀ Close. The new API key is listed on theĀ CredentialsĀ page underĀ API keys.
2. Set google keys into your app.

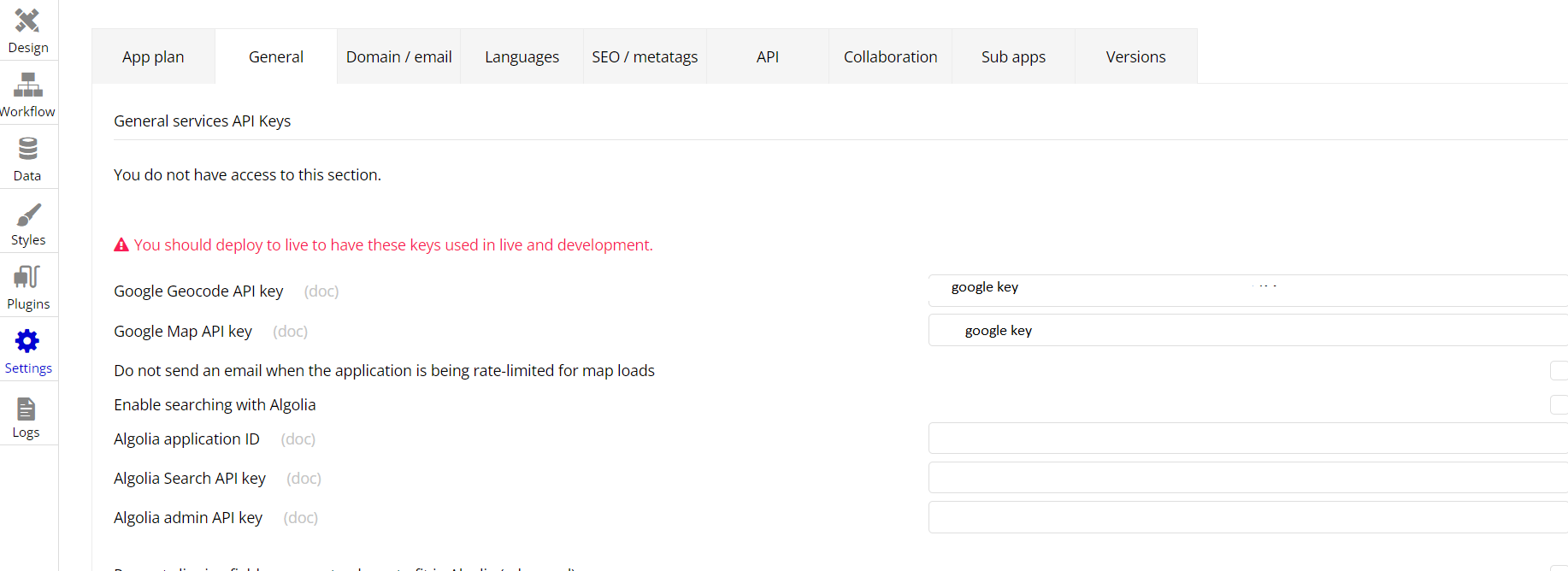

  • Go to Setting > General
Image without caption

Plugin Element

GPS Tracking

Place the element on the page. The element consists of 4 actions, 3 events, and 15 states. The element must be visible on the page load.
Image without caption

Element Actions

  1. Start Tracking a GPS Tracking - the action starts tracking and you will be able to know the user's coordinates.
Image without caption
2. Stop Tracking - the action stops tracking.
Image without caption

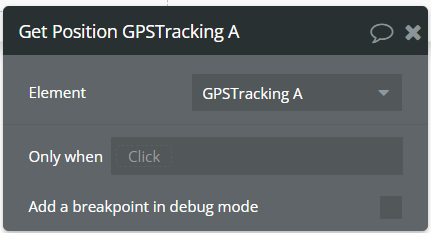

  1. Get Position - the action returns the client's GPS data.
Image without caption

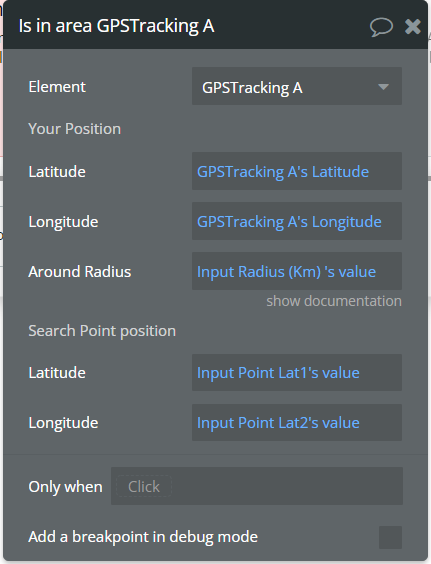

  1. Is in area - the action helps you to see if one address is within range of another address.
Image without caption
Title
Description
The Point A
Latitude
Latitude of point A
required
Longitude
Longitude of point A
required
Around Radius
Define the maximum radius for a geo search (in KM).
optional
The Point B
Latitude
Latitude of point B
required
Longitude
Longitude of point B
required

Element States

Tracking - tracks movement by geolocation. Latitude - contains the current latitude of the device. Longitude -contains the current longitude of the device. Accuracy - Accuracy refers to the degree of closeness of the indicated readings to the actual position. The accuracy of GPS results depends on a number of factors:
  • Number of the devices that connect to the aerial wire
  • Number of satellites in view
  • Signal interference caused by buildings
  • Mountains and ionospheric disturbances
Altitude - is the distance above sea level. Heading - property is a double value representing the direction in which the device is moving. This value, in degrees, indicates how far north the device is. 0 degrees is true north, and the direction is clockwise (meaning east is 90 degrees and west is 270 degrees). AltitudeAccuracyĀ - property is a strictly positiveĀ doubleĀ representing the accuracy, with a 95% confidence level, of theĀ altitudeĀ expressed in meters. This value isĀ nullĀ if the implementation doesn't support measuring altitude. TimestampĀ  - TheĀ timestampĀ represents the time when the geographic position of the device was acquired. Meter's Per Sec -Meters per second is a rate of speed, similar to miles per hour. Finding the speed is easy if you are given the distance in meters and the time in seconds. MPH - Miles per hourĀ (mph,Ā m.p.h.,Ā MPH, orĀ mi/h) is aĀ British imperialĀ andĀ United States customary unitĀ ofĀ speedĀ expressing the number ofĀ milesĀ traveled in oneĀ hour. It is used in theĀ United Kingdom, theĀ United States, and a number of smaller countries, most of which are UK or US territories, or have close historical ties with the UK or US. KPH - Kilometers per hourĀ is a unit of measurement using length in kilometers and time in hours, and thus it acts as a derived unit for both speed and velocity. The proper shorthand for this unit is km/h, however, kph or kmph are sometimes used. Knots - Knots, on the other hand, are used to measure speed. One knot equals one nautical mile per hour, or roughlyĀ 1.15 statute mph. The term knot dates from the 17th century, when sailors measured the speed of their ship using a device called a ā€œcommon log.ā€ The common log was a rope with knots at regular intervals, attached to a piece of wood shaped like a slice of pie. The distance between the two points - Here you will get the point distance between point A and point B after running the "Is near me" action. Distance is returned in miles. Is near me - After you have run the action "Is near me" in this state, you will receive an answer whether or not the point you are looking for is close. Location was changed - It will show the changing position of the device.
Image without caption

Changelogs
