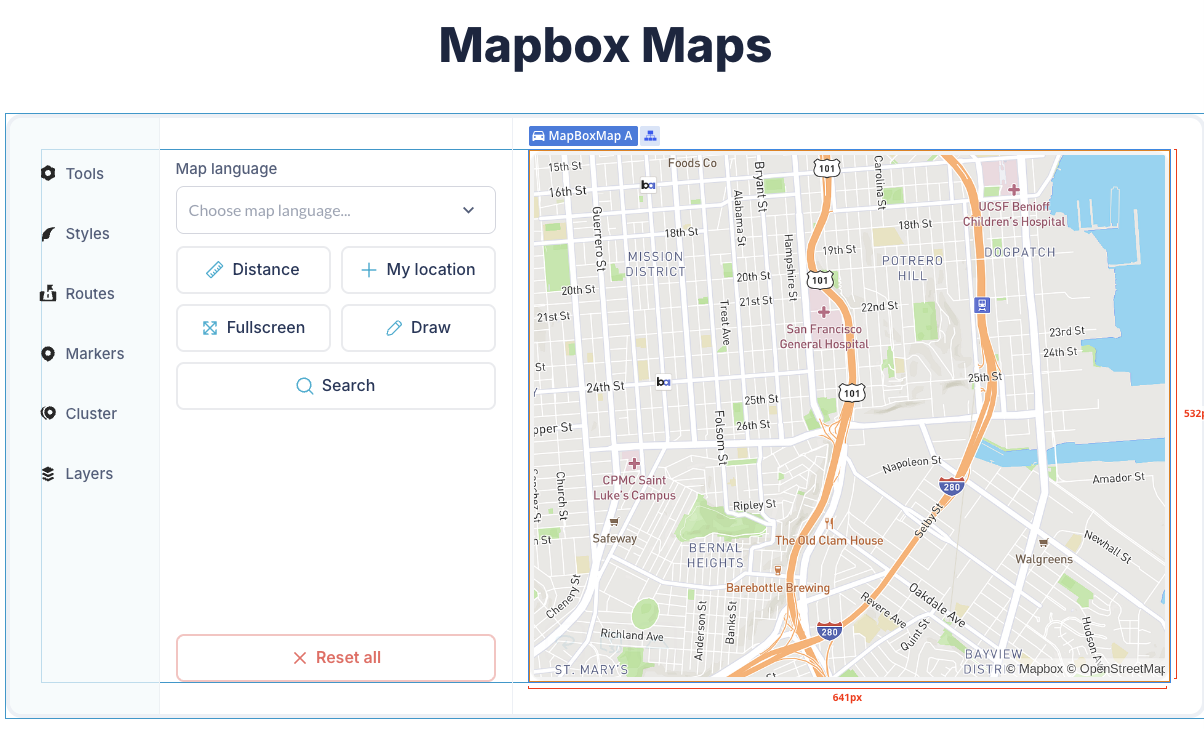

Mapbox Maps

• Customizable map styles and themes.

• Display multiple markers with custom icons.

• Geocoding and reverse geocoding capabilities.

• Route drawing and direction services.

• Support for user interaction and click events on the map.

• Dynamic data layers for dynamic data visualization.

• Clustering of map markers for better visual management.

• Map initialization with custom center and zoom level.

• Integration with Mapbox's vector tiles for high-quality visuals.

• Support for 3D terrain and building visualization.

1. Add the MapBox Map element to your page
• In the Bubble Editor, go to Design > Visual Elements.
• Look for MapBox Map and drag it onto your page.

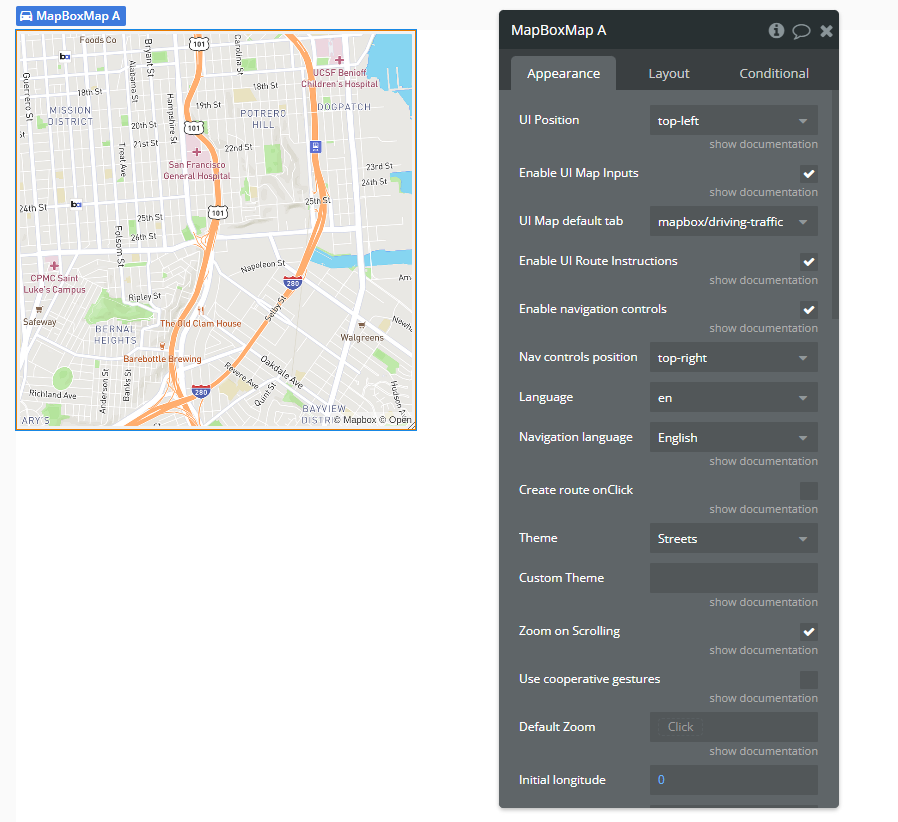

2. Customize the map appearance and behavior

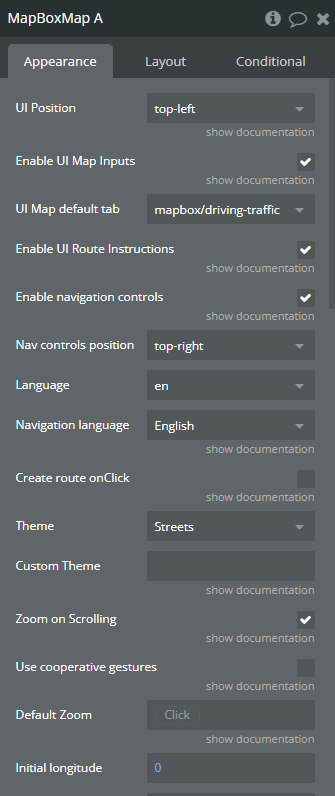

In the Appearance tab of the MapBox Map element, you can control:
• UI Position: Position of default map controls (top-left, bottom-right, etc.)
• Enable UI Map Inputs: Toggle built-in controls like zoom, directions, etc.
• UI Map Default Tab: Choose the default view (e.g., driving-traffic).
• Enable UI Route Instructions: Show step-by-step route directions.
• Enable Navigation Controls: Show/Hide zoom/navigation buttons.
• Nav Controls Position: Position of those navigation buttons.
• Language / Navigation Language: Set the interface and directions language.

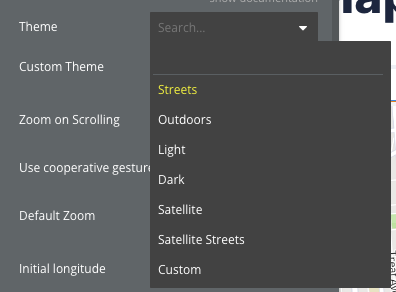

• Theme: Choose between “Streets”, “Satellite”, etc.
• Zoom on Scrolling: Enable zoom with mouse scroll.
• Default Zoom, Initial Longitude, Initial Latitude: Define starting view.

Element Actions

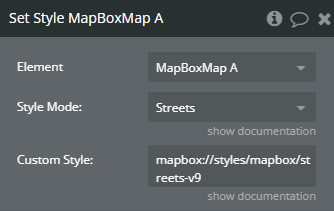

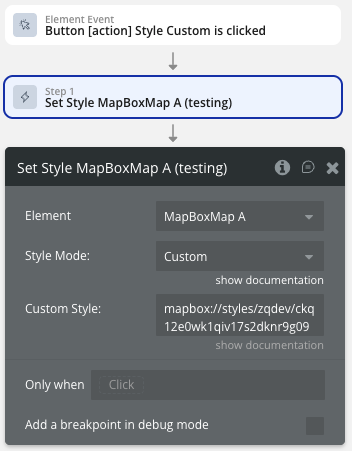

Set Style A MapBox Map

This action allows you to dynamically change the visual style of a MapBox map. You can choose from preset styles (e.g., Streets, Satellite, Dark, etc.) via the Style Mode dropdown, or define a Custom Style URL from your MapBox account to apply a fully personalized map appearance.

Title	Description	Type
Element	The MapBox Map element you want to apply the style to.	Text
Style Mode	Choose a predefined MapBox style (e.g., Streets, Dark).	Text
Custom Style	Optional custom style URL from MapBox Studio. Overrides Style Mode if filled.	Text (URL)

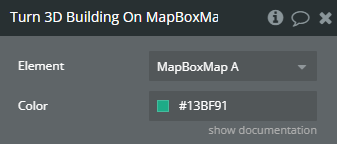

Turn 3D Building On A MapBox Map

Enables the 3D building layer on the selected MapBox map element, enhancing the visual appearance by rendering buildings in 3D. You can also define the base color used to style the buildings.

Title	Description	Type
Element	The MapBox Map element where 3D buildings will be enabled.	Text
Color	The color used to display the 3D buildings.	Color (hex)

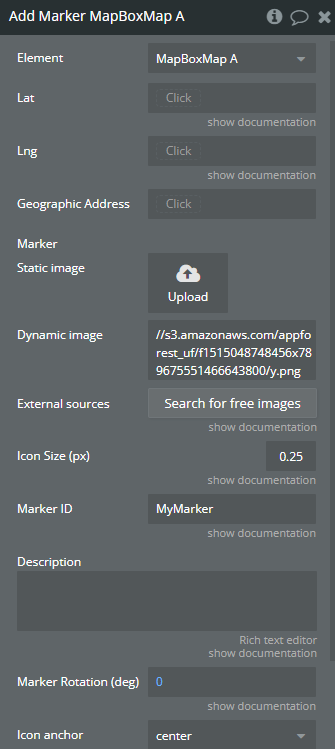

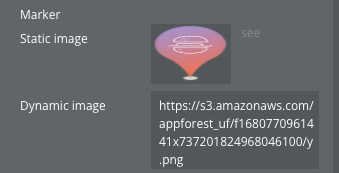

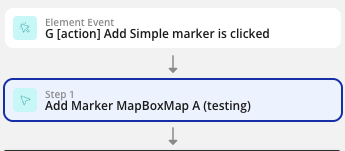

Add Marker A MapBox Map

Adds a custom marker to the selected MapBox map. You can define its position using latitude/longitude or a geographic address, customize the icon using a static or dynamic image, adjust the icon size and rotation, and optionally include a marker ID and description for reference or future interaction.

Title	Description	Type
Element	The MapBox Map element to which the marker will be added.	Text

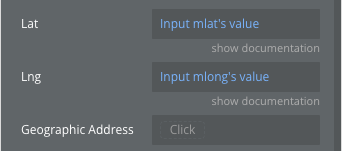

Lat	Latitude coordinate where the marker should appear.	Number
Lng	Longitude coordinate where the marker should appear.	Number
Geographic Address	Optional address; if filled, overrides Lat/Lng.	Geographic address

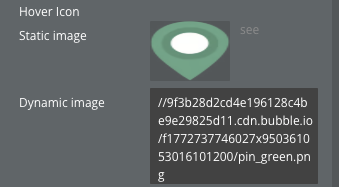

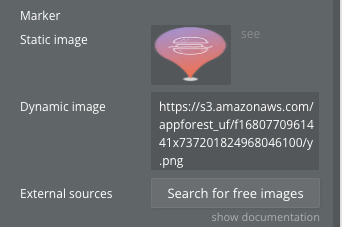

Static image	Upload a static image for the marker icon.	Image file
Dynamic image	URL to a dynamic image used as the marker icon.	Text (URL)
External sources	Optional field for image sources from external libraries.	Text
Icon Size (px)	Relative size of the marker icon (e.g., 0.25 = 25%).	Number
Marker ID	Optional unique ID for the marker, useful for identifying it later.	Text
Description	Optional rich text description shown on marker interaction.	Text
Marker Rotation (deg)	Rotates the marker icon in degrees.	Number
Icon anchor	Defines the anchor point for the icon (e.g., center, top, bottom, left, right).	Dropdown (text)

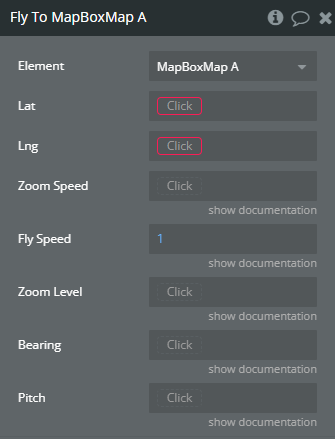

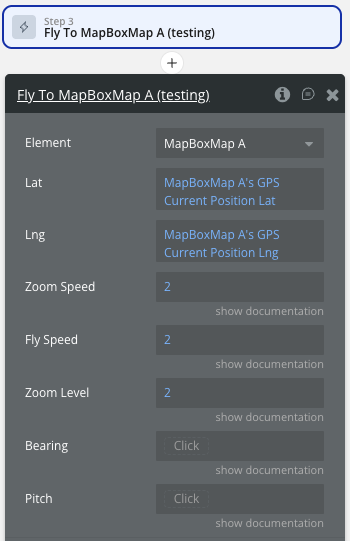

Fly To A MapBox Map

Smoothly animates the map’s view to a new location using the provided latitude and longitude. You can also customize the camera's movement by setting zoom level, bearing, pitch, and animation speed.

Title	Description	Type
Element	The MapBox Map element to animate.	Map element
Lat	Target latitude coordinate to fly to.	Number
Lng	Target longitude coordinate to fly to.	Number
Zoom Speed	Optional speed of zoom animation.	Number
Fly Speed	Duration of the fly transition (default: 1).	Number
Zoom Level	Optional zoom level to apply when flying to the new location.	Number
Bearing	Optional map rotation in degrees (0 = north).	Number
Pitch	Optional tilt angle of the map in degrees (0–60).	Number

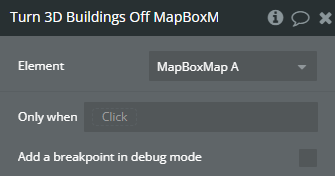

Turn 3D Buildings Off A MapBox Map

Disables the 3D building layer on the specified MapBox map element. This reverts buildings back to a flat 2D rendering, useful for switching between map modes or simplifying the UI.

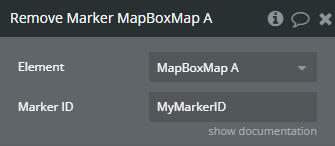

Remove Marker A MapBox Map

Removes a specific marker from the MapBox map based on its unique ID. Useful for dynamically managing markers, such as clearing user selections or updating location data.

Title	Description	Type
Element	The MapBox Map element from which the marker should be removed.	Map element
Marker ID	The unique identifier of the marker you want to remove.	Text

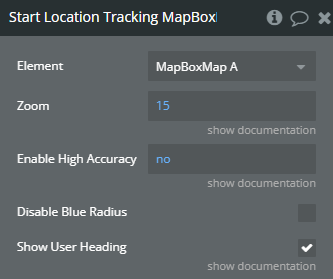

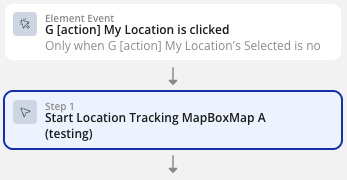

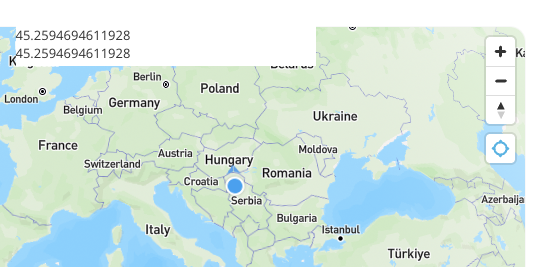

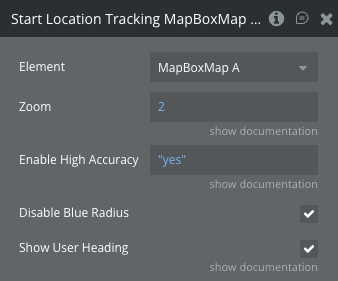

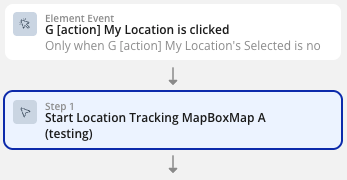

Start Location Tracking A MapBox Map

Activates live user location tracking on the specified MapBox map element. It centers the map on the user’s current position and optionally displays heading direction and accuracy indicators.

Title	Description	Type
Element	The MapBox Map element where location tracking will be enabled.	Map element
Zoom	Zoom level to apply when centering on the user’s location.	Color
Enable High Accuracy	Use high-accuracy mode for better location precision (may consume more battery).	Yes/No (text)
Disable Blue Radius	Disables the default blue radius around the user's position.	Boolean (checkbox)
Show User Heading	Displays the direction the user is facing or moving.	Boolean (checkbox)

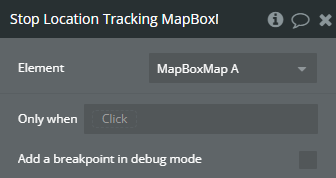

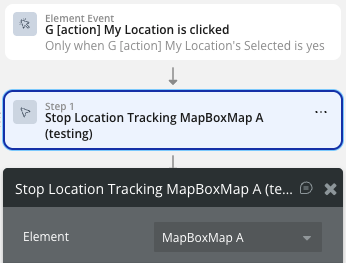

Stop Location Tracking A MapBox Map

Stops the active location tracking on the selected MapBox map element. This disables the automatic centering on the user's position and removes any live tracking indicators from the map.

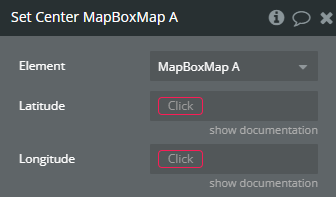

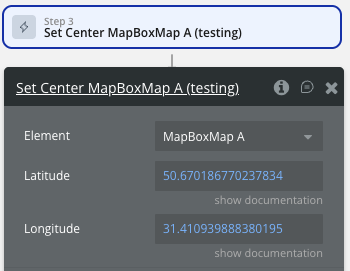

Set Center A MapBox Map

Sets the center point of the MapBox map to a specific latitude and longitude without animation. This is useful for instantly repositioning the map view to a new location.

Title	Description	Type
Element	The MapBox Map element whose center will be updated.	Map element
Latitude	The latitude coordinate for the new center point.	Number
Longitude	The longitude coordinate for the new center point.	Number

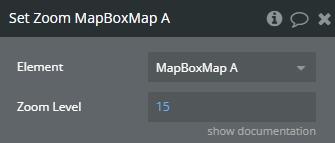

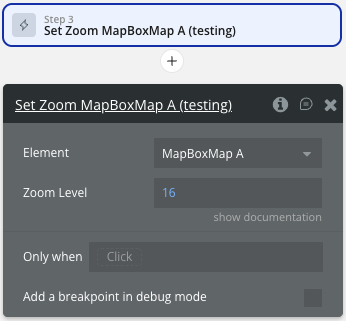

Set Zoom A MapBox Map

Changes the zoom level of the specified MapBox map instantly. This action allows you to programmatically control how close or far the map view appears.

Title	Description	Type
Element	The MapBox Map element to apply the zoom level to.	Map element
Zoom Level	The zoom level to set (e.g., 1 = world, 15 = city).	Number

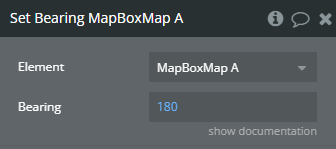

Set Bearing A MapBox Map

Rotates the map view to the specified bearing (direction), which controls the orientation of the map. A bearing of 0° points north, 90° points east, 180° south, and 270° west.

Title	Description	Type
Element	The MapBox Map element where the bearing will be applied.	Map element
Bearing	The compass direction to rotate the map toward, in degrees.	Number

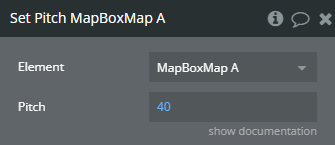

Set Pitch A MapBox Map

Changes the pitch (tilt angle) of the camera on the MapBox map. This allows you to display the map at an angle, enhancing depth and enabling 3D-like views, especially when combined with 3D buildings or terrain.

Title	Description	Type
Element	The MapBox Map element whose camera pitch will be adjusted.	Map element
Bearing	The tilt angle in degrees (e.g., 0 = flat, 60 = maximum tilt).	Number

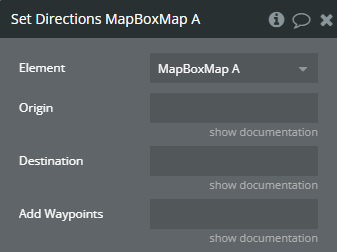

Set Directions A MapBox Map

Displays a route on the MapBox map from a specified origin to a destination. You can optionally include intermediate waypoints. The route will be styled based on the map’s current route settings.

Title	Description	Type
Element	The MapBox Map element whose camera pitch will be adjusted.	Map element
Bearing	The tilt angle in degrees (e.g., 0 = flat, 60 = maximum tilt).	Number

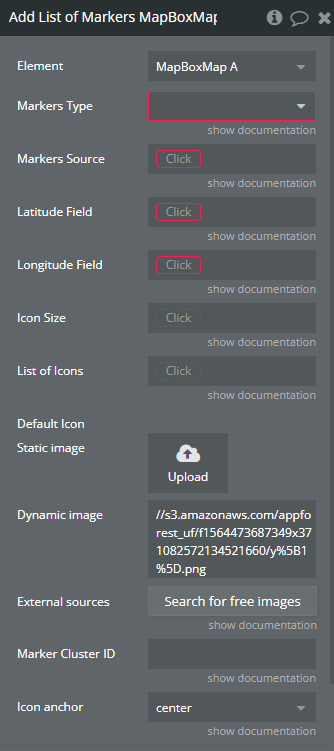

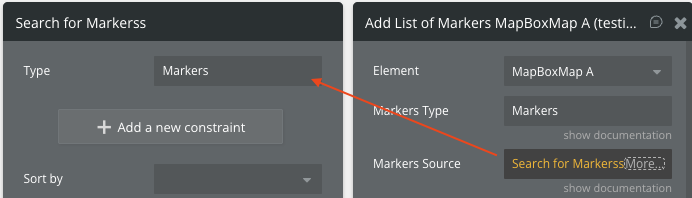

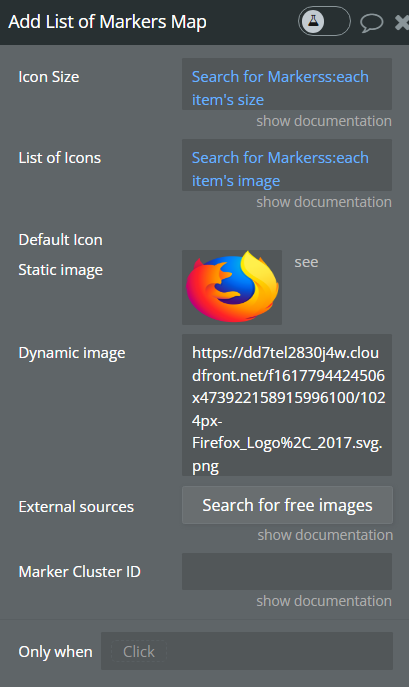

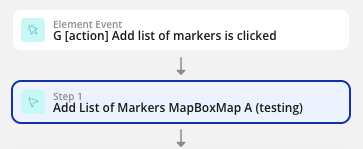

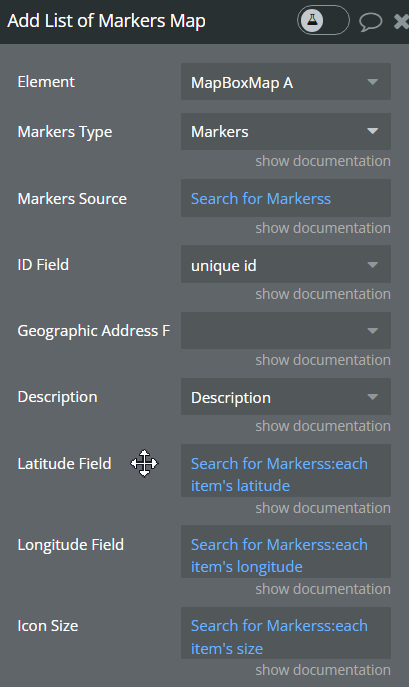

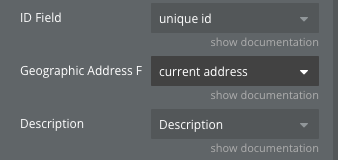

Add List Of Markers

Adds multiple markers to the MapBox map from a list of geographic data. You can customize icons, size, and clustering behavior. Ideal for plotting datasets like users, stores, vehicles, or locations.

Title	Description	Type
Element	The MapBox Map element where the markers will be added.	Map element
Markers Type	Type of markers to use (e.g., default, custom, clustered).	Dropdown (Text)
Markers Source	Data source list containing the marker coordinates and optional metadata.	List (Data source)
Latitude Field	Field from the data source containing latitude values.	Field name (Text)
Longitude Field	Field from the data source containing longitude values.	Field name (Text)
Icon Size	Size of the icon as a fraction (e.g., 0.25 = 25%).	Number
List of Icons	Optional list of dynamic icons (image URLs) for each marker.	List of Text
Default Icon - Static Image	Default image to use if no dynamic image is provided.	Image file
Dynamic Image	Field in the data source that contains the image URL for each marker.	Text (URL)
External Sources	Optional field to fetch images from external resources.	Text
Marker Cluster ID	Optional cluster group ID (for grouping markers into clusters).	Text
Icon Anchor	Position of the icon anchor point (e.g., center, top, bottom).	Dropdown (Text)

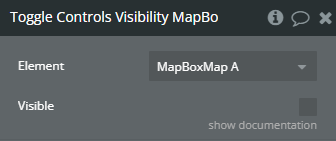

Toggle Controls Visibility A MapBox Map

Shows or hides the map’s built-in navigation controls (zoom in/out buttons, compass, etc.) for the selected MapBox map. Useful for toggling a clean UI when needed.

Title	Description	Type
Element	The MapBox Map element where you want to change the visibility of controls.	Map element
Visible	Determines whether the controls should be shown (yes) or hidden (no).	Boolean (checkbox)

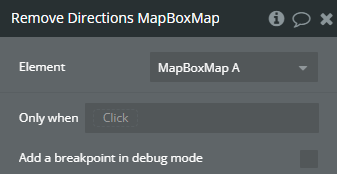

Remove Directions A MapBox Map

Removes the current route directions (path, instructions, waypoints) displayed on the MapBox map. This is useful for resetting or clearing navigation paths after a user completes a route or changes input.

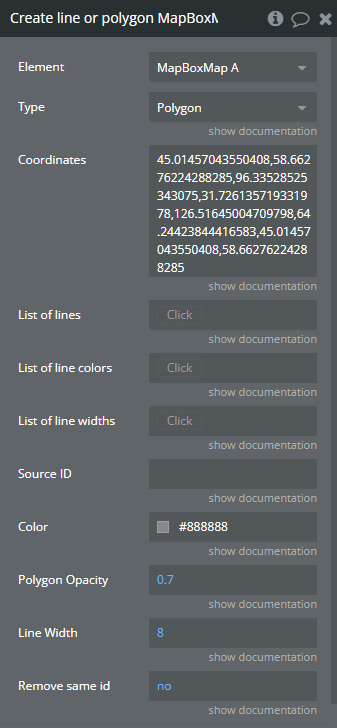

Create Line Or Polygon A MapBox Map

Draws a line or polygon on the selected MapBox map using a list of coordinates. Useful for visualizing boundaries, zones, paths, or any custom shape with control over color, opacity, and line style.

Title	Description	Type
Element	The MapBox Map element where the shape will be drawn.	Map element
Type	Determines whether the controls should be shown (yes) or hidden (no).	Text (Dropdown)
Coordinates	A comma-separated list of lat,lng coordinate pairs.	Text
List of lines	Optional: list of coordinate lists for multiple lines.	List of lists
List of line colors	Optional: list of colors for each line (e.g. ["#FF0000", "#00FF00"]).	List of Text
List of line widths	Optional: list of line widths corresponding to each line.	List of Number
Source ID	Optional ID to reference or remove this shape later.	Text
Color	Fill or stroke color of the shape.	Color (hex)
Polygon Opacity	Opacity of the polygon fill (0 = transparent, 1 = opaque).	Number (0 to 1)
Line Width	Width of the line stroke in pixels.	Number
Remove same id	If set to "yes", it will remove previous shapes with the same Source ID.	Text ("yes" / "no")

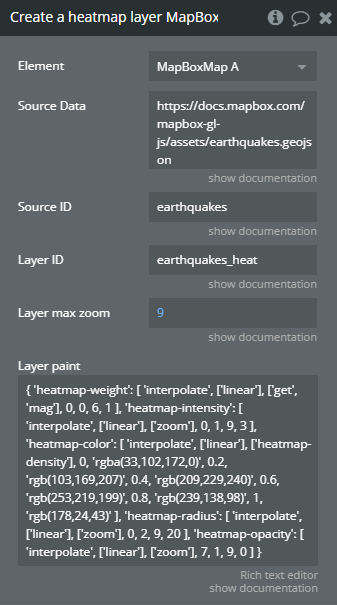

Create A Heatmap Layer A MapBox Map

Creates a heatmap layer on the MapBox map based on geospatial data in GeoJSON format. This is useful for visualizing intensity or density of data points, such as population, crime, traffic, or activity levels.

Title	Description	Type
Element	The MapBox Map element where the heatmap will be added.	Map element
Source Data	URL or dynamic value pointing to a GeoJSON file containing point data.	Text (URL)
Source ID	Unique identifier for the data source used in this heatmap.	Text
Layer ID	Unique identifier for the heatmap layer. Useful for future updates/removals.	Text
Layer max zoom	Maximum zoom level at which the heatmap layer is visible.	Number
Layer paint	JSON configuration defining heatmap appearance (e.g., color scale, radius, opacity, intensity).	JSON (Text)

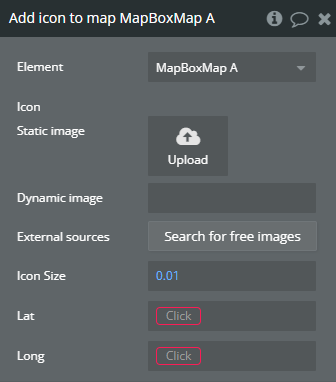

Add Icon To Map A MapBox Map

Adds a single custom icon to a specific geographic location on the MapBox map. You can use a static image, a dynamic image URL, or an external resource, and define the position and size of the icon.

Title	Description	Type
Element	The MapBox Map element where the icon will be added.	Map element
Static image	A static image file to use as the icon.	Image file
Dynamic image	A dynamic image URL to load the icon from.	Text (URL)
External sources	Optional tool to search for free icons.	Text
Icon Size	Relative size of the icon (e.g., 0.01 = very small, 0.25 = 25% of original).	Number
Lat	Latitude coordinate for the icon placement.	Number
Long	Longitude coordinate for the icon placement.	Number

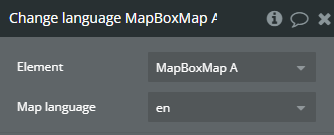

Change Language A MapBox Map

Changes the language of the map's labels (such as place names, countries, streets) on the selected MapBox map. This allows dynamic localization of the map interface based on the user's preferences.

Title	Description	Type
Element	The MapBox Map element where the language will be changed.	Map element
Map language	Language code to apply (e.g., en, es, fr, pt, de).	Text (Dropdown)

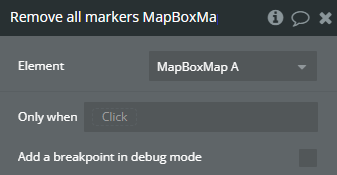

Remove All Markers A MapBox Map

Removes all markers currently displayed on the selected MapBox map, including individual markers and those added as a list. This is useful for resetting the map or updating marker data.

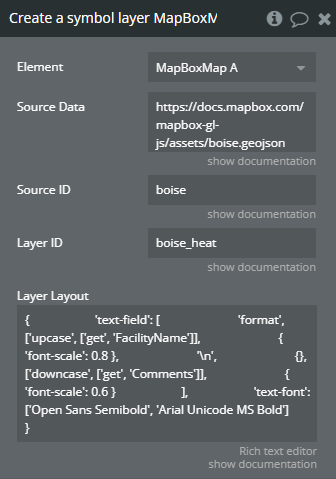

Create A Symbol Layer A MapBox Map

Creates a symbol layer on the MapBox map from a GeoJSON data source. Symbol layers are used to display icons and text labels on the map, allowing you to enrich visual data with contextual information.

Title	Description	Type
Element	The MapBox Map element where the symbol layer will be created.	Map element
Source Data	Language code to apply (e.g., en, es, fr, pt, de).	Text (URL)
Source ID	Unique ID for the GeoJSON source. Used to reference the data source.	Text
Layer ID	Unique ID for the symbol layer.	Text
Layer Layout	JSON configuration for how symbols (icons/text) will be rendered on the map.	JSON (Text)

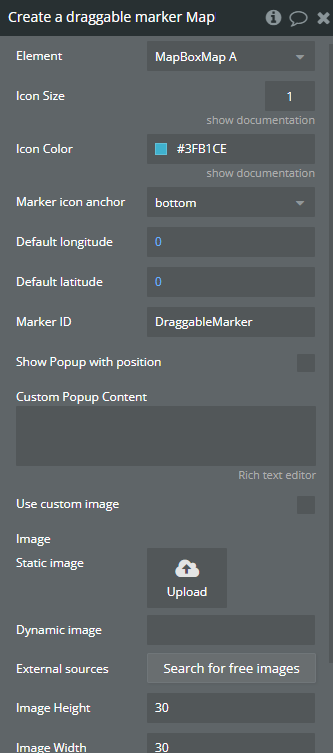

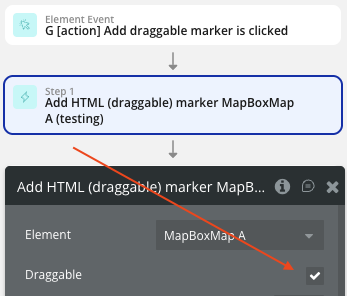

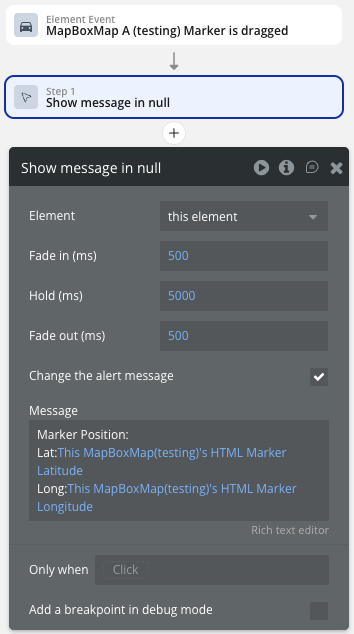

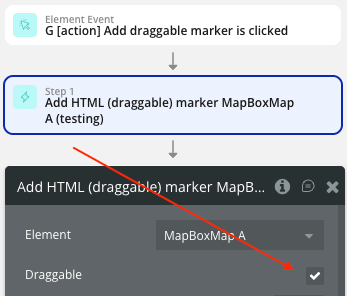

Create A Draggable Marker A MapBox Map

Adds a marker to the map that users can drag and reposition. You can customize its size, icon, anchor point, default coordinates, and even define a custom popup. Ideal for letting users set or update a location interactively.

Title	Description	Type
Element	The MapBox Map element where the draggable marker will be added.	Map element
Icon Size	Size of the marker icon (e.g., 1 = 100%).	Number
Icon Color	Color of the marker (used if not using custom image).	Color (hex)
Marker icon anchor	Position of the icon anchor (e.g., center, bottom, top).	Text
Default longitude	Initial longitude position of the marker.	Number
Default latitude	Initial latitude position of the marker.	Number
Marker ID	Unique identifier for this marker.	Text

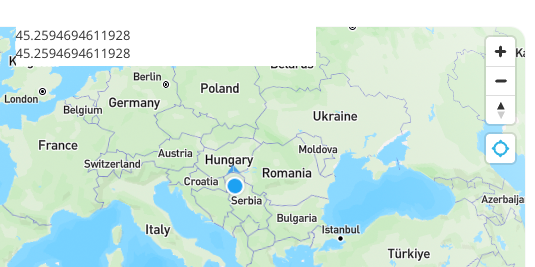

Show Popup with position	Displays a popup showing the current coordinates of the marker.	Boolean (Checkbox)
Custom Popup Content	Optional rich text content for the popup.	Text (Rich text)
Use custom image	Enable to use a custom image instead of default icon.	Boolean (Checkbox)
Static image	Upload a static image to use as the marker icon.	Image file
Dynamic image	Provide a dynamic image URL for the marker icon.	Text (URL)
External sources	Optional: Search or load icons from online resources.	Text
Image Height	Height of the icon image in pixels.	Number
Image Width	Width of the icon image in pixels.	Number

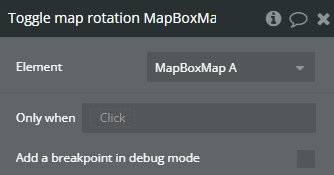

Toggle Map Rotation A MapBox Map

Enables or disables the ability for users to rotate the map manually using gestures (e.g., right-click + drag or two fingers on touch devices). Useful for giving or restricting user control over the map's bearing.

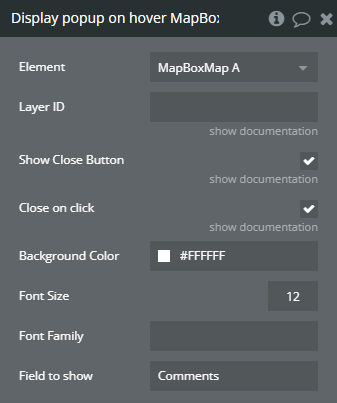

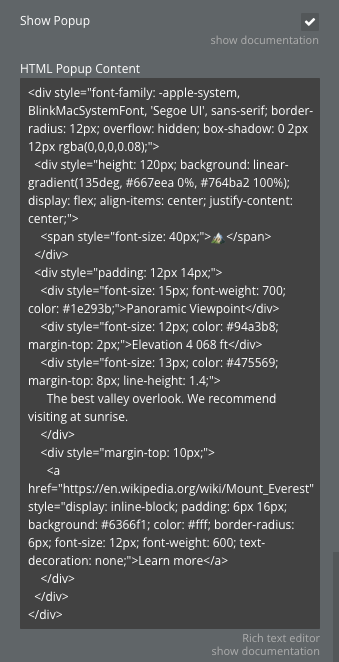

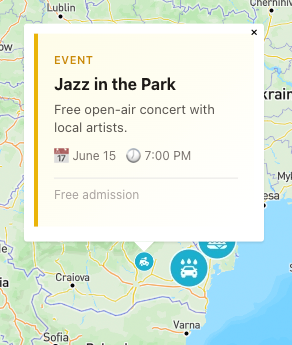

Display Popup On Hover A MapBox Map

Displays a popup when the user hovers over a specific layer on the map. You can customize its appearance and behavior, as well as which field from the data source will be shown.

Title	Description	Type
Element	The MapBox Map element where the popup will appear.	Map element
Layer ID	The ID of the layer where hover popups should be enabled.	Text
Show Close Button	Whether to show a close (×) button in the popup.	Boolean
Close on click	Whether the popup should close when clicked.	Boolean
Background Color	Background color of the popup.	Color (hex)
Font Size	Font size of the popup text (in pixels).	Number
Font Family	Font family used in the popup (e.g., Arial, Roboto, etc.).	Text
Field to show	The name of the field from the data that should be displayed inside the popup.	Text

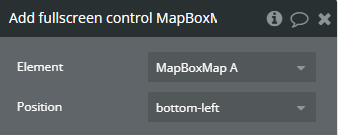

Add Fullscreen Control A MapBox Map

Adds a fullscreen toggle button to the specified MapBox map. This allows users to expand the map to occupy the entire screen, improving usability on smaller displays or when detailed navigation is required.

Title	Description	Type
Element	The MapBox Map element where the fullscreen control will be added.	Map element
Position	Position on the map where the control button will appear (e.g., top-left, bottom-right).	Text (Dropdown)

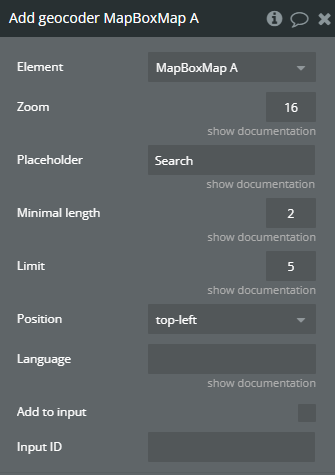

Add Geocoder A MapBox Map

Adds a geocoder search box to the selected MapBox map, allowing users to search for and navigate to addresses or locations by typing. It's a powerful tool for enhancing user interaction and dynamic navigation.

Title	Description	Type
Element	The MapBox Map element where the geocoder will be added.	Map element
Zoom	Zoom level to apply when a result is selected.	Number
Placeholder	Placeholder text that appears in the geocoder input.	Text
Minimal length	Minimum number of characters before search is triggered.	Number
Limit	Maximum number of search results to return.	Number
Position	Location of the geocoder on the map (e.g., top-left, bottom-right).	Text (Dropdown)
Language	Language for search results (e.g., en, pt, es, fr).	Text
Add to input	If checked, populates a Bubble input field with the selected result.	Boolean
Input ID	The ID of the input field that should receive the search result.	Text

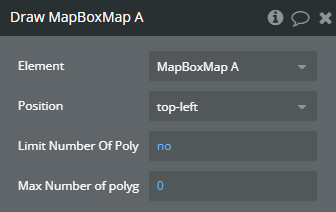

Draw A MapBox Map

Enables drawing tools on the MapBox map, allowing users to draw polygons directly on the map interface. You can customize the position of the drawing controls and optionally limit the number of polygons that can be drawn.

Title	Description	Type
Element	The MapBox Map element where the drawing tools will be activated.	Map element
Position	Location of the drawing control on the map (e.g., top-left, bottom-right).	Text (Dropdown)
Limit Number Of Poly	Whether to limit the number of polygons a user can draw (yes or no).	Text (yes/no)
Max Number of polyg	Maximum number of polygons allowed if limiting is enabled.	Number

Enable Measure Distance A MapBox Map

Activates the distance measuring tool on the MapBox map, allowing users to click and draw a line to calculate the distance between multiple points directly on the map.

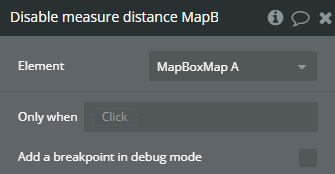

Disable Measure Distance A MapBox Map

Deactivates the distance measuring tool on the MapBox map, removing the user’s ability to draw distance lines and clearing any current measurement from the map.

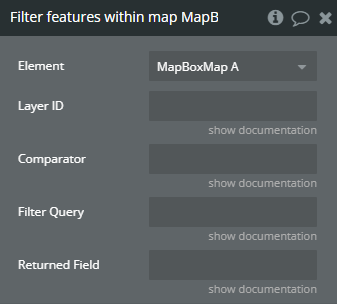

Filter Features Within Map A MapBox Map

Applies a filter to the features of a specific layer on the MapBox map based on custom conditions. This is useful for dynamically showing or hiding data based on field values, such as filtering points by category, region, or status.

Title	Description	Type
Element	The MapBox Map element containing the layer to be filtered.	Map element
Layer ID	The ID of the layer whose features should be filtered.	Text
Comparator	The comparison operator used in the filter (e.g., ==, !=, >, <, etc.).	Text
Filter Query	The value to compare against in the filter condition.	Text
Returned Field	The property name from the feature to apply the filter to.	Text

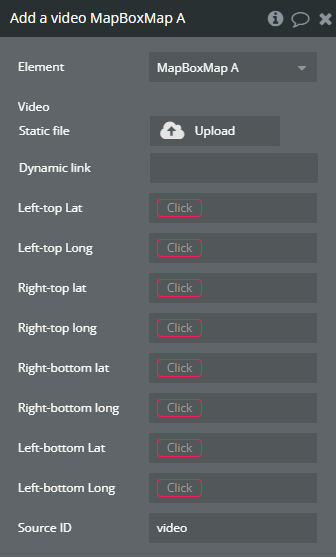

Add A Video A MapBox Map

Overlays a video on the MapBox map, anchored by four geographic coordinates forming a bounding box. You can use either a static file or a dynamic video URL. This is ideal for adding drone footage, surveillance overlays, or animated map annotations.

Title	Description	Type
Element	The MapBox Map element where the video will be displayed.	Map element
Static file	Upload a static video file to use.	Video file
Dynamic link	URL to a video file to load dynamically (overrides static file if present).	Text (URL)
Left-top Lat	Latitude of the top-left corner of the video overlay.	Number
Left-top Long	Longitude of the top-left corner.	Number
Right-top lat	Latitude of the top-right corner.	Number
Right-top long	Longitude of the top-right corner.	Number
Right-bottom lat	Latitude of the bottom-right corner.	Number
Right-bottom long	Longitude of the bottom-right corner.	Number
Left-bottom Lat	Latitude of the bottom-left corner.	Number
Left-bottom Long	Longitude of the bottom-left corner.	Number
Source ID	Unique ID to reference this video source layer (e.g., for later removal).	Text

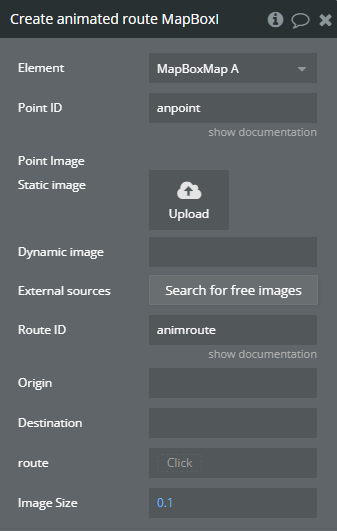

Create Animated Route A MapBox Map

Animates a point (icon) moving along a specified route on the MapBox map. Useful for simulating movement such as vehicles, deliveries, or any animated path visualization. You can customize the point icon, route ID, and size.

Title	Description	Type
Element	The MapBox Map element where the animation will occur.	Map element
Point ID	Unique ID for the animated point (used to update or remove later).	Text
Static image	Upload a static image to represent the animated point.	Image file
Dynamic image	URL to a dynamic image for the animated icon.	Text (URL)
External sources	Optional icon search or external resource.	Text
Route ID	ID used to reference the animated route.	Text
Origin	Starting coordinate of the route (e.g., "lat,lng" format).	Text
Destination	Ending coordinate of the route.	Text
route	Full route data (can be from a previous data call or custom format).	List or JSON
Image Size	Size of the animated point icon.	Number

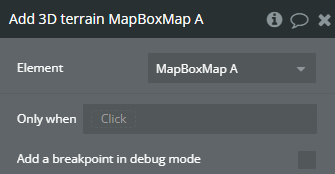

Add 3D Terrain A MapBox Map

Enables the 3D terrain feature on the selected MapBox map. This enhances the visual depth by rendering elevation data, allowing users to visualize mountains, valleys, and other topographic features.

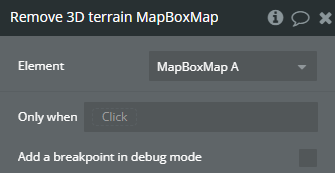

Remove 3D Terrain A MapBox Map

Disables the 3D terrain rendering on the selected MapBox map. This reverts the map back to its flat base style, removing elevation effects and improving performance if 3D is no longer needed.

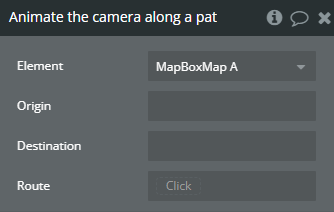

Animate The Camera Along A Path A MapBox Map

Animates the camera view smoothly along a route between two geographic points on the MapBox map. It creates a dynamic flyover effect, ideal for storytelling, navigation simulations, or guided tours.

Title	Description	Type
Element	The MapBox Map element where the camera animation will occur.	Map element
Origin	Starting coordinate of the route (e.g., "lat,lng").	Text
Destination	Ending coordinate of the route.	Text
Route	Full route path data used to animate the camera movement.	List or JSON

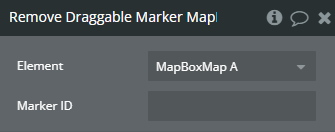

Remove Draggable Marker A MapBox Map

Removes a previously added draggable marker from the specified MapBox map using its unique ID. Useful for resetting or replacing user-selected locations.

Title	Description	Type
Element	The MapBox Map element from which the draggable marker will be removed.	Map element
Marker ID	The unique identifier of the draggable marker to be removed.	Text

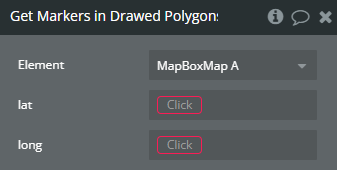

Get Markers In Drawed Polygons A MapBox Map

Checks which markers on the map are located inside any polygon drawn by the user. Useful for identifying geofenced items, filtering data, or triggering actions based on spatial inclusion.

Title	Description	Type
Element	The MapBox Map element containing the polygons and markers.	Map element
lat	The latitude field to compare (usually from the marker source).	Number
long	The longitude field to compare (usually from the marker source).	Number

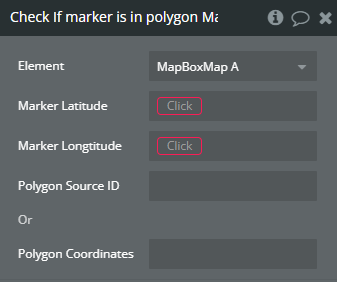

Check If Marker Is In Polygon A MapBox Map

Verifies whether a specific marker (based on its latitude and longitude) is inside a defined polygon on the map. Useful for geofencing, access control, or triggering location-based conditions.

Title	Description	Type
Element	The MapBox Map element containing the polygon.	Map element
Marker Latitude	Latitude of the marker to be checked.	Number
Marker Longitude	Longitude of the marker to be checked.	Number
Polygon Source ID	ID of the polygon source previously added to the map.	Text
Polygon Coordinates	Alternative: coordinates of the polygon (overrides source if filled).	List/Text

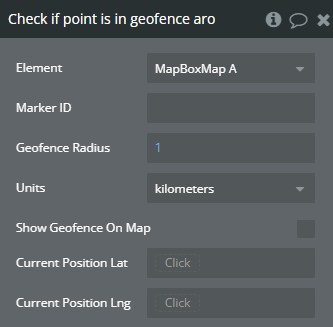

Check If Point Is In Geofence Around The Marker A MapBox Map

Verifies whether a given point (latitude/longitude) is within a circular geofence area centered around a specific marker. Useful for proximity detection, alerts, or triggering location-aware workflows.

Title	Description	Type
Element	The MapBox Map element where the geofence check will be performed.	Map element
Marker ID	ID of the marker that represents the center of the geofence.	Text
Geofence Radius	Radius of the geofence area around the marker.	Number
Units	Measurement unit for the radius (e.g., meters, kilometers).	Text (Dropdown)
Show Geofence On Map	Optionally display the geofence as a visible circle on the map.	Boolean
Current Position Lat	Latitude of the point to test against the geofence.	Number
Current Position Lng	Longitude of the point to test against the geofence.	Number

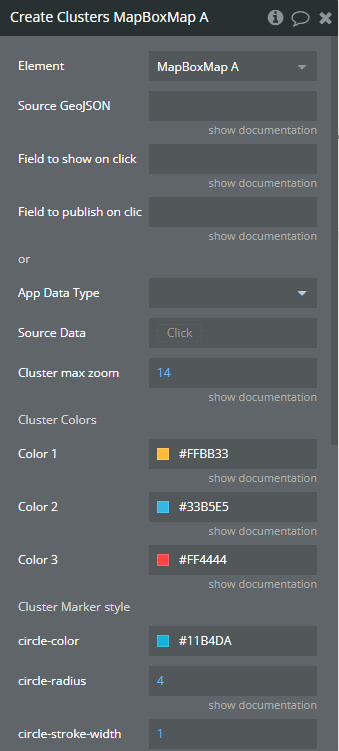

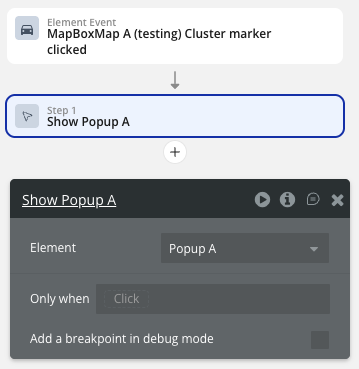

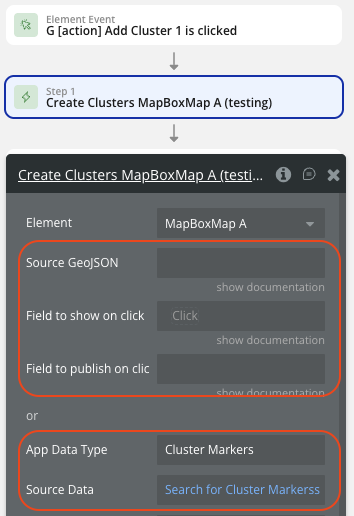

Create Clusters A MapBox Map

Creates marker clusters on the MapBox map using a data source or GeoJSON file. Clustering improves performance and clarity by grouping nearby points into a single marker with customizable appearance and logic.

Title	Description	Type
Element	The MapBox Map element where clusters will be created.	Map element
Source GeoJSON	URL or raw GeoJSON data with points to cluster (alternative to App Data Type).	Text (URL/GeoJSON)
Field to show on click	Field to display in popup when a marker is clicked.	Text
Field to publish on click	Field to expose when the marker is clicked (used in workflows).	Text
App Data Type	Bubble data type to use as the source of clustering.	Dropdown
Source Data	The list of data entries to be used as clusters.	List
Cluster max zoom	Maximum zoom level for clustering (higher = fewer clusters).	Number
Color 1	Color for smallest clusters.	Color
Color 2	Color for medium-sized clusters.	Color
Color 3	Color for largest clusters.	Color
circle-color	Fill color of the cluster circle.	Color
circle-radius	Radius (in px) of the cluster circle.	Number
circle-stroke-width	Width of the cluster circle border.	Number
circle-stroke-color	Color of the circle stroke.	Color
text-color	Color of the text (number of points) inside the cluster.	Color
Allow overlap markers	Allows overlapping cluster icons.	Boolean
Use custom icons	Enable use of custom icon images.	Boolean
Default icon	Static image used for all clusters.	Image file
Dynamic image	Dynamic image URL used per marker.	Text (URL)
External sources	Optional helper for finding/uploading icons.	Text
ID Cluster	ID for referencing the created cluster group (for updates/removal).	Text
Icon anchor	Anchor position of the icon (e.g., center, bottom).	Text

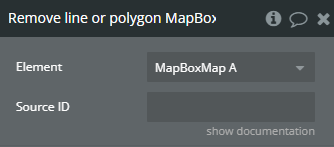

Remove Line Or Polygon A MapBox Map

Removes a previously drawn line or polygon from the MapBox map using the provided Source ID. Ideal para limpar visualizações temporárias, redefinir seleções ou atualizar informações no mapa.

Title	Description	Type
Element	The MapBox Map element where the shape will be removed.	Map element
Source ID	ID of the line or polygon to be removed (same as the one used on creation).	Text

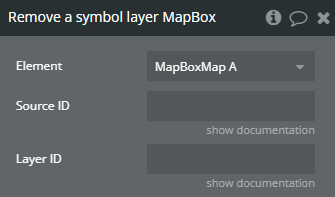

Remove A Symbol Layer A MapBox Map

Removes a previously added symbol layer from the MapBox map using its associated Source ID and Layer ID. Ideal para remover ícones e textos personalizados que foram adicionados dinamicamente ao mapa.

Title	Description	Type
Element	The MapBox Map element from which the symbol layer will be removed.	Map element
Source ID	ID of the source used to create the symbol layer.	Text
Layer ID	ID of the symbol layer to be removed (must match the one used on creation).	Text

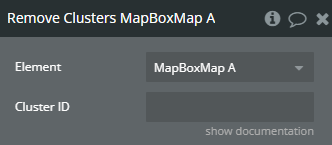

Remove Clusters A MapBox Map

Removes a previously created cluster group from the MapBox map using its unique Cluster ID. Essa ação é útil para limpar o mapa, atualizar os dados ou trocar o agrupamento visualizado.

Title	Description	Type
Element	The MapBox Map element from which the clusters will be removed.	Map element
Cluster ID	The unique identifier of the cluster group to be removed.	Text

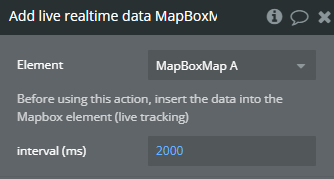

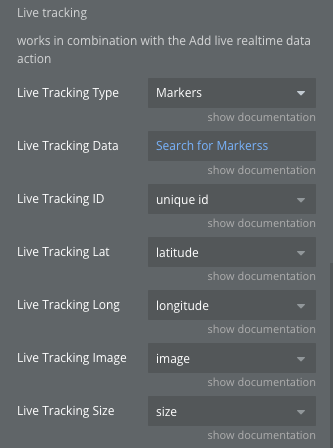

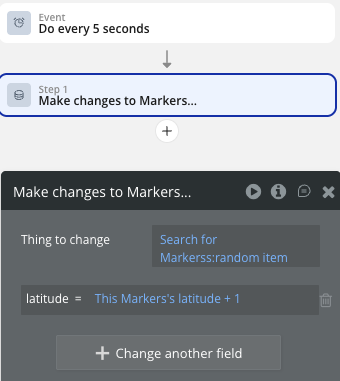

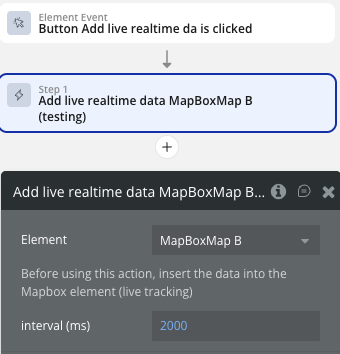

Add Live Realtime Data A MapBox Map

Enables live tracking of data points on the MapBox map by updating their positions at a defined interval. This action is used in conjunction with the “Live tracking” configuration on the MapBox element.

Title	Description	Type
Element	The MapBox Map element where real-time data updates will be applied.	Map element
interval (ms)	Time interval in milliseconds between each automatic data update.	Number

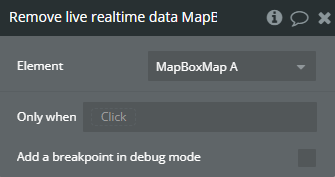

Remove Live Realtime Data A MapBox Map

Stops the live tracking updates previously activated by the Add Live Realtime Data action on the selected MapBox map. This effectively pauses or terminates the real-time movement of elements on the map.

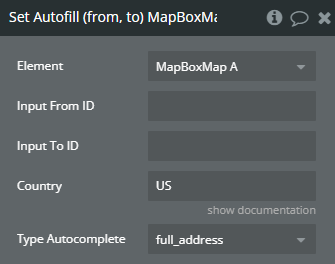

Set Autofill (From, To) A MapBox Map

Links two input fields ("From" and "To") to the MapBox address autocomplete functionality. As the user types, location suggestions are displayed based on the specified country and autocomplete type.

Title	Description	Type
Element	The MapBox Map element where autocomplete will be applied.	Map element
Input From ID	The ID of the input field for the origin address ("from").	Text
Input To ID	The ID of the input field for the destination address ("to").	Text
Country	Country code (ISO 3166-1 Alpha-2) to filter suggestions. Example: US.	Text
Type Autocomplete	Type of suggestions to return (full_address, city, postcode, etc.).	Text (Dropdown)

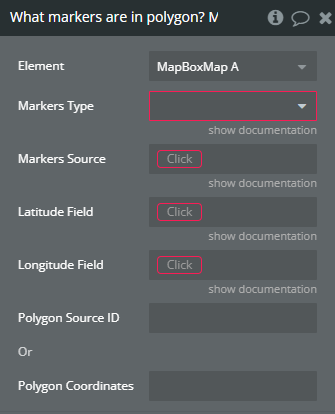

What Markers Are In Polygon? A MapBox Map

Checks which markers from a given data source are located within a specified polygon on the MapBox map. Ideal for geo-filters, regional selection, and location-based logic in your application.

Title	Description	Type
Element	The MapBox Map element where the data will be evaluated.	Map element
Markers Type	Type of markers being used (e.g., dynamic, static, etc.).	Text (Dropdown)
Markers Source	The data source (list) containing the markers to check.	List
Latitude Field	Field name for latitude in the marker data source.	Text
Longitude Field	Field name for longitude in the marker data source.	Text
Polygon Source ID	ID of the layer or polygon already drawn on the map.	Text
Polygon Coordinates	Optional polygon coordinates (overrides the Polygon Source ID if provided).	List/Text

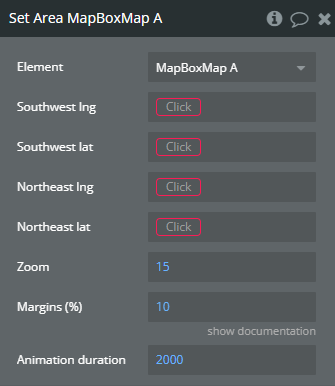

Set Area A MapBox Map

Adjusts the visible area of the MapBox map to fit a defined rectangular bounding box. This is useful for focusing the map on a specific region or selection, based on geographical coordinates.

Title	Description	Type
Element	The MapBox Map element where the area will be set.	Map element
Southwest lng	Longitude of the bottom-left (southwest) corner of the area.	Number
Southwest lat	Latitude of the bottom-left (southwest) corner of the area.	Number
Northeast lng	Longitude of the top-right (northeast) corner of the area.	Number
Northeast lat	Latitude of the top-right (northeast) corner of the area.	Number
Zoom	Zoom level to be applied when focusing the area.	Number
Margins (%)	Margin to apply around the defined area (useful to avoid edge clipping).	Number
Animation duration	Duration (in milliseconds) of the pan/zoom animation to the area.	Number

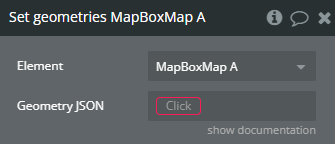

Set Geometries A MapBox Map

Updates the geometries displayed on the MapBox map using a custom JSON input. This allows you to dynamically render complex shapes like lines, polygons, and multipolygons using GeoJSON format.

Title	Description	Type
Element	The MapBox Map element where the geometries will be rendered.	Map element
Geometry JSON	GeoJSON object or expression containing the geometry data.	Text (JSON)

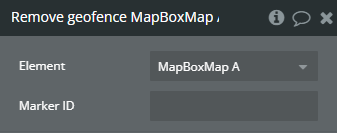

Remove Geofence A MapBox Map

Removes a geofence circle associated with a specific marker on the MapBox map. This is typically used after a proximity check or when resetting the map state.

Title	Description	Type
Element	The MapBox Map element from which the geofence will be removed.	Map element
Marker ID	The ID of the marker whose associated geofence should be removed.	Text

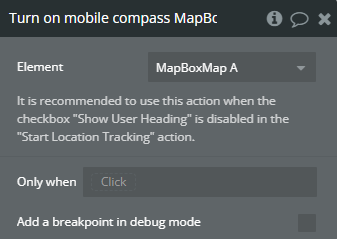

Turn On Mobile Compass A MapBox Map

Enables the device's mobile compass functionality for the MapBox map, allowing the map to rotate based on the device's physical orientation.

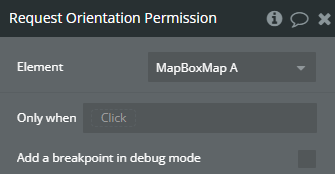

Request Orientation Permission A MapBox Map

Requests permission from the user to access the device's orientation sensors (e.g., compass/gyroscope), required especially on iOS devices to enable heading or rotation-based features.

On/Off Input Control A MapBox Map

Toggles the input control state of the MapBox map. This is useful when you want to programmatically enable or disable user interactions with the map (such as zooming, panning, rotating).

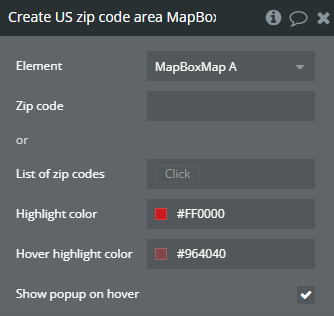

Create US Zip Code Area A MapBox Map

Displays and highlights the geographical boundaries of one or more US ZIP code areas on the MapBox map. You can customize the highlight color and display popup information on hover.

Title	Description	Type
Element	The MapBox Map element where ZIP areas will be displayed.	Map element
Zip code	Single ZIP code to display on the map.	Text
List of zip codes	Optional list of ZIP codes to display multiple areas.	List of Text
Highlight color	Color used to fill the ZIP code area(s).	Color (hex)
Hover highlight color	Color used to highlight area(s) on mouse hover.	Color (hex)
Show popup on hover	Whether to display a popup with ZIP code info when hovering the area.	Boolean

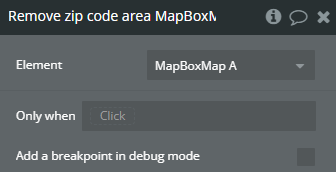

Remove Zip Code Area A MapBox Map

Removes any previously displayed ZIP code areas from the MapBox map. Use this to reset the map or clear selected regions added via the Create US Zip Code Area action.

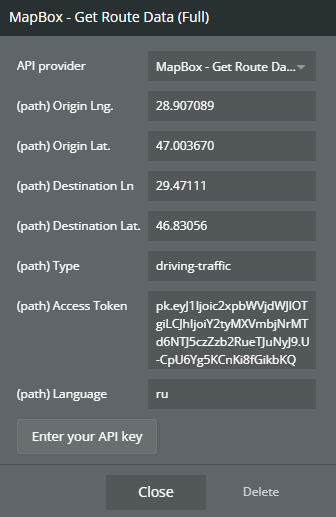

json
{
  "routes": [
    {
      "distance": 3783.2,
      "duration": 547.4,
      "geometry": {
        "coordinates": [
          [28.907089, 47.00367],
          [29.47111, 46.83056]
        ],
        "type": "LineString"
      },
      "legs": [
        {
          "summary": "",
          "steps": [
            {
              "distance": 340.5,
              "duration": 55.2,
              "maneuver": {
                "instruction": "Head southeast on Main Street"
              }
            },
            {
              "distance": 870.2,
              "duration": 115.3,
              "maneuver": {
                "instruction": "Turn right onto Highway 1"
              }
            }
          ]
        }
      ]
    }
  ],
  "waypoints": [
    {
      "location": [28.907089, 47.00367],
      "name": "Start Point"
    },
    {
      "location": [29.47111, 46.83056],
      "name": "End Point"
    }
  ],
  "code": "Ok"
}

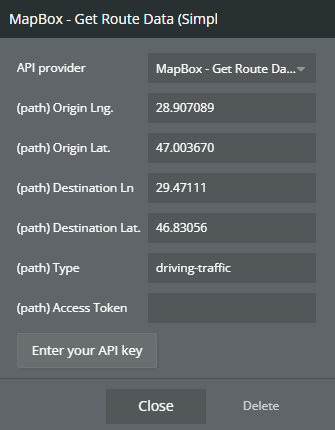

json
{
  "distance": 3783.2,
  "duration": 547.4,
  "geometry": {
    "coordinates": [
      [28.907089, 47.00367],
      [29.47111, 46.83056]
    ],
    "type": "LineString"
  }
}
