Simple Stopwatch / Timer Plugin

Introduction

Simple Timer/Countdown & Stopwatch plugin which lets you use it's actions and events to create the perfect timing application. It comes with 3 elements which can be used.

Elements

Timer Element

  • Actions
This element has 3 actions:
  • Start Timer - Start the timer from the time you set, decreasing, and it will stop automatically when the day, hour, minutes and seconds are equal to zero.
  • Pause - turn off the timer.
  • Reset timer - it stops and the timer resets to the initial data.
  • Events

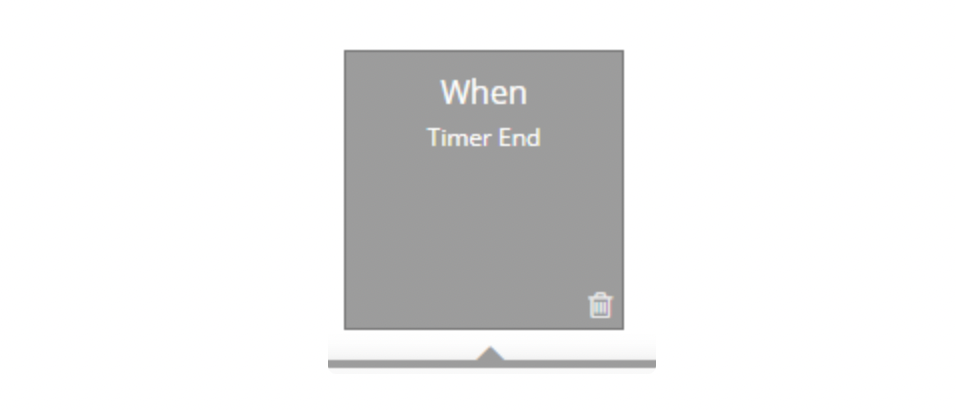

  • Timer End - this event helps the user trigger a list of actions at the end of the time set in the timer.
Image without caption
  • States
This element has 4 states:
  • Current days - keeps the number of days left until the timer stops.
  • Current hours - keeps the number of days left until the timer stop.
  • Current minutes - keeps the number of days left until the timer stops.
  • Current seconds - keeps the number of seconds left until the timer stops.

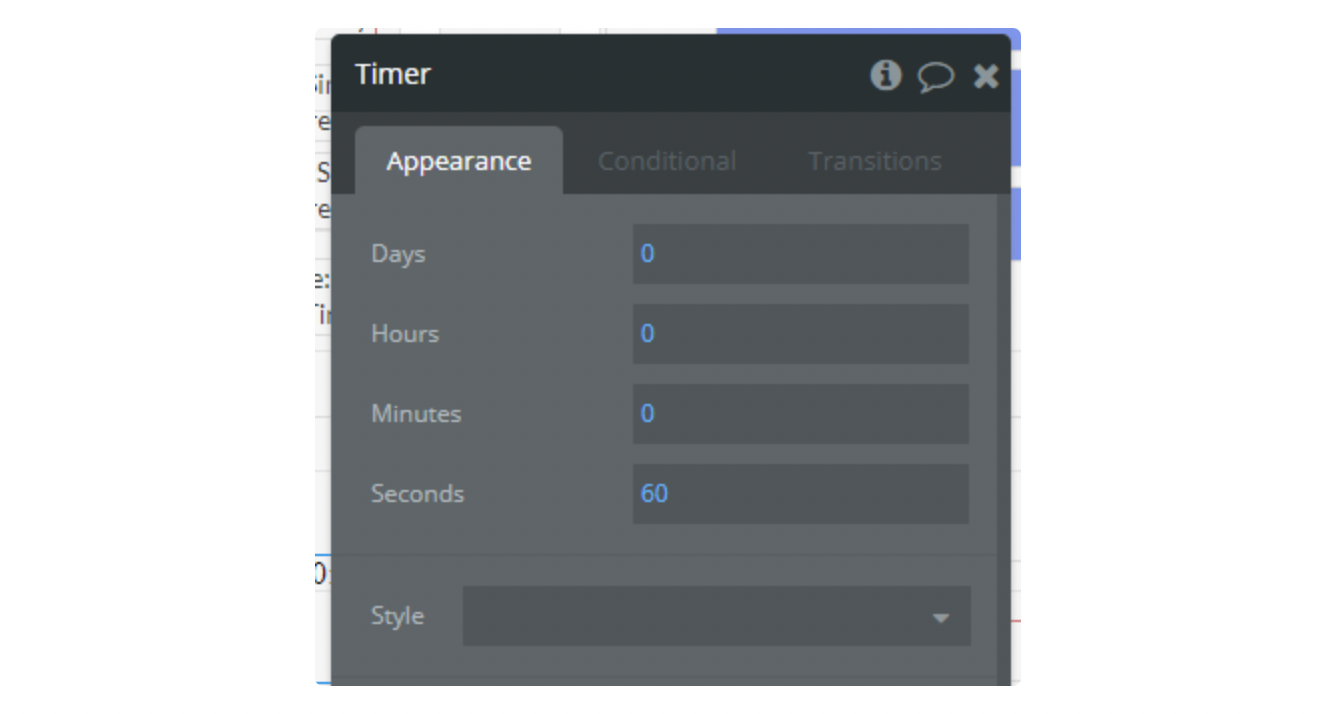

How to setup proprieties:
Image without caption
Set the number of days, hours, minutes and seconds from which to start the timer.

Countdown Element

  • Events
This element has 1 event:

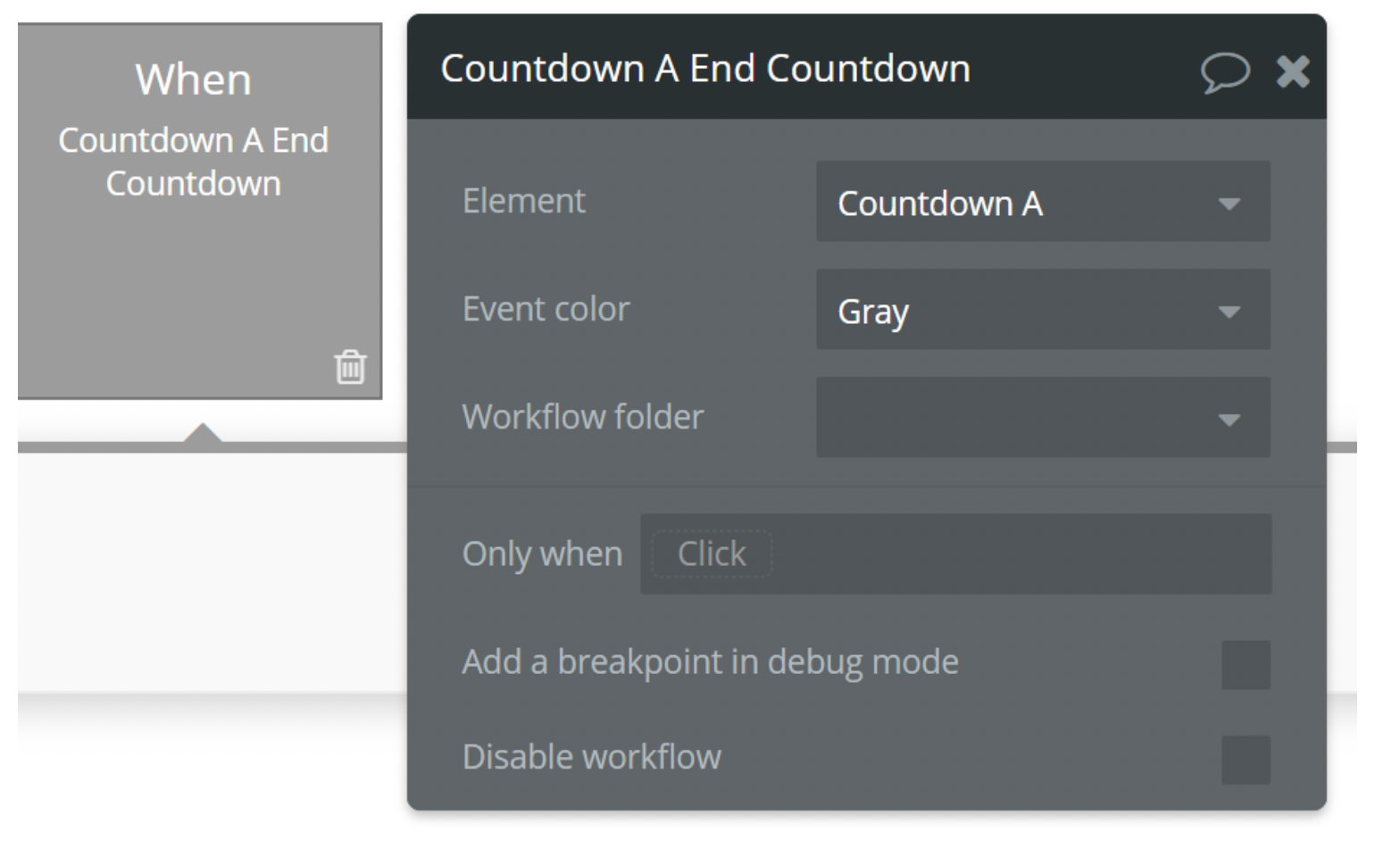

  • A Countdown Ended - When a Countdown time was ended
Image without caption
  • States
This item has 4 states:
  • Current days - keeps the number of days left until the countdown stops.
  • Current hours - keeps the number of days left until the countdown stop.
  • Current minutes - keeps the number of days left until the countdown stops.
  • Current seconds - keeps the number of seconds left until the countdown stops.

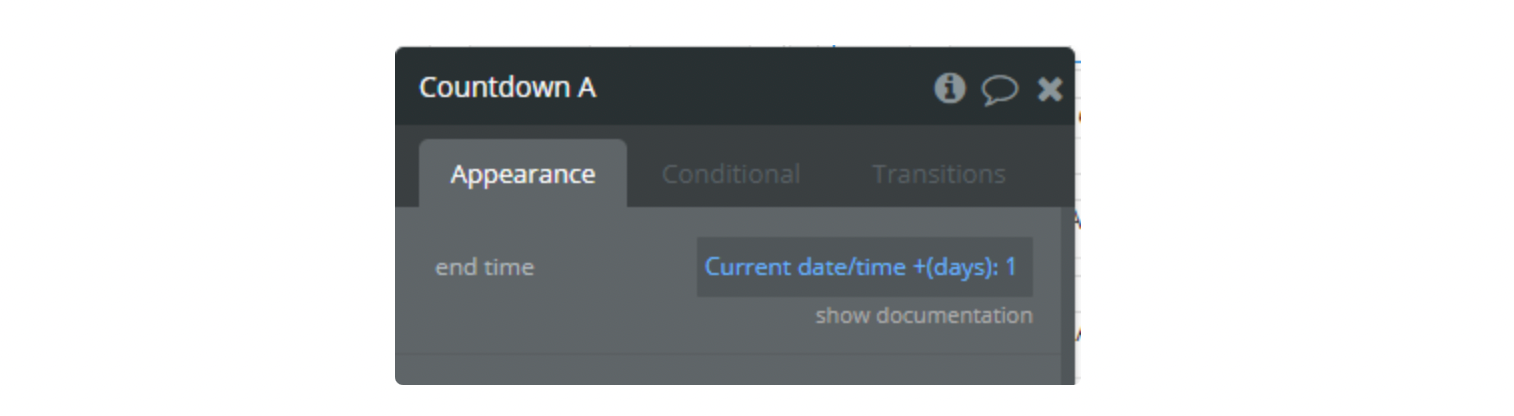

How to setup proprieties
Image without caption
Set backward counting in fixed units from an arbitrary starting number to mark the time remaining

Stopwatch Element

  • Actions
This element has 3 actions:
  • Start stopwatch - Start the timer from the time you set, decreasing, and it will stop automatically when the day, hour, minutes and seconds are equal to zero.
  • Pause stopwatch - turn off the timer.
  • Reset stopwatch - it stops and the timer resets to the initial data.
  • Events
This element has 3 events:
  • Start stopwatch - stopwatch was set to started
  • Pause - stopwatch was set to pause.
  • Reset stopwatch - stopwatch was set to reset
  • States
This item has 4 states:
  • Current days - keeps the number of days left until it stops.
  • Current hours - keeps the number of days left until it stops.
  • Current minutes - keeps the number of days left until it stops.
  • Current seconds - keeps the number of seconds left until stops.

Changelogs

Update: 04/21/2021 – Version: 1.11.0

  • fixed - Fixed timer operation in sleep mode

Update: 19/10/2023 – Version: 1.12.0

  • Minor fixes

Demo to preview the settings:
