PDF Converter & Splitter

Demo to preview the plugin:

Introduction

Simple, fast & handy PDF splitter & converter.
βœ… Simple
βœ… Fast
βœ… Handy
Convert PDF files to images for each page. Choose the image type and quality.
You can split and convert multiple files at once and get notified by events when the images are ready!

Plugin Element Properties

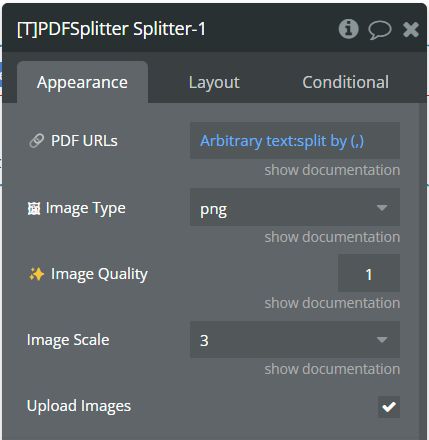

The plugin contains a PDF Splitter visual element that should be used on a page.
Image without caption
Title
Description
Type
PDF URLs
URLs of the PDF files to be processed.
List of texts
Image Type
The format of the output images, can be png or jpeg
Dropdown
Image Quality
In case you choose JPEG, define the Quality between 0.1 and 1. Ignored for PNG
Number
Upload Images
Determines whether the generated images should be uploaded. If true, images are uploaded, and their URLs are stored.
Checkbox

Exposed states

Name
Description
Type
Base64 Image Strings
Base64 encoded strings of the generated images. Each string is prefixed with the PDF number and page number for identification.
List of texts
Pages
The total number of pages processed across all PDFs. This state is updated as pages are processed.
Number
Image URLs
URLs of the uploaded images. Similar to images, each URL is prefixed for identification. This state is only relevant if upload_images is true.
List of images

Element Events

Name
Description
PDF images are ready
Triggered when all pages from all PDFs have been processed and converted to base64 image strings.
URLs are ready
Triggered when all images have been uploaded and their URLs are ready. This event only occurs if upload_images is true.

Workflow example

⏩ In general, Base64 images are faster to process so the event "PDF Preview PDF Images are Ready" will fire first. In case you want to use the actual image URLs (saved to S3), you should wait for the "PDF preview URLs are ready" event to be fired.
πŸ”— You can use a list of PDF URLs as input for the PDF Splitter. You can do this by simply giving it a list of files and use the ":each item's URL" operator.
βš™οΈ The plugin will return a list of strings that contain the information about the PDF and page + the actual image. It will look like this: "pdf_{pdf_number}_page_{page_number}__{Image string}" For Base64 images, the image string will be the base64 image string. For image URLs, the image string will be the Amazon S3 URL.
πŸͺ„ In both cases, if you want to display the images, for example in a repeating group, you need to split the strings "by __ (double underscore)" and pass "each item's last item" to the repeating group datasource, the data type should be "Image".

Changelogs

Update 06.02.24 - Version 1.1.0

  • updated description

Update 04.01.24 - Version 1.0.4

  • Checkbox for uploading images

Update 25.10.23 - Version 1.0.3

  • update to v4

Update 11.08.23 - Version 1.0.2

  • Name change

Update 18.04.23 - Version 1.0.1

  • Updated Event Naming

Update 21.03.23 - Version 1.0.0

  • Initial Release

Update 26.01.23 - Version 0.2.0

  • fix ready events

Update 25.01.23 - Version 0.1.1

  • take a list of pdfs

Update 23.01.23 - Version 0.1.0

  • Expose image files

Update 23.01.23 - Version 0.0.2

  • resize element

Update 23.01.23 - Version 0.0.1

  • init
