Calendar (Drag and Drop)

Introduction

This plugin is a powerful calendar with a fully customizable design and which connects directly to the Bubble database.​

Getting started The plugin comes with two elements

Element Calendar

  • Add calendar element on your page
Image without caption
  • First we need type name for Calendars table and Events table.
💡
Tip: What is Owner email needed for ? This email will be used to locate user specific data, this is optional. But if you want to use it you should insert a dynamic expression pointing to the user's email address.

Creating Calendars table and Events table types in DataBase for element calendar

Calendars table is the database table that contains all the information about your calendar.
  • First let's create a type for calendars table, add fields as in example below, you can name this type any way you want but for fields use names as in example below:
Note: Datatype Name should not have any spacing ( ). CalendarEvents - ok. Calendar Events - not ok.
Image without caption
  • Now let's create Events table type, you can name it also any way you want but for fields use names from example.
Events table is the database table that contains all the information about your calendar.
Image without caption
Important: In order to get it work , it will be required to open this types for public end points (Exposing DATA and Workflow API)!
  • To make them public, go to settings then API tab and set the checkmark to types that you just created.
Image without caption
To let the plugin edit, delete and update the data from the database of the app it is needed to set up privacy settings. In order to do that please open the Privacy tab, select from the left side the data type Calendars and TaskEvents and set the roles for both data types as shown in the image.
Image without caption
At this point, your calendar will be shown already, now you just need to customize it, if needed. You can add custom popups with fields to create new schedules or to update them and use calendar actions in the workflow.
You can easily customize colors of most inner elements like SIDE MENU(Background color, Button background, Button font color, Radio color), TOP MENU (Background color, Elements' background), POPUP, VIEW MENU, DATE PICKER, and others.

Element Calendar v2

  • Add a calendar element on your page
Image without caption
  • First, create a table for the Calendars and Events types.

Creating Calendars table and Events table types in DataBase for element Calendar v2

The calendar table is the database table that contains all the information about your calendar.
  • Create a type for the calendars table, and add fields as in the example below. You can name this type any way you want but for fields use names as in the example below:
Note: Datatype Name should not have any spacing ( ). CalendarEvents - ok. Calendar Events - not ok.
Image without caption
Image without caption
  • Now let's create Events table type, you can name it also any way you want but for fields use names from the example.
The events table is the database table that contains all the information about your calendar.
Image without caption
Image without caption
Fields
Title
Description
Type
Events Type
the events table is the database table that contains all the information about your events.
App Type
Events Source
data source from DB for Events type
as Event Type
Event ID
unique id of the event
Event Title
title of the event
Is All Day field
field from DB contain data wheter the event is All Day or not
as Event Type
Event Color
event color
Event Calendar ID
calendar unique ID
Event Start
start time f the event
Event End
end time of the event
Creation Popup
use built-in popup for event creation
Checkbox
Detail Popup
use a built-in popup for displaying event details
Checkbox
Calendar Settings
Calendar Type
the calendar table is the database table that contains all the information about your calendar.
App Type
Calendar ID
unique ID of the calendar
Calendar Title
title of the calendar
Calendar Text Color
text color of the calendar event when Day/Week view
Calendar Background Color
background color of the calendar event when Day/Week view
Options for monthly view
Start day of week
Choices (Sunday, Monday, Tuesday, Wednesday, Thursday, Friday, Saturday)
Dropdown
Show weekends
Whether to include Saturday and Sunday.
Checkbox
Visible Weeks Count
A number of weeks to display. 0 means display all weeks.
Number
Options for week view
Start Day Of Week
Choices(Sunday, Monday, Tuesday, Wednesday, Thursday, Friday, Saturday)
Dropdown
Hour Start
Start hour of the day. Available values are 0 to 23.
Number
Hour End
End hour of the day. Available values are 0 to 24. Must be greater than Hour Start.
Number
Calendar Settings
Default View
Initial view type. (Day, Week, Month)
Dropdown
Read Only
Whether the calendar is read-only.
yes/no
Common Styling
Background Color
background color of the calendar
Color
Holiday Color
color of the Holiday
Color
Saturday Color
color of Saturday
Color
Dayname Color
color of the day name
Color
Today Color
color of the today
Color
Common Creation Styling
Background Color
background color of the dedicated (day, period or hour)
Color
Border color
border color of the dedicated (day, period or hour)
Color
Month Styling
Height
header dayname height
Number
Font Size
header dayname font size
Number
Bold
header dayname bold
Checkbox
Day Styling
Font Size
day font size applicable only when Month view
Number
Week Styling
Height
header dayname height
Number
Today Color
color of today
Color
Past Day Color
color of yesterday
Color
Today Background Color
color of the today background
Color
Week Timegrid Styling
Left Width
left width to calendar margin
Number
Left Font size
font size of the left timegrid
Number
Hour Height
height of the hour
Number
Week time settings
Current time color
color of the current time
Color
Current time font size
font size of the current time
Number
Current time bold
bold of the current time
Checkbox
Past time color
color of the past time
Color
Past time bold
bold of the past time
Checkbox
Future time color
color of the future time
Color
Future time bold
bold of the future time
Checkbox
Current time Timeline Color
color of the current time Timeline
Color

Setup Workflow

For the calendar to work properly, you need to configure Workflow
  1. Event is created
    1. Image without caption
  1. Event is edited
    1. Image without caption
  1. Event is deleted
    1. Image without caption

States

Title
Description
Type
Clicked Event ID
ID Event clicked
string
Deleted Event ID
ID Event deleted
string
Created Event Start
Date created Event Start
date
Created Event End
Date created Event End
date
Created Event Calendar ID
Calendar ID Event Created
string
Created Event Title
Title Event Created
string
Created Event is All Day
Created Event is All Day
yes/no
Edited event ID
ID Event Edited
string
Edited event Title
Title event Edited
string
Edited event Start
Start Event Edited
date
Edited event End
End Event Edited
date
Edited event Is All Day
Edited event Is All Day
yes/no
Edited event Calendar ID
Edited event Calendar ID
string

Actions

  1. Change current view - Change current view with view name ('day', 'week', 'month')
Image without caption
Fields:
Title
Description
Type
View
view name ('day', 'week', 'month')
Dropdown
  1. Clear all events
Image without caption

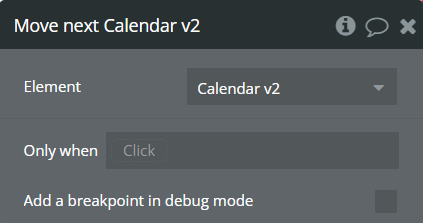

  1. Move next - Move the calendar forward a day, a week, a month
Image without caption
  1. Move prev - Move the calendar backward a day, a week, a month
Image without caption
  1. Go to date - Go to the selected day
    1. Image without caption
Fields:
Title
Description
Type
Date
selected date
date
Change view to 'day’
Change view to 'day’
checkbox
  1. Go to today - Select a date today
Image without caption
  1. Show events from one calendar
    1. Image without caption
Fields:
Title
Description
Type
Show events from calendar
Calendar ID
string (optional)

Other functionality

Partial Multi-editing:
Partial Multi-editing means that any changes you apply will apply to the bubble database, but only that user who made those changes see them immediately, while others using the same calendar will need to reload the page in order to see them, but they are allowed to modify the fields at the same time and by manual re-initiation (through the workflow that is called "reload table")

Changelogs

Update 05.04.2021
  • Minor changes
Update 13.04.2021
  • Bugfix in displaying event color if there is more than one calendar on the page
Update 28.05.2021 - Version 1.27.0
  • Fixed the 'current user's email field. now events and calendars are loaded in two fields, owner email, and current user email.
  • Fixed bugs sometimes occurring when editing events
Update 27.09.2021 - Version 1.29.0
  • Added the possibility to refetch events from the base.
Update 28.10.2021 - Version 1.30.0
  • Fixed events request on version live.
Update 21.12.2021 - Version 1.31.0
  • Fixed error in events creation
Update 23.09.22 - Version: 1.33.0
  • minor fixes

Demo to preview the settings
